| Deleks products take about 15 to 30 days. |

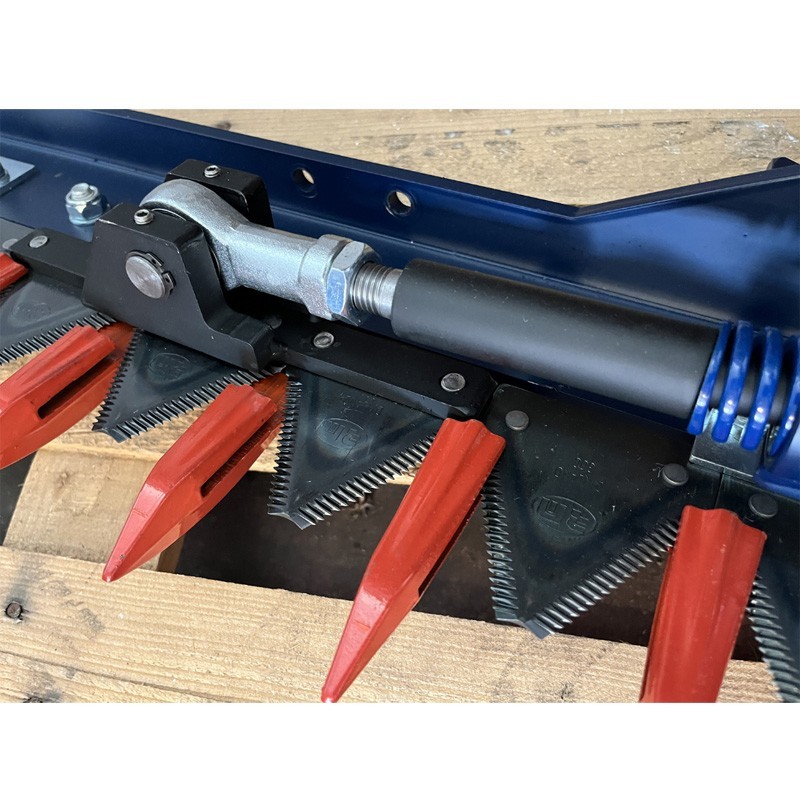

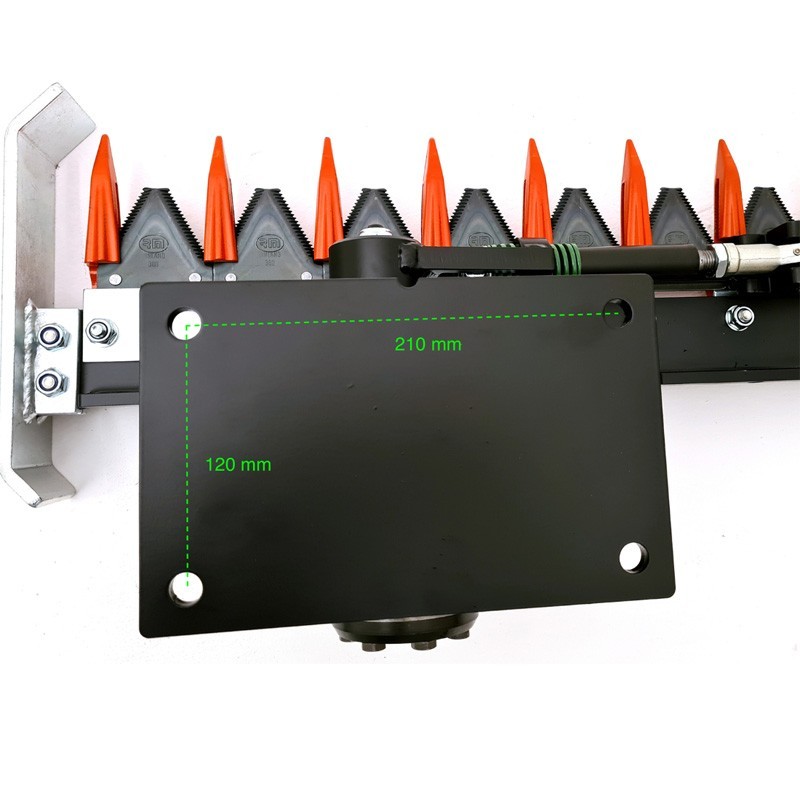

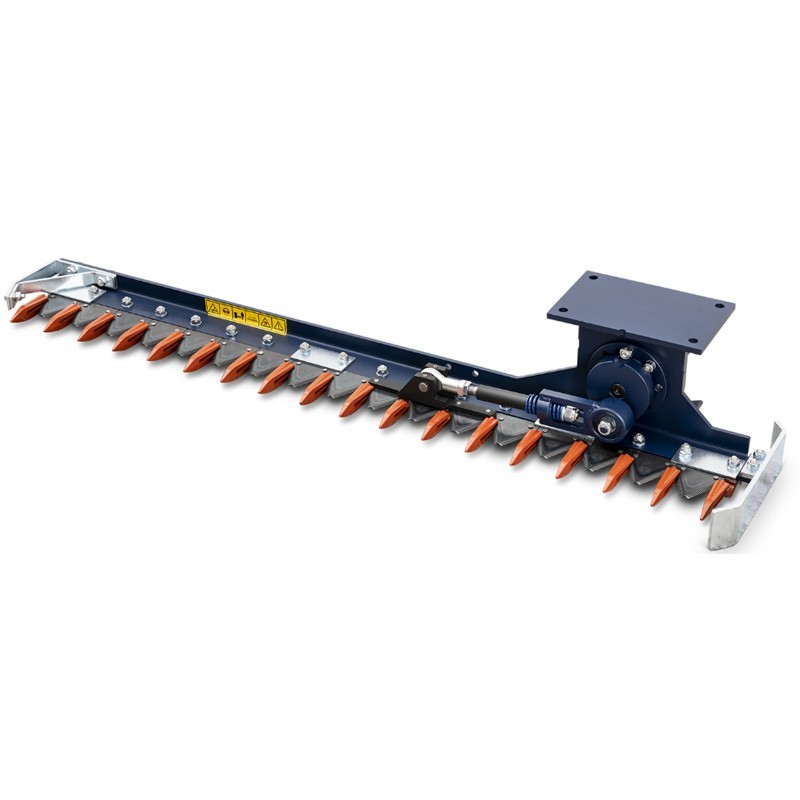

The hydraulic cutter bar Deleks HR-S is ideal for pruning grass and hedges with a maximum diameter of 1-2 cm. Standard equipment includes hydraulic motor and coupling plate with 4 mounting holes. The blades move quickly and allow precise cutting of the hedge. The bar is controlled by the tractor hydraulics.
| Model | HR-130-S | HR-160-S | HR-180S |
| Working width | 1300 mm | 1600 mm | 1800 mm |
| Overall width | 1380 mm | 1680 mm | 1880 mm |
| Weight | 58 kg | 62 kg | 70 kg |
| Max. cutting diameter | 10.0-20.0 mm | 10.0-20.0 mm | 20.0-30.0 mm |
| Number of blades | 17 | 21 | 23 |
| Oil pressure min./max | 140 - 180 bar | 140 - 180 bar | 140 - 180 bar |
| Optimal oil flow | min. 20 l/min | min. 20 l/min | min. 20 l/min |
| Packing dimensions | 138 x 60 x 30 cm | 168 x 60 x 30 cm | 188 x 60 x 60 x 30 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
