Transmission shaft Deleks CAT-4 800mm + Friction
Transmission shaft Deleks CAT-4 800mm + Friction
Transmission shaft Deleks CAT-4 800mm + Friction

Transmission shaft Deleks CAT-4 800mm + Friction

Rating:
(0)
  • Minimum length: 800 mm
  • Crosshead: ø27.0 x 74.6
  • Transmission power at 540 r/min: 35 HP (26Kw)
  • Transmission power at 1000 r/min: 55 HP (40Kw)
Deleks products take about 15 to 30 days.
En stock
icon Country of manufacture
Country of manufacture
Italy
€121.87 excl. VAT
€147.46 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Transmission shaft Deleks CAT-4 800mm + Friction
€147.46
Qty

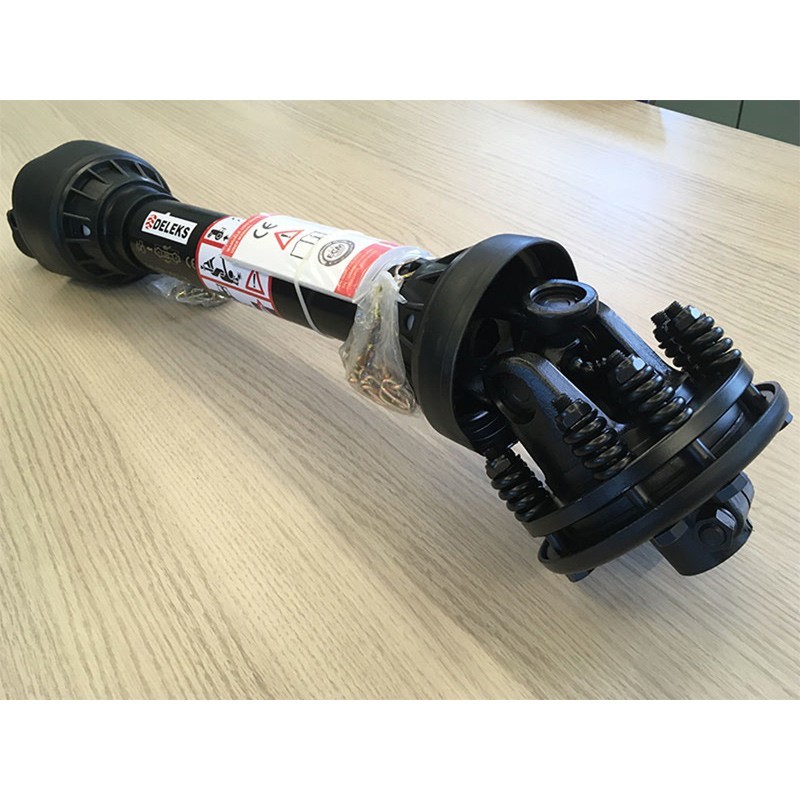

Deleks CAT-4 800mm + Friction Cardan Drive Shaft

The CAT-4 transmission cardan of Deleks has a length of 800mm and a crosshead with a diameter of 27 x 74.6.. The maximum transmission power at 540rpm is 35HP and at 1000rpm is 55HP.

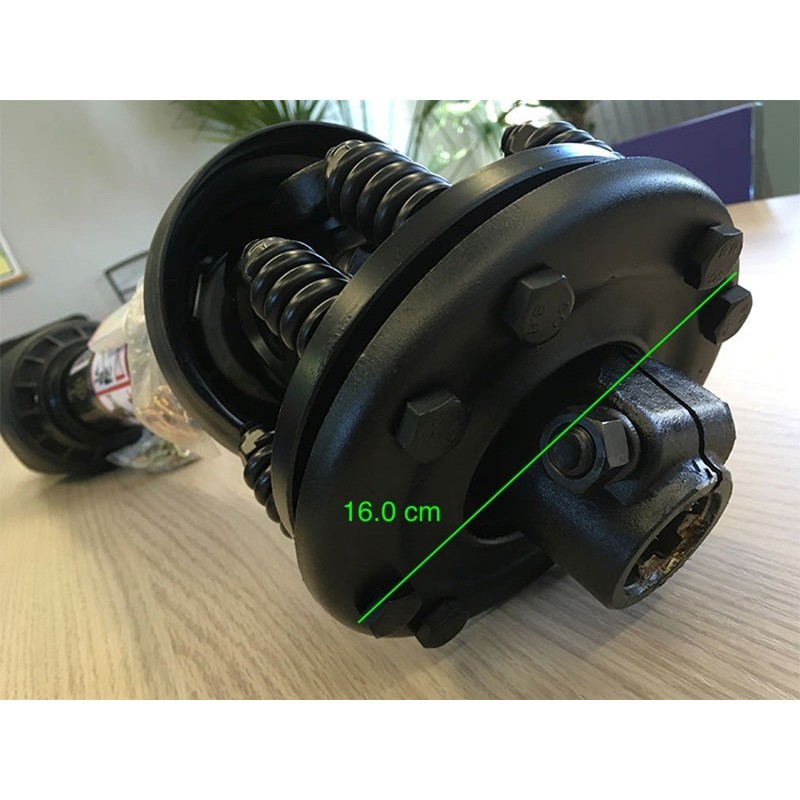

Thanks to the Ø160 mm friction torque limiter included as standard, the machine interrupts the power transmission when the torque exceeds the corresponding value. In addition, this model comes with ECM certificate and user manual. This cardan has a weight of only 14kg.

  • Minimum length: 800 mm
  • Crosshead: ø27.0*74.6
  • Transmission power at 540 r/min: 35 HP (26Kw)
  • Transmission power at 1000 r/min: 55 HP (40Kw)
  • Friction limiterincluded
  • ECM Certification Ente Certificazione Macchine (Modena-Italy).
  • User's manual
  • Weight: 14kg
258183

Data sheet

Country of manufacture
Italy

Specific References

EAN-13
8053470232060
New
