Tracked Barrow Centauro SP MINITRANS 500 Honda engine 5.5 HP
Tracked Barrow Centauro SP MINITRANS 500 Honda engine 5.5 HP
Tracked Barrow Centauro SP MINITRANS 500 Honda engine 5.5 HP
Tracked Barrow Centauro SP MINITRANS 500 Honda engine 5.5 HP
Tracked Barrow Centauro SP MINITRANS 500 Honda engine 5.5 HP
Tracked Barrow Centauro SP MINITRANS 500 Honda engine 5.5 HP

Tracked Barrow Centauro SP MINITRANS 500 Honda engine 5.5 HP


  • Original Honda GX 160 engine
  • Power 5.5 hp
icon Power Supply
Power Supply
Gasoline
icon Load capacity
Load capacity
500 kg
icon Forklift Type
Forklift Type
From Tracked
icon Startup
Startup
Electric
icon Engine
Engine
Honda
icon Engine model
Engine model
Honda
icon Displacement
Displacement
196 cc
icon Power
Power
5.5 HP
icon Engine type
Engine type
4 strokes
icon Gears
Gears
3+1
icon Max. slope
Max. slope
20%
icon Drawer turning
Drawer turning
Manual
icon Transmission type
Transmission type
Straps
icon Type of box
Type of box
Extendable box
icon spin
spin
Assisted
icon Weight
Weight
236 kg
€2,486.30 excl. VAT
- 4%
€2,386.85 excl. VAT
€2,888.09 VAT incl.
Free shipping for Spain (Peninsula)
Qty
Check stock

Request a quote
close

Request a quote


Tracked Barrow Centauro SP MINITRANS 500 Honda engine 5.5 HP
€2,888.09
Qty
Check stock

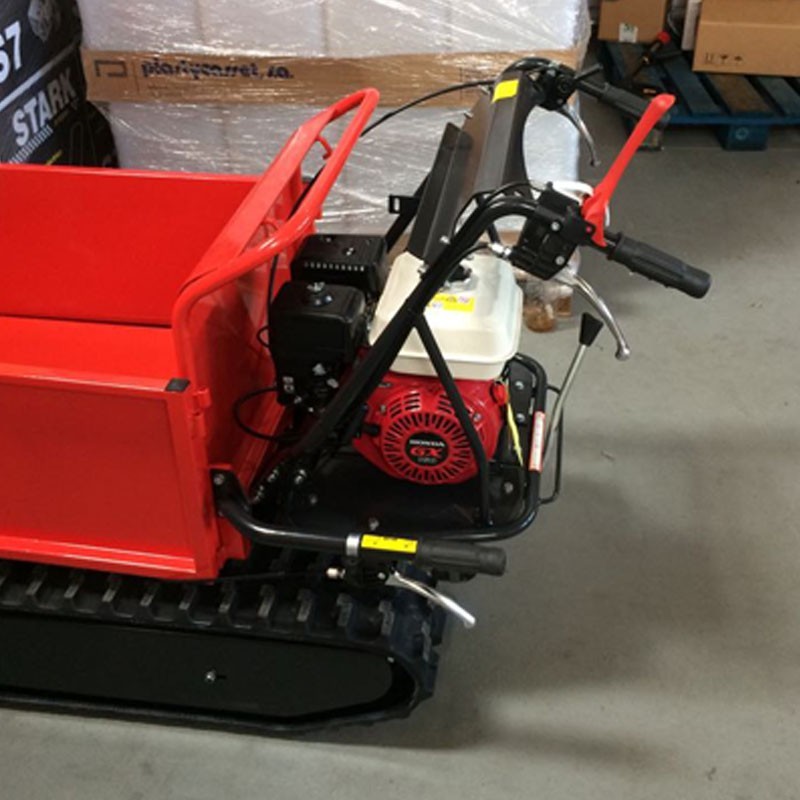

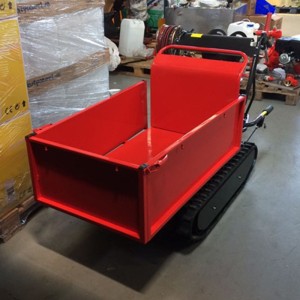

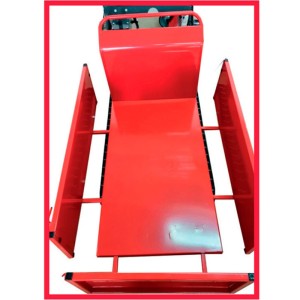

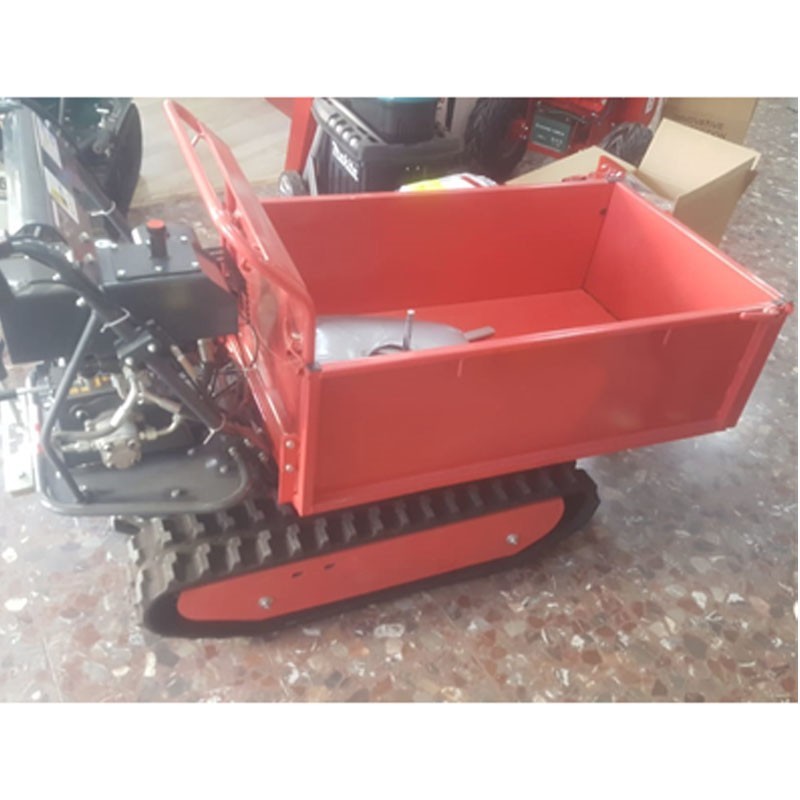

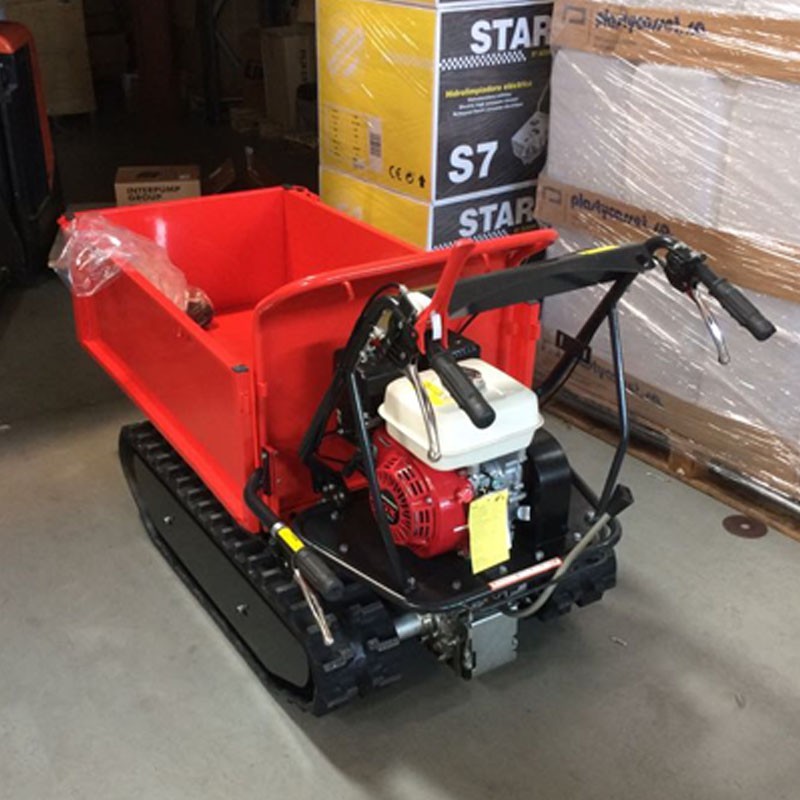

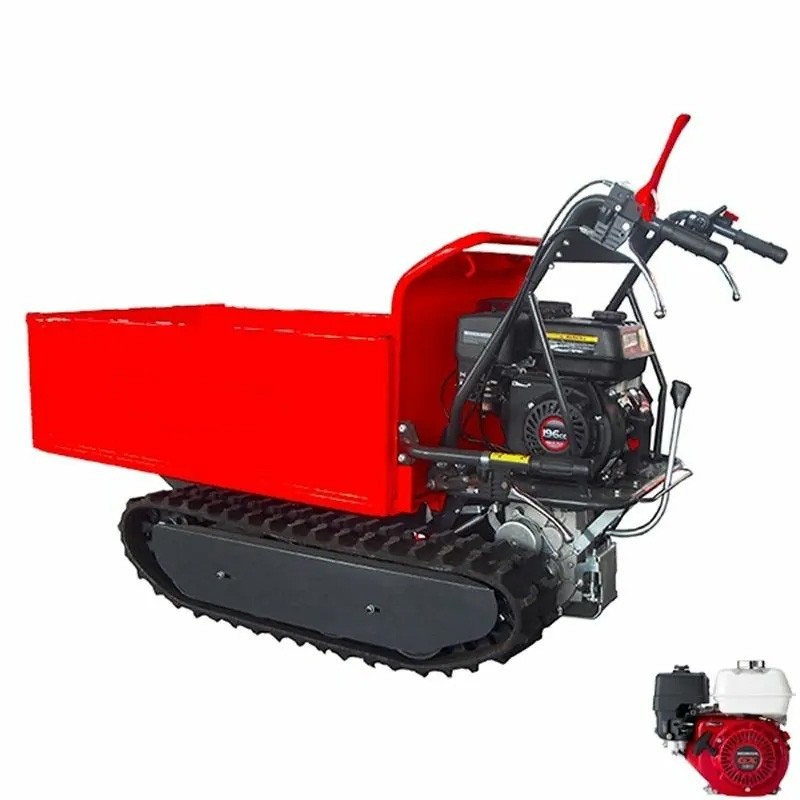

Tracked Barrow Centaur SP MINITRANS 500

The Centauro SP MINITRANS 500 tracked forklift has a 4-stroke honda gasoline engine with electric recoil starter with a displacement of 196 cc. It also has a power of 5.5 HP.

This machine has a noise level of 70 dBA and a butterfly carburetor. In addition, the Centauro SP MINITRANS 500 tracked forklift has a rated power of 4100 W.

The Centauro SP MINITRANS 500 has a transistorized magneto ignition system and a semi-dry air filter, with double element and oil bath.

Engine specifications

  • Overhead valve design (OHV), lower operating temperature, powerful drive and reliability and durability, and saves more oil.
  • Cast iron housing not only effectively improves lubrication, but also makes the motor more wear-resistant and prolongs its service life.
  • Automatic alarm and low oil level stop, which prevents the engine from running at low oil level and gives more protection to the engine.
  • Metal cam and forged crankshaft make the engine more reliable and durable.
  • Complies with EPA III and CARB Standard.

Features

Engine Honda 4-stroke gasoline
Power 5.5 HP
Speeds 3 forward and 1 reverse
Load capacity 500 Kg
Engine type Single-cylinder, forced cooling, OHV
Displacement 196 cc
Rated power 4100 W / 3600 RPM
Net torque 12.4 N.m / 2500 rpm
Idle speed 1400 ± 1500 RPM
Compression ratio 8,5:1
PTO shaft rotation Yes, counterclockwise (from PTO side)
Noise level 70 dBA
Ignition system Yes, transistorized magneto
Starting system Electric, recoil start
Carburetor type Throttle
Air filter Yes, semi-dry, dual element, oil bath
Oil capacity 0,6 L
Fuel tank capacity 3,6 L
Dimensions 1390 x 800 x 850 mm
Weight 236 Kg
Maximum slope 20%
167883

Data sheet

Power Supply
Gasoline
Load capacity
500 kg
Power (HP)
5.0 - 5.9 HP
Forklift Type
From Tracked
Startup
Electric
Engine
Honda
Engine model
Honda
Displacement
196 cc
Power
5.5 HP
Engine type
4 strokes
Gears
3+1
Displacement (cc)
100 cc - 199 cc
Max. slope
20%
Drawer turning
Manual
Transmission type
Straps
Type of box
Extendable box
spin
Assisted
Weight
236 kg

Specific References

MPN
BJR SP MINITRANS 500
