Tracked Barrow Bertolini BTR 550 Honda engine 4.8 HP
- Honda GX 160 OHV engine
- 6 speeds (4 forward + 2 reverse)
- Maximum load 550 Kg
- Power 4.8 HP
€4,376.75 VAT incl.

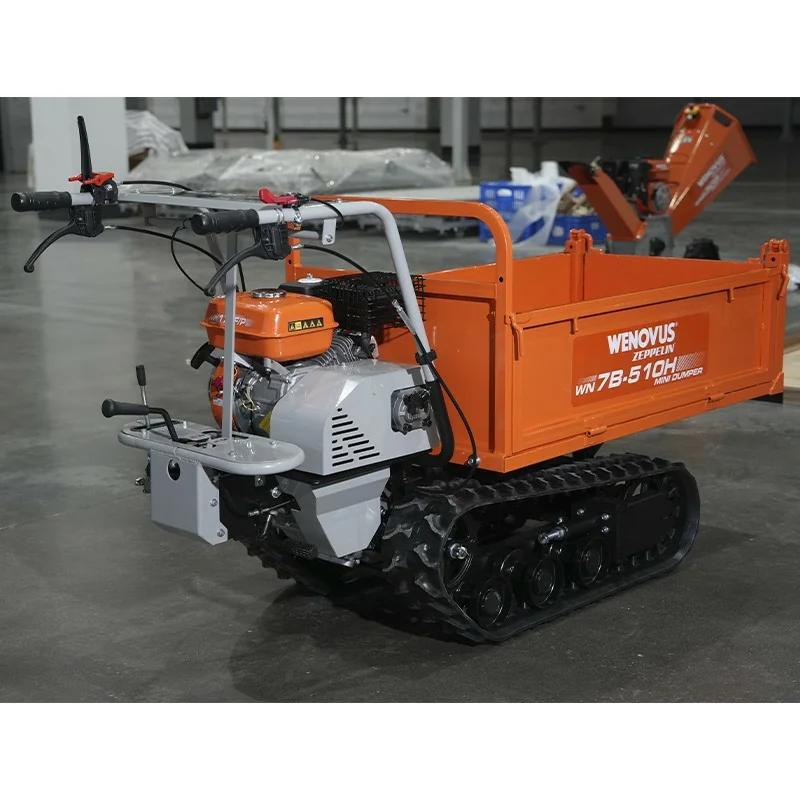

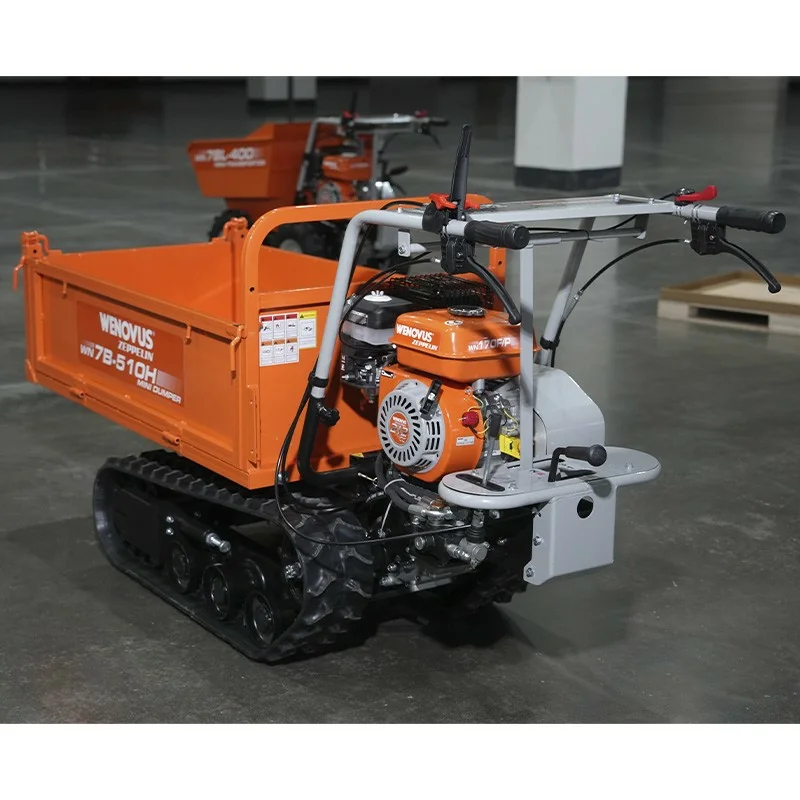

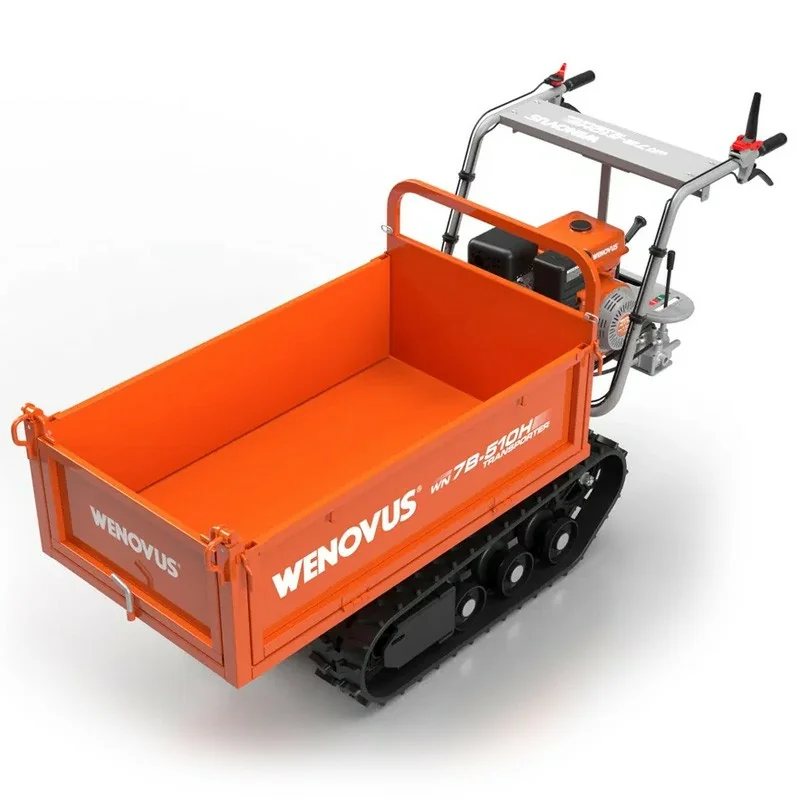

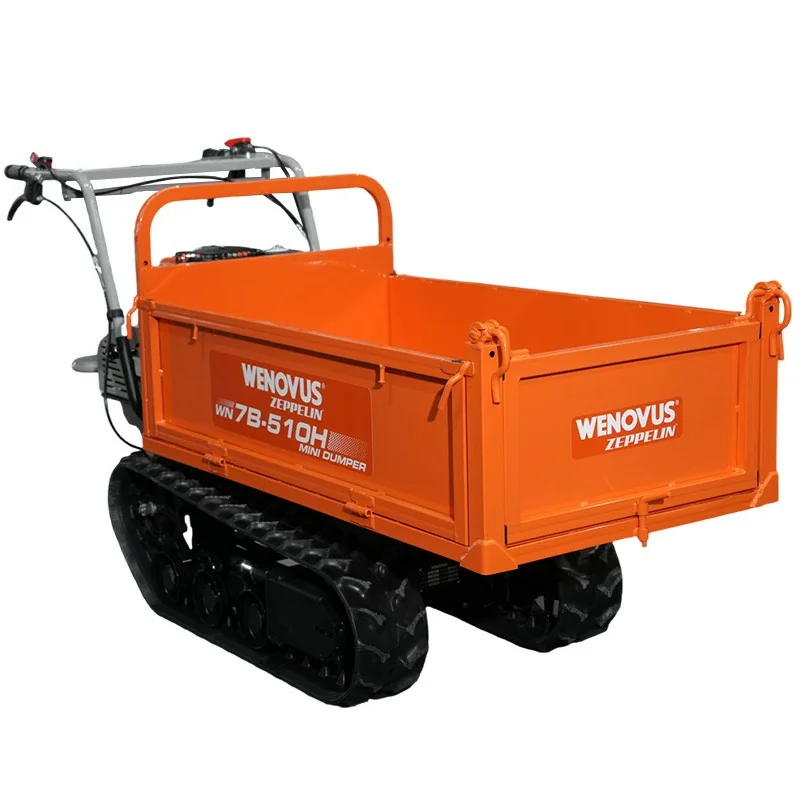

The tracked Zeppelin Wenovus 7BL-510 for klift is a robust and versatile tool designed for transporting materials in difficult terrain. Thanks to its 160 mm wide tracked system and its minimum ground clearance of 130 mm, it travels with ease even in uneven areas, mud or steep slopes.
Its hydraulic load box with a tipping angle of over 45° and a capacity of up to 510 kg allows fast and efficient unloading, ideal for construction, agricultural or gardening work. The turning radius of less than 1.25 m facilitates precise maneuvering in tight spaces.
Equipped with a WEIMA WN170F/P single-cylinder, 212 cc, 4.0 kW gasoline engine, it offers manual start, gear transmission with 6 forward and 2 reverse gears, and a one-way steering brake system, ensuring control and reliability at all times.
Load capacity | 510 kg |
Tracked | 160 x 60 x 37 mm |
Belt distance | 450 mm |
Minimum ground clearance | 130 mm |
Minimum turning radius | ≤1,25 m |
Climbing capacity (without load) | 25° |
Load box tipping method | Hydraulic tipping |
Rotation angle of cargo box | ≥45° |
Motor model | WN170F/P (WEIMA) |
Displacement | 212 cc |
Power Supply | Gasoline |
Engine type | Single-cylinder 4-stroke air-cooled |
Power rating | 4.0 kW |
Starter | Manual |
Clutch | Belt tension type |
Transmission | Gear, 6F and 2R |
Swivel | Built-in one-way steering brake |
Brake | Internal expansion |
Dimensions | 1900 x 690 x 1140 mm |
Cargo box dimensions | 1130 x 650 x 325 mm |
Weight | 220 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
