Forklift tracked Zeppelin Wenovus 7BL-510 5,3 HP
- Load capacity : 510 kg
- Displacementrated power: 212 cc
- Rated power: 4.0 kW
€1,749.87 VAT incl.

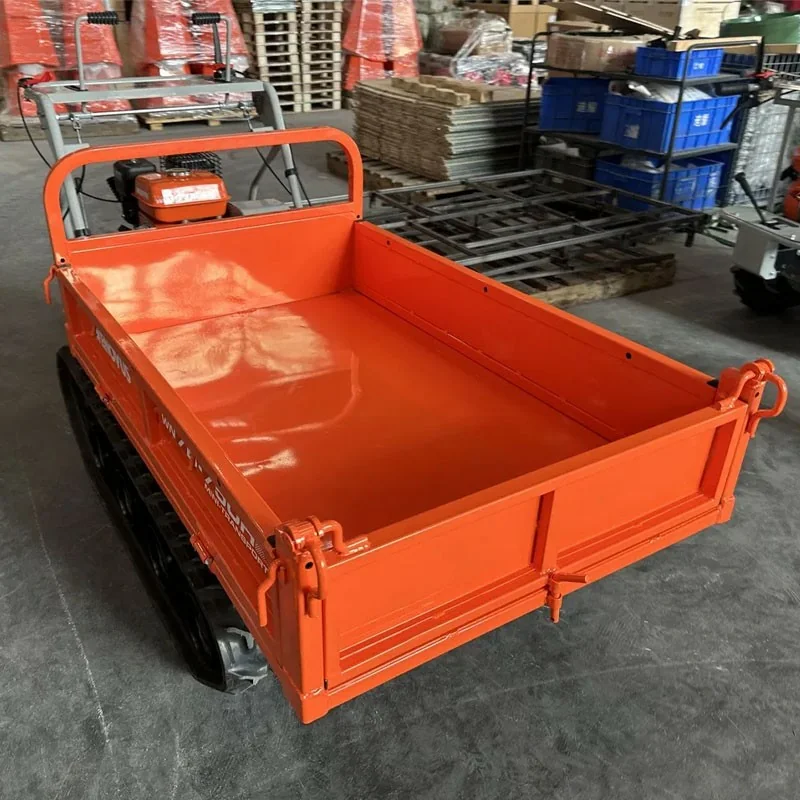

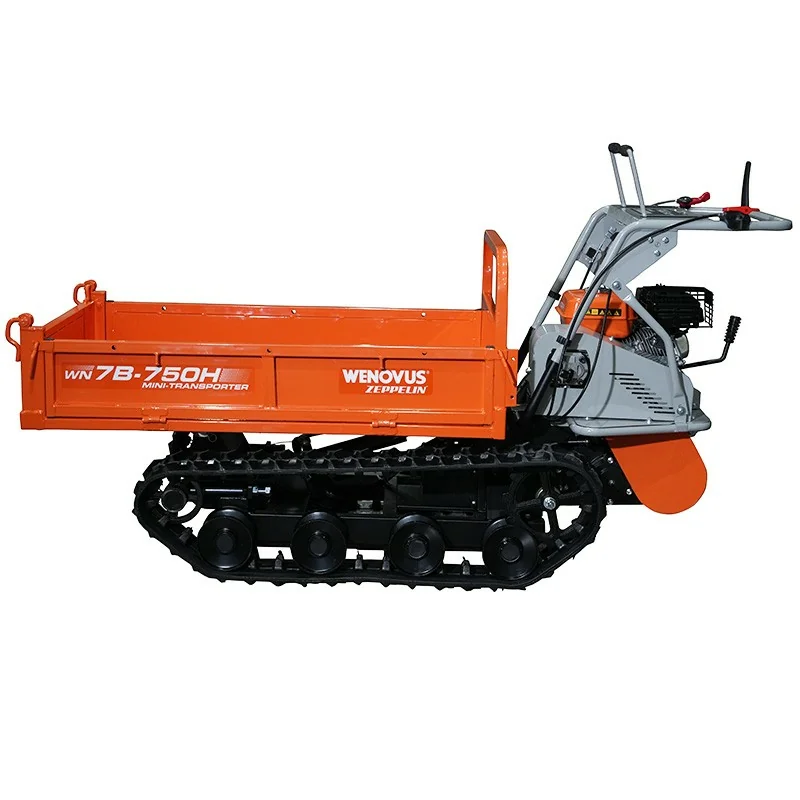

The tracked Zeppelin Wenovus 7BL-750HZ for klift is designed for transporting heavy materials on difficult terrain. Its traction system by tracked ensures excellent stability, even on uneven or sloping surfaces.
It has a 1250 x 825 mm cargo box and a capacity of up to 750 kg. The hydraulic tipping system allows controlled unloading with a maximum tilt angle of 45°, ideal for moving firewood, boxes or debris without additional effort.

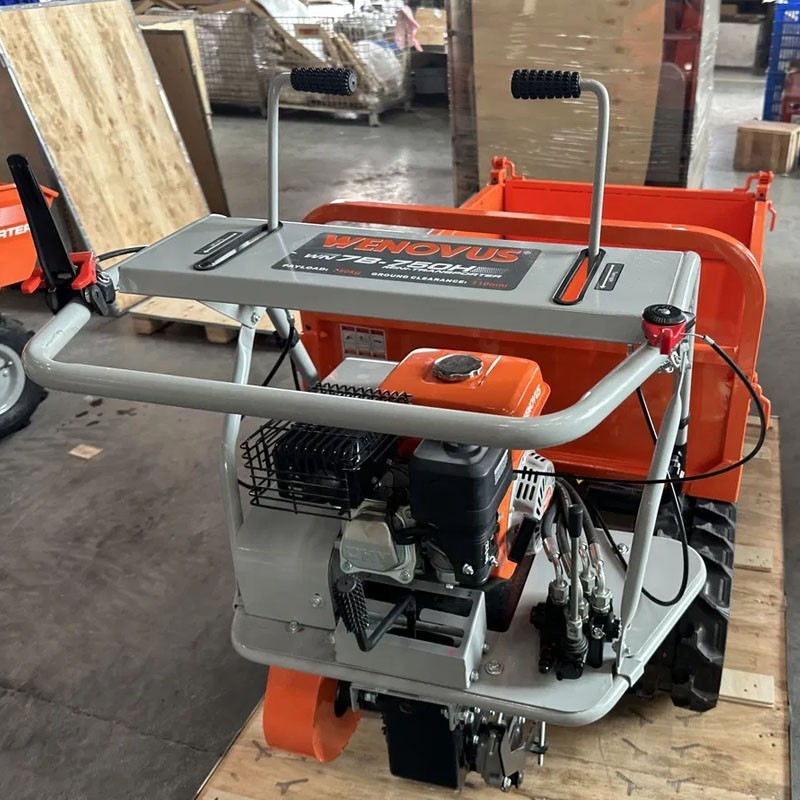

Equipped with a 212 cc, 4.0 kW WEIMA engine, it runs on gasoline and delivers reliable performance over long days. Its 3 gears forward and 1 reverse transmission makes it easy to maneuver even in tight spaces.
The Wenovus 7BL-750HZ features a one-way steering brake and belt tension clutch for comfortable and safe operation. Thanks to its compact design and turning radius of less than 1.5 meters, it is an efficient solution for intensive outdoor work.
Load capacity | 750 kg |
Tracked | 180 x 72 x 38 mm |
Belt distance | 660 mm |
Minimum ground clearance | 130 mm |
Minimum turning radius | ≤1,5 m |
Climbing capacity (without load) | 25° |
Load box tipping method | Hydraulic tipping |
Rotation angle of cargo box | ≥45° |
Motor model | WN170F/P (WEIMA) |
Displacement | 212 cc |
Power Supply | Gasoline |
Engine type | Single-cylinder 4-stroke air-cooled |
Power rating | 4.0 kW |
Starter | Manual |
Clutch | Belt tension type |
Transmission | Gear, 3F and 1R |
Swivel | Built-in one-way steering brake |
Brake | Internal expansion |
Dimensions | 2020 x 894 x 1234 mm |
Cargo box dimensions | 1250 x 825 x 395 mm |
Weight | 325 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
