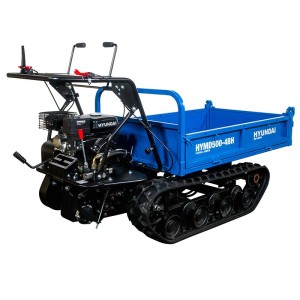

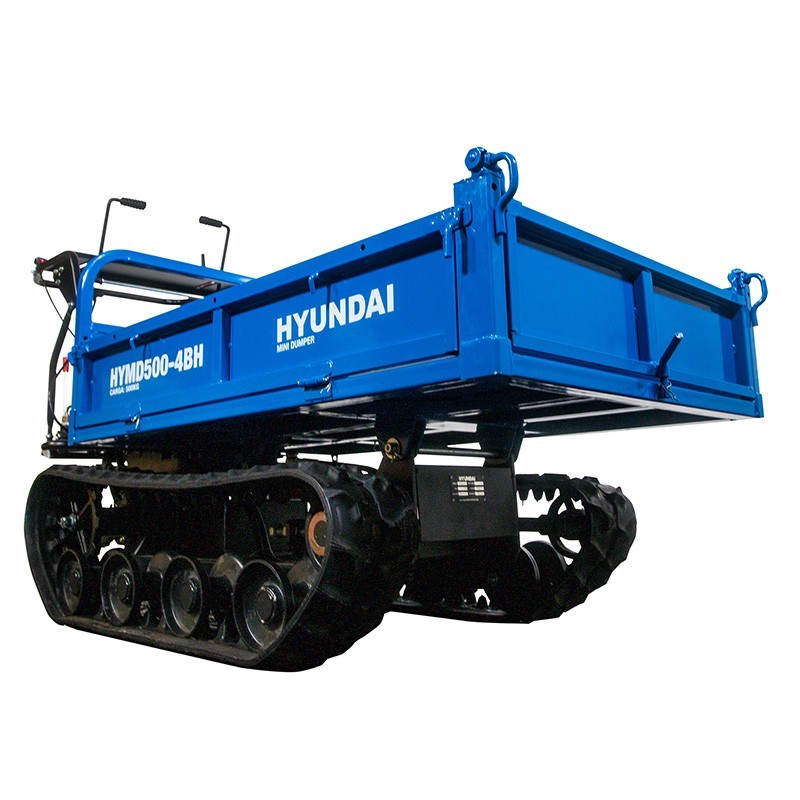

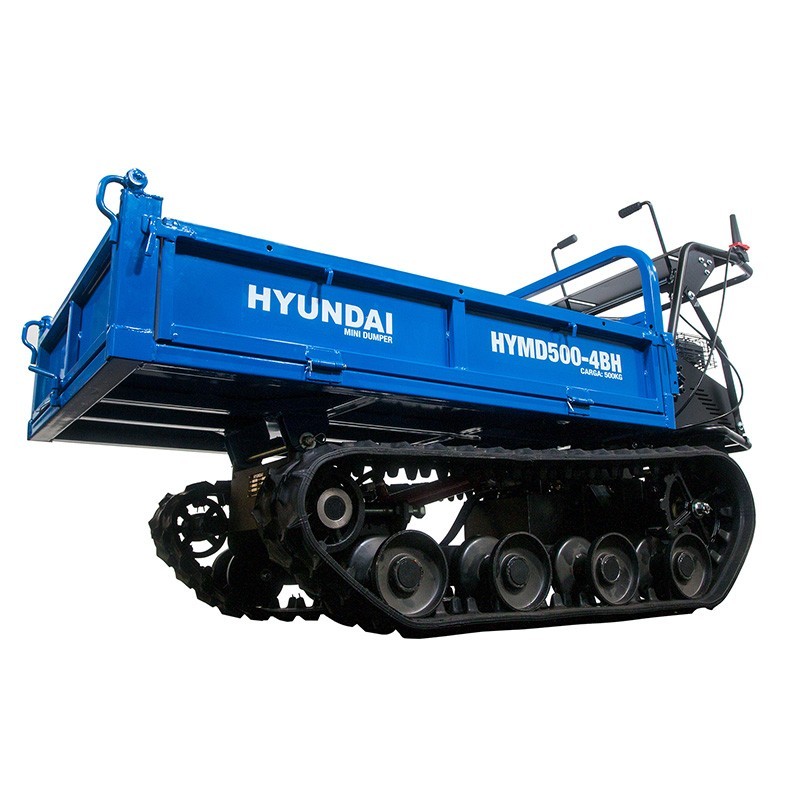

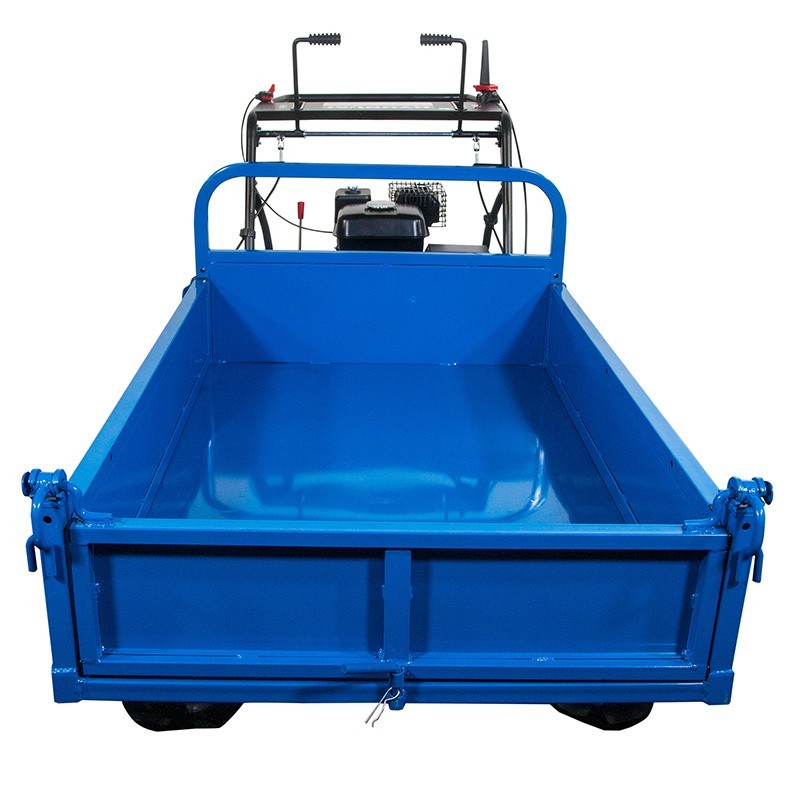

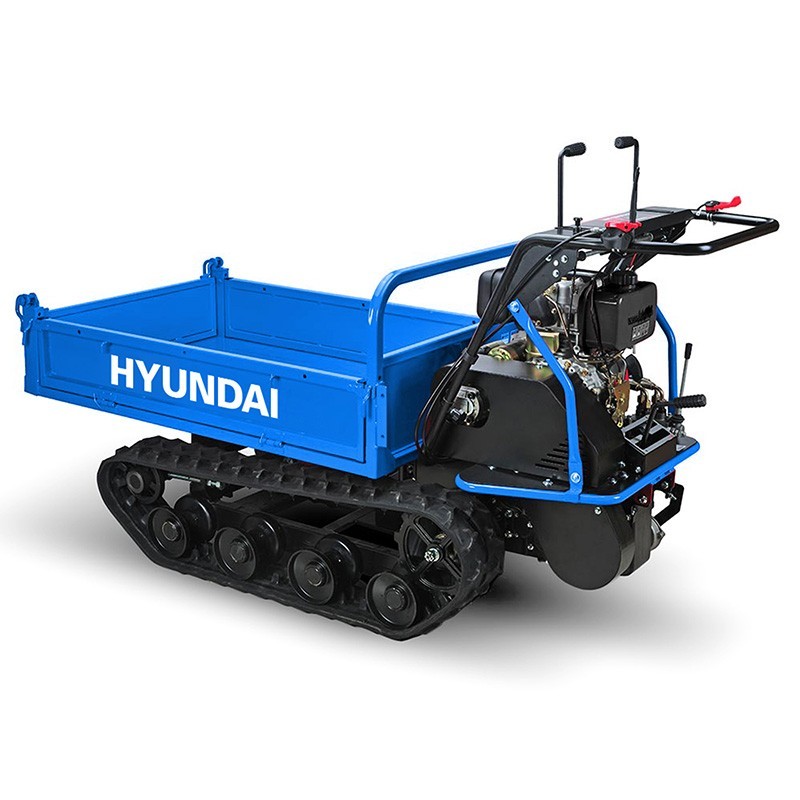

The Hyundai HYMD500-H4B crawler truck is equipped with a hydraulic brake and a hydraulic tipping system to facilitate the unloading of the cargo box. Its wide tracked allows its use on any type of surface, offering great versatility and stability.
With a displacement of 212 cc and a power of 7 HP, this truck can carry up to 500 kg of load. The hydraulic folding platform increases its functionality, while its unladen climbing capacity reaches 25 degrees.

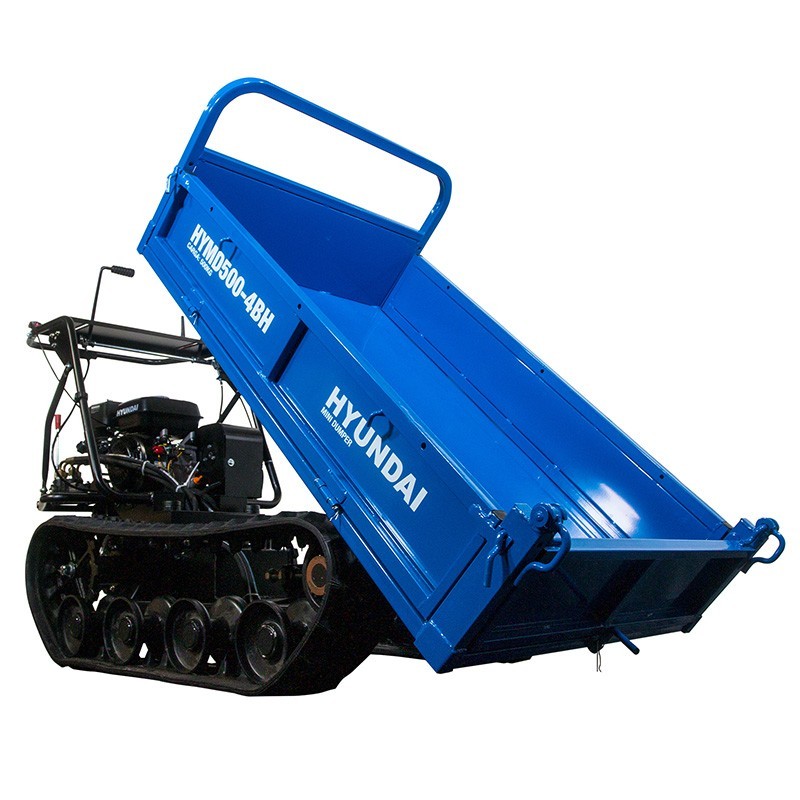

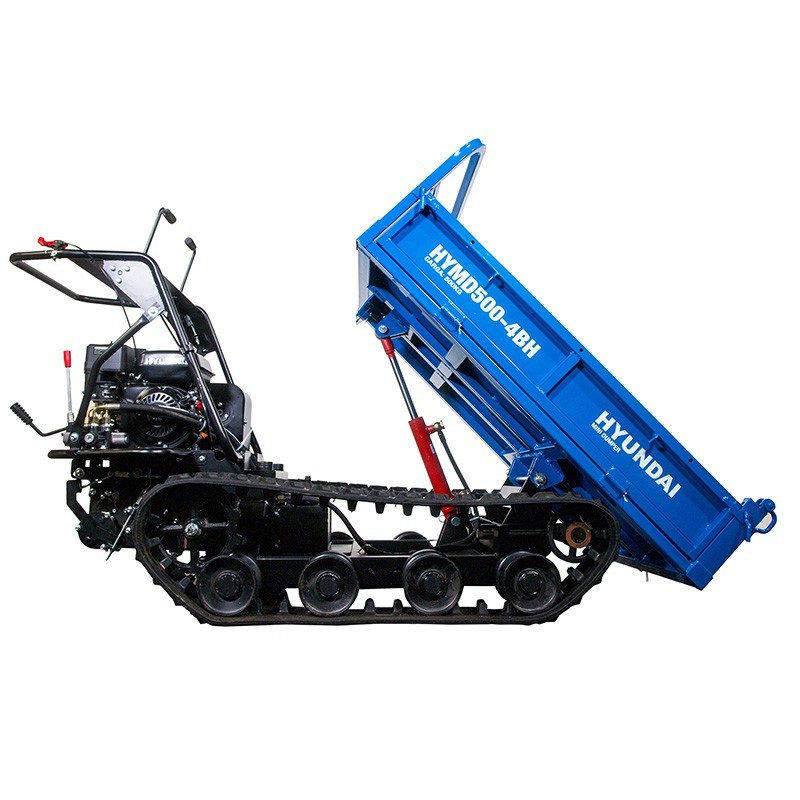

In addition, the HYMD500-H4B features a maximum tipping angle of 50 degrees and a clutch with three forward and one reverse speed, ensuring optimal control in various working conditions.
| Engine model | IC210 |
| Displacement | 212 cc |
| Max. load | 7 HP |
| Max. load | 500 Kg |
| Folding platform | Hydraulic |
| Climbing capacity without load | 25° |
| Maximum tipping angle | 50° |
| Clutch | 3 forward + 1 rear |
| 3 forward speeds | 0.5 to 5.5 km/h |
| 1 speed reverse | 0.6 to 2.3 km/h |
| Loading platform | 850 x 570 x 290 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
