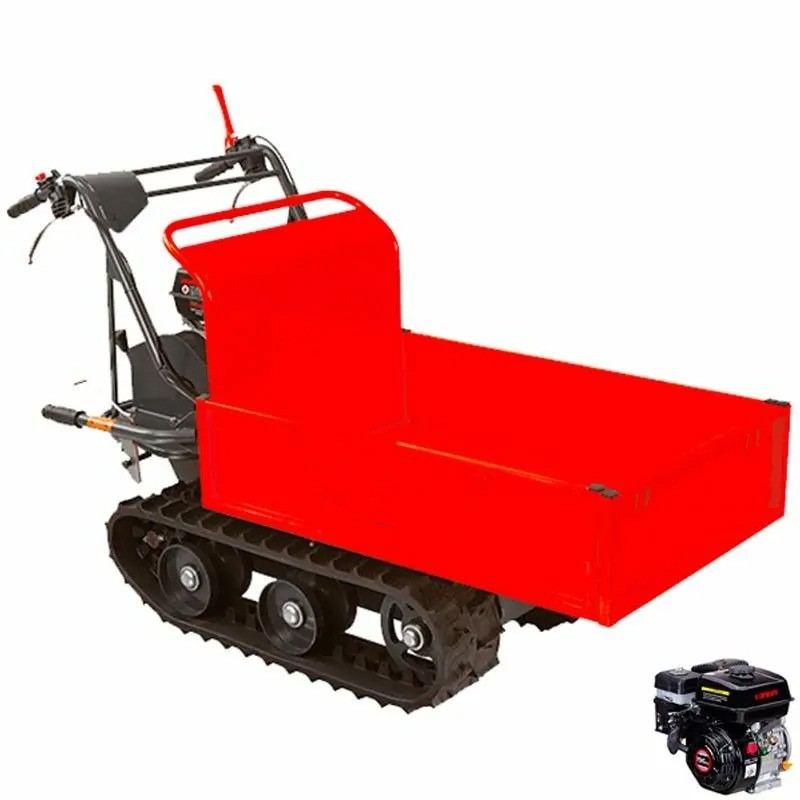

The EuroCentauro SP MINITRANSPORTER 300 tracked forklift has a 4-stroke Loncin OHV gasoline engine with electric starter with recoil and a fuel tank capacity of 3.6 liters. It also has a displacement of 196 cc.
This machine works with a noise level of 70 dBA. It also has a transistorized magneto ignition system.
| Engine | Loncin 4-stroke gasoline engine OHV forced cooling single cylinder |
| Power | 6.5 HP |
| Speeds | 3 forward and 1 reverse |
| Load capacity | 300 Kg |
| Displacement | 196 cc |
| Diameter x stroke | 68 mm x 54 mm |
| Rated power | 4100 W (5.5 HP) / 3600 RPM |
| Net torque | 12.4 N.m / 2500 RPM |
| Idle speed | 1400 ± 150 r / min |
| Compression ratio | 8,5:1 |
| PTO shaft rotation | Yes, counterclockwise (from PTO side) |
| Noise level | 70 dBA |
| Ignition system | transistorized magneto ignition |
| Starting system | Electric with recoil |
| Carburetor | Throttle |
| Air filter | Semi-dry, dual element, oil bath |
| Oil tank capacity | 0,6 L |
| Fuel tank capacity | 3,6 L |
| Weight | 241 Kg |
| Dimensions | 1270 x 760 x 1000 mm |
| Maximum recommended slope when empty | 20% |
