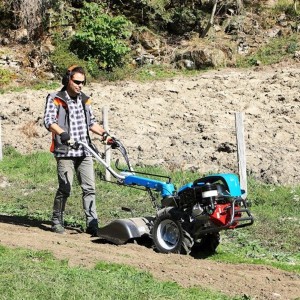

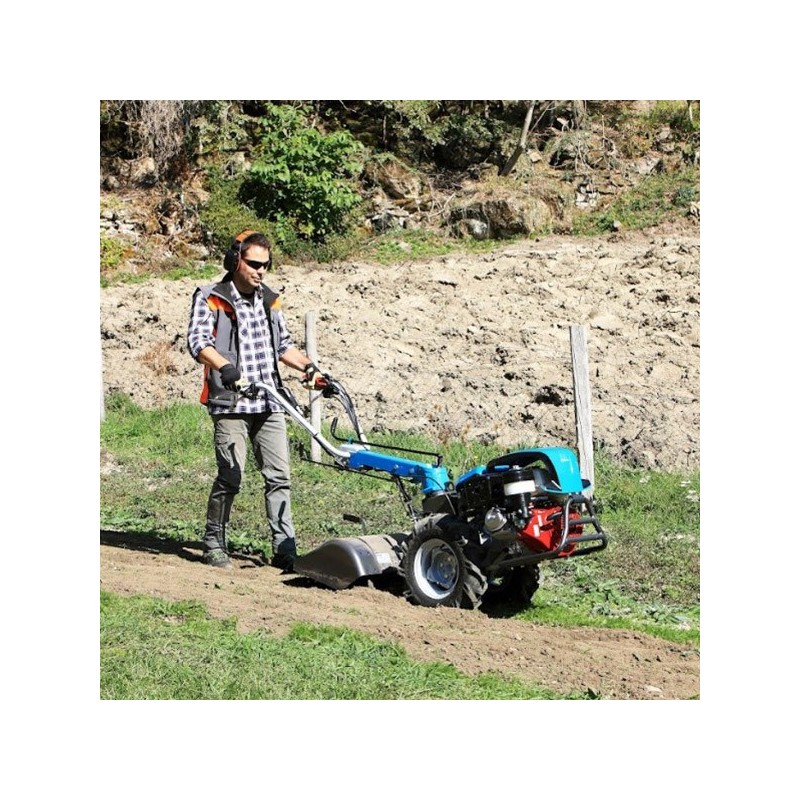

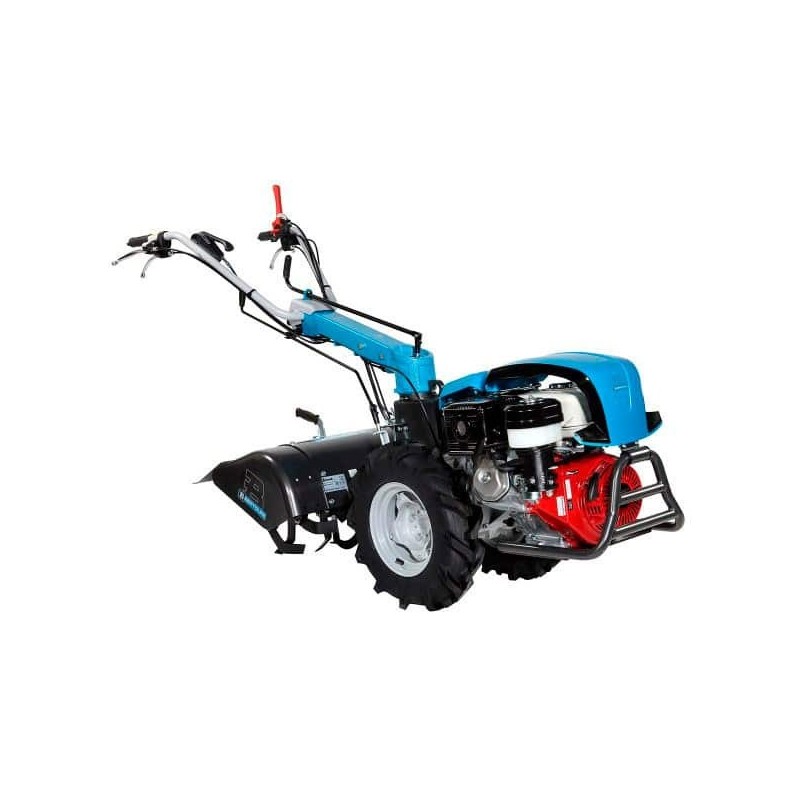

The power tiller Bertolini 417S is powered by a Honda GX 340 OHV engine. It provides a displacement of up to 389 cc. This power tiller is compatible with 80 cm tillers and 6.5 / 80 - 12" DR wheels.
The 417S power tiller provides us with 5 different speeds, four speeds for forward and a single speed for reverse. It has a differential, reverse gear with shift lever, a dry multi-plate clutch or single disc clutch.
In addition, the power tiller offers a 2-speed independent PTO (540 RPM and 900 RPM). It has a synchronized P TO and a transmission with oil-bath gears.
This machine is designed for professional use thanks to its nominal power. Its characteristics recommend it for root harvesting and tillage in all types of terrain. The tiller is equipped with a Dalinian whisker adjustable in height and width, 180° reversible, with anti-vibration device.
| Engine | Honda GX 340 OHV |
| Displacement | 389 cc |
| Cutter size | 80 cm |
| Brakes | Yes |
| Trailer hitch | Yes |
| Speeds | Five, four forward and one reverse speed |
| Power take-offs | Independent 2 speeds (1 ° 540 rpm - 2 ° 900 rpm) and a synchronized one |
| Dalinian mustache | Adjustable in height and width, reversible 180 ° and with anti vibration device |
| Cover | With integrated tool compartment / battery box |

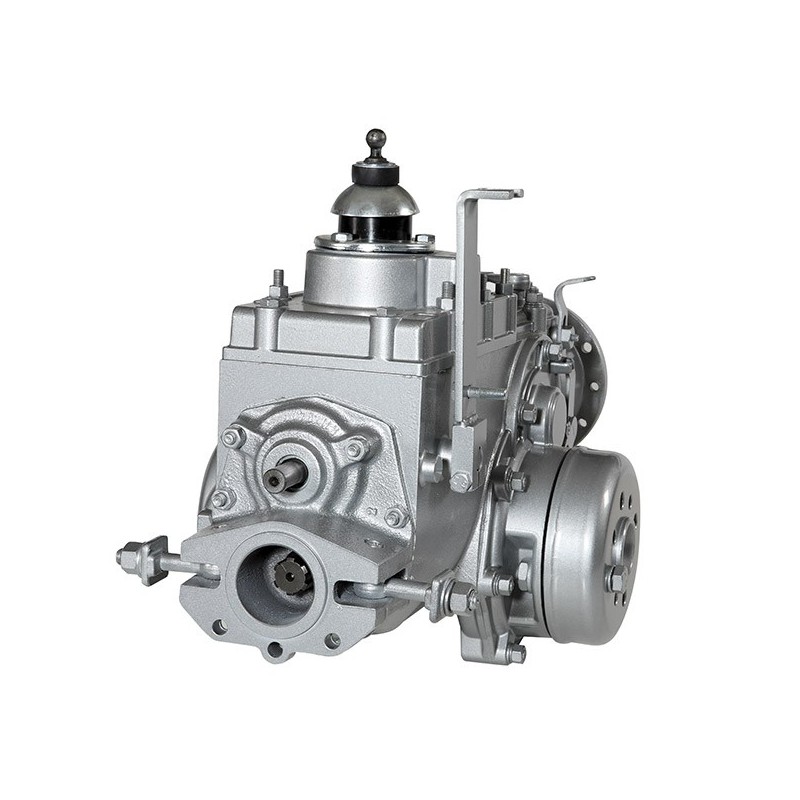

| Transmission | Oil bath gears |
| Clutch | Dry multi-plate or single disc |
| Accessory coupling | flanged to PTO |
| Weight (with gasoline engine, rotor and wheels) | 250 kg |
Difference between oil bath clutch of other brands and dry multi-disc clutch from Bertolini
Oil immersed clutch brake (other brands) Disadvantages
Multi-disc dry clutch Bertolini
|
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied unless an inspection is pending. |
Data sheet
Specific References
Includes assembly and tuning
100% Spanish Manufacture
