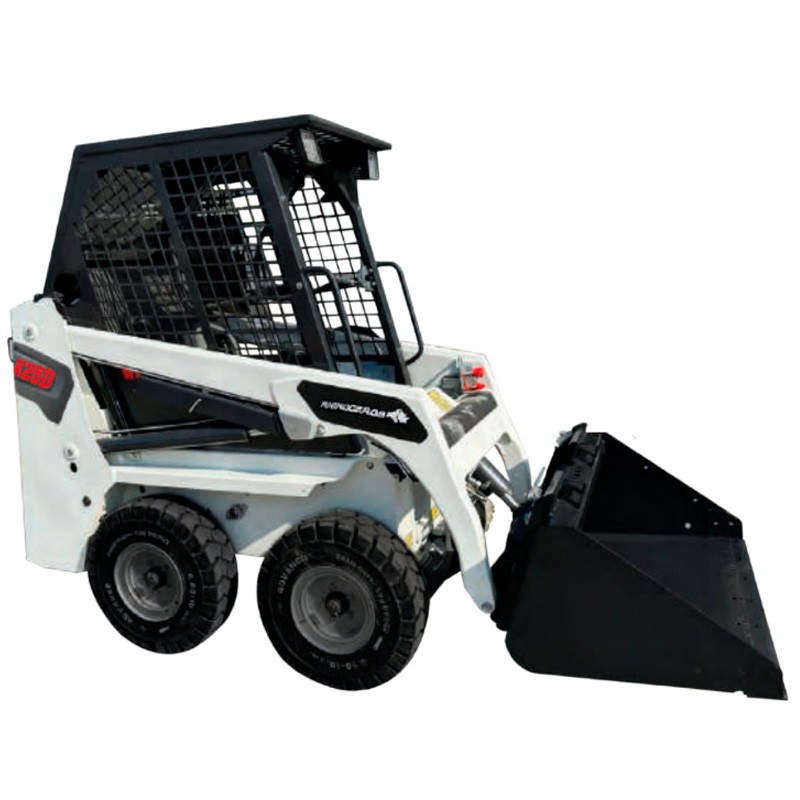

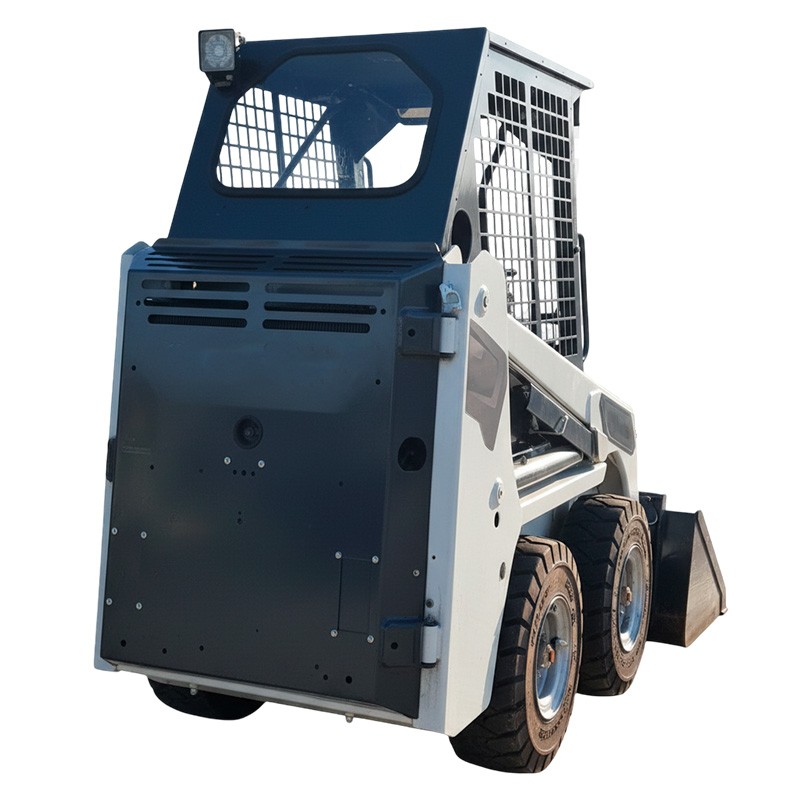

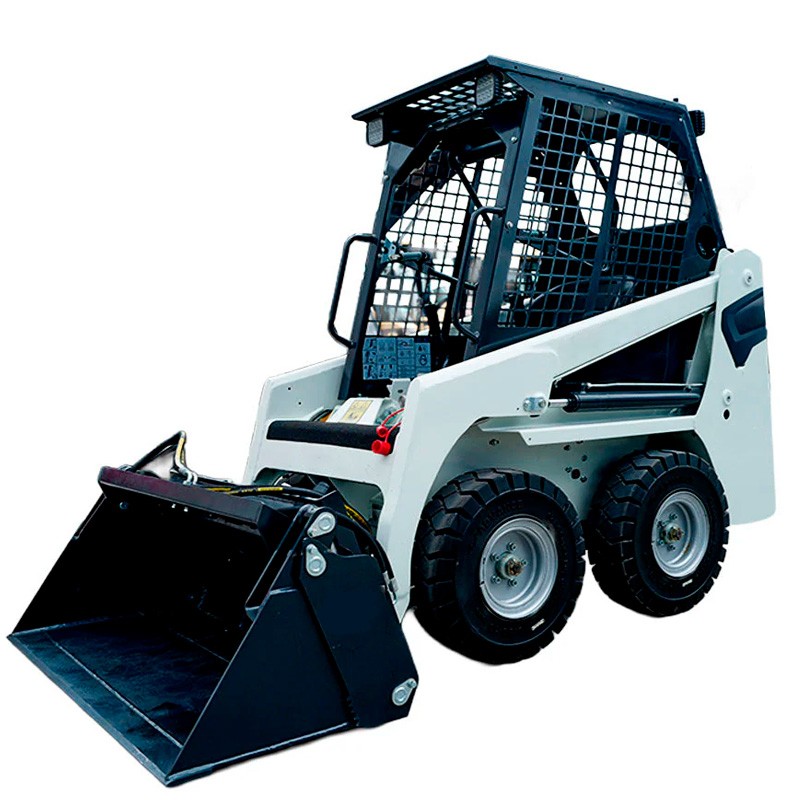

The Rhinoceros K25D skid steer is a compact skid steer designed for loading, transporting and moving material on construction sites, farms and warehouses. It stands out for its 1001 cc, 3-cylinder Kubota D1005 diesel engine with 17.5 kW of rated power and 62.8 Nm of maximum torque, a very reliable base for working long hours with constant thrust and low fuel consumption.
With a load capacity of 724 kg and a weight of 1312 kg, the K25D offers a very solid balance between power and size. The hydrostatic transmission provides smooth maneuvering control and precision loading, with hydraulic pressure of 180 bar and a working flow of 40 L min. The 360° rotation and travel speed of up to 13.8 km/h help to move fast in tight spaces, with dimensions 1814 x 901 x 1925 mm for step entry and tight working areas.

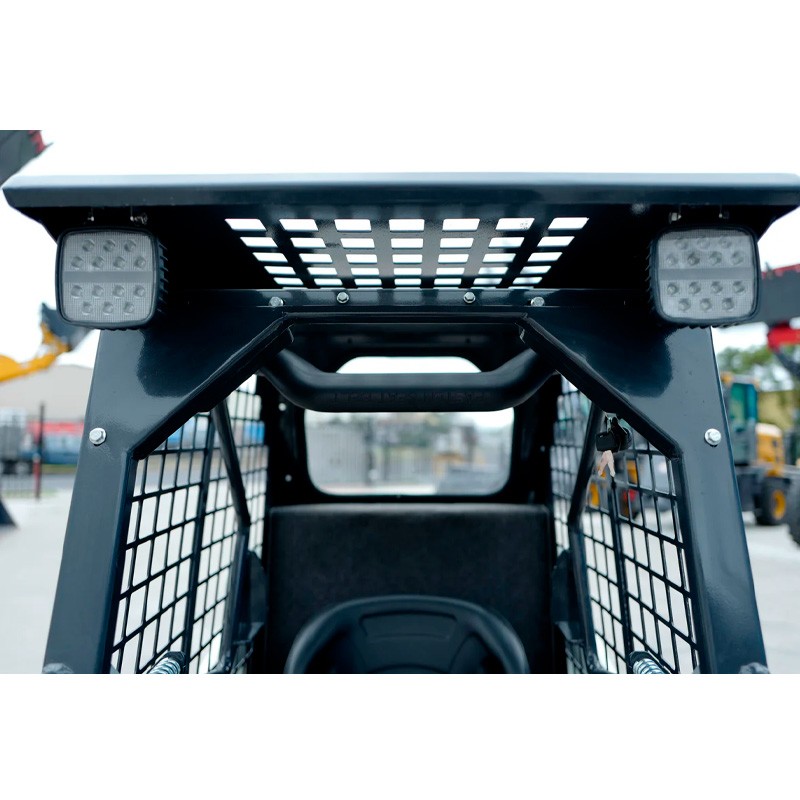

The reversible cab improves visibility and comfort when working in different directions, and the water cooling system keeps performance stable in intensive work. Includes generous 24.6 L fuel and 10.8 L oil tanks, 12 V electrical system and 70 Ah battery. As options, it can be equipped with a lift for handling loads up to 344 kg and a 1000 mm sweeper with 450 mm roller and 35° rotation for cleaning yards and roads.
| Load capacity | 724 kg | |
| Operating weight | 1312 kg | |
| Engine make | Kubota | |
| Engine model | D1005-E4B-BC-3 | |
| Engine type | 3-cylinder diesel | |
| Displacement | 1001 cc | |
| Rated power | 17.5 kW | |
| Maximum torque | 62.8 N-m | |
| Power | 24 hp | |

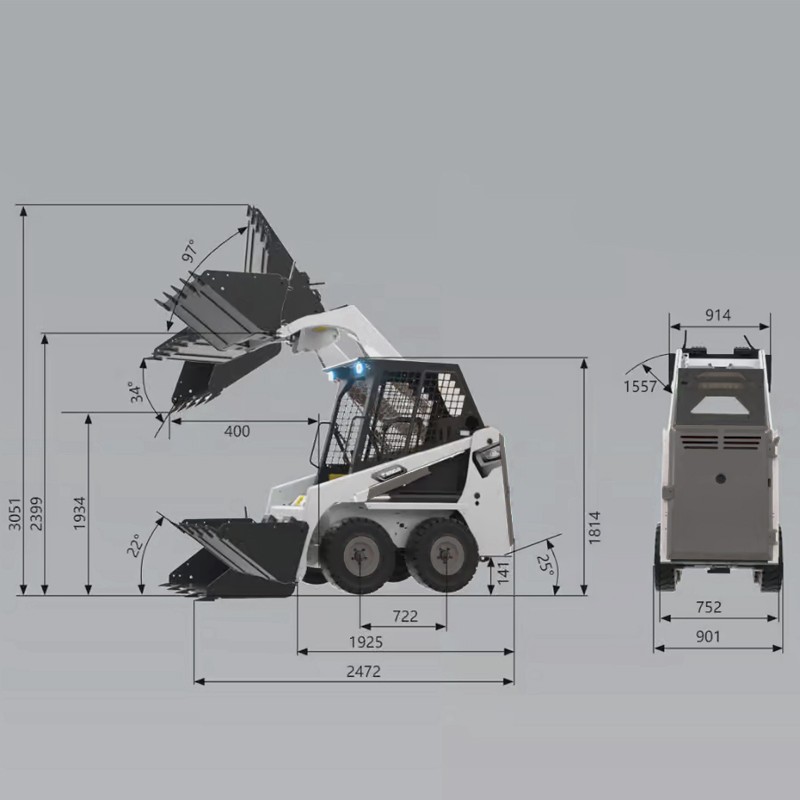

| Dimensions (L x W x H) | 1814 × 901 × 1925 mm | |
| Operator's cab | Reversible | |
| Cooling | Water | |
| Travel speed | 13.8 km/h | |
| Turning angle | 360° | |
| Fuel tank | 24,6 L | |
| Oil tank | 10,8 L | |
| Hydraulic flow rate | 40 L/min | |
| Hydraulic pressure | 180 bar | |
| Transmission | Hydrostatic | |
| Standard tires | 6.510 650 10 | |
| Electrical system | 12 V | |
| Battery | 70 Ah | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
- Accessories not included as standard
