Mini wheel loader Rhinoceros HRI30D 400 kg
- Power : 10 HP
- Displacement: 498 cc
- No. of cylinders : 1
€9,146.18 VAT incl.

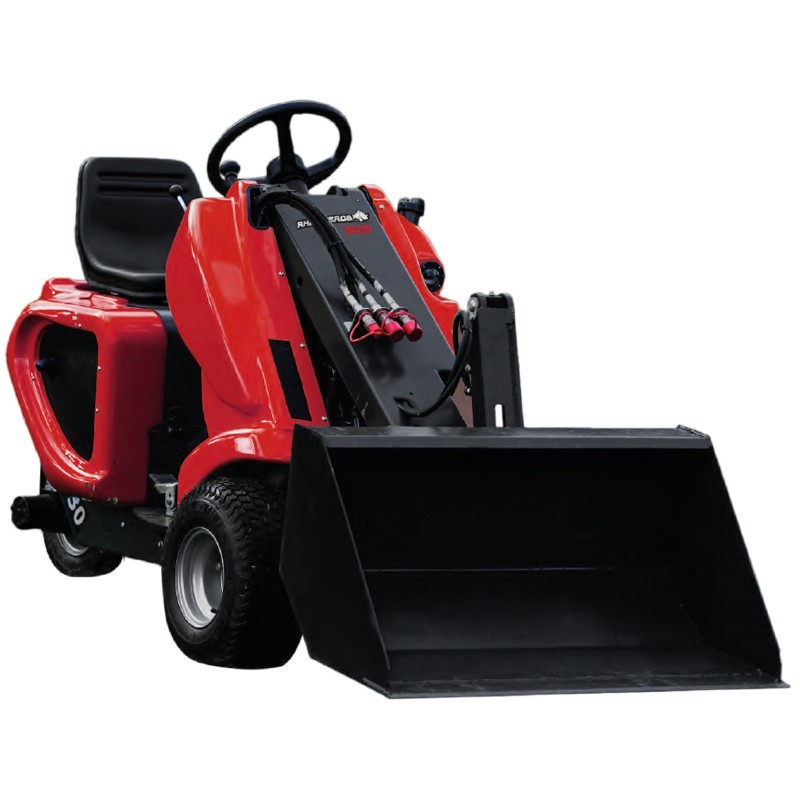

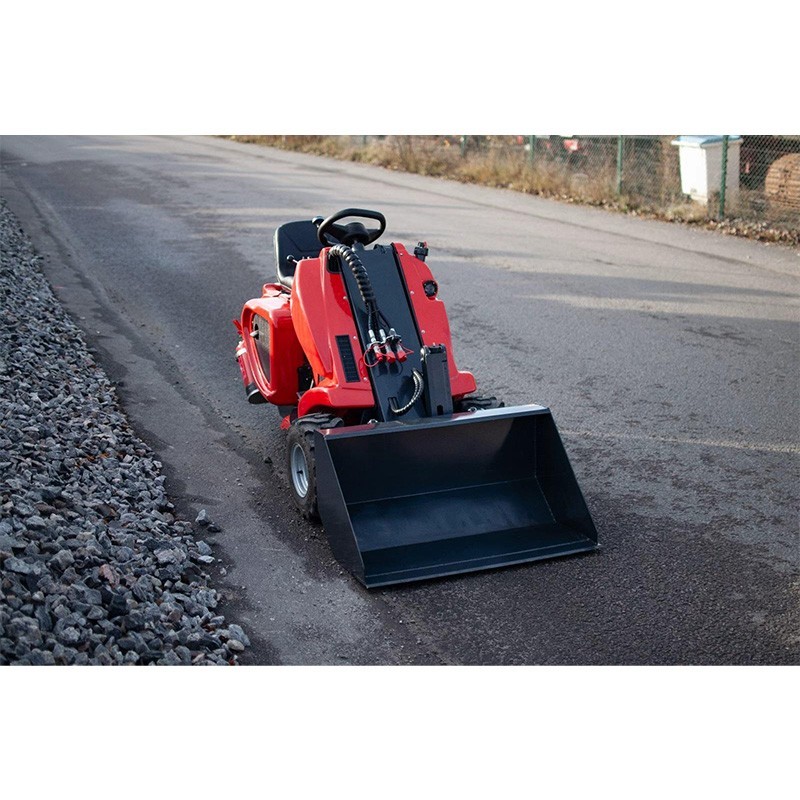

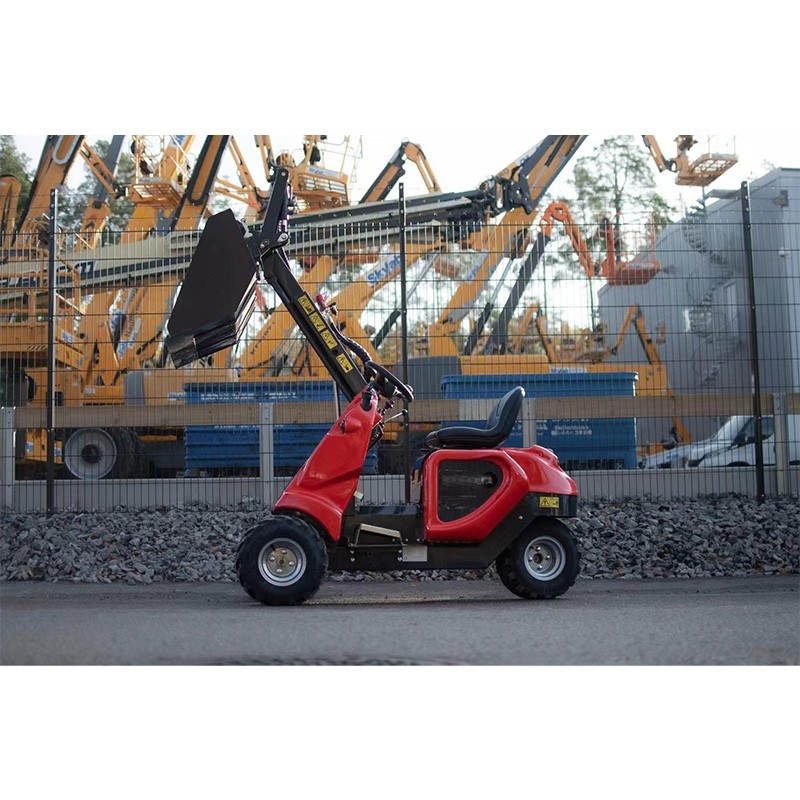

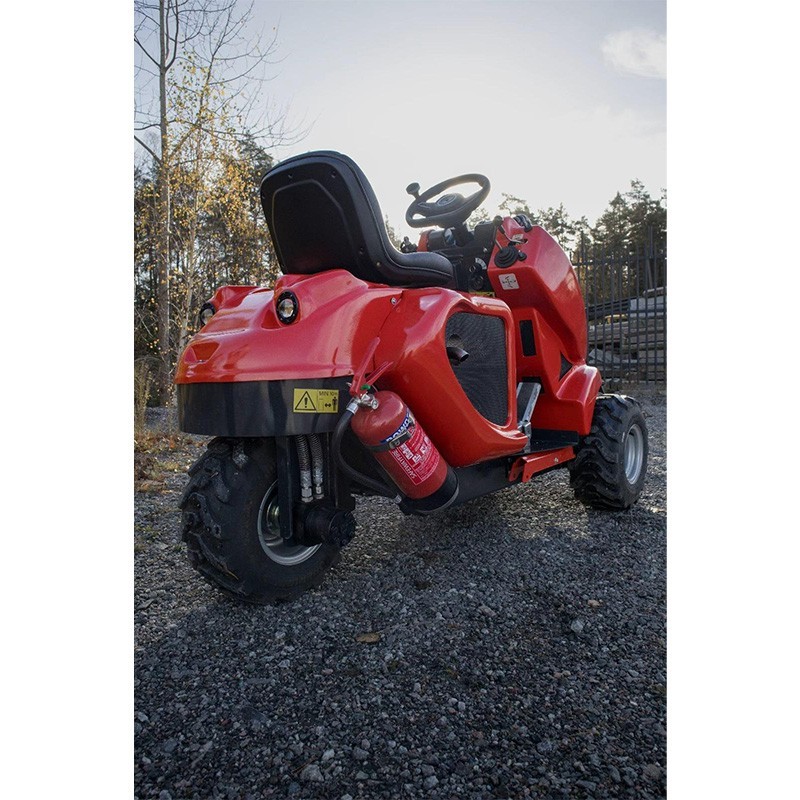

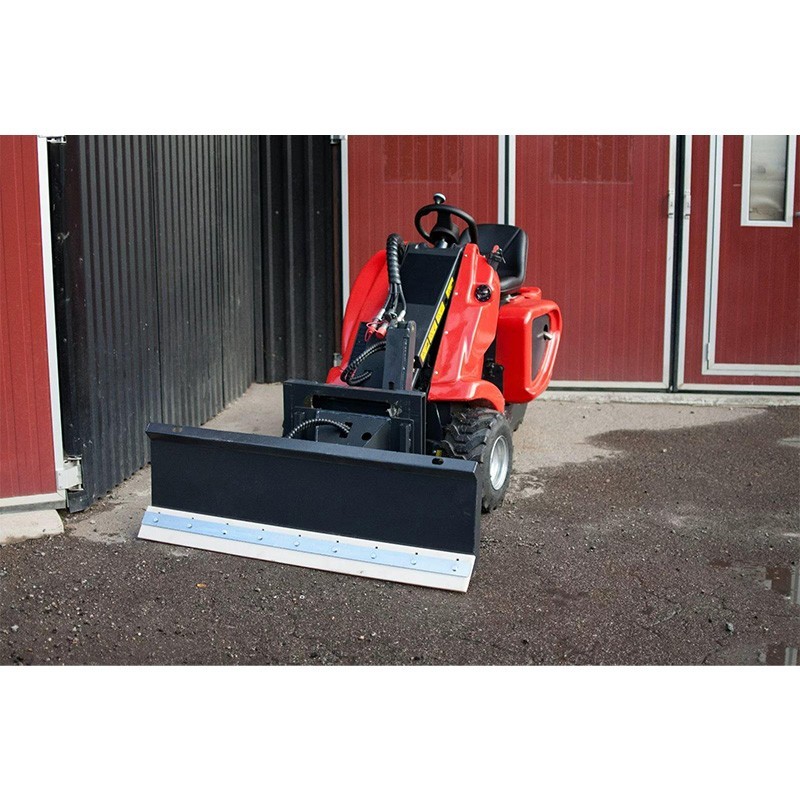

The Rhinoceros ESHR130Z gasoline skid steer loader is a compact and highly maneuverable solution for loading, material moving and maintenance work in confined spaces. Designed to go where other machines can't, it combines power, agility and efficient hydraulics, ideal for small jobsites, warehouses, farms and municipal tasks.
It is equipped with a 22 HP, 740 cc 2-cylinder engine, rated at 16.8 kW at 3600 rpm and maximum torque of 47 Nm at 2500 rpm, providing solid thrust at low rpm for starting under load and working with hydraulic attachments. Its air cooling simplifies maintenance and makes it practical for intensive use.
With a weight of 500 kg and load capacity of 400 kg, the ESHR130Z maintains an ideal balance between size and performance. Its dimensions of 1304 x 993 x 1854 mm allow working in tight areas, and its 360° swing combined with an inside turning radius of 0 mm ( outside 993 mm) facilitates quick maneuvering in aisles, yards and tight areas.
The hydrostatic transmission provides smooth and precise control, especially in starts, direction changes and millimetric movements. In addition, it reaches a travel speed of up to 15 km/h for agile movement around the job site.
The hydraulic system is prepared for constant performance, with 29 L/min of flow and 160 bar of working pressure, which improves the response in lifting and in the use of accessories. It incorporates generous tanks: 25 L of fuel and 15 L of oil, designed to extend the autonomy and reduce stops.
The skid steer is equipped with 18 x 9.50 - 8 tires, and has a 12 V electrical system with 75 Ah battery, ensuring reliable starting and support for the electrical components.
If you are looking for a compact, powerful and very easy to maneuver skid steer, the Rhinoceros ESHR130Z is an excellent choice for daily loading and maintenance work with great efficiency in confined spaces.
| MODEL | ESHR130Z |
| Power | 22 HP |
| Displacement | 740 cc |
| No. of cylinders | 2 |
| Rated power | 16.8 kW / 3600 RPM |
| Maximum torque | 47 NM / 2500 RPM |
| Weight | 500 kg |
| Load capacity | 400 kg |
| Dimensions | 1304 x 993 x 1854 mm |
| Cooling system | Air |
| Travel speed | 15 km/h |
| Turning angle | 360 º |
| Inside/outside turning radius | 0/993 mm |
| Fuel tank capacity | 25 L |
| Oil tank capacity | 15 L |
| Working hydraulic flow rate | 29 L/min |
| Working hydraulic pressure | 160 BAR |
| Transmission type | Hydrostatic |
| Tires | Standard 18 x 9,50 - 8 |
| Electrical System | 12 V |
| Battery | 75 Ah |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
- Accessories not included as standard
