Mini skid steer Zeppelin Rhinoceros HR130 22HP
- Weight : 500 kg
- Engine : Rato R740D
- Cylinders : 2 cylinders
€7,002.34 VAT incl.

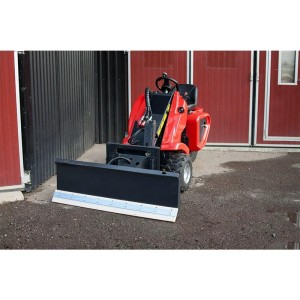

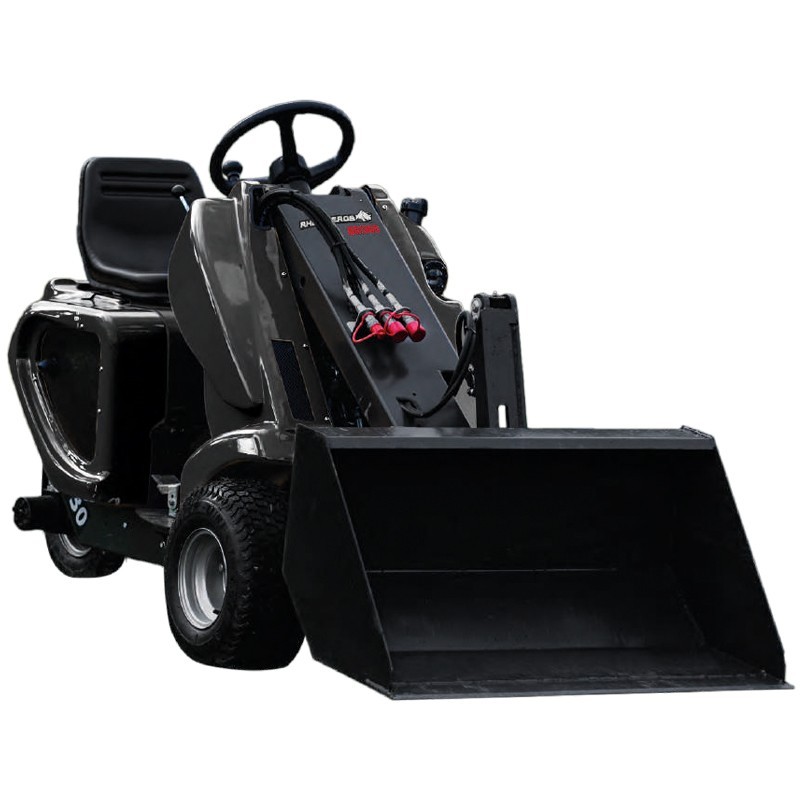

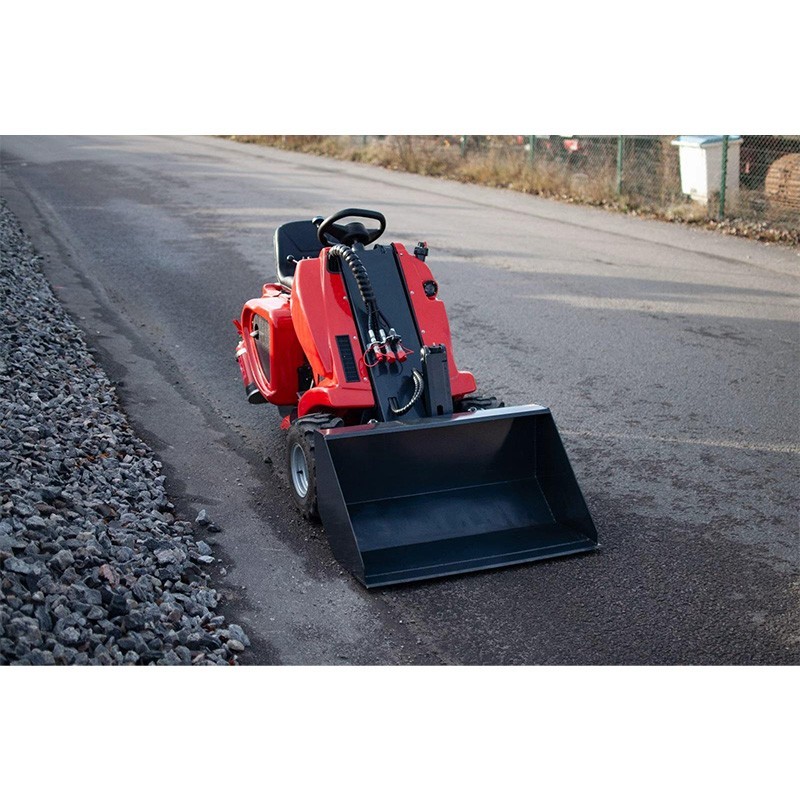

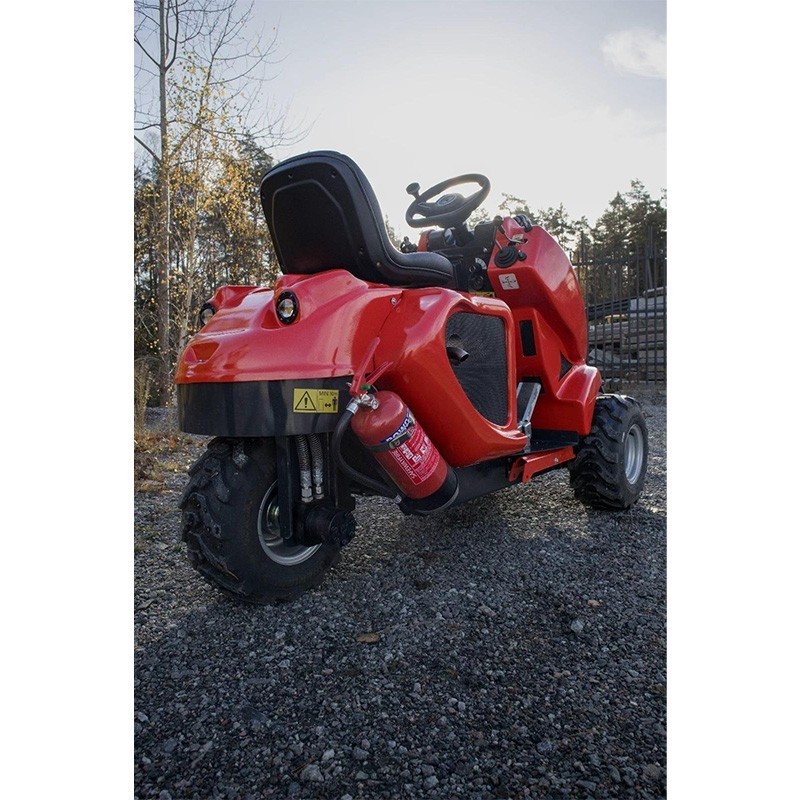

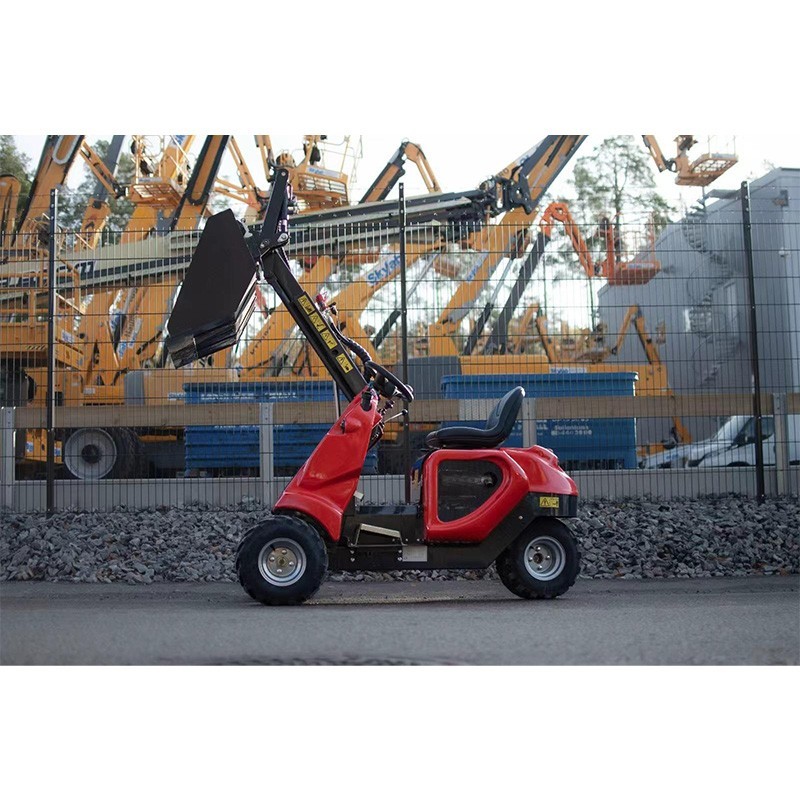

The Rhinoceros HRI30D mini wheel loader Zeppelin is a compact skid steer loader for moving material with agility on construction sites, farms and warehouses, with a load capacity of 400 kg and a weight of 500 kg. It has a WEIMA 1 cylinder 498 cc diesel engine with 10 HP, air cooling and hydrostatic transmission, with 160 bar hydraulic pressure and 29 L min working flow for smooth and constant control.
Wheels with 18x9.5-8 tires provide traction and comfort on uneven terrain and allow travel up to 15 km/h (9.5 mph). Its 360° turn and 993 mm outer radius help maneuver in tight spaces, with dimensions 1304 x 993 x 1854 mm, 25 L fuel tank and 15 L oil tank. 12 V electrical system with 75 Ah battery.

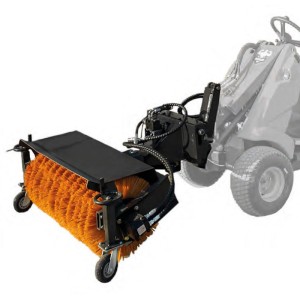

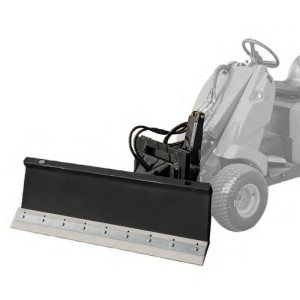

It accepts three optional attachments that greatly expand the daily use. Sweeper with 1000 mm working width, 450 mm roller, 35° rotation and 154 kg weight for cleaning yards, warehouses and roads. Polidozer with 1400 mm width, 480 mm blade height, 35° rotation and weight 110 kg for pushing loose material and snow. Crab grapple with capacity 350 kg, opening range 80° and weight 89 kg for handling pruning debris, branches and bulky material.
| MODEL | ESHR130DZ |
| Power | 10 HP |
| Displacement | 498 cc |
| No. of cylinders | 1 |
| Rated power | 7.5 KW / 3600 RPM |
| Maximum torque | 24.5 NM / 2500 RPM |
| Weight | 500 kg |
| Load capacity | 400 kg |
| Dimensions | 1304 x 993 x 1854 mm |
| Cooling system | Air |
| Travel speed | 15 km/h |
| Turning angle | 360 º |
| Inside/outside turning radius | 0/993 mm |
| Fuel tank capacity | 25 L |
| Oil tank capacity | 15 L |
| Working hydraulic flow rate | 29 L/min |
| Working hydraulic pressure | 160 BAR |
| Transmission type | Hydrostatic |
| Tires | Standard 18 x 9,50 - 8 |
| Electrical System | 12 V |
| Battery | 75 Ah |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
- Accessories not included as standard
