Rhinoceros K25D Kubota 1001 cc skid steer mini skid steer loader
- Engine make : Kubota
- Engine model : D1005-E4B-BC-3
- Engine type : 3 cylinders diesel
- Displacement engine type : 1001 cc
€19,310.18 VAT incl.
The unauthorized use, copying or distribution of the information, images or links contained on this website constitutes a violation of intellectual property rights and will be prosecuted in accordance with the Law. If any improper use of any link or any type of data from our website is detected, legal action will be immediately initiated, as well as notification to the Spanish Data Protection Agency for the relevant purposes.

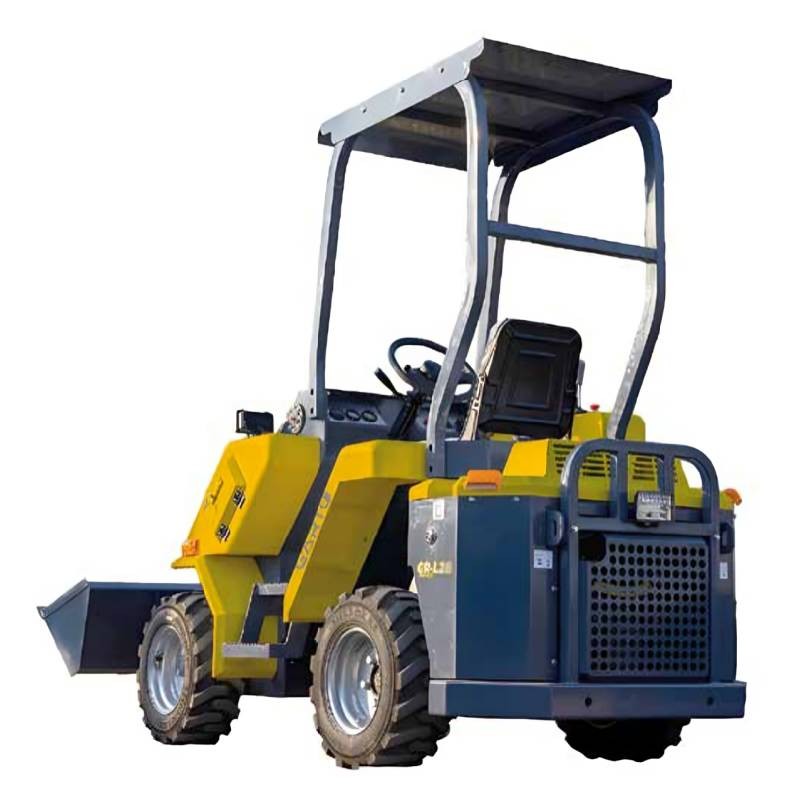

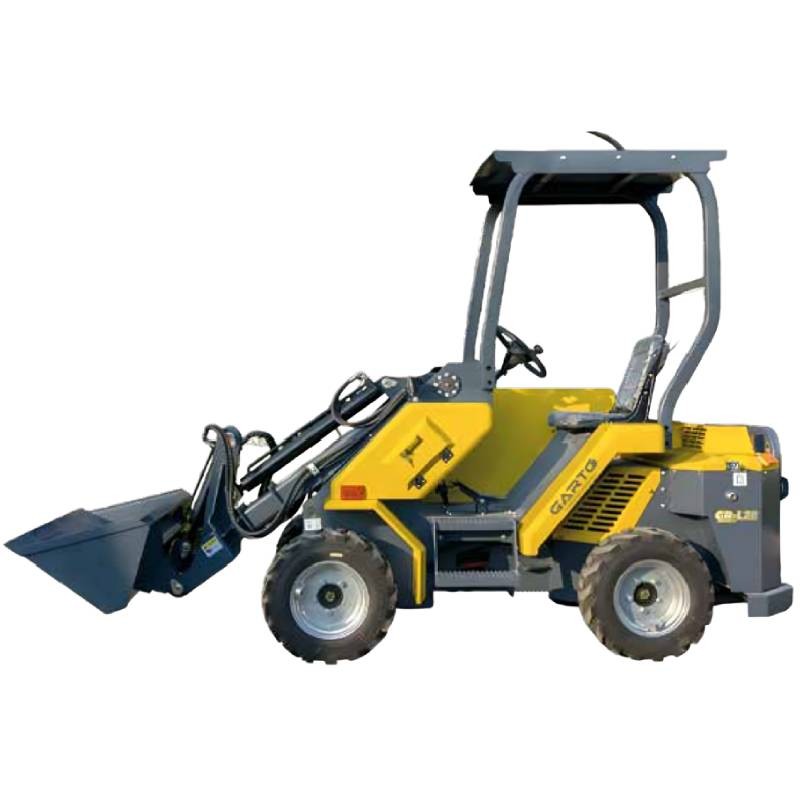

The GARTO GR-L28 mini telescopic loader offers maximum power in a compact format. Equipped with a Kubota D1105 engine, it handles loads of 800 kg with agility thanks to its 2,600 mm turning radius. It is the ideal solution for industrial jobs that demand precision and reliability.
Its telescopic boom reaches a height of 3.20 m, facilitating truck loading and stacking. It has 4WD all-wheel drive and hydraulic steering for total control in difficult terrain. The 25 MPa high pressure system ensures fast and smooth work cycles.
This skid-steer loader stands out for its low consumption and ease of daily maintenance in any sector. Its robust design optimizes the return on investment in construction, agriculture and logistics. The GARTO GR-L28 is the professional choice for those looking for efficiency and durability.
| Maximum lift height | 3,20 m | |
| Telescopic extension | 1,44 m | |
| Maximum load capacity | 800 kg | |
| Bucket volume | 0,3 m³ | |
| Working weight | 2000 kg | |
| Max. speed | 12 km/h | |
| Climbing capacity | 30 % | |
| Driving | 4-wheel drive | |
| Steering | Fully hydraulic | |
| Tire model | 23 x 8.5-12 | |
| Engine | Kubota D1105 | |
| Engine type | 4-stroke 3-cylinder water-cooled diesel engine | |
| Power rating | 14 kW 19 HP | |
| Maximum torque | 71.5 Nm at 2800 rpm | |
| Nominal consumption | 240 g/kW-h | |
| Engine dimensions | 481 x 385 x 564 mm | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
- Accessories not included as standard
