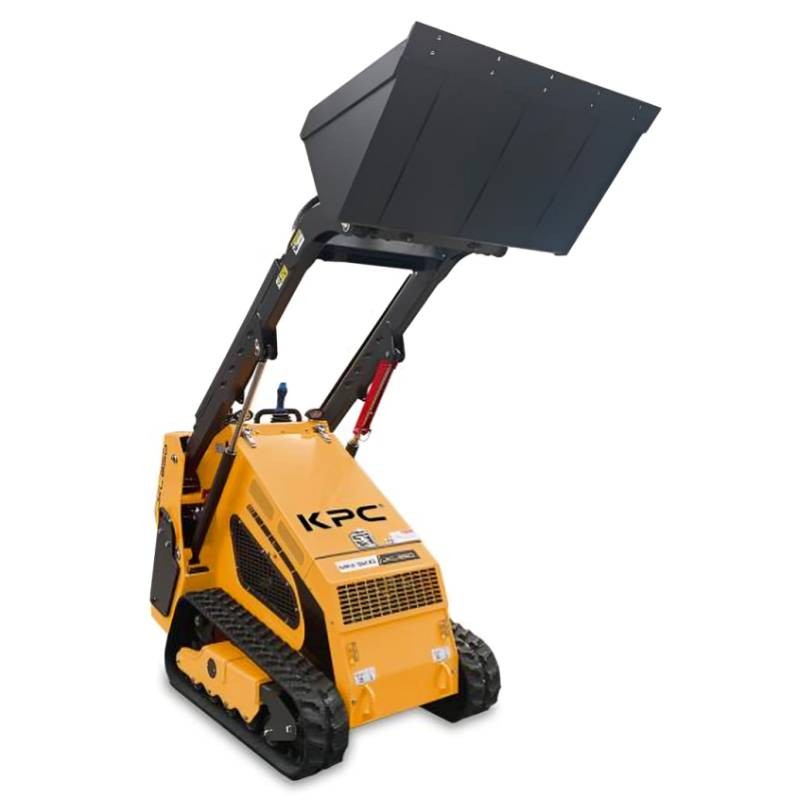

Mini Skid JKL850 KUBOTA Diesel Engine 800 kg


  • Engine: KUBOTA D1105 Diesel 3 cylinders (25 HP)
  • Load capacity: 450 kg
  • Lifting force: 1.200 kg
  • Hydraulics: Italian pump Bondioi&Pavesi with Joystick
En stock
icon Power Supply
Power Supply
Diesel
icon Load capacity
Load capacity
450 Kg
icon Forklift Type
Forklift Type
From Tracked
icon Engine
Engine
Kubota
icon Engine model
Engine model
D1105
icon Power
Power
24.7 HP
icon Operating weight
Operating weight
1,4 T
icon ✔️
✔️
Multifunction
icon Weight
Weight
800 Kg
€21,439.93 excl. VAT
€25,942.32 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Mini Skid JKL850 KUBOTA Diesel Engine 800 kg
€25,942.32
Qty

Mini Loader JKL850 KUBOTA 25 HP Diesel Engine

The JKL850 mini skid-steer loader is the ultimate tool for professional landscapers, tree care contractors and agricultural specialists who require a compact yet extremely powerful machine. Thanks to its lightweight frame and tracked system, this mini skid-steer loader accesses tight spaces where heavy machinery cannot operate, minimizing ground impact and maximizing on-site productivity.

Equipped with the legendary KUBOTA D1105 3-cylinder diesel engine, the JKL850 delivers 25 HP with an exceptional torque of 70.4 Nm, guaranteeing constant performance in the most demanding tasks of firewood loading, earth moving or municipal services. Its engineering stands out for the use of elite components: Italian Bondioi&Pavesi joystick-controlled hydraulic pumps and Danfoss hydraulic motors, which ensure millimetric precision and superior durability.

Versatility is one of its cornerstones, incorporating a universal assembly plate with CEI quick coupling, allowing accessories to be interchanged in seconds. With a hydraulic feed rate of 62.4 L/min and a pressure of 250 bar, the JKL850 offers ultra-fast work cycles (lifting in only 4.3 s). It is undoubtedly the most robust and flexible ally for those looking for a high-end diesel mini loader with European and Japanese technology.

Technical Specifications

Model JKL850
Brand / Model KUBOTA D1105 (diesel 3 cyl.)
Power 25 hp (18.4 kW)
Maximum torque 70.4 Nm / 2200 rpm
Engine oil 5,1 L
Nominal load / bucket 450 kg
Max. lifting force 1200 kg
Bucket capacity 0,2 m³
Working speed 0 - 6.5 km/h
Gradability 30%
Hydraulic pump Italy PWG / Bondioi&Pavesi
Hydraulic motor Denmark Danfoss
Feed flow rate 62,4 L/min
Feed pressure 250 bar
Flow rate / auxiliary pressure 48 L/min / 180 bar
Lift time 4,3 s
Lowering time 3,3 s
Tipping time 1,5 s
Fuel tank 35 L
Hydr. oil tank 25 L
Transmission type Hydrostatic
Coupling CEI universal quick coupling

Links of interest

262816

Data sheet

Power Supply
Diesel
Load capacity
450 Kg
Power (HP)
24.0 - 24.9 HP
Forklift Type
From Tracked
Engine
Kubota
Engine model
D1105
Power
24.7 HP
Operating weight
1,4 T
✔️
Multifunction
Weight
800 Kg

Specific References

MPN
2643
New

Agricultural Machinery After-Sales Service

At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.

Warranty and Factory Repair

Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.

Online Mechanics - Fast and Efficient

To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.

In-Shop Repair

If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.

☎️ Always by your side

Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.

✔️ Advantages of buying in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.

Related Product

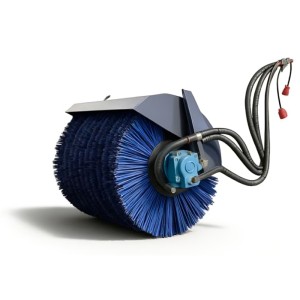

Sweeper KPC valid for skid steer loaders

  • Sweeping width: 1050 mm | Diameter of brush: 500 mm
  • Weight: 142 kg
  • Compatibility: Mini Skid with hydraulic system
€1,923.16 Price excl. VAT
€2,327.02 VAT incl.

Auger KPC valid for skid steer loaders

  • Torque: 800 N-m | Displacement: 420 ml/r
  • Drilling depth: 0 - 1000 mm
  • Drill bit compatibility: From 150 mm up to 600 mm in diameter
€1,715.48 Price excl. VAT
€2,075.73 VAT incl.
