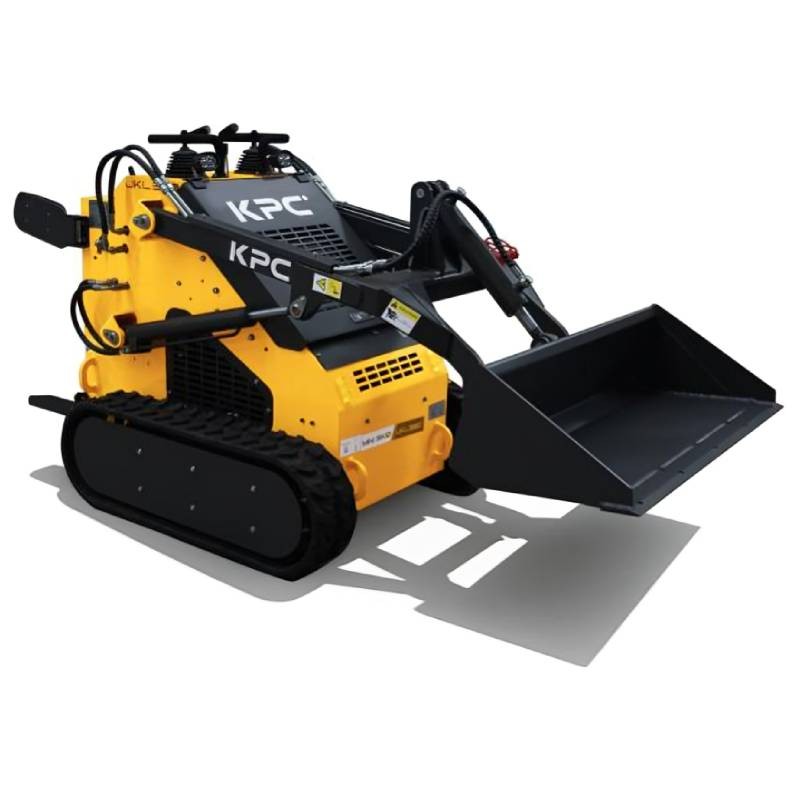

Mini Skid JKL380 Tracked HONDA GX690 23 HP Engine


  • Load capacity: 375 kg | Bucket: 0.15 m³ (260 kg useful load)
  • Engine: HONDA GX690 (23 HP) : Fuel: Gasoline
  • Dimensions: 2285 x 1155 x 1270 mm
En stock
icon Power Supply
Power Supply
Gasoline
icon Load capacity
Load capacity
375 Kg
icon Forklift Type
Forklift Type
From Tracked
icon Engine
Engine
Honda
icon Engine model
Engine model
GX690
icon Power
Power
23 HP
icon Operating weight
Operating weight
0,9 T
icon ✔️
✔️
Multifunction
icon Weight
Weight
890 Kg
€11,120.99 excl. VAT
€13,456.40 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Mini Skid JKL380 Tracked HONDA GX690 23 HP Engine
€13,456.40
Qty

Skid Steer Loader JKL380 Tracked HONDA GX690 Engine

The JKL380 skid steer loader from tracked is a compact loader designed for maximum versatility in construction, landscaping and maintenance work. Thanks to its reduced design and its tracked system, it can operate both indoors and outdoors with excellent stability, even on uneven or soft ground.

It is equipped with a powerful and reliable 23 HP HONDA GX690 engine, renowned for its durability and low maintenance. Its professional hydraulic system operates at 170 bar with a flow rate of 43.2 L/min, allowing multiple implements to be operated with great efficiency. The 0.15 m³ bucket and its 375 kg load capacity make it an ideal machine for material handling, cleaning or light-duty work.

Operationally, it stands out for its excellent maneuverability with a front turning radius of only 1300 mm, as well as a maximum working height of 2115 mm. Its compact structure, with a width of only 1155 mm, allows access to areas that are difficult to enter. In addition, its speed of up to 6 km/h and its tracked system ensure safe and efficient travel in any working environment.

Technical Specifications

Model JKL380
Model HONDA GX200
Power 23 HP
Fuel type Gasoline
Fuel tank 25 L
Engine oil 1,7 L
Load capacity 375 kg
Bucket capacity 0,15 m³
Bucket load 260 kg
Hydraulic pressure 170 bar
Auxiliary flow rate 43.2 L/min
System pressure 17 MPa
Hydraulic tank 25 L
Total length (with bucket) 2285 mm
Length without bucket 1630 mm
Total width 1155 mm
Overall height 1270 mm
Max. working height 2115 mm
Max. pin height 1880 mm
Unloading height 430 mm
Bucket angle 55º
Dump angle 30º
Front turning radius 1300 mm
Maximum speed 0 - 6 km/h
Wheelbase 685 mm
Structure Tracked
Operating weight 890 kg

Links of interest

262814

Data sheet

Power Supply
Gasoline
Load capacity
375 Kg
Power (HP)
23.0 - 23.9 HP
Forklift Type
From Tracked
Engine
Honda
Engine model
GX690
Power
23 HP
Operating weight
0,9 T
✔️
Multifunction
Weight
890 Kg
