Reversible, sliding reversible shredder Zeppelin Arizona 540 rpm
Reversible, sliding reversible shredder Zeppelin Arizona 540 rpm
ESTRGC265ZREV
Reversible, sliding reversible shredder Zeppelin Arizona 540 rpm
Reversible, sliding reversible shredder Zeppelin Arizona 540 rpm
Reversible, sliding reversible shredder Zeppelin Arizona 540 rpm
Reversible, sliding reversible shredder Zeppelin Arizona 540 rpm
Reversible, sliding reversible shredder Zeppelin Arizona 540 rpm

Reversible, sliding reversible shredder Zeppelin Arizona 540 rpm

Rating:
(0)
  • Working width: 1790 / 2650 mm
  • Power required: Minimum 70 HP
  • Weight: 510 - 1113 kg

CARDAN SHAFT INCLUDED

Assembly and set-up INCLUDED
En stock
icon Shredder type
Shredder type
Reversible shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
179 - 265 cm
icon Tractor power
Tractor power
Minimum 70 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium-Heavy
icon Reinforced chassis
Reinforced chassis
Yes
icon Number of hammers
Number of hammers
16 - 24
icon Weight
Weight
510 - 1113 kg
€4,229.63 excl. VAT
- 7%
€3,933.56 excl. VAT
€4,759.60 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Reversible, sliding reversible shredder Zeppelin Arizona 540 rpm
€4,759.60
Select
Qty

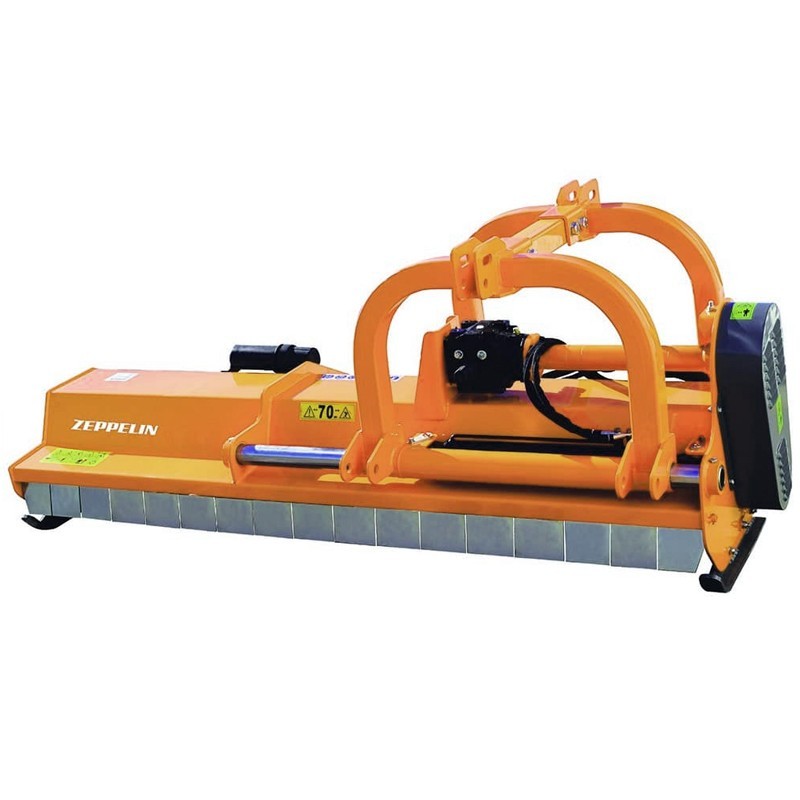

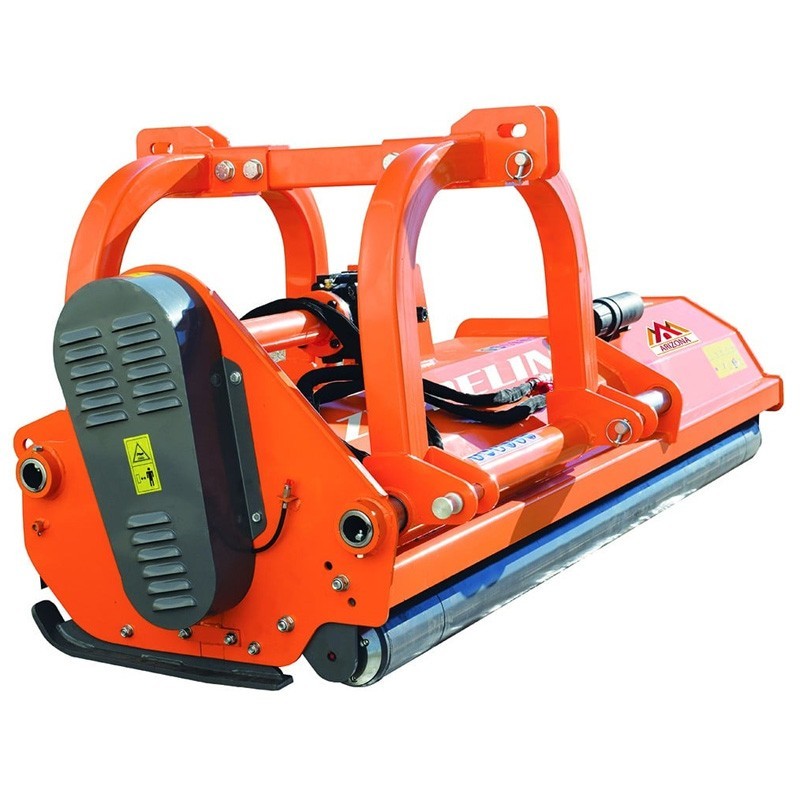

Reinforced mulcher Zeppelin Arizona

The Zeppelin Arizona hydraulic ride-on shredder is a robust and efficient machine designed to handle prunings and thick branches up to 10 cm in diameter. This equipment is available in five models, each with a different working width to adapt to different agricultural needs.

Among its main features, its reversible group and its double reinforced three-point linkage stand out, guaranteeing greater durability and resistance in demanding jobs. In addition, it has a rear leveling roller and a 500 mm lateral displacement, which facilitates work on uneven terrain.

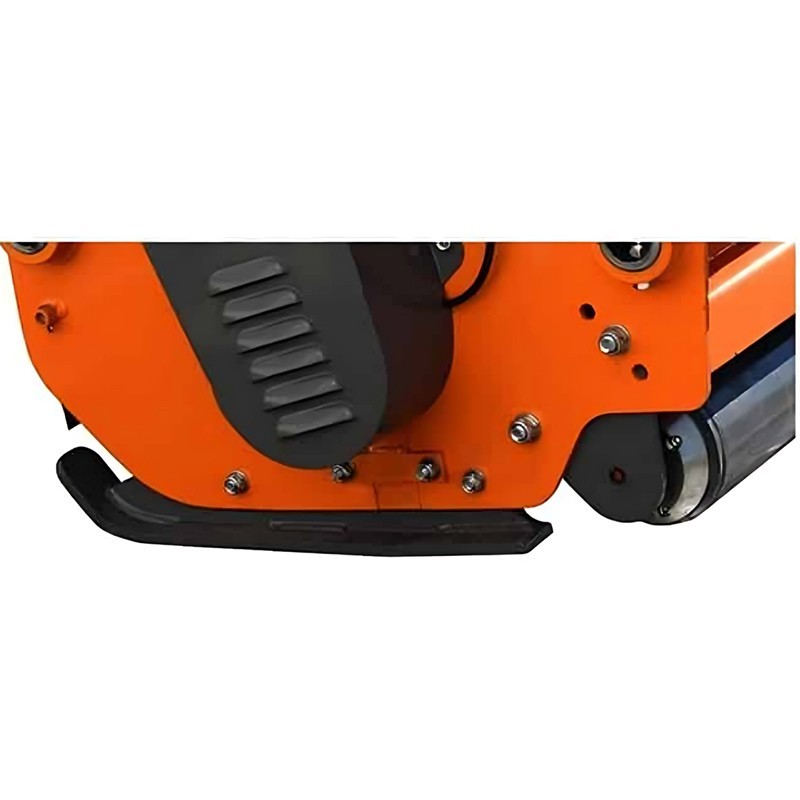

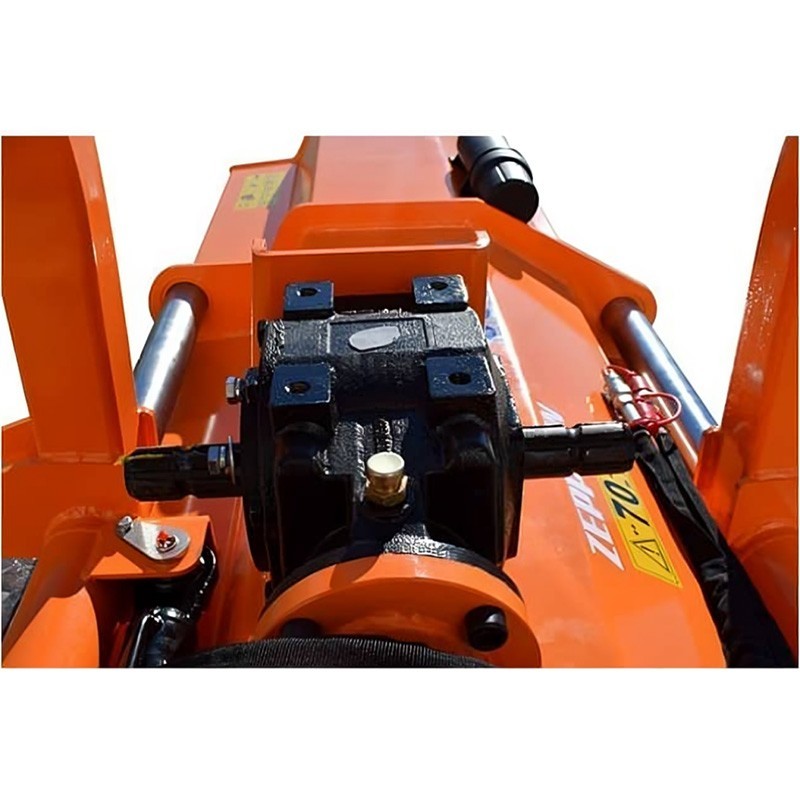

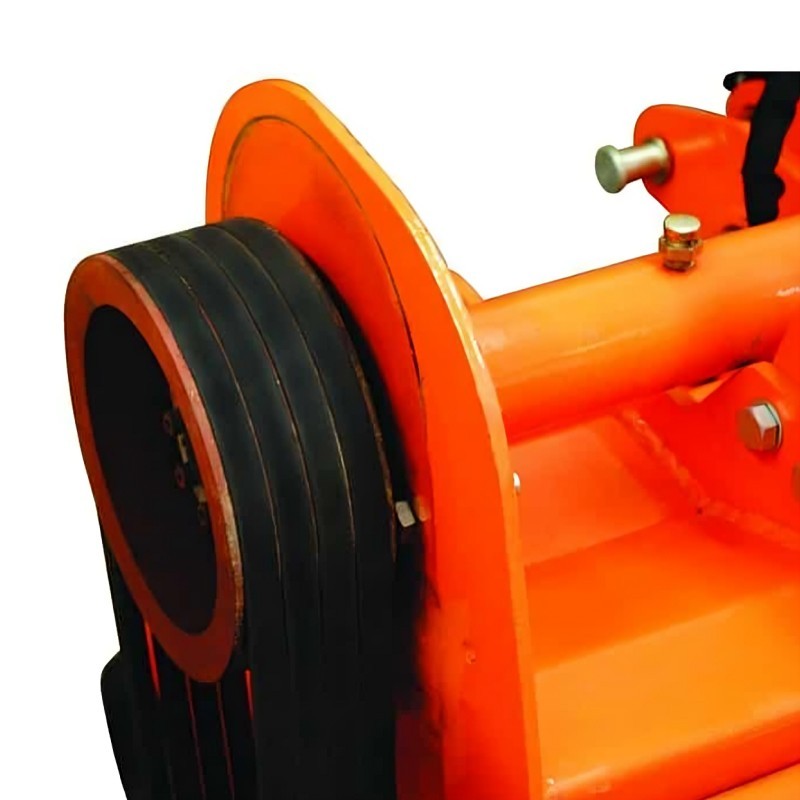

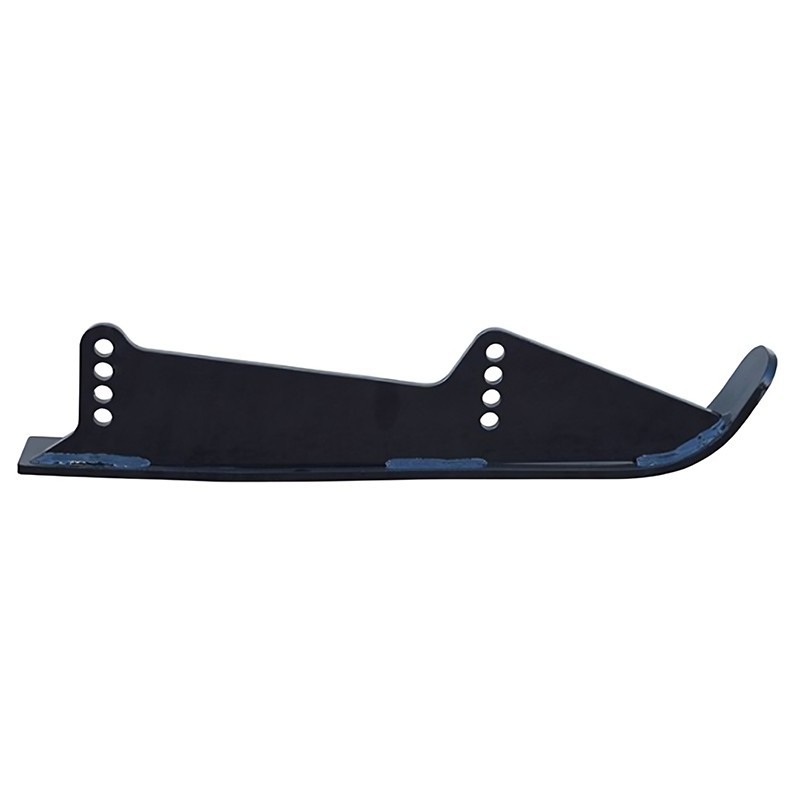

The Shredder Zeppelin Arizona offers advantages such as premium belts and hammers, as well as adjustable skids and roller for optimum performance. It includes a cardan shaft and freewheel casting unit, ensuring smooth and efficient operation.

The ESTRG265ZREV model, in particular, features a unique bracket, further enhancing its versatility and robustness.

Reversible connection features

Model ESTRGC180ZREV ESTRGC200ZREV ESTRGC220ZREV
Working width 1790 mm 1990 mm 2190 mm
Weight 510 kg 540 kg 570 kg
Belts 5 5 5
Hammers 16 18 20
Rotor diameter 152 152 152
Power requirement +70 hp +80 hp +80 hp
PTO (rpm) 540 540 540
Dimensions (cm) 103 x 196 x 100 103 x 216 x 100 103 x 256 x 100
Displacement 500 mm 500 mm 500 mm

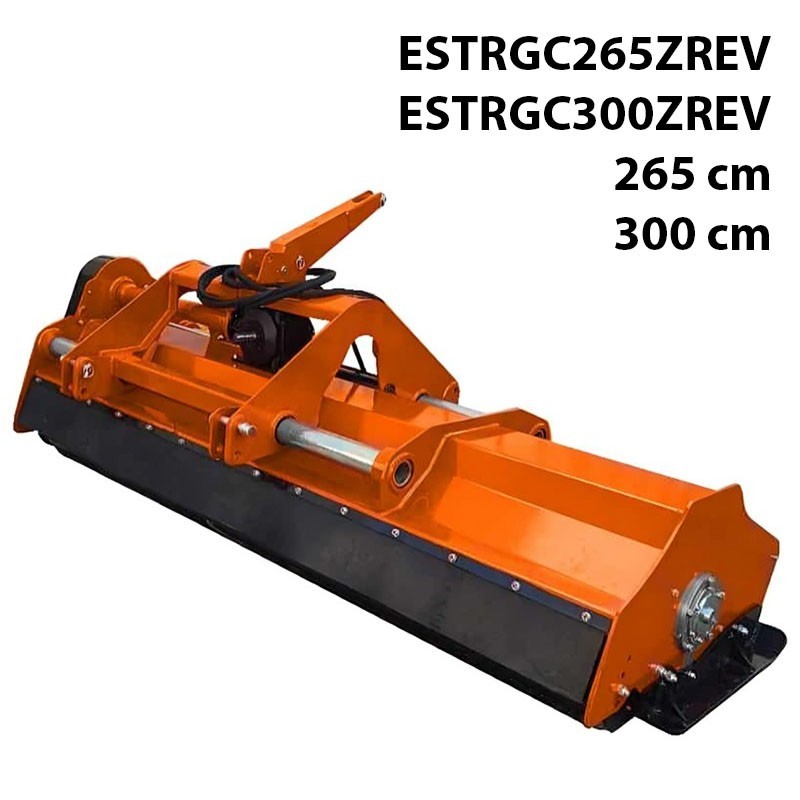

Models ESTRGC240ZREV ESTRGC265ZREV
Working width 2390 mm 2650 mm
Weight 600 kg 1113 kg
Belts 5 5
Hammers 22 24
Rotor diameter 152 152
Power requirement +90 hp +95 hp
PTO (rpm) 540 540
Dimensions (cm) 103 x 256 x 100 103 x 300 x 100
Displacement 500 mm 500 mm
IMPORTANT NOTICES
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending.
