€50.50 VAT incl.

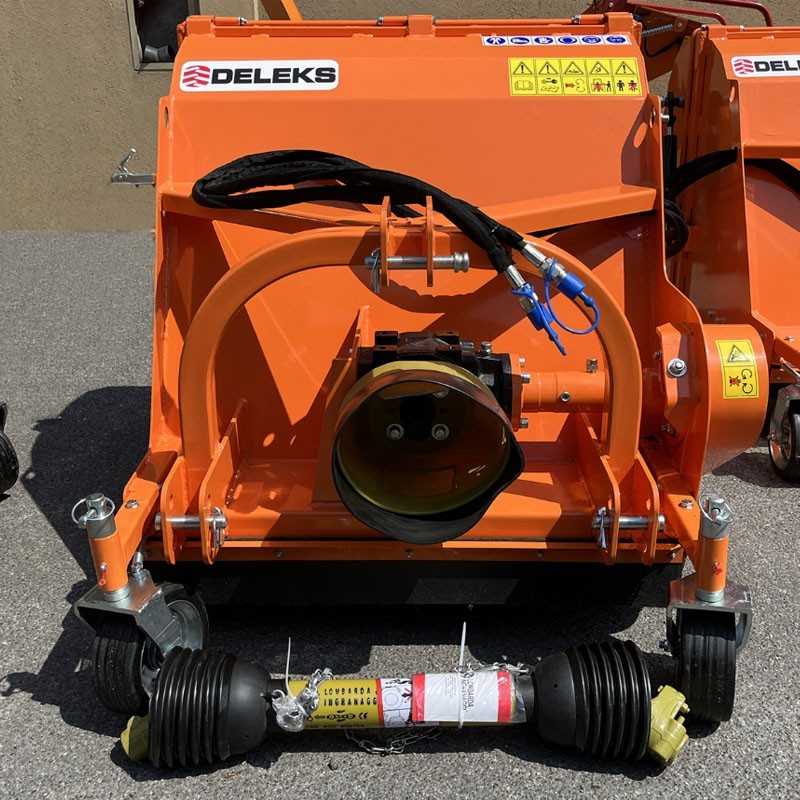

CARDAN SHAFT INCLUDED
Deleks products take about 15 to 25 days. |

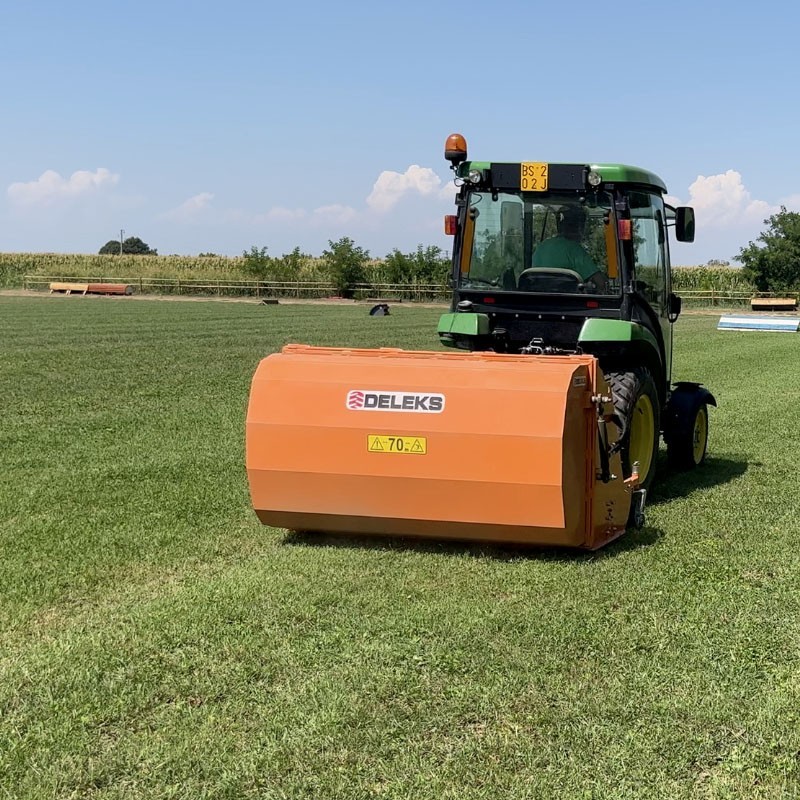

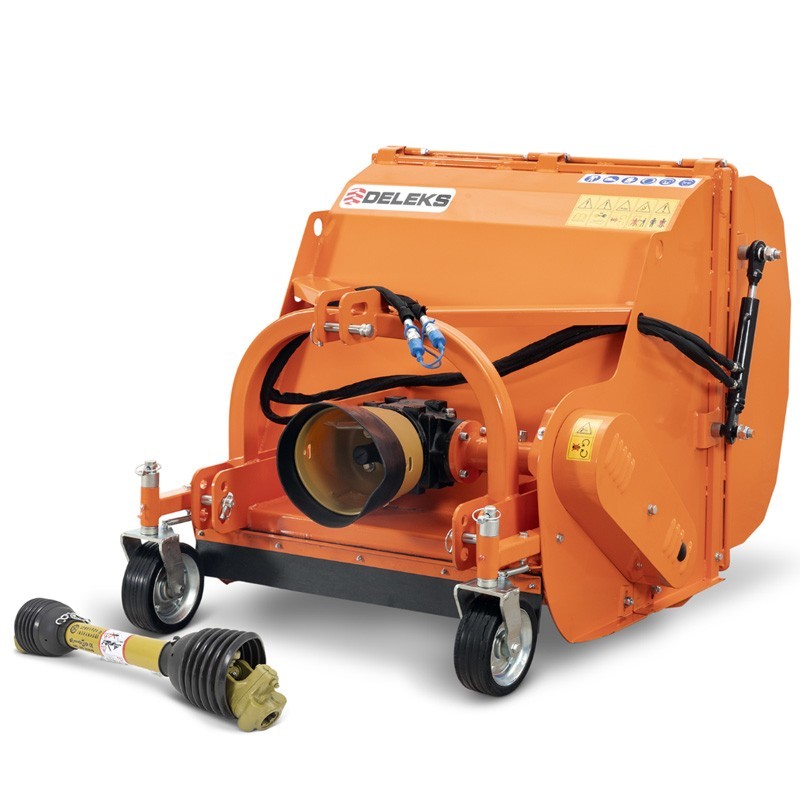

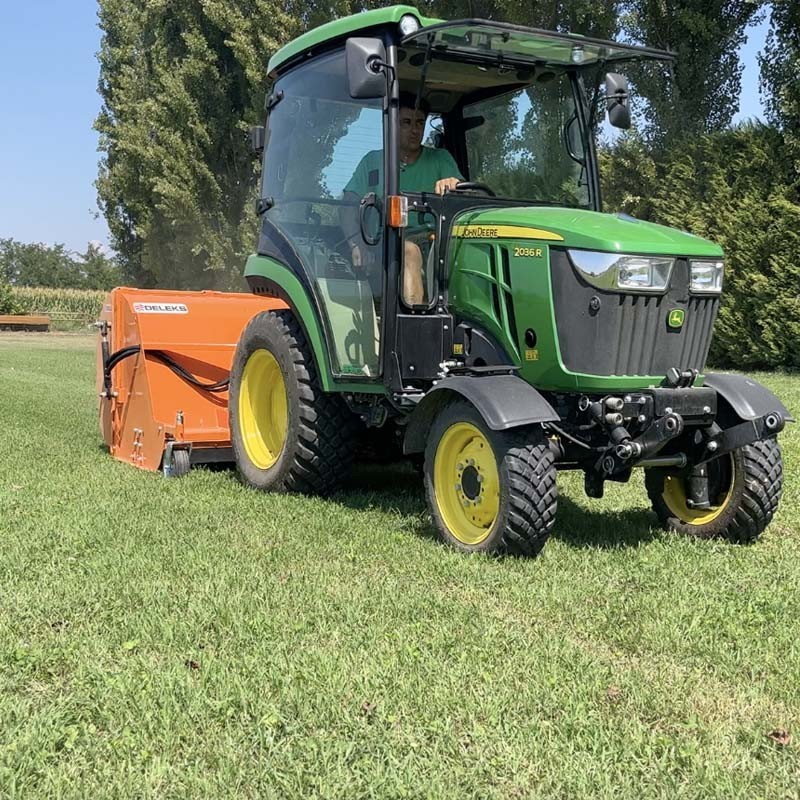

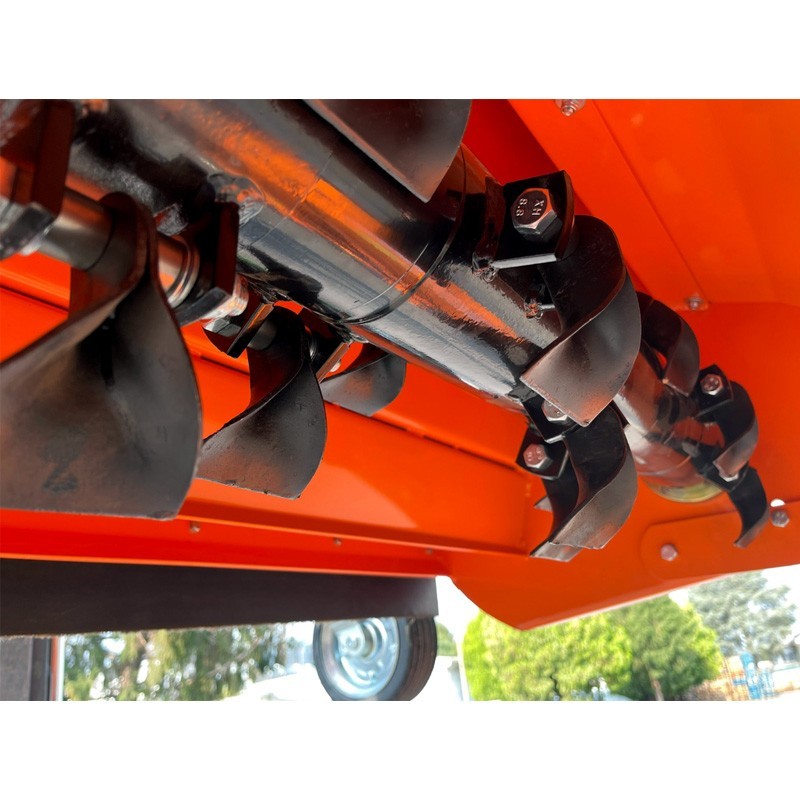

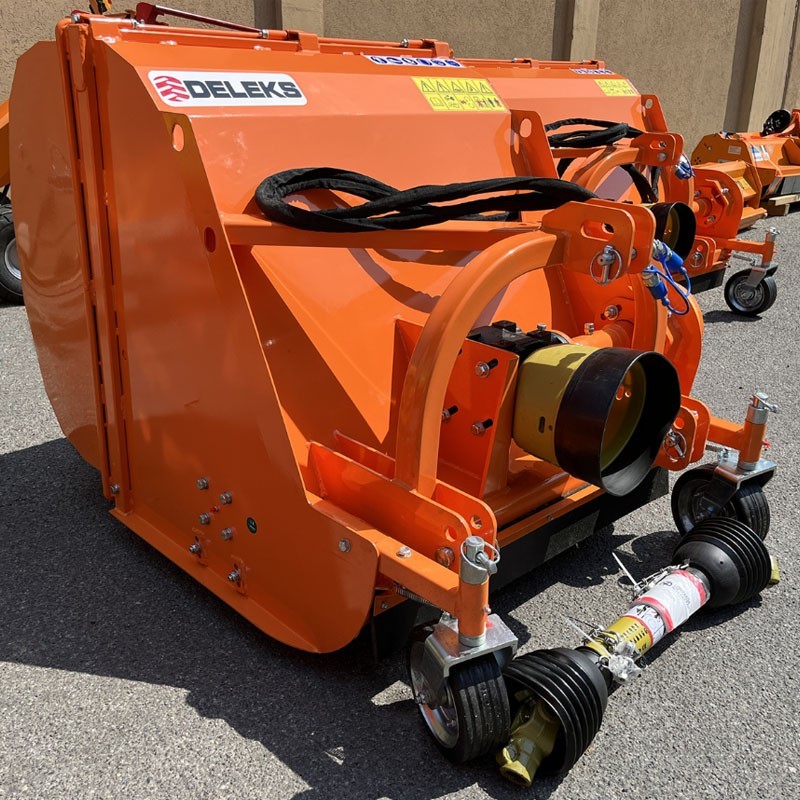

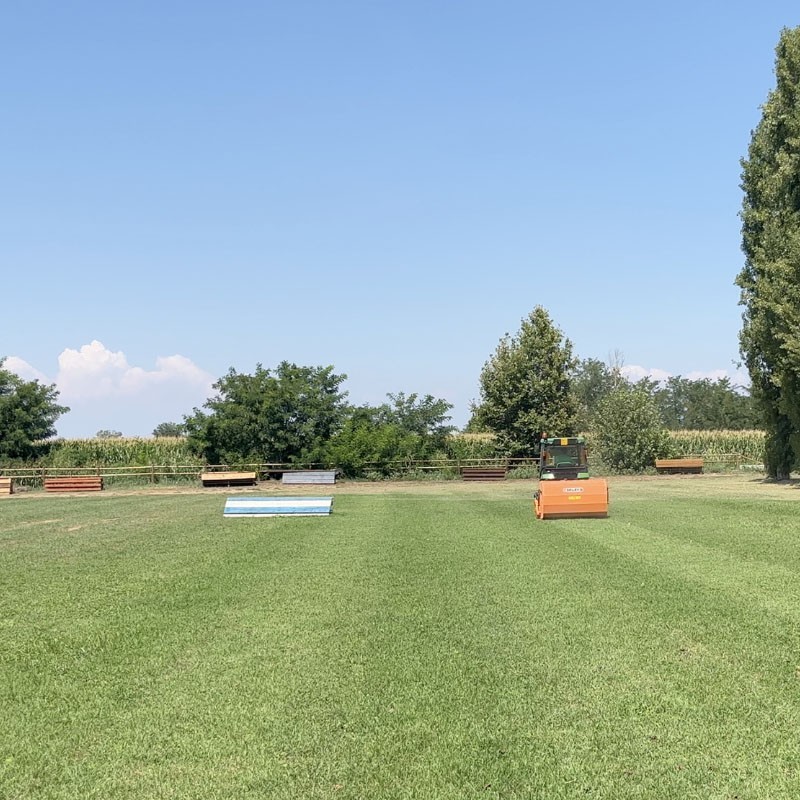

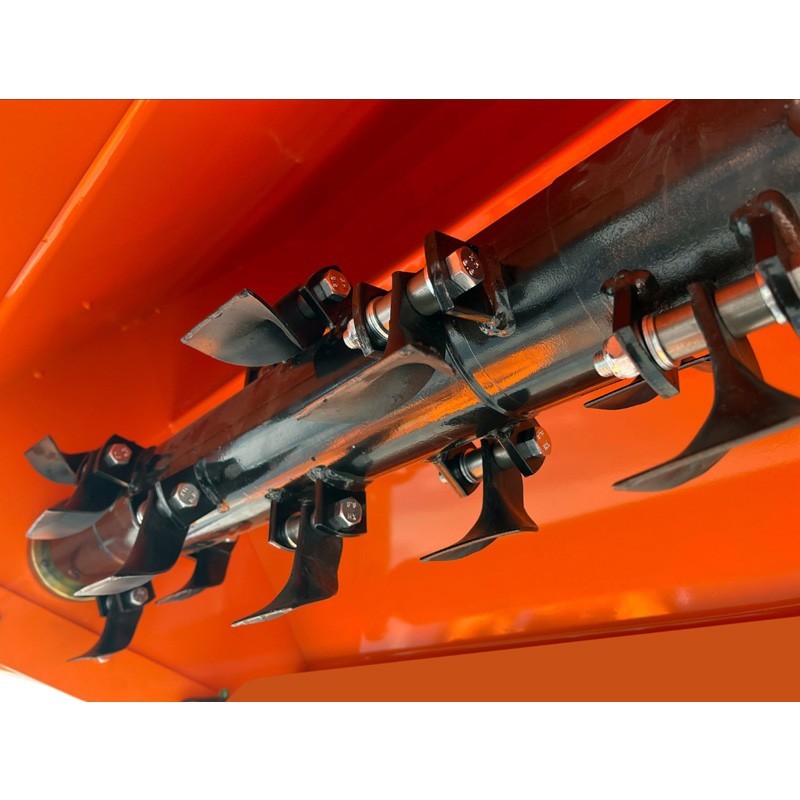

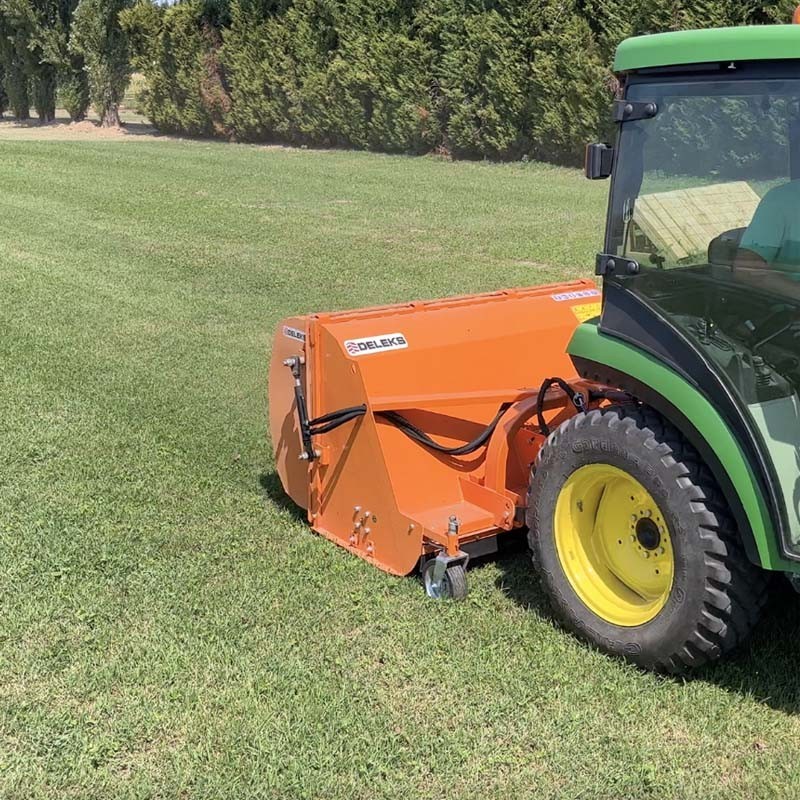

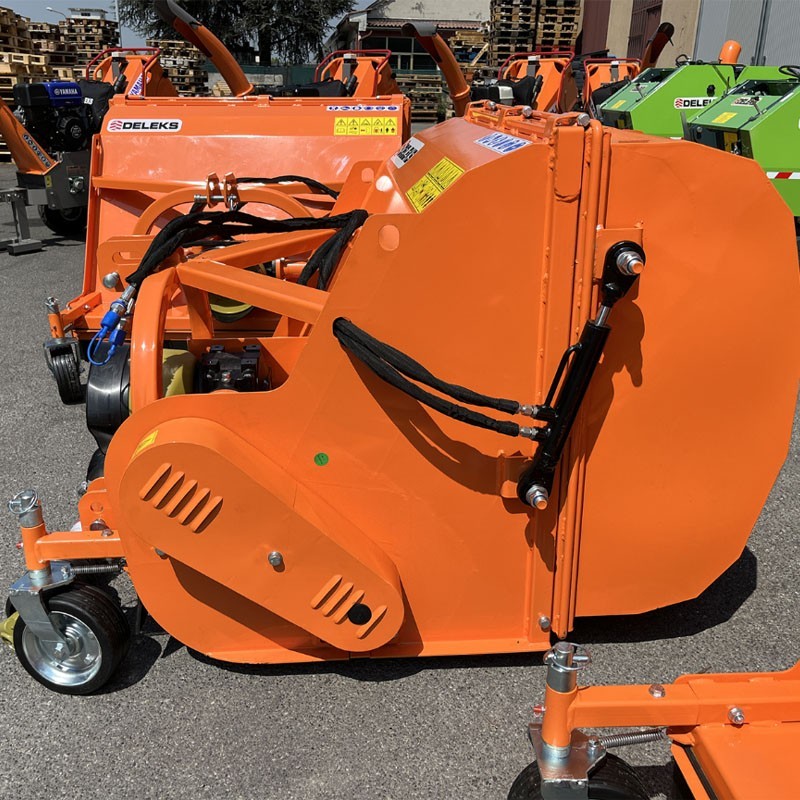

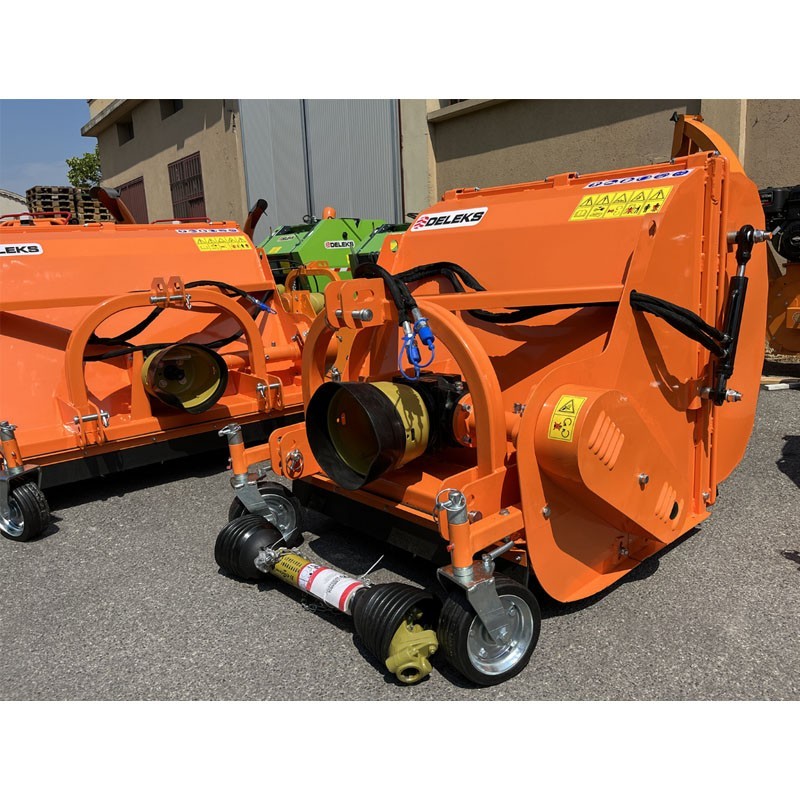

The DELEKS PANDA 160 cm is a shredder that also has the ability to collect debris, it is equipped with bladed blades that cut flush (for golf courses, for example) and create an air flow to channel the grass clippings into the collector.
The shredder comes with a 2-year warranty. All component parts are available in Italy and can be delivered within 7-10 days. This shredder has a rear roller, the capacity of the basket is 960L and it has front guards.

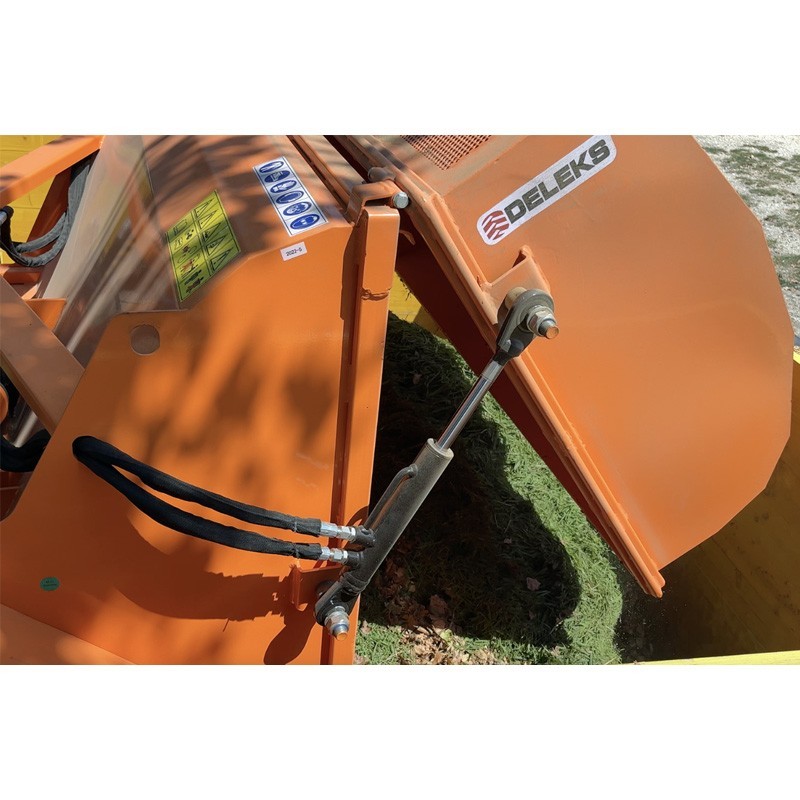

It has a Lombarda Ingranaggi Srl transmission box with free wheel which has a 3 years warranty, the basket is equipped with a hydraulic cylinder, for a quick opening without having to get up from the driver's seat, it has 3 high resistance belts.
Working width | 1600.0 mm |
Total width | 1800.0 mm |
Weight | 380.0 kg |
Overall height | 850.0 mm |
Tractor power | 30 - 60 hp |
3-point hitch | Cat. 1 (ø 19.0-22.0mm) |
Distance between lower points | 630.0 - 725.0 mm |
Number of hammers | 26 |
Max. cutting diameter | 20.0 - 30.0 mm |
Total length | 1400.0 mm |
Space between ground and transmission box | 450.0 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi (Warranty 3 years) |
Transmission: PTO | 540 r/min |
Transmission: rotation direction | Timetable |
Transmission: freewheel | √ |
Transmission: rotor speed | 2295 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: number of cores | 3 |
Transmission: dimensions of cores | 17x1067 |
Rotor: diameter | 108.0 mm |
Rotor: bearing type and dimension | UC207 |
Rotor: balancing | Electronic |
Rotor: sheet thickness | 8.0 mm |
Roll: diameter | 102.0 mm |
Roll: sheet thickness | 4.0 mm |
Cardan shaft | CE 4x800 mm + bolt |
Packing dimension | 1870.0*1420.0*1250.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
