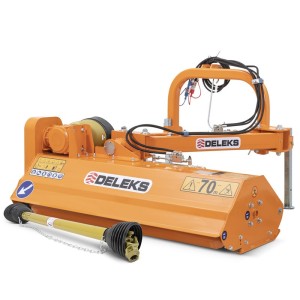

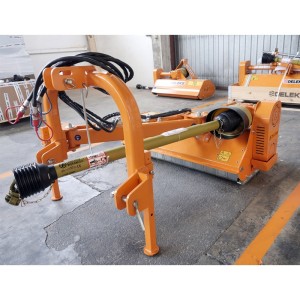

The Light arm shredder Deleks VOLPE-140 It is specially designed for tractors with low power of 30-45HP. This shredder model is used for lawns, gardens, and vineyards.

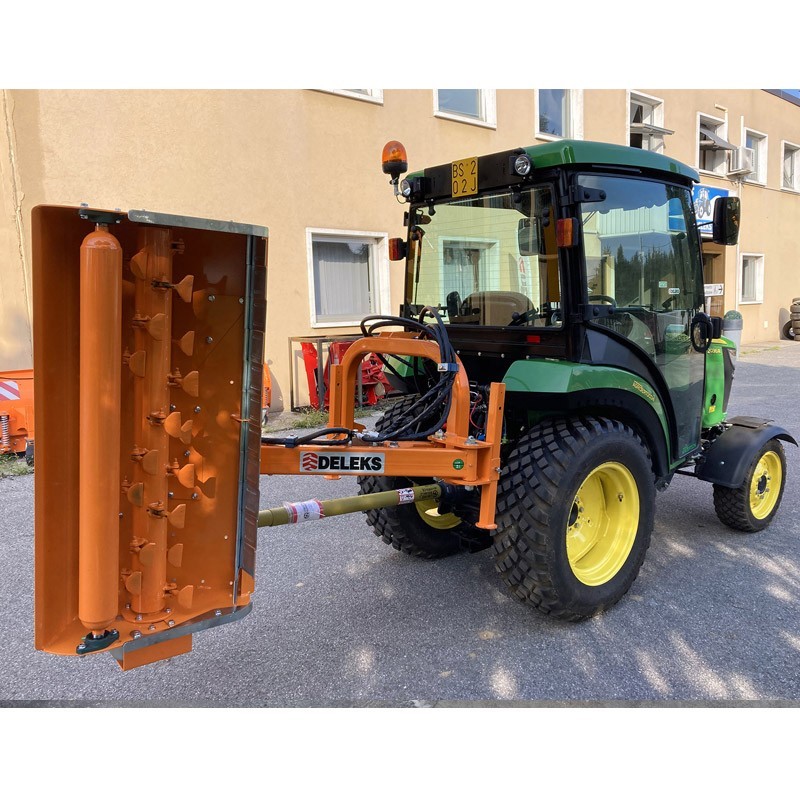

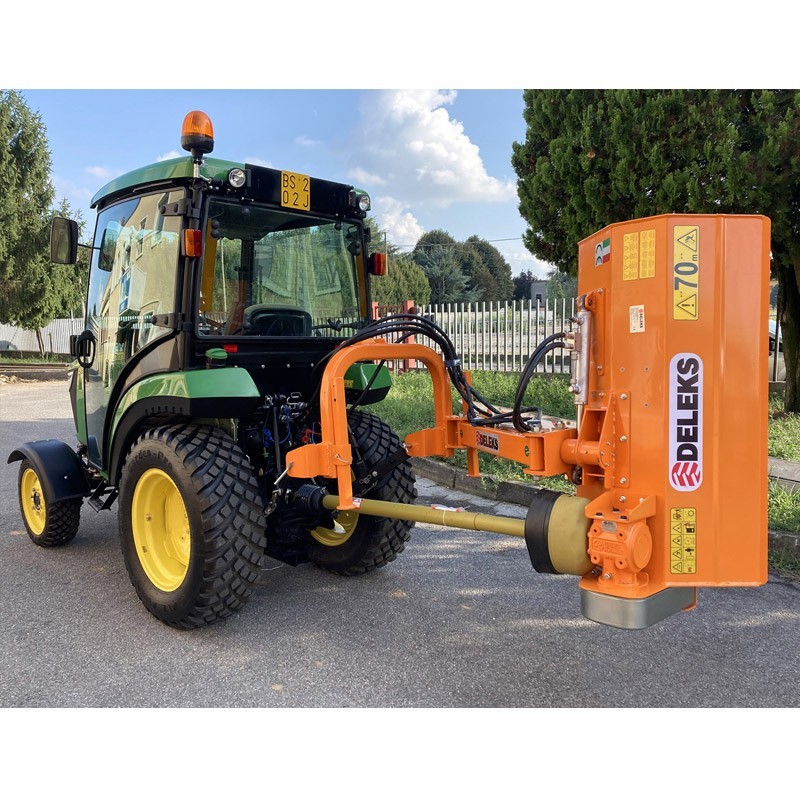

The model Deleks VOLPE-140It is designed for cutting grass and for brambles with a diameter of 2 to 3 cm. It is ideal for roadside edges. It can also be used for cutting shrubs as it tilts around 88 degrees upwards and 60 degrees downwards.
This Crusher of Deleks also includes a universal 3-point hitch of CAT 1. This is compatible with tractors from 30 to 45 HP. Regarding its features, we can highlight its good Lombarda Ingranaggi transmission box.. This comes with a freewheel.

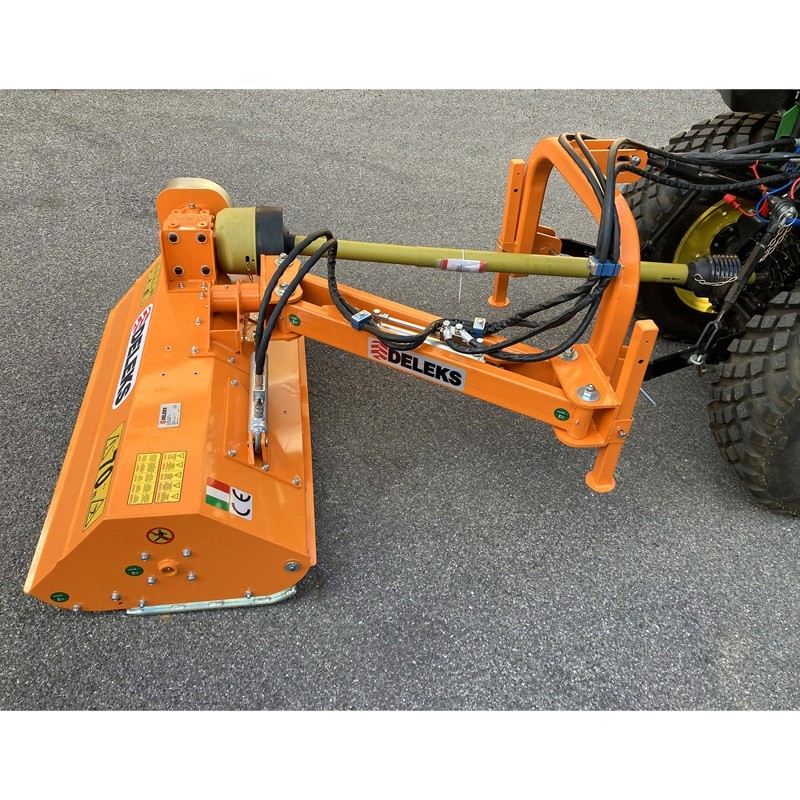

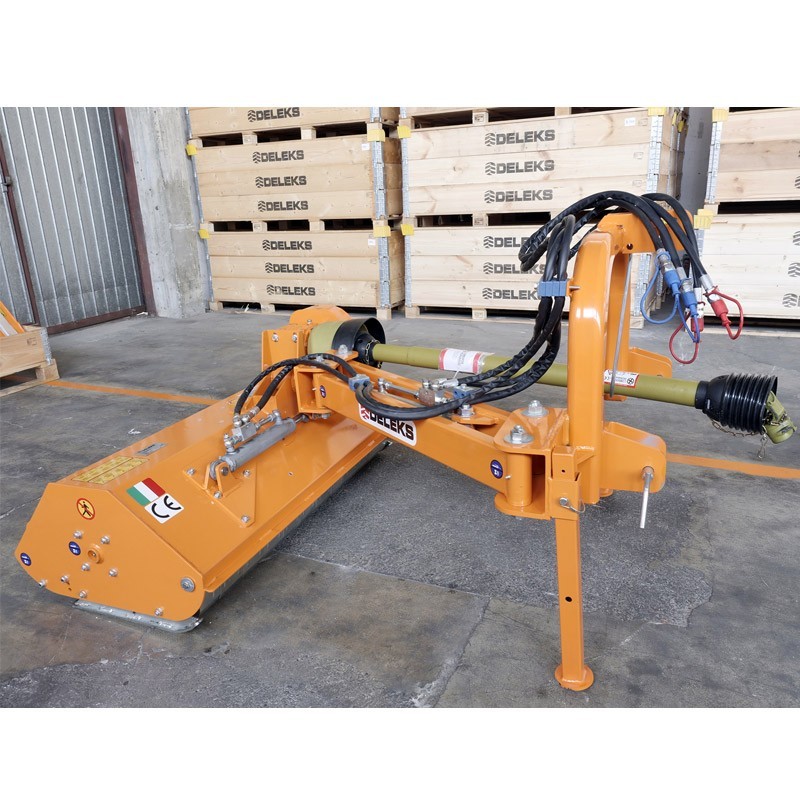

The VOLPE-140 Shredder comes with 140cm CE gimbal included, it also includes a double-blade side disc. The implement can be used on low-power tractors in gardens and orchards. This is thanks to its light weight of 200 kg.
This model of Light arm shredder Deleks It guarantees the operator good comfort and ease of work. This is thanks to its notable features.
Among these features, we can highlight the working width of 1400mm and the total width of 1520 mm. We can also highlight the adjustable cutting height from 10 to 45mm and the total height of 770mm.
| Working width | 1400 mm |
| Total width | 1520 mm |
| Minimum/maximum cutting height | 10 - 45.mm |
| Weight | 200 kg |
| Total height | 770 mm |
| Tractor power | 30 - 45 hp |
| Three-point hitch | Cat. 1 (ø 19-22mm) |
| Position of the transmission box | Internal |
| Height of the hood | 370 mm |
| Distance between the lower points | 655 - 755 mm |
| Number of hammers | 26 |
| Maximum cutting diameter | 20 - 30 mm |
| Total length | 1550 mm (closed) |
| Space between the ground and the transmission box | 472 mm |
| Thickness of the sheet | 3 mm |
| Thickness of the sheet on the sides | 5 mm |
| Thickness of the skates | 6 mm |
| Type of transmission | Correas V |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) |
| Transmission: PTO | 540 rpm (revolutions per minute) |
| Transmission: direction of rotation | Schedule |
| Transmission: freewheel | √ |
| Transmission: rotor speed | 3150 rpm |
| Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of the upper pulley | 206 mm |
| Transmission: diameter of the lower pulley | 106 mm |
| Transmission: number of cores | 3 |
| Transmission: dimensions of the Koreas | AX39 |
| Rotor: diameter | 102 mm |
| Rotor: type of bearings and dimension | SKF UCF-207 |
| Rotor: balancing | Electronic |
| Rotor: blade thickness | 8 mm |
| Hammers: weight | 330 g |
| Hammers: ø hole | 11 mm |
| Hammers: base width | 80 mm |
| Hammers: head width | 14 mm |
| Hammers: diagonal | 75 mm |
| Roll: diameter | 102 mm |
| Roll: sheet thickness | 4.5 mm |
| Roll: type of bearings and dimension | FL204 |
| Displacement and dimensions | View photos |

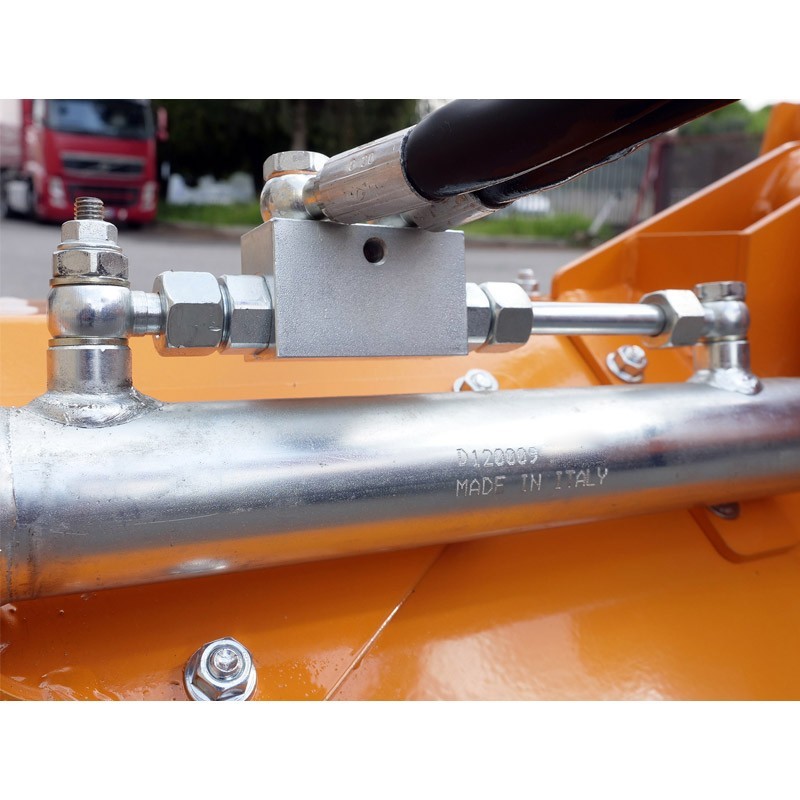

| ø Hydraulic Cylinder A | 50-25 mm |
| ø Hydraulic Cylinder B | 60-30 mm |
| Minimum/maximum oil pressure | 120 - 150 bar |
| Optimal oil flow | 18 - 22 l/min |
| Hydraulic tubes | WP 400 Bar, 1/2" Agri Standard |
| Cardan | CE 4x1400 mm |
| Length of the hood | 665 mm |
| Packaging dimension | 1550*850*700 mm |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
