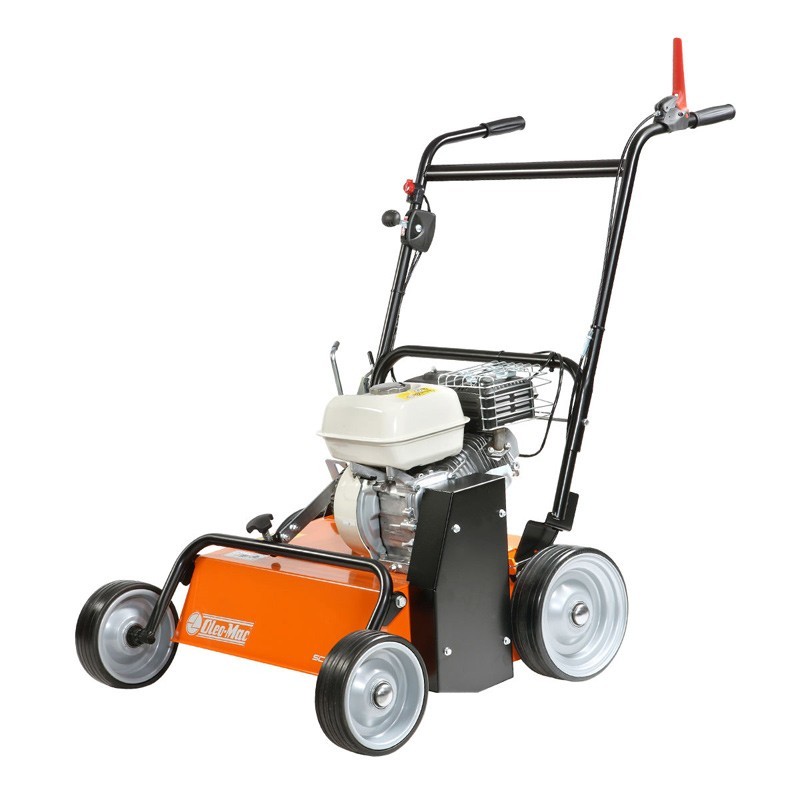

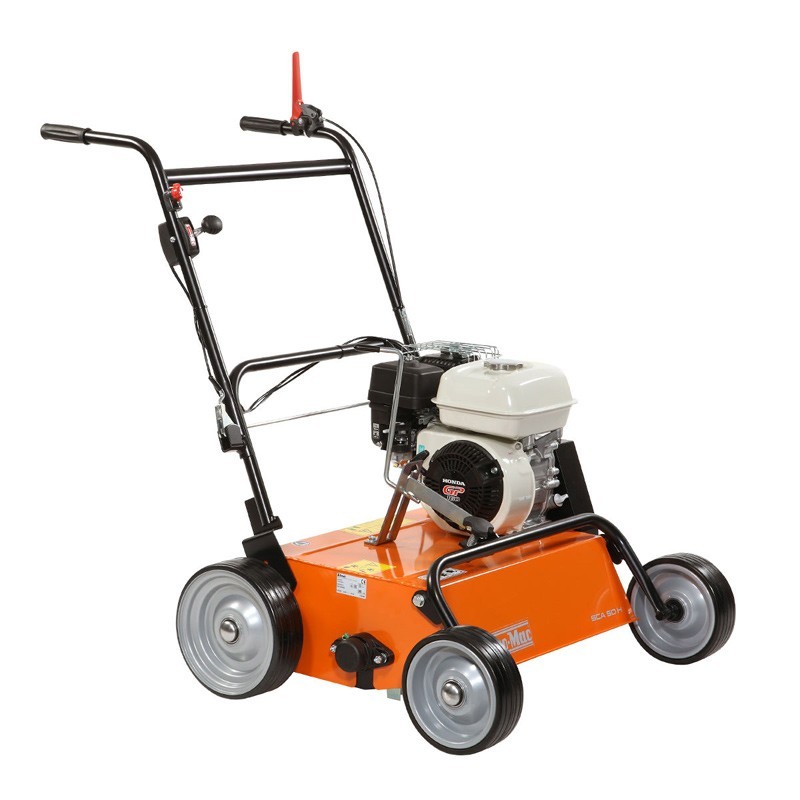

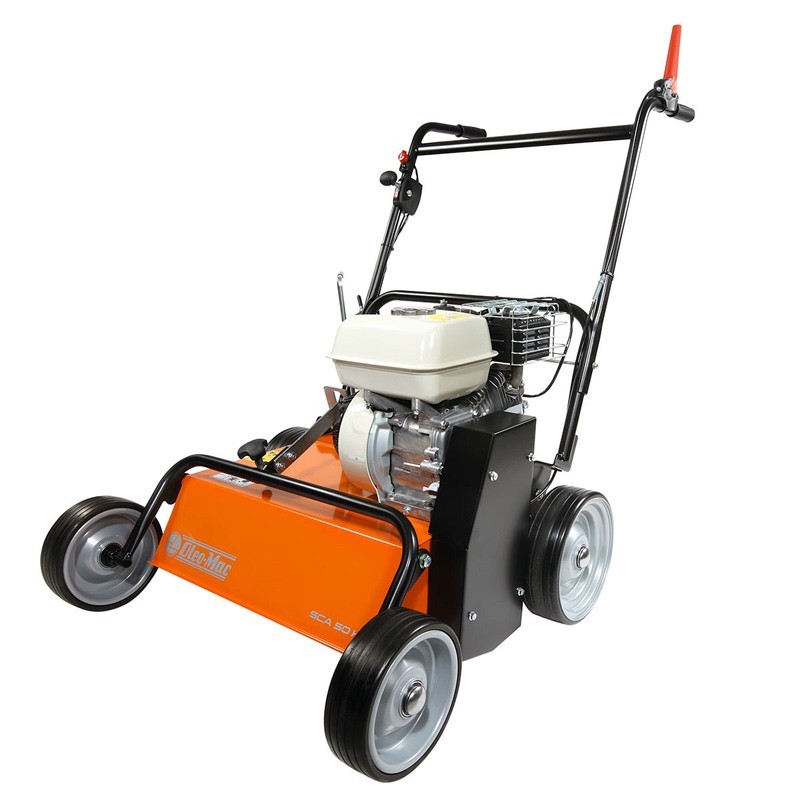

The Oleo Mac SCA 50 H scarifier has a Honda GP 160 OHV engine with a displacement of 163 cc and a power of 5 HP. This model features a manual start, belt drive and push forward.
The cutting width of this scarifier is 50 cm with a height from 0 to 15 mm with infinite positions with memory system. This scarifier includes 28 floating blades with brake in case of immediate stop.
This model does not include a bag for grass collection. This machine is designed in steel with metal and rubber wheels on bearings. The wheels of this scarifier are 210 mm at the front and 250 mm at the rear, with a total weight of the machine of 65 Kg.
| Engine | Honda GP 160 OHV |
| Power | 5.0HP |
| Displacement | 163cc |
| Starter | Manual |
| Transmission | Belt |
| Forward | Thrust |
| Depth of Cut | 0-15mm |
| Cutting Positions | Infinite with memory system |
| Cutting width | 50cm |
| Blade type | 28 floating blades |
| Blade brake | Yes |
| Chassis | Steel |
| Front wheels∅ | 210mm |
| Rear wheels∅ | 250mm |
| Wheel material | Metal and rubber on bearings |
| Weight | 65Kg |
 |
Powerful and reliable engines with overhead valves. Guarantees constant performance and maximum power transmission. |
 |
Solid hardened steel blades, ideal for even the toughest terrain: 28 floating blades |
 |
Reinforced steel chassis to easily cope with the most severe applications. |
 |

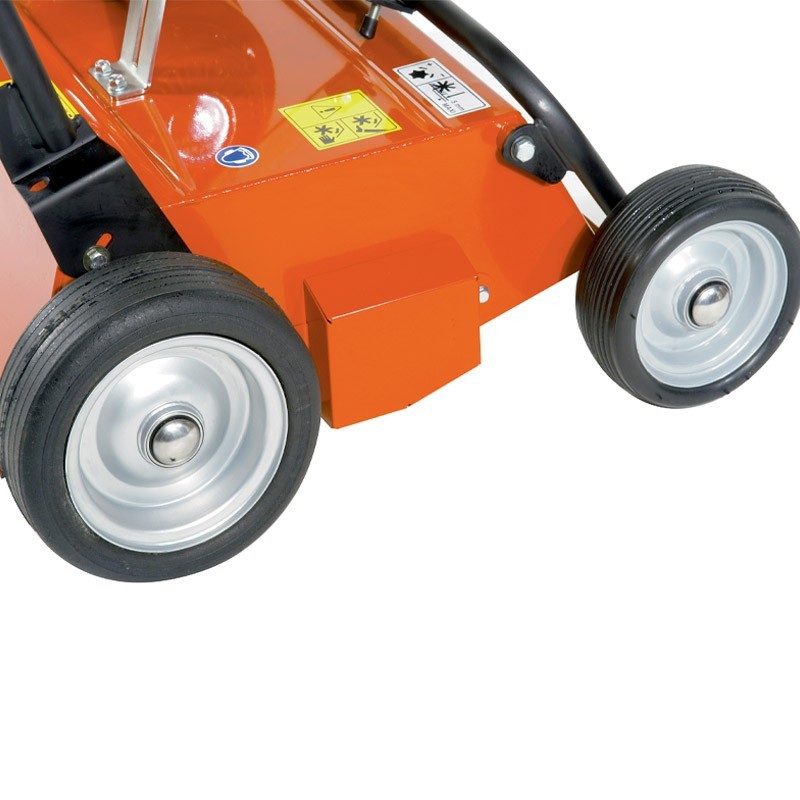

Sturdy, large diameter wheels (Ø 210 mm front, Ø 250 mm rear). They allow a perfect advance on any surface. |
 |
Rotor blades mounted on solid ball bearings lubricated with grease. It guarantees a perfect sliding and long life. |
 |
The belt transmission system keeps the motor and transmission intact in case of problems. |
 |
The blade brake, which is operated by a red lever located on the handlebars. It allows us to voluntarily operate the rotor that activates the blades. |
 |

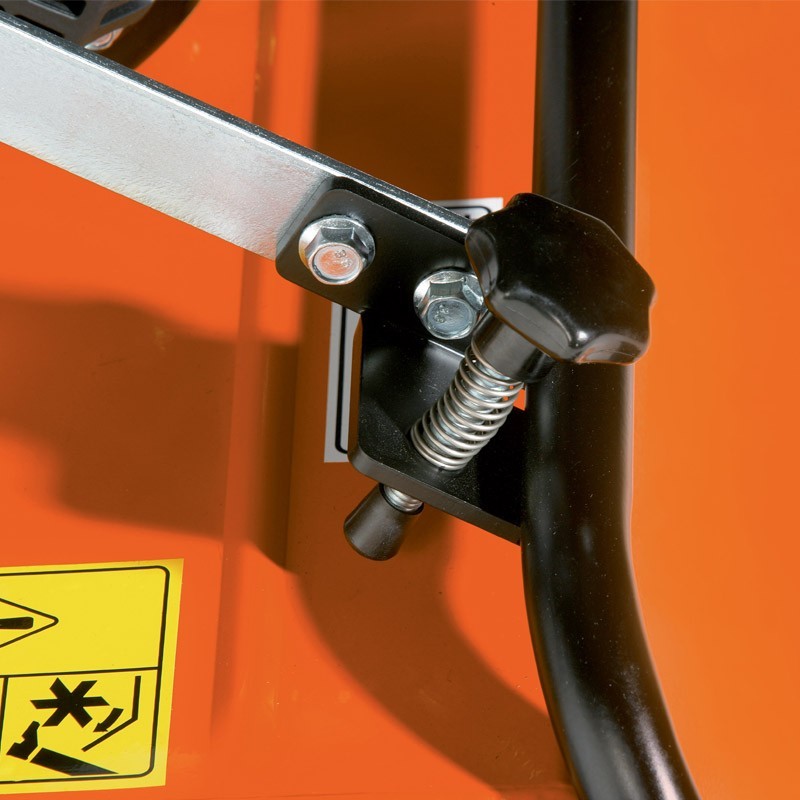

The centralized height adjustment system (a) with memory. The system (b) allows to quickly recover the desired position after a displacement. |
 |
Easy handlebar folding system: thanks to a convenient lever. The handlebar folds down on the chassis, thus saving space in the tank. |
 |
The blades are operated with the red lever on the handlebar. Only when pressed intentionally (after deactivating the lock) does it start the rotor. This system avoids having to switch off and restart the engine to adjust the cutting height. |
 |
The optional bag, with a capacity of 40 l, ensures good working autonomy and reduces the time and physical effort required to manually collect grass residues. |
| IMPORTANT It is mandatory for the customer to check oil and grease levels before starting up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
