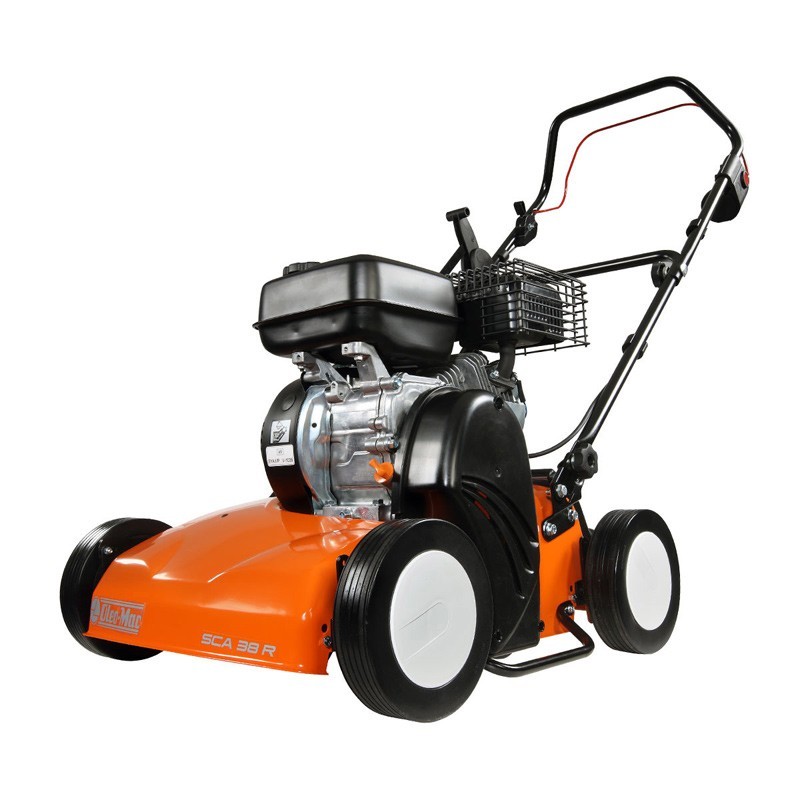

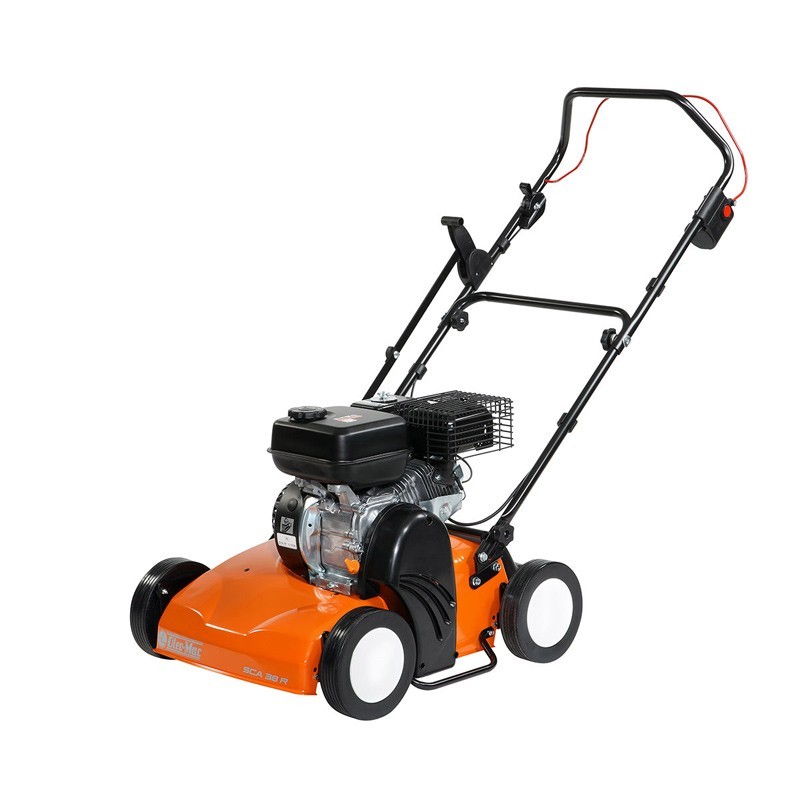

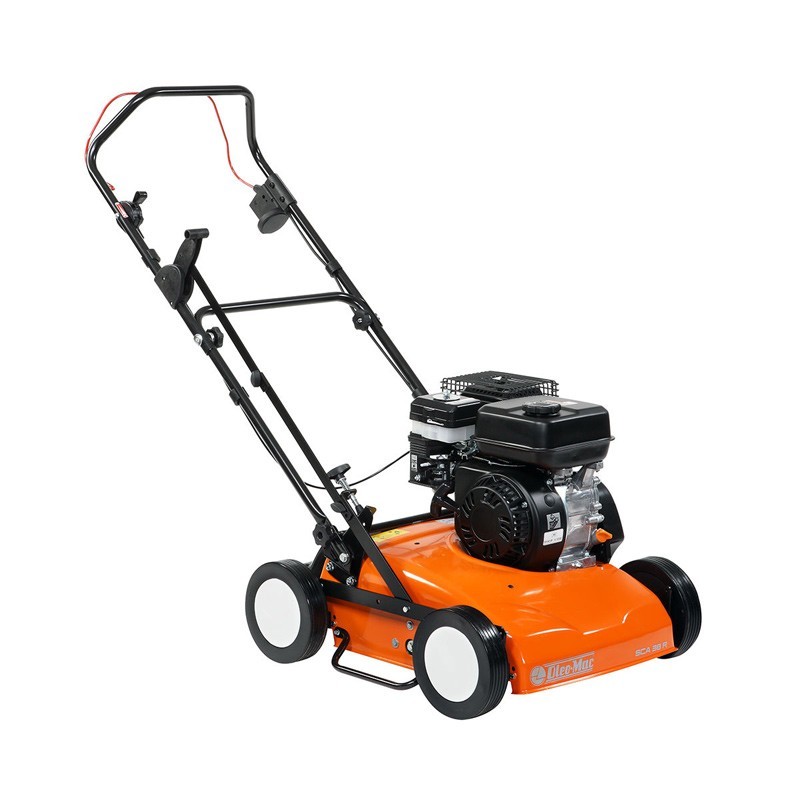

The Oleo Mac SCA 38 R scarifier is powered by a RATO R 180 engine with a displacement of 179 cc and a power of 4.7 HP. This model features a manual start, belt drive and push forward.
The cutting width of this scarifier is 38 cm with a height from 0 to 22 mm with infinite positions and a memory system. This scarifier includes 15 fixed blades with brake in case an immediate stop is needed.
This model does not include a bag for grass collection, it is optional and is 40 L in fabric. This machine is designed in steel with plastic and rubber wheels on bearings. The wheels of this scarifier are 200 mm, with a total weight of 35 Kg.
| Engine | Rato R 180 |
| Power | 4.7 HP |
| Displacement | 179cc |
| Starter | Manual |
| Transmission | Belt |
| Forward | Thrust |
| Depth of Cut | 0-22mm |
| Cutting Positions | Infinite with memory system |
| Cutting width | 38cm |
| Blade type | 15 fixed blades |
| Blade brake | Yes |
| Chassis | Steel |
| Wheels∅ | 200mm |
| Bag | Option (fabric) |
| Bag capacity | 40L |
| Material wheels | Plastic and rubber on bearings |
| Weight | 35Kg |
 |
Powerful and reliable engines with overhead valves. Guarantees constant performance and maximum power transmission. |
 |

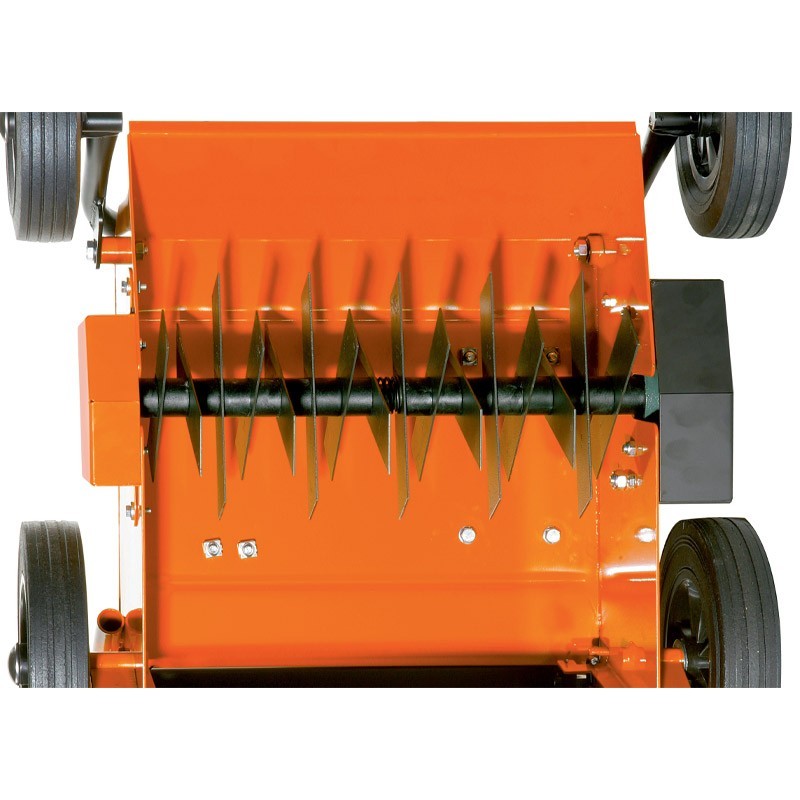

Solid hardened steel blades, ideal for even the toughest terrain: 28 floating blades |
 |
Reinforced steel chassis to easily cope with the most severe applications. |
 |
Sturdy, large diameter wheels (Ø 210 mm front, Ø 250 mm rear). They allow a perfect advance on any surface. |
 |
Rotor blades mounted on solid ball bearings lubricated with grease. It guarantees a perfect sliding and long life. |
 |
The belt transmission system keeps the motor and transmission intact in case of problems. |
 |
The blade brake, which is operated by a red lever located on the handlebars. It allows us to voluntarily operate the rotor that activates the blades. |
 |
The centralized height adjustment system (a) with memory. The system (b) allows to quickly recover the desired position after a displacement. |
 |

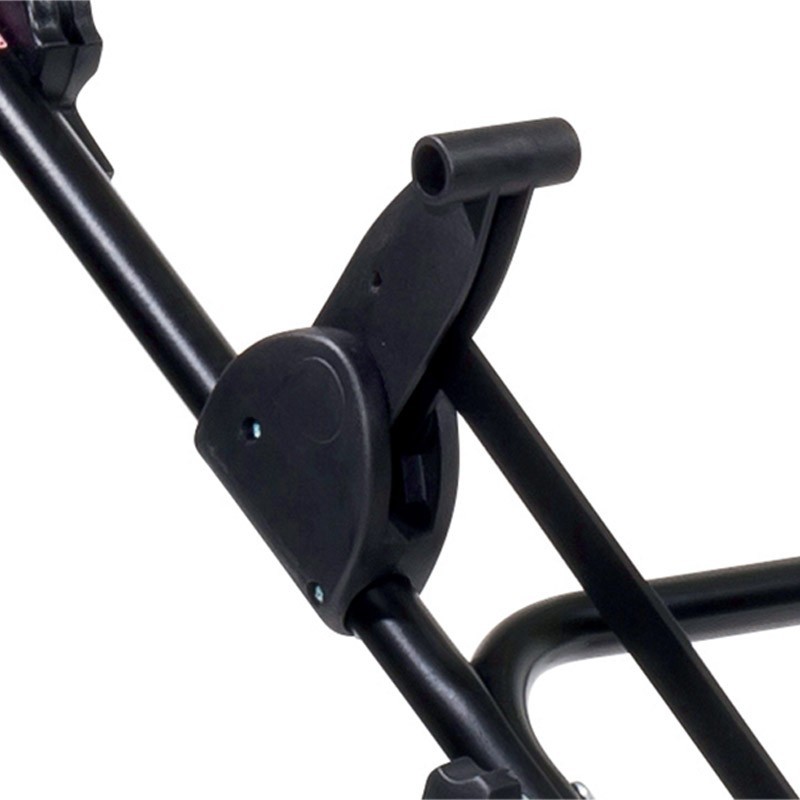

Easy handlebar folding system: thanks to a convenient lever. The handlebar folds down on the chassis, thus saving space in the tank. |
 |
The blades are operated with the red lever on the handlebar. Only when pressed intentionally (after deactivating the lock) does it start the rotor. This system avoids having to switch off and restart the engine to adjust the cutting height. |
 |
The optional bag, with a capacity of 40 l, ensures good working autonomy and reduces the time and physical effort required to manually collect grass residues. |
| IMPORTANT It is mandatory for the customer to check the oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
