Movable tractor rotovator Giemme FTL 135 - 155 cm
- Working width PTO : 135 - 155 cm
- Tractor power : 30 - 40 HP
- Blades per support : 4 blades per support
- Working depth : 160 mm
€1,955.39 VAT incl.
CARDAN SHAFT INCLUDED
Deleks products take about 15 to 25 days. |

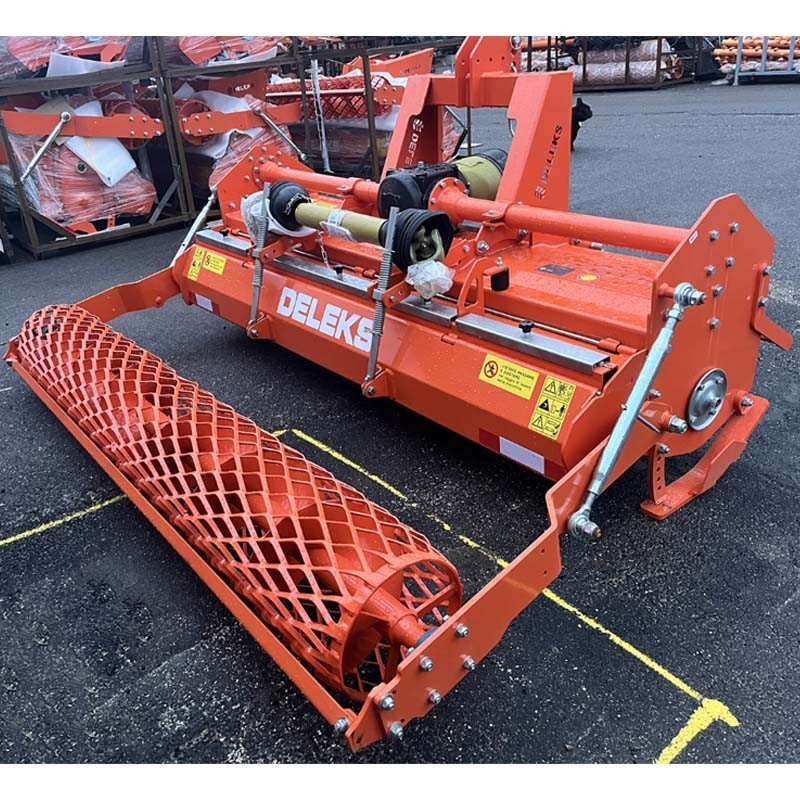

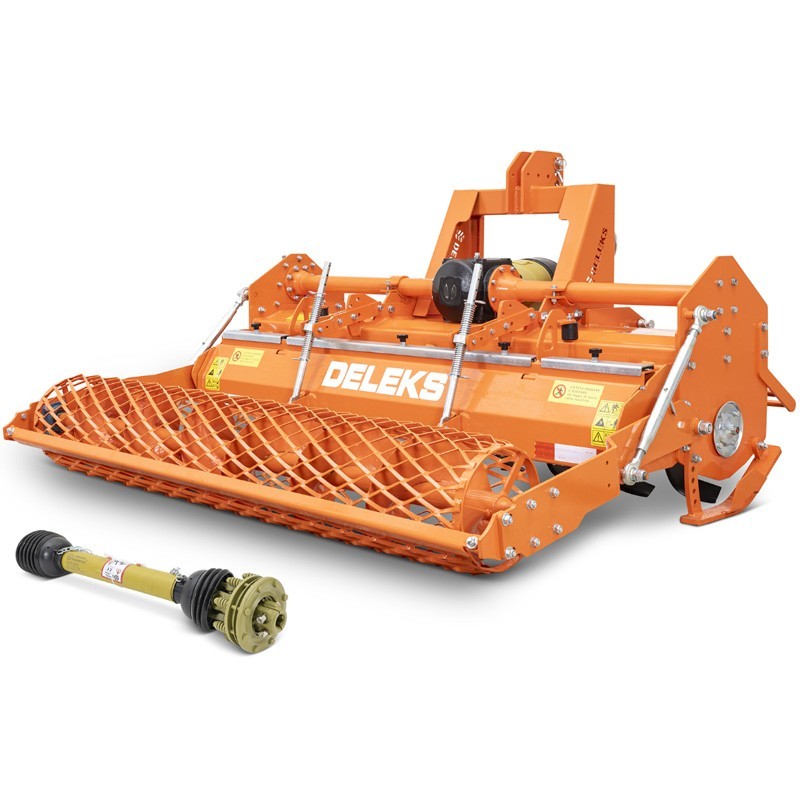

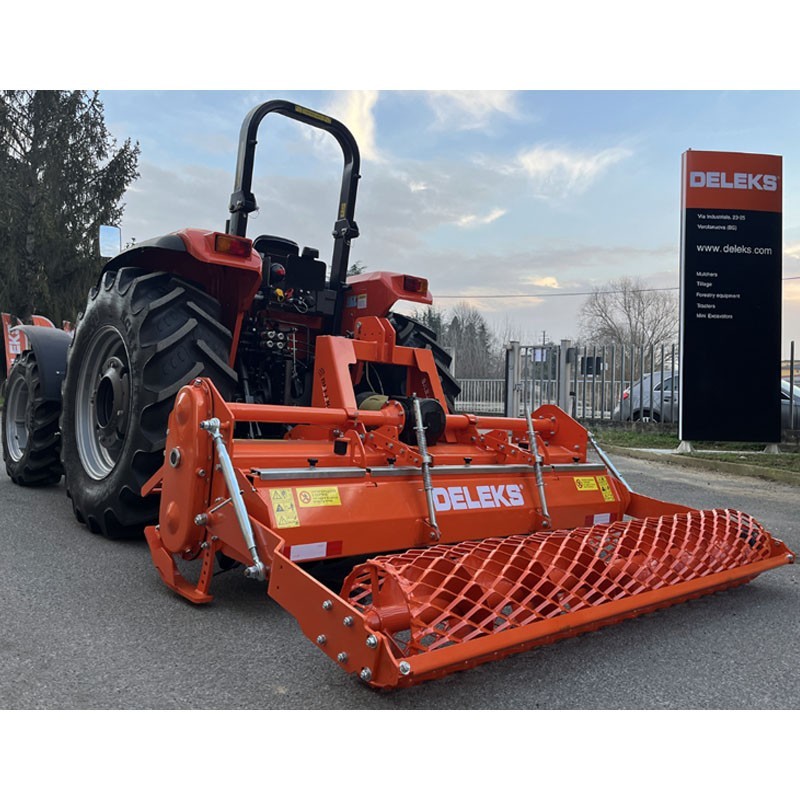

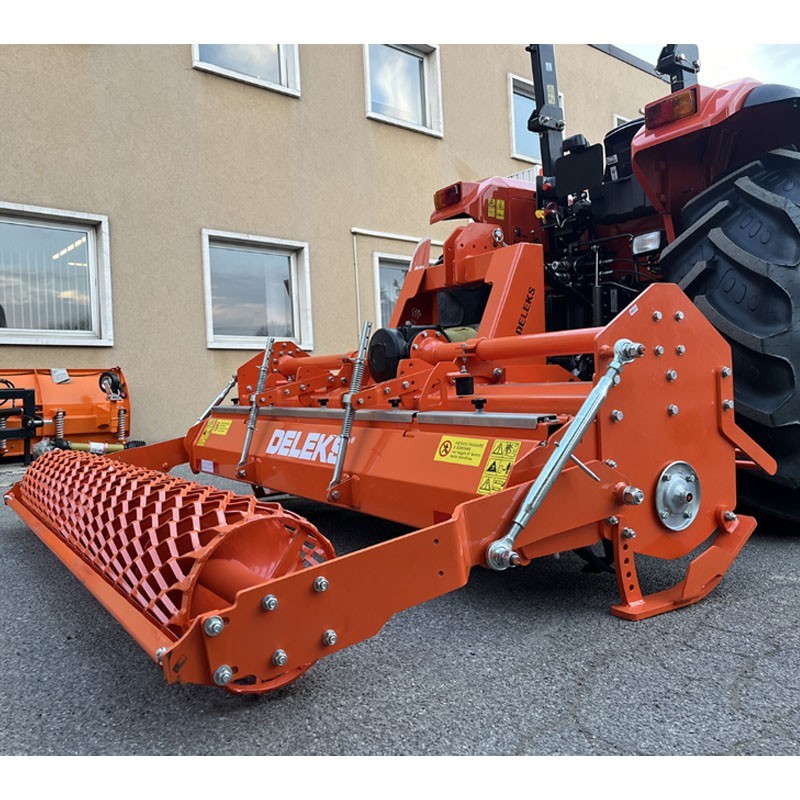

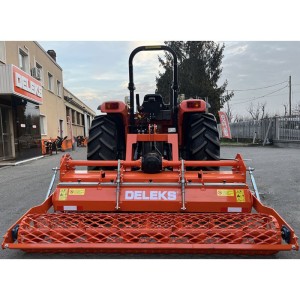

The professional DELEKS DFTR Rotovator for tractors is specially designed for soil preparation in fields, orchards and vegetable gardens.
The machine tills the soil so that it is ready for seedbed preparation or weeding. This rotovator is suitable for most of the tractors of the market 70/80 to 100 HP of power, this makes it accessible to a large number of tractors.

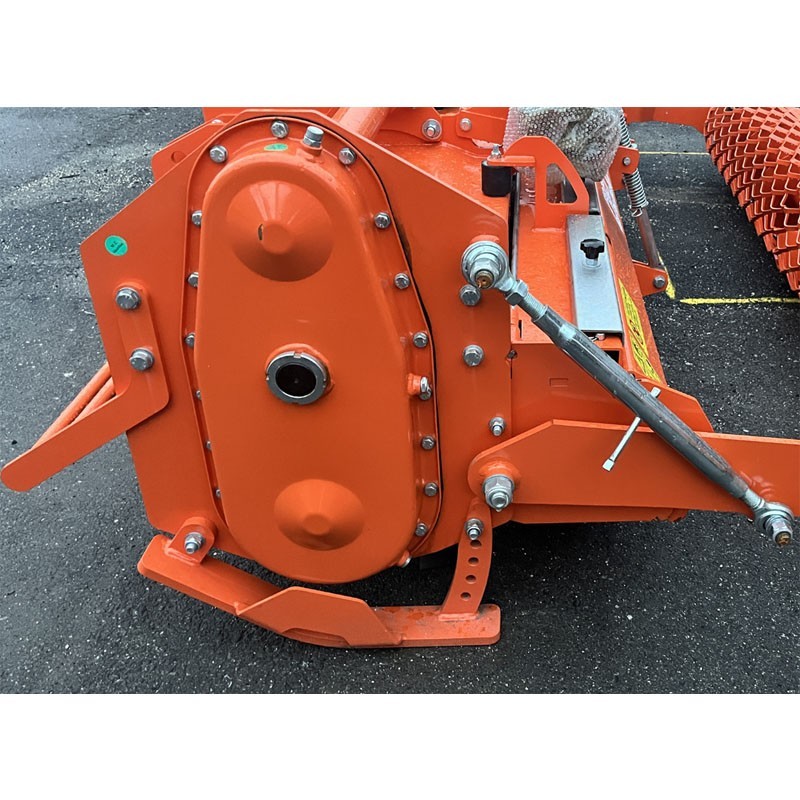

It has a category 2 3-point linkage, which allows it to be hitched to the tractor in an easy way 540 r/min transmission box, its transmission is located laterally to it and has sprockets.
It has 6 blades per holder, its adjustable skids help you to adjust the working depth, so that depending on the need we have, we can vary the working depth.
The rear door of this rotovator has the possibility of opening, it has working widths, which depending on the model can be up to 1795 - 2195 mm wide. Depending on our needs, we can choose the most useful and necessary one.
Model | DFTR180 | DFTR200 | DFTR220 |
Overall width | 2000.0 mm | 2200.0 mm | 2400.0 mm |
Weight | 630.0 kg | 650.0 kg | 680.0 kg |
Total height | 1200.0 mm | 1200.0 mm | 1200.0 mm |
Tractor power | 70 - 100 hp | 70 - 100 hp | 80 - 100 hp |
3-point hitch | Cat. 2 (ø 25.0-28.0mm | Cat. 2 (ø 25.0-28.0mm | Cat. 2 (ø 25.0-28.0mm |
Distance between lower points | 745.0 - 870.0 mm | ||
Total length | 1800.00 mm | ||
Rotor: diameter | 90.0 mm | ||
Rotor: blade thickness | 12.0 mm | ||
Transmission | Gears | ||
Working width | 1795.0 mm | 1995.0 mm | 2195.0 mm |
Working depth (min/max) | 200.0 mm | ||
Gearbox to ground clearance | 650.0 mm | ||
Cardan | CE 6x1000 mm + Friction ø200mm | ||
Rotor: diameter with blades | 500.0 mm | ||
Rotor: bearing type and dimensions | 6309(L) / 6310(R) | ||
Rotor: No. of sections | 7 | 8 | 9 |

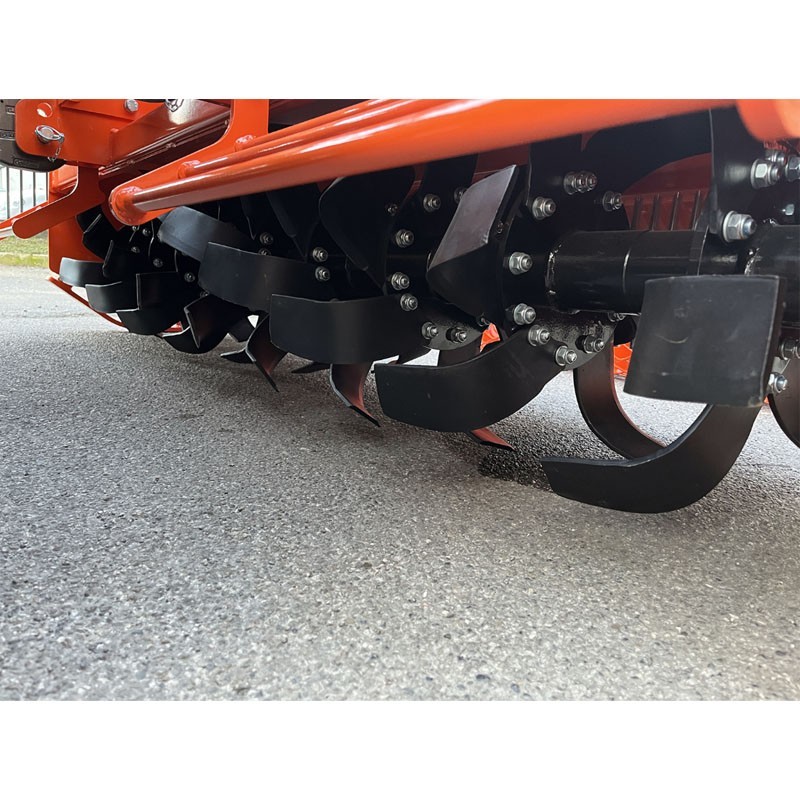

No. of blades in each section | 6 | ||
Number of blades | 21 + 21 | 24 + 24 | 27 + 27 |

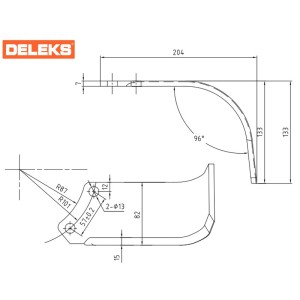

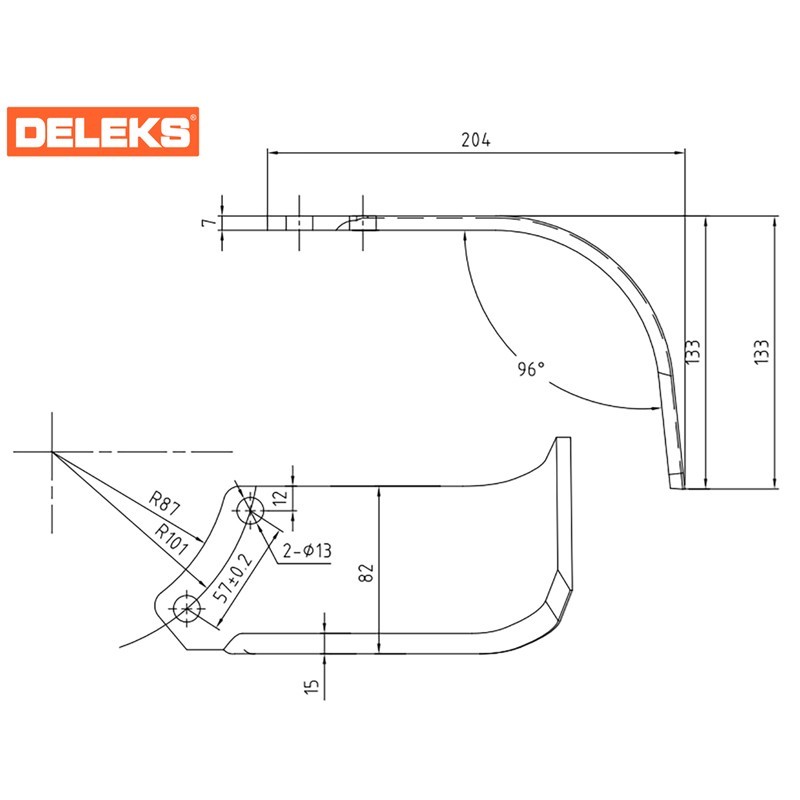

Blades: height/ width | 180.0 / 67.0 mm | ||
Blades: curved extension | 230.0 mm | ||
Blades: distance between holes | 45.0 mm | ||
Blades: diameter holes | 13.0 mm | ||
Blades: thickness | 6.0 mm | ||

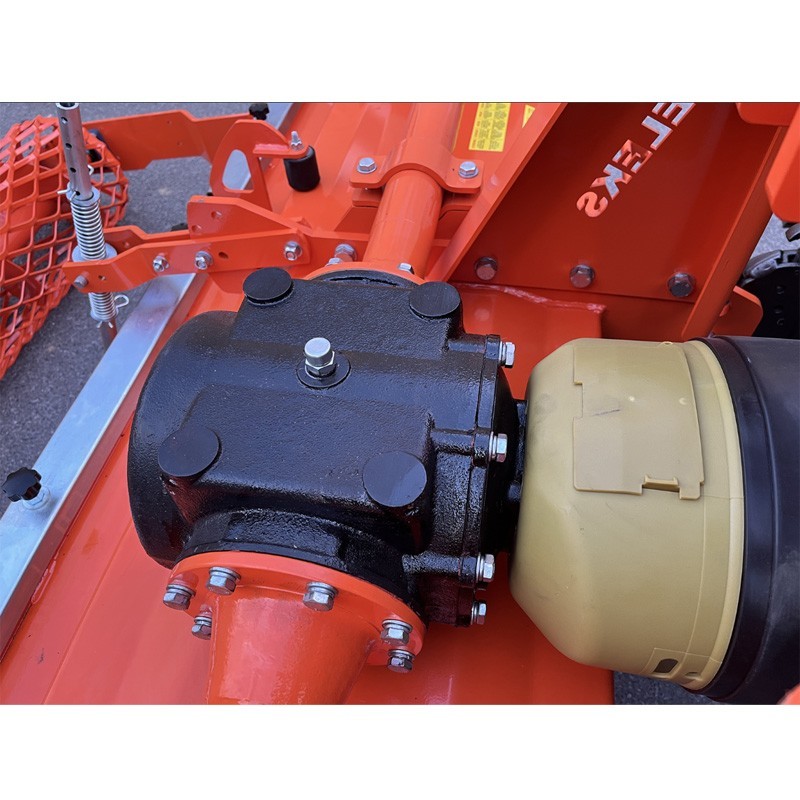

Transmission case | Lombarda Ingranaggi 540 r/min (3-year warranty) | ||
Lateral displacement | 120.0 mm manual | 120.0 mm manual | 200.0 mm |
Direction of rotation PTO | Right side | ||
Rotor speed | 210 rpm | ||
Case oil | Si/ SAE 120 - ISO 72925 | ||
Blades: weight | 1.0 kg | ||
Packing dimensions | 210 x 115 x 115 cm | 230 x 115 x 115 cm | 250 x 115 x 115 cm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
