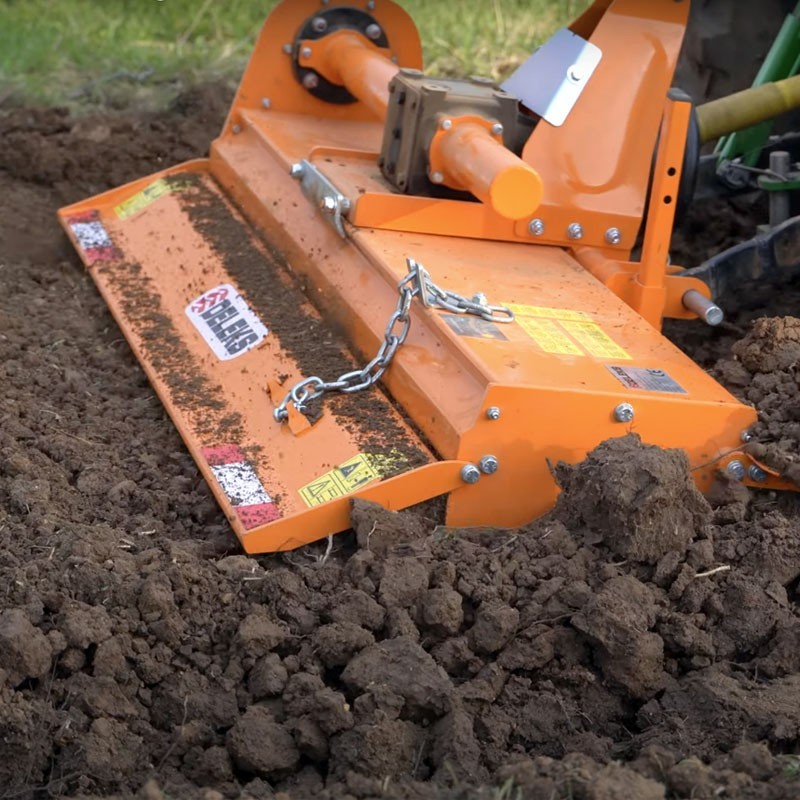

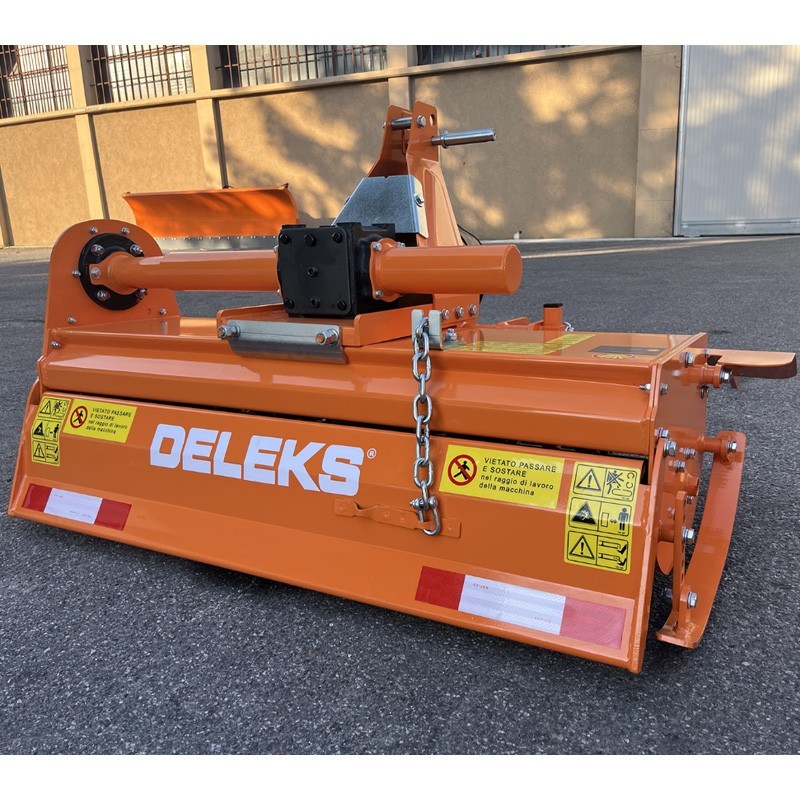

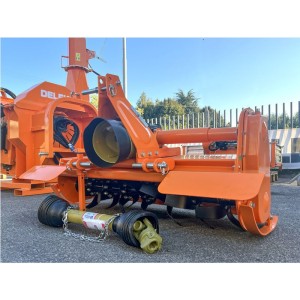

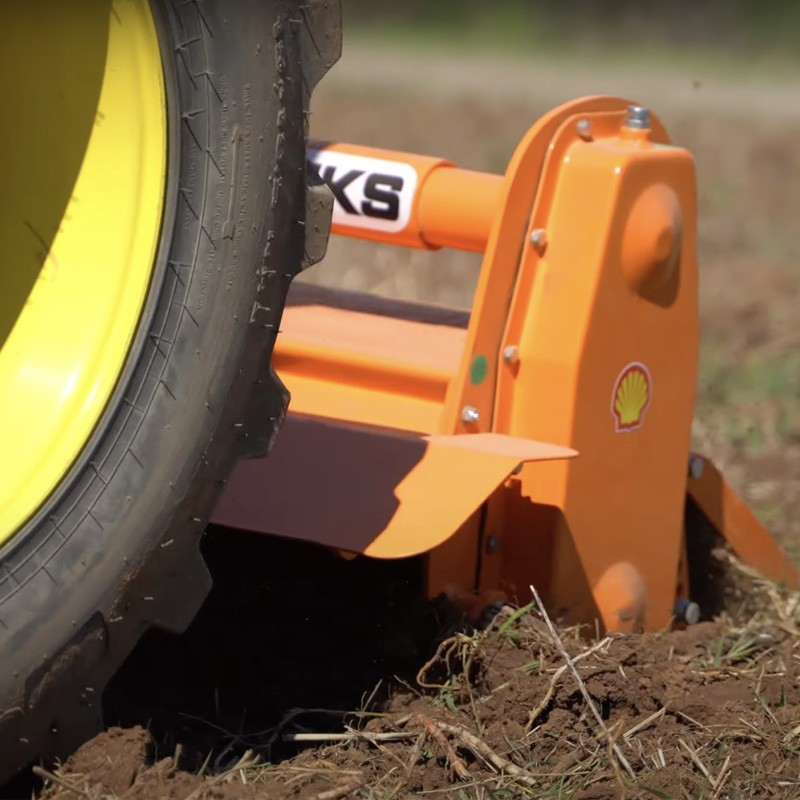

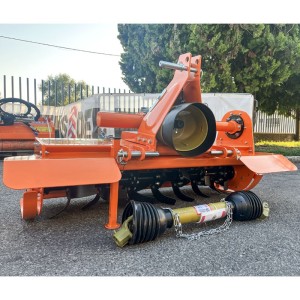

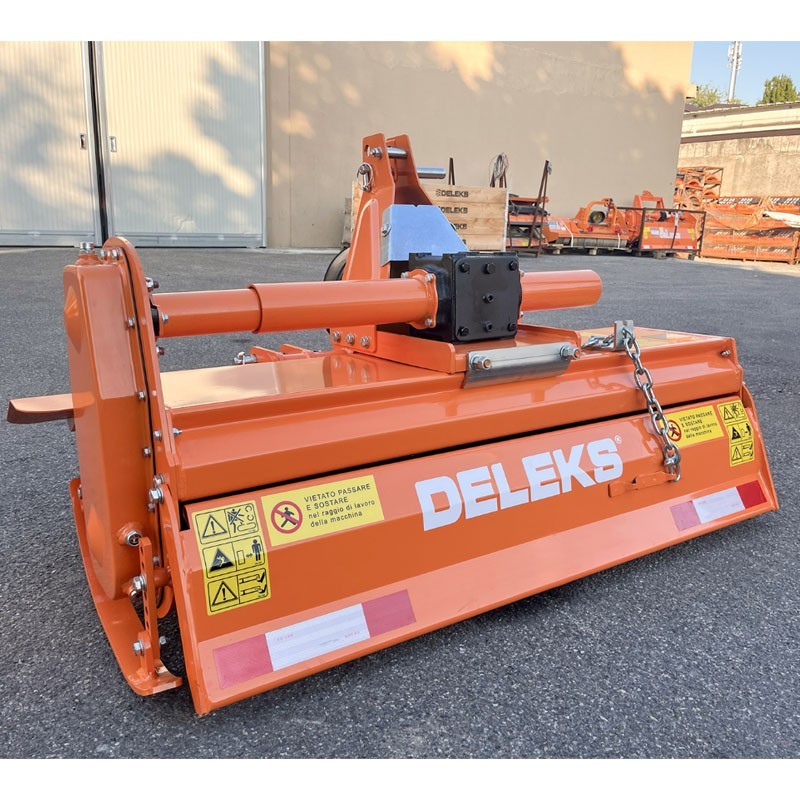

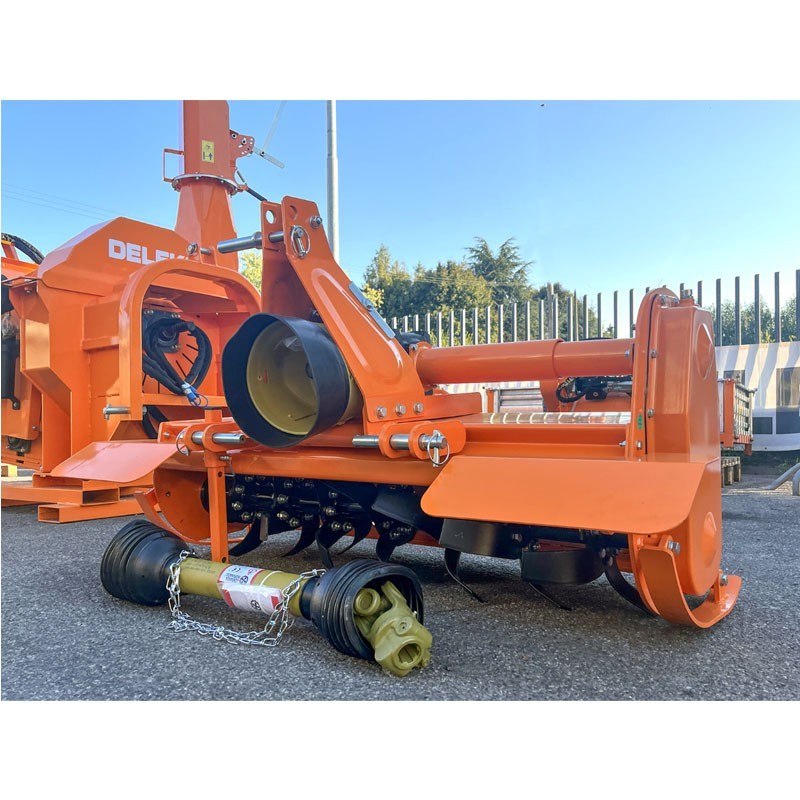

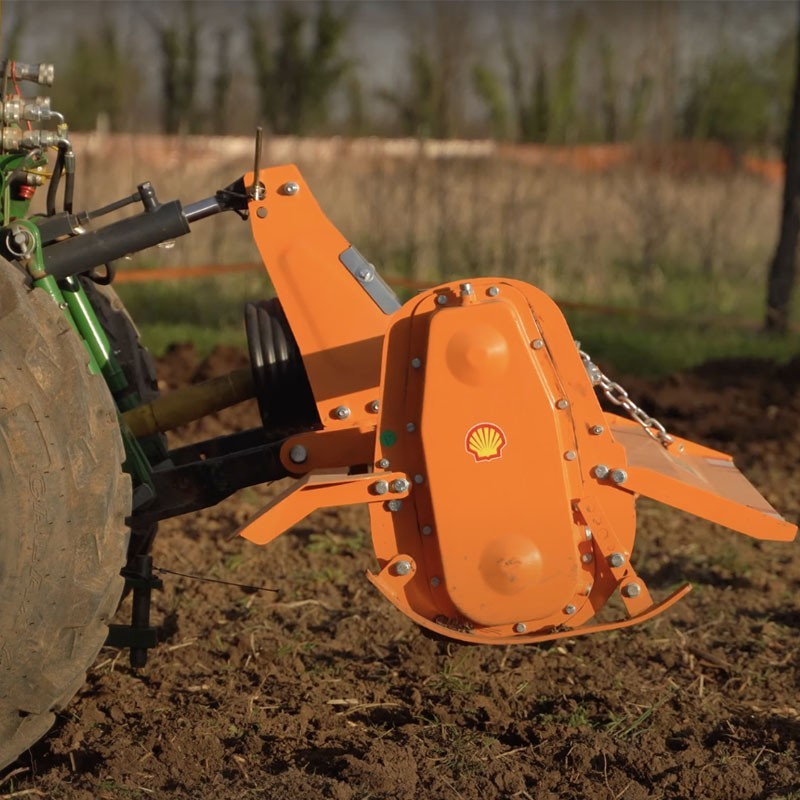

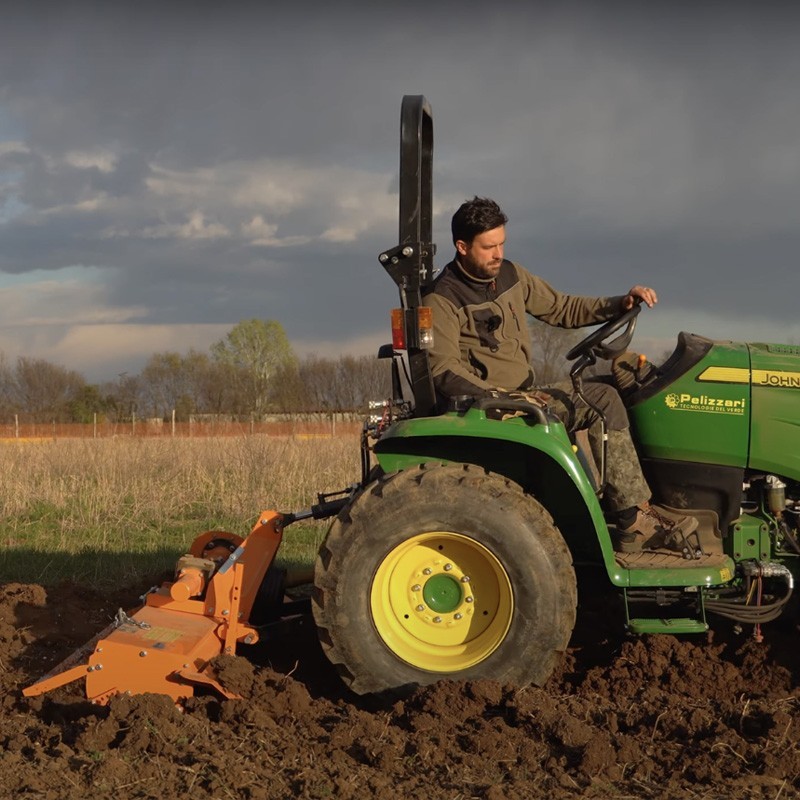

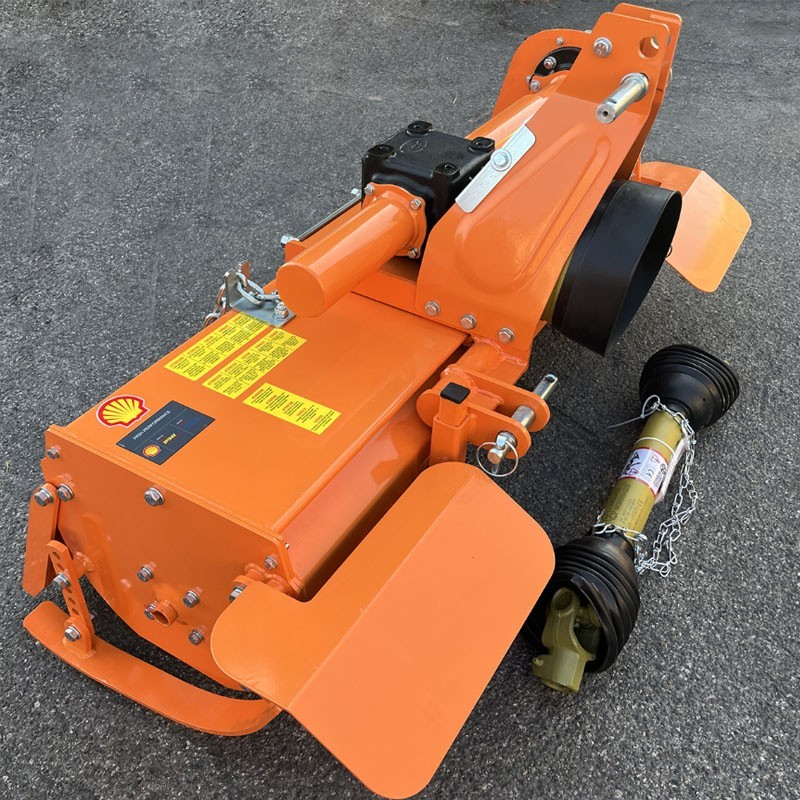

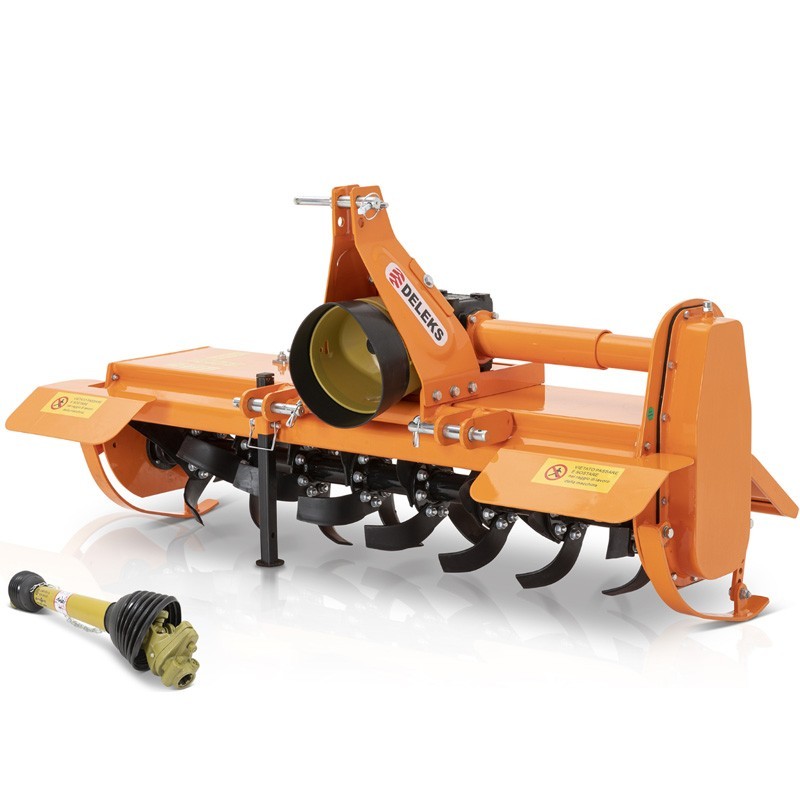

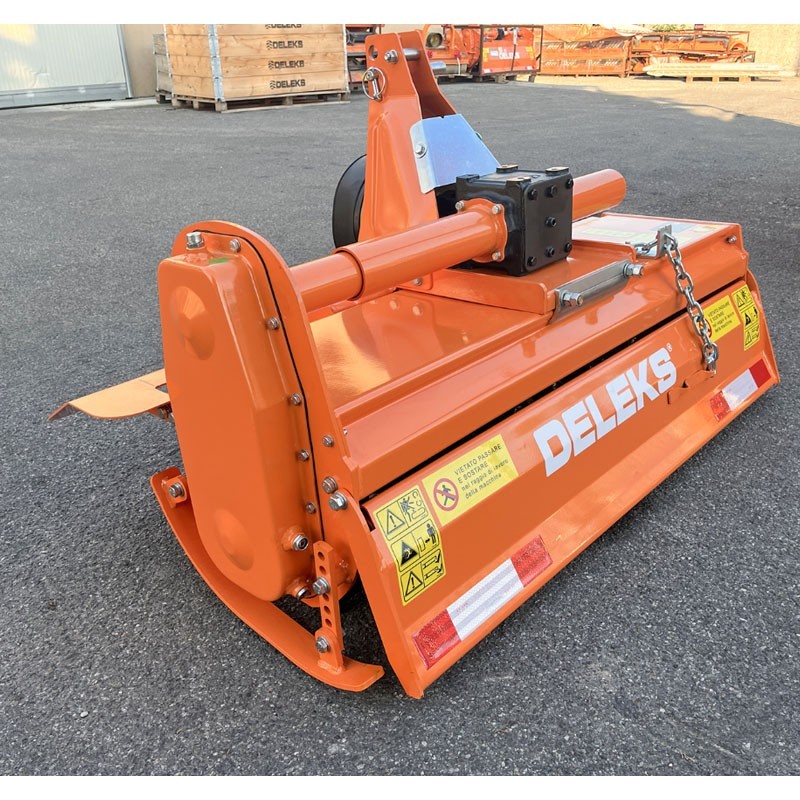

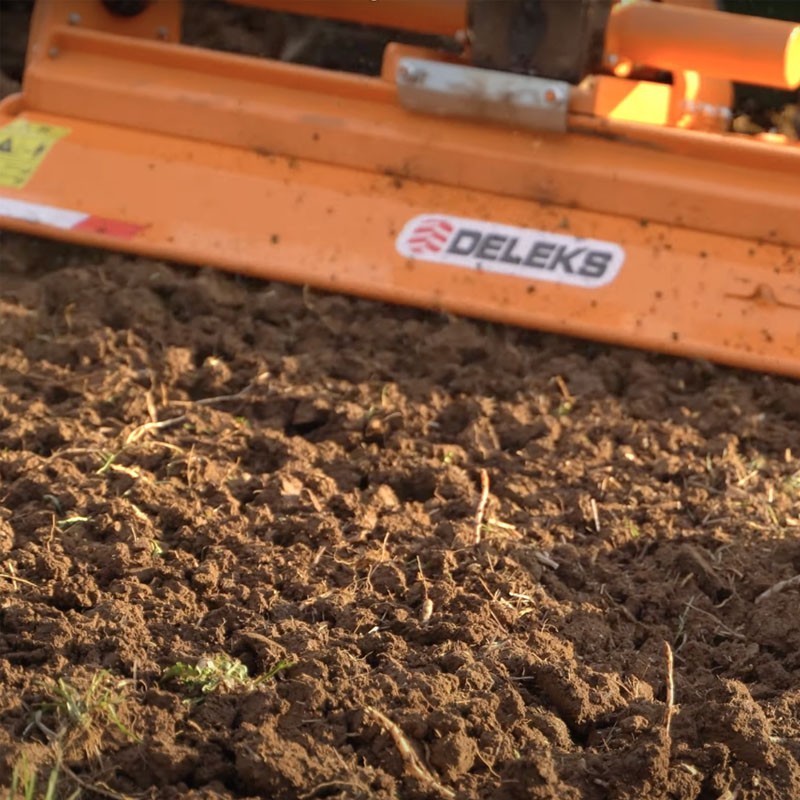

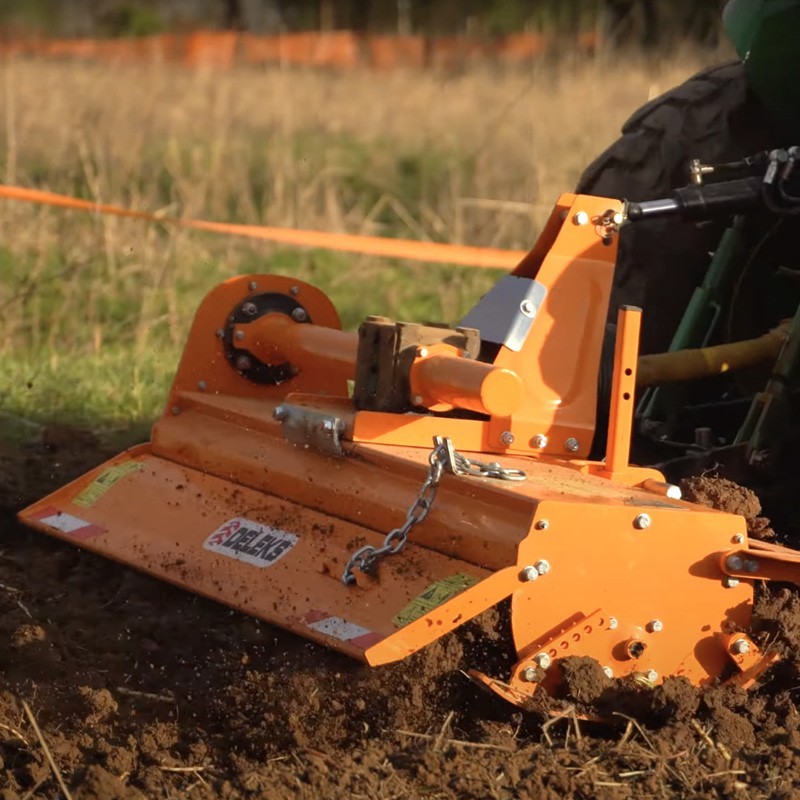

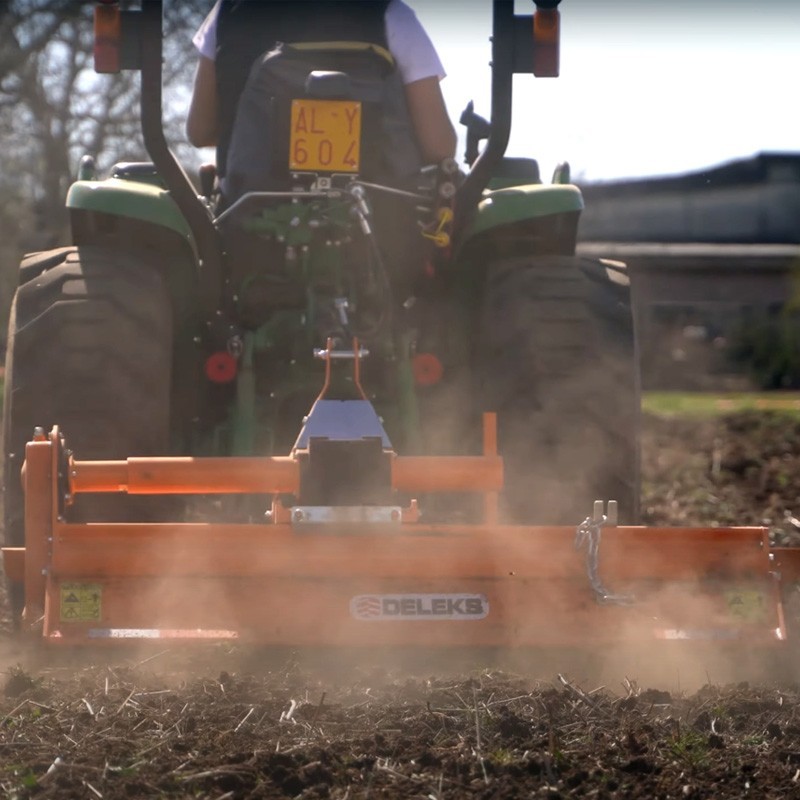

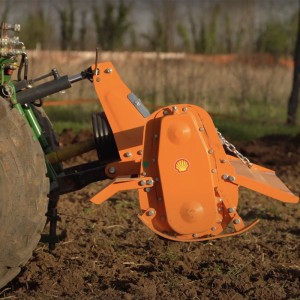

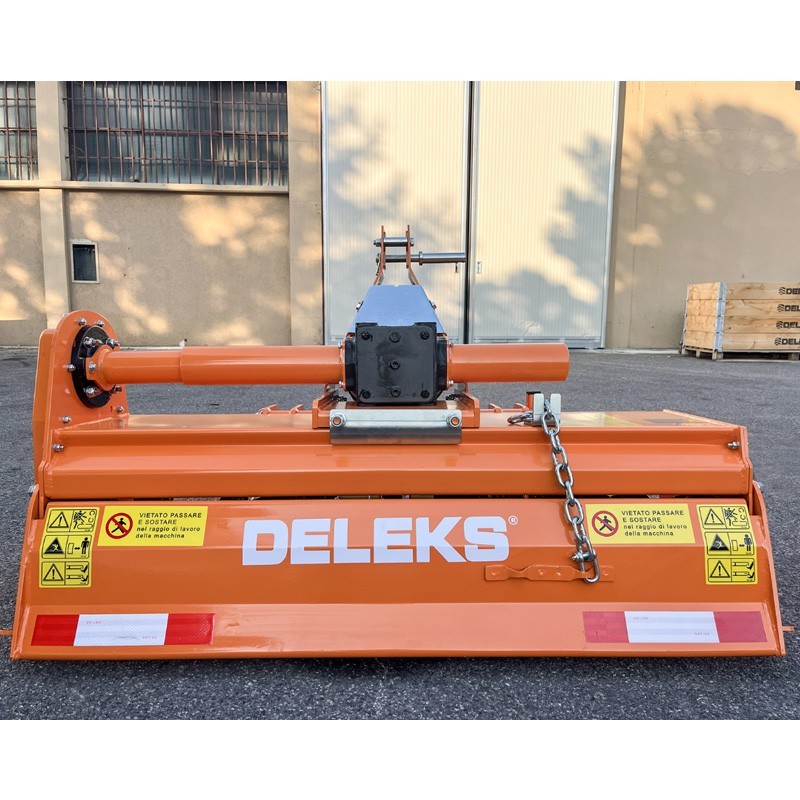

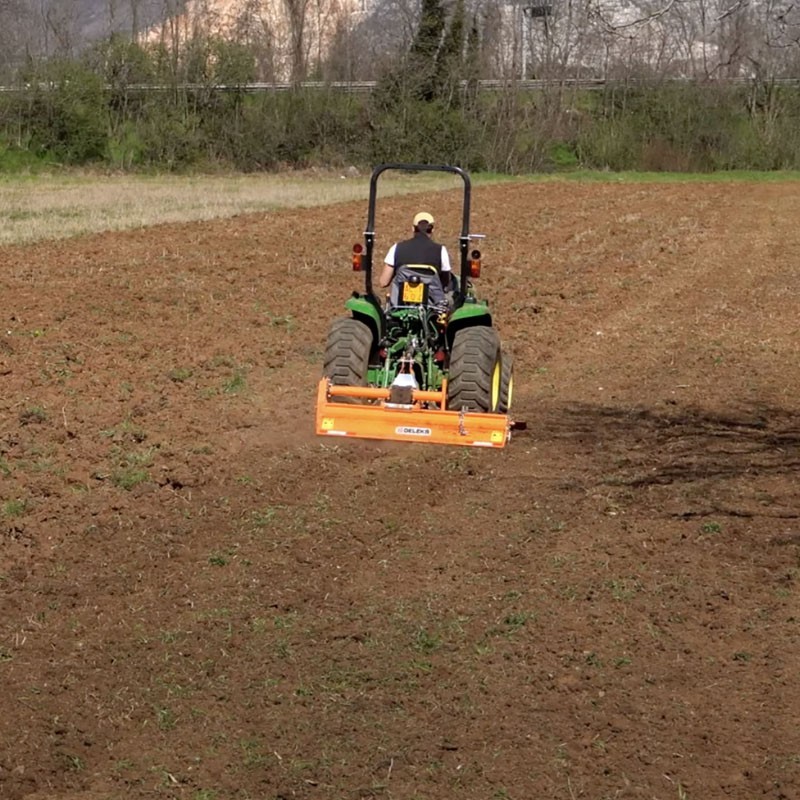

The DELEKS DFM 125 1250 mm, is a lightweight rotovator for tractors from 18 to 45 HP. This model is attached to the tractor with a universal 3-point hitch. It is designed for soil preparation in orchards or gardens. The rotovator can be used for seedbed preparation or after regrowth.
It has a 540r/mi transmission box. Lateral transmission by chain. It has a robust and light design, ideal for micro-tractors, it has a 3-point hitch that can be moved manually, it has reinforced blades to ensure longevity and to be able to till in difficult conditions, it has an automatic chain tension.

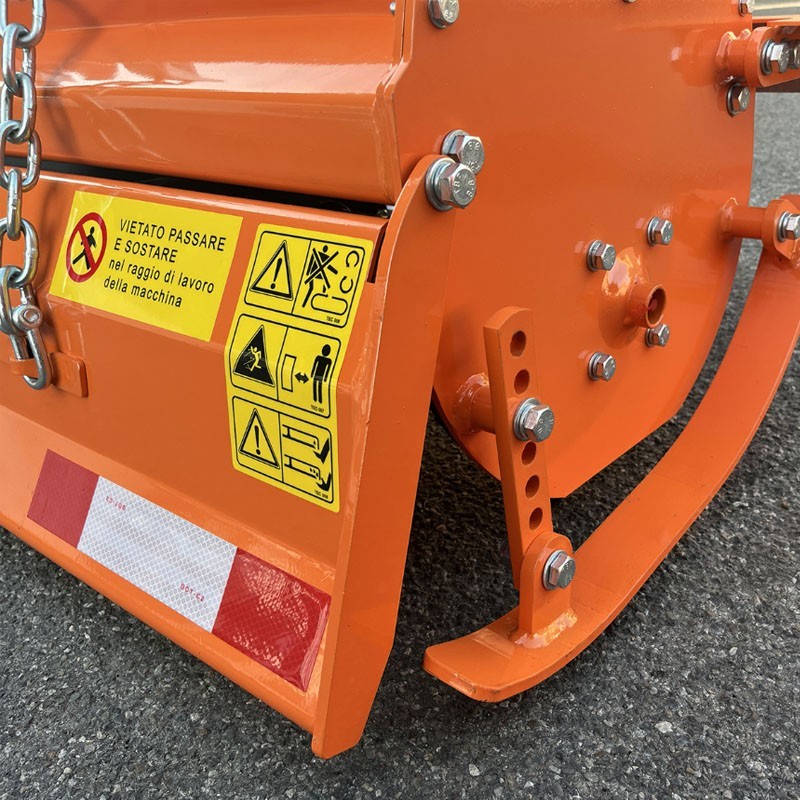

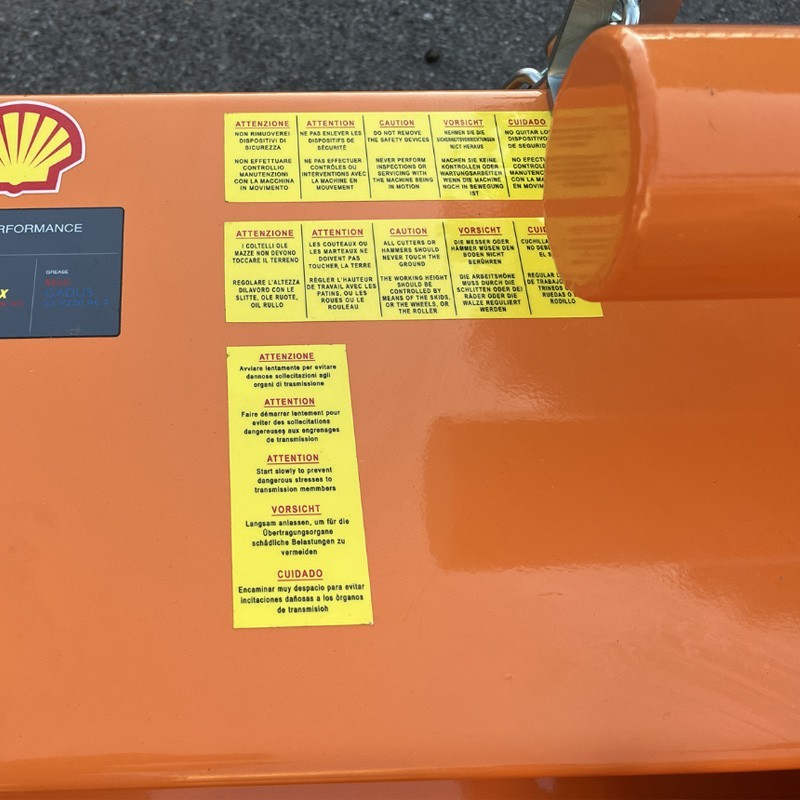

It has height adjustable skids, adjustable rear door and European quality safety features.
Overall width | 1430.0 mm |
Weight | 195.0 kg |
Total height | 820.0 mm |
Tractor power | 18 - 45 hp |

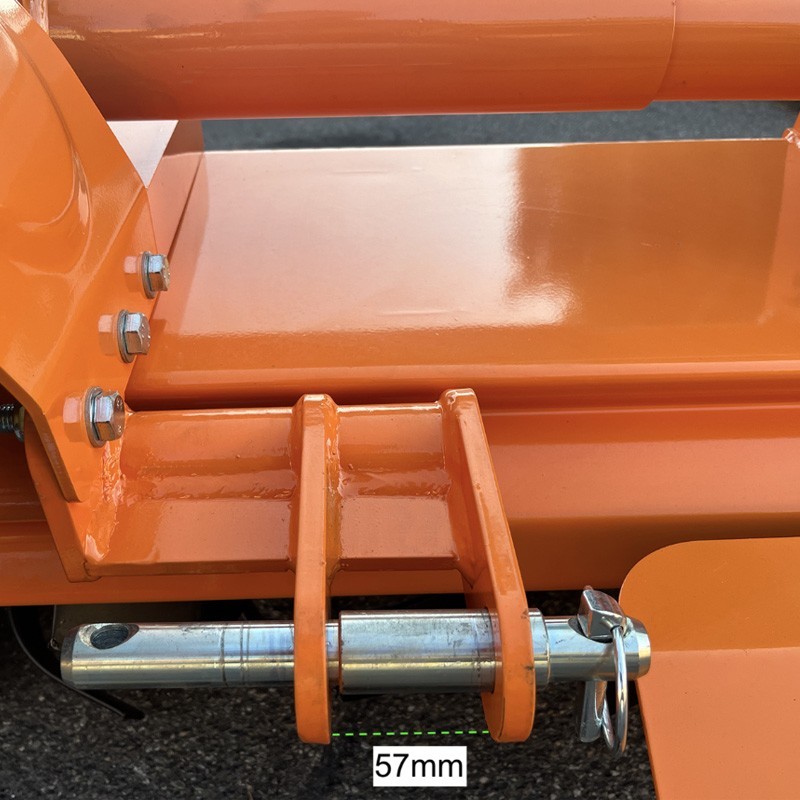

3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Position of the transmission box | 630.0 mm on left side/ 620.0 mm on right side |
Distance between lower points | 310.0 - 630.0 mm |
Overall length | 620.0 mm |
Rotor: diameter | 64.0 mm |
Rotor: blade thickness | 6.0 mm |
Transmission | Chain |
Working width | 1250.0 mm |
Working depth (min/max) | 120.0 - 160.0 mm |
Space between gearbox and ground | 490.0 mm |

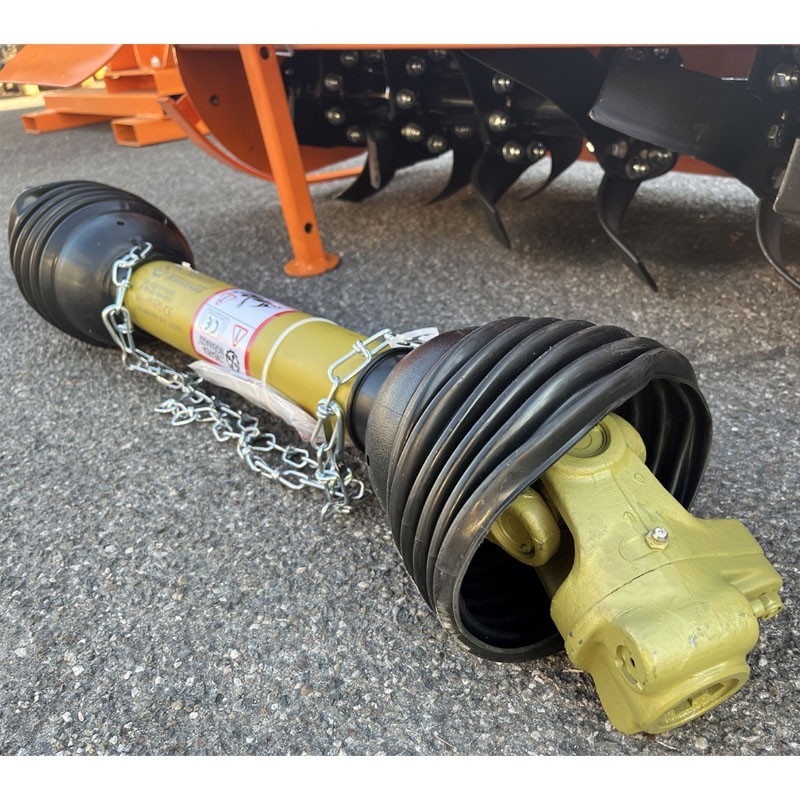

Cardan shaft | CE 4x800 mm + pin |
Rotor: diameter with blades | 370.0 mm |
Rotor: bearing type and dimensions | "GB276-6207(R) GB276-6209(L)" ROTOR: NO. OF SECTIONS |
Rotor: No. of sections | 7 |
No. of blades in each section | 4 |
Number of blades | 28 |

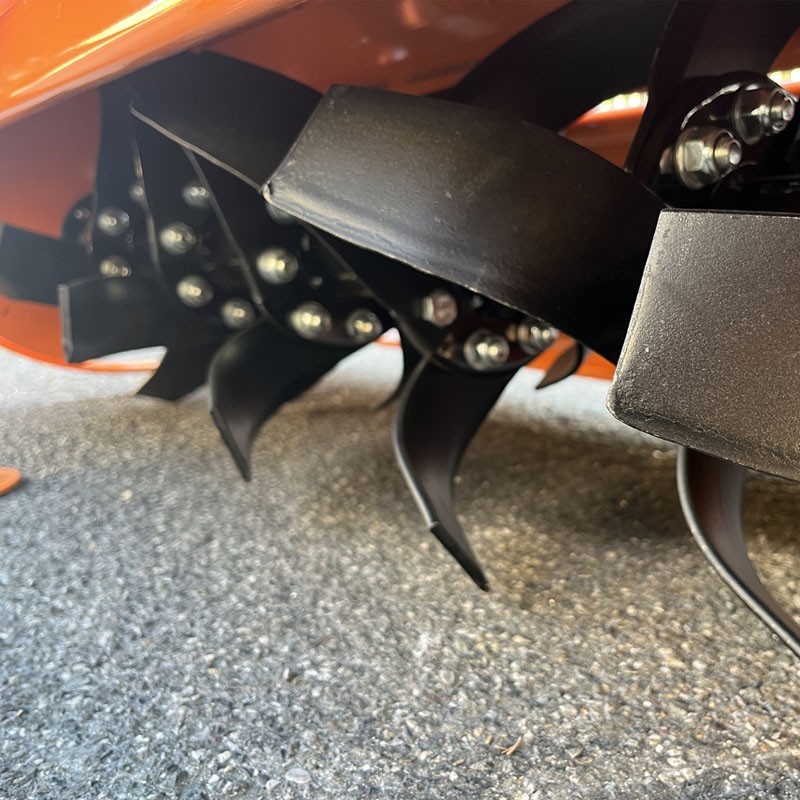

Blades: height / width | 180.0 / 67.0 mm |
Blades: curved extension | 230.0 mm |
Blades: distance between holes | 45.0 mm |
Blades: hole diameter | 13.0 mm |
Blades: thickness | 6.0 mm |

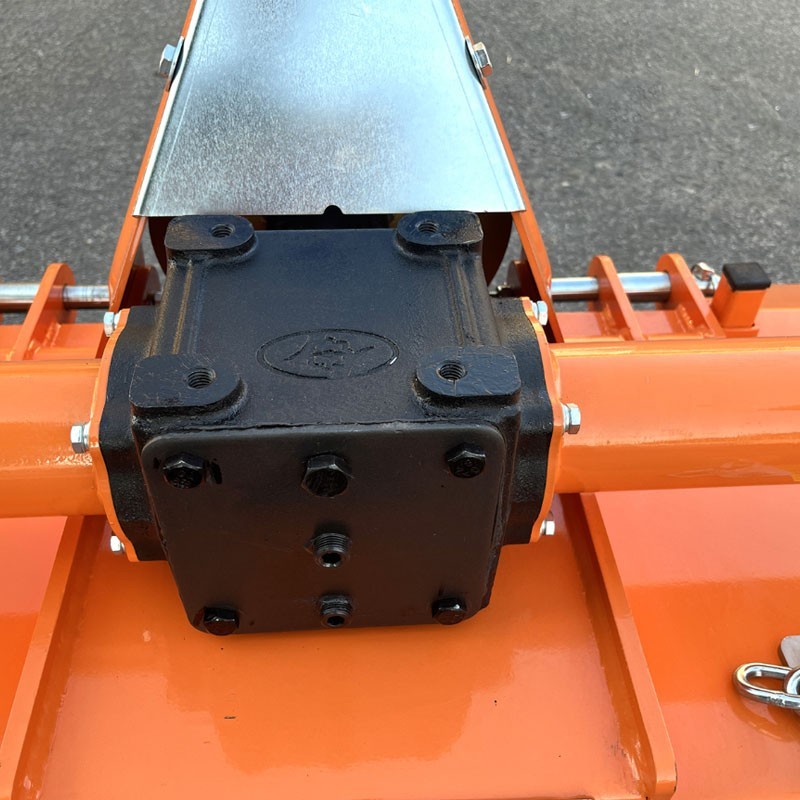

Transmission box | Lombarda Ingranaggi 540 r/min (3 years warranty) |
Side shift | 120.0 mm manual |
Direction of rotation PTO | Right side (left side on request) |
Rotor speed | 230 rpm |
Gearbox oil | yes/ SAE 120 - ISO 72925 |
Blades: weight | 570.0 g |
Packing dimension | 800.0*1550.0*750.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
