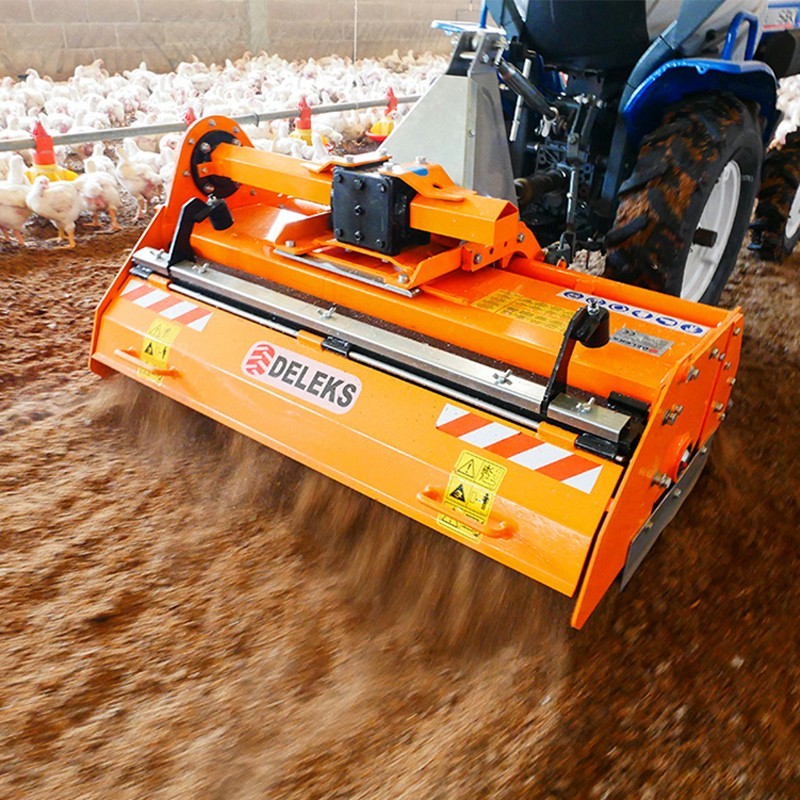

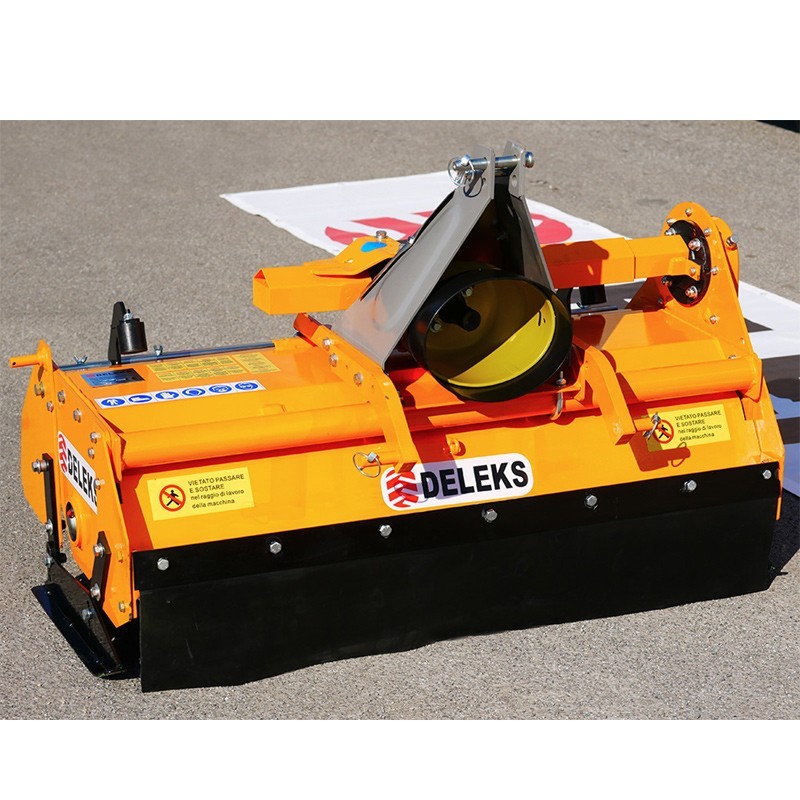

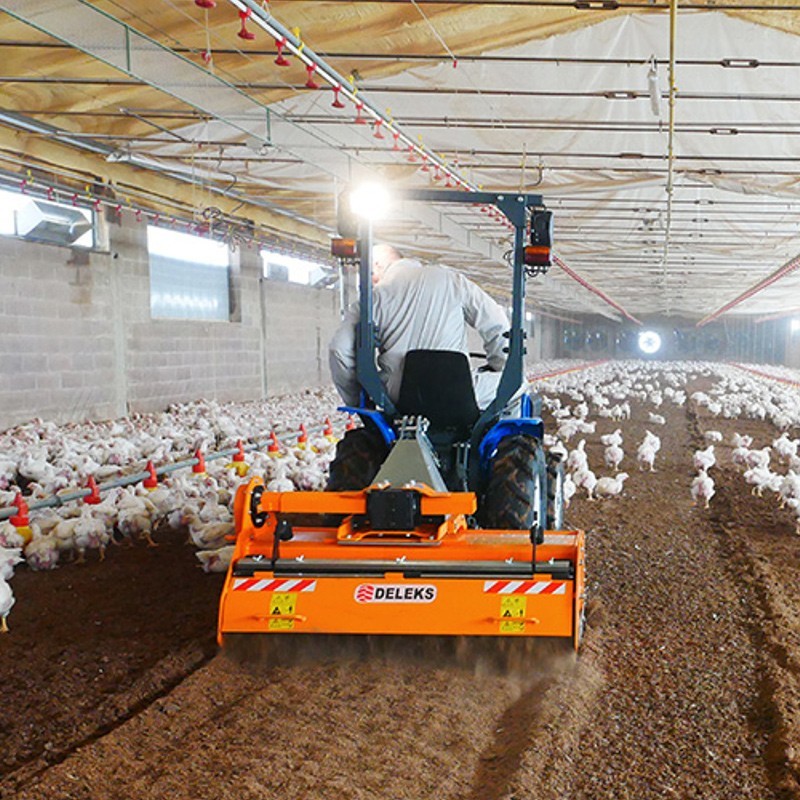

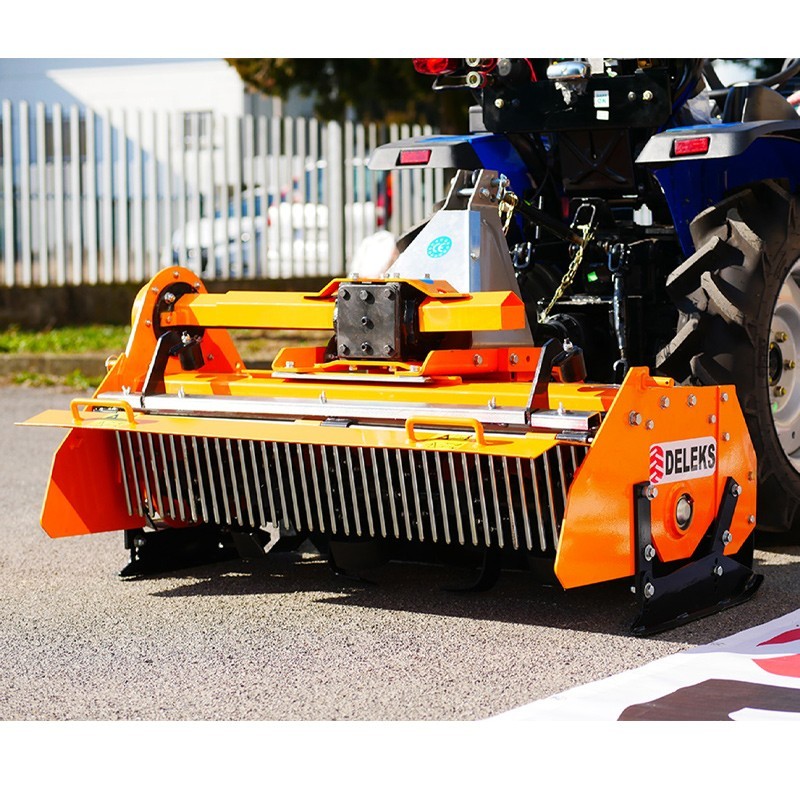

Poultry rotavator for tractor Deleks PAVO-120
The Poultry rotovator Deleks PAVO-120 It is specially designed for tractors with low power of 25 to 50 HP. This rotovator model is used for the Soil preparation in fields, orchards for gardening.
The model Deleks PAVO-120 features blades for the preparation of seedbeds or for removing weeds. It can be moved manually or hydraulically.
This Poultry rotovator of/from Deleks also includes a Universal 3-point hitch of CAT 1. This is adapted for most tractors from 25 to 50 HP. Regarding its features, we can highlight its good Lombarda Ingranaggi transmission box made in Italy, which includes a freewheel.

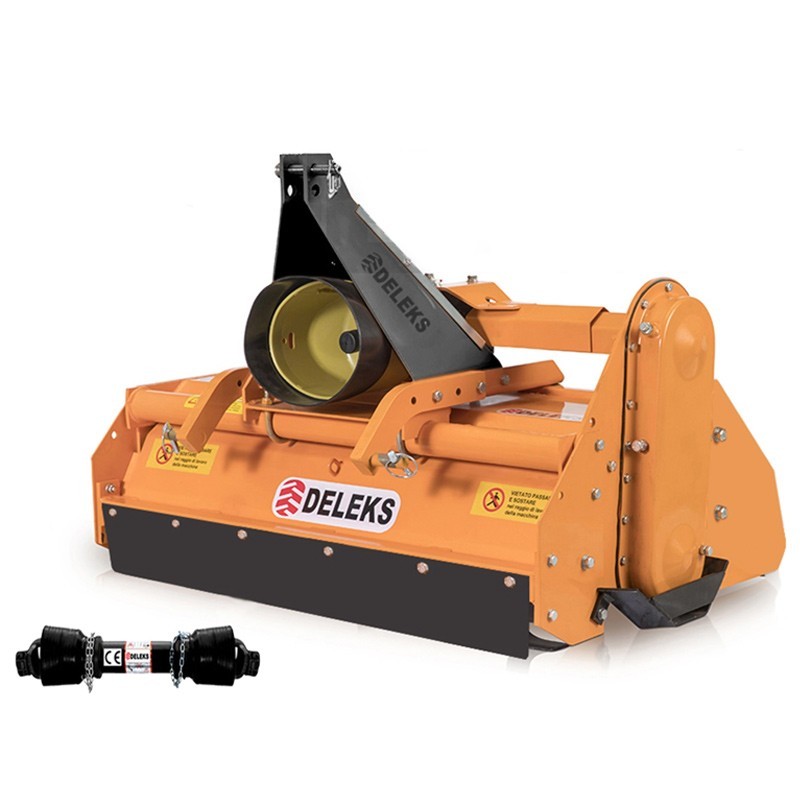

The Rotovator Deleks PAVO-120 comes with CE gimbal included, it also includes SKF brand rotor bearings. The implement can be used on low-power tractors in gardens and orchards thanks to its light weight of 260kg.
This model of Rotovator Deleks It guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features, we can highlight the working width of 1150mm and the total width of 1250mm. We can also highlight the total height of this machine of only 900mm.
Characteristics
| Total width |
1250 mm |
| Weight |
260 kg |
| Total height |
900 mm |
| Tractor power |
25 - 50 hp |
| Three-point hitch |
Cat. 1 (ø 19.0-22.0mm) |
| Position of the transmission box |
Central |
| Distance between lower points |
400 - 540 mm |
| Total length |
800 mm |
| Rotor: diameter |
64 mm |
| Rotor: blade thickness |
10 mm |
| Transmission |
Chain |
| Working width |
1150 mm |
| Space between the gearbox and the ground |
470 mm |
| Cardan |
CE 4x800 mm |
| Rotor: diameter with blades |
415 mm |
| Rotor: type of bearings and dimensions |
"GB276-6306(R) GB276-6209(L)" |
| Rotor: No. of sections |
7 |
| Number of blades in each section |
4 |
| Number of blades |
24 |
| Blades: height/width |
170 / 65 mm |
| Blades: curved extension |
255 mm |
| Blades: distance between holes |
45 mm |
| Blades: hole diameter |
13 mm |
| Blades: thickness |
6 mm |
| Transmission box |
Lombarda Gears 540 r/min (3-year warranty) |
| Lateral displacement |
120 mm manual |
| PTO rotation direction |
Right side |
| Rotor speed |
216 rpm |
| Gearbox oil |
Yes/ SAE 120 - ISO 72925 |
| Blades: weight |
770 g |
| Packaging dimension |
1000*1450*900 mm |
| IMPORTANT NOTICE |
|
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
