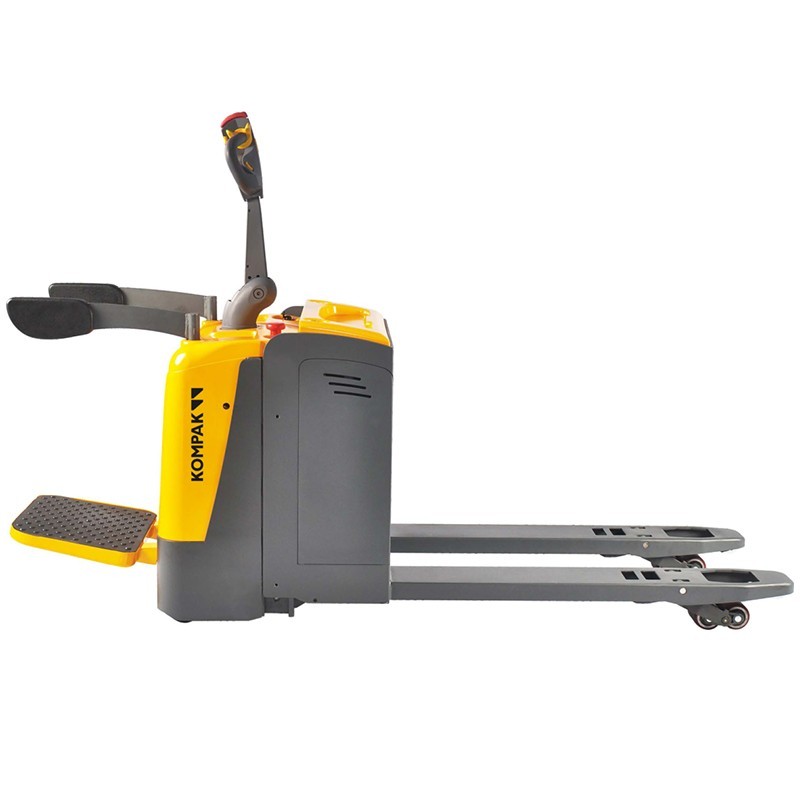

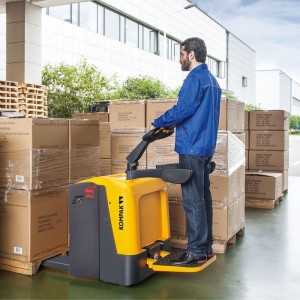

Electric pallet truck Kompak KP-EPT20R-II 2000 KG
The Kompak KP-EPT20R-II electric pallet truck is an efficient tool with a stand-on platform that provides operator comfort. Its innovative design includes a tight turning radius, making it easy to maneuver in tight spaces. With an agile and lightweight steering system, it offers an optimal driving experience.
It stands out for its multifunction display that includes an hour meter with battery indicator, speed button and emergency button, in addition to the ignition key for safe operation.
Features such as the brushless AC motor and industrial batteries provide power and durability, while the wheels help maintain the stability needed to operate under load.
In addition, its speed sensor-equipped platform and lateral battery change capability make this pallet truck a versatile and adaptable option for a variety of logistical needs, with the convenience of an integrated charger for added practicality in daily use.
This machine Kompak incorporates features such as emergency stop and BDI (battery discharge indicator) system to ensure safety at all times during use.
Features
- RUYI identifier
- Emergency stop
- BDI and hour meter
- Wheels for balancing stability
- Industrial batteries
- Brushless AC motor
- Vertical drive motor
- Lateral battery change
- Integrated charger
- Platform with speed sensor.
Options
- Fork width and length (size)
- Load backrest
- Built-in loader
- Cold storage with rubber drive wheel
- Infeed and outfeed roller for empty pallets
- Option with EPS drive wheels is 250 x 80 mm
- Large battery compartment with 280Ah, 400Ah battery capacity
- Lithium battery 24V/125AH
Technical data sheet
| Load capacity |
2000 kg |
| Load center distance |
600 mm |
| Load distance, center of drive axle to forks |
914/964/1034 mm |
| Fork height, lowered |
82 mm |
| Front tire size |
Φ 250x70 mm |
| Tire size, rear |
Φ 82×126(98) mm |
| Additional wheels (dimensions) |
Φ 127×57 mm |
| Number of front rear wheels (x = driving wheels) |
1X+2/2(4) |
| Max. lifting height |
202 mm |
| Tiller height in driving position min./max |
1150/1430 mm |
| Overall length |
1710/1760/1830 mm |
| Length to fork face |
610 mm |
| Overall width |
775 mm |
| Fork dimensions |
53 / 160 / 1150 (1220) mm |
| Total width of forks |
520/550/650/685 mm |
| Aisle width for pallets 1000x1200 (1200 across) |
2360/2405/2475 mm |
| Pallet aisle width 800x1200 (1200 lengthwise) |
2245/2270/2305 mm |
| Turning radius |
1550/1600/1670 mm |
| Travel speed, with/without load |
7/7.1 km/h |
| Battery voltage/rated capacity k20 |
24/210 Kg |
| Battery dimensions l/w/h |
750x170x534 mm |
| Battery weight |
195 Kg |
| Operating weight (with battery) |
720 Kg |
