Snow plow Deleks SSH-04-2.6-W
- Weight : 490.0 kg
- Total height : 880.0 mm
- Total depth : 900.0 mm
€4,137.27 VAT incl.
Deleks products take about 15 to 25 days. |
The Snow Plow for Tractor Deleks LNV-180-C is a tractor attachment compatible with tractors that provide a power between 25 and 60HP. This plow is for front use or with a reversible tractor.
This model of Snow Plow Deleks is designed to remove snow from roads, parking lots, or for companies. It is compatible with some front tractors (25 to 60HP) and with all reversible tractors.

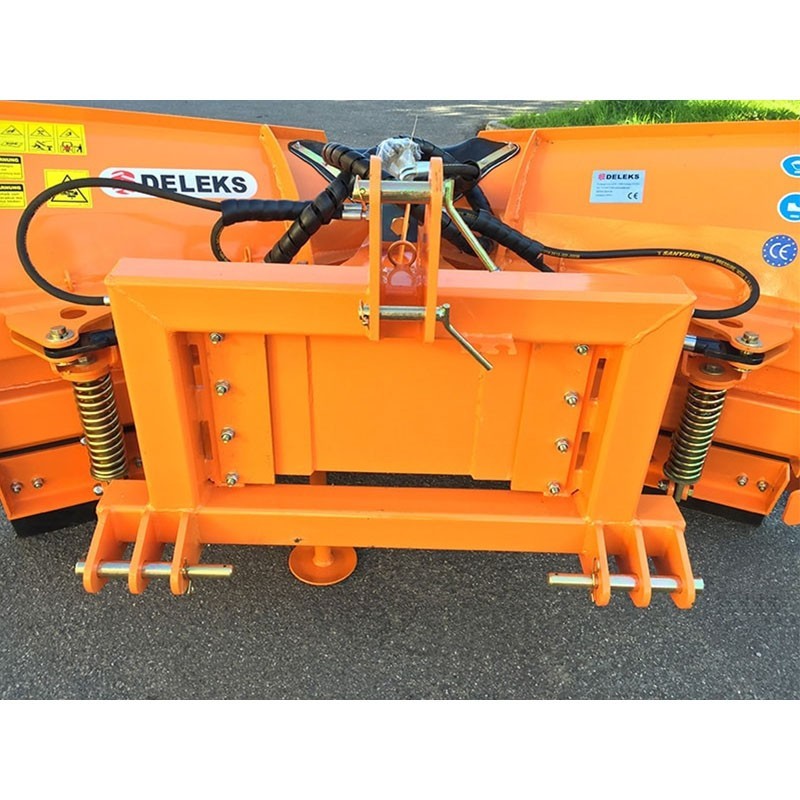

The plow is attached to the tractor with a 3-point hitch of category 1-2. This can be replaced by a EURO plate or a compact mini-loader attachment. It also features lights and adjustable side skids. This allows us to reduce the pressure at the blade level.

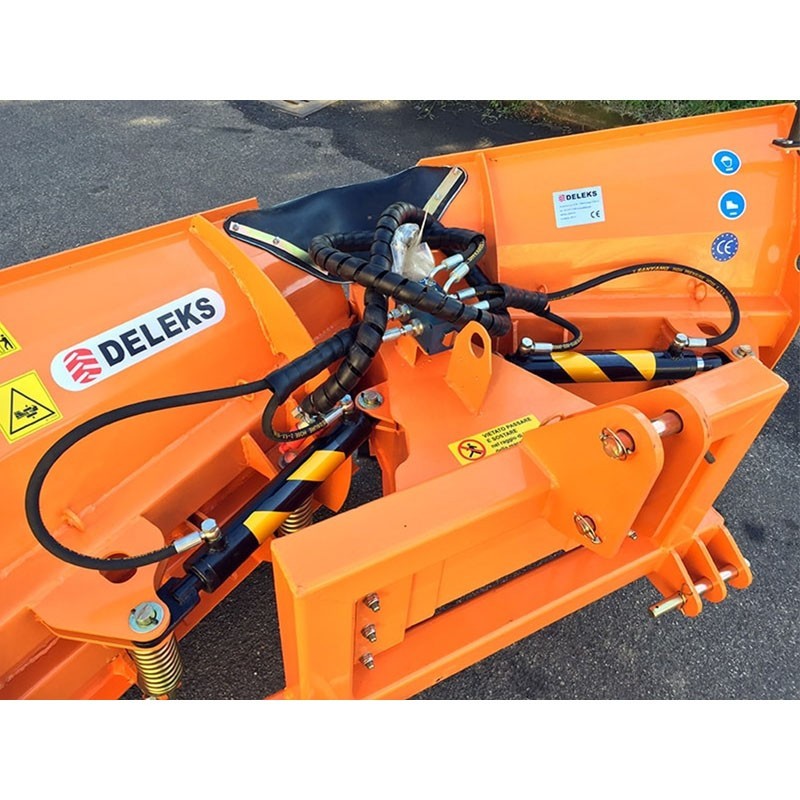

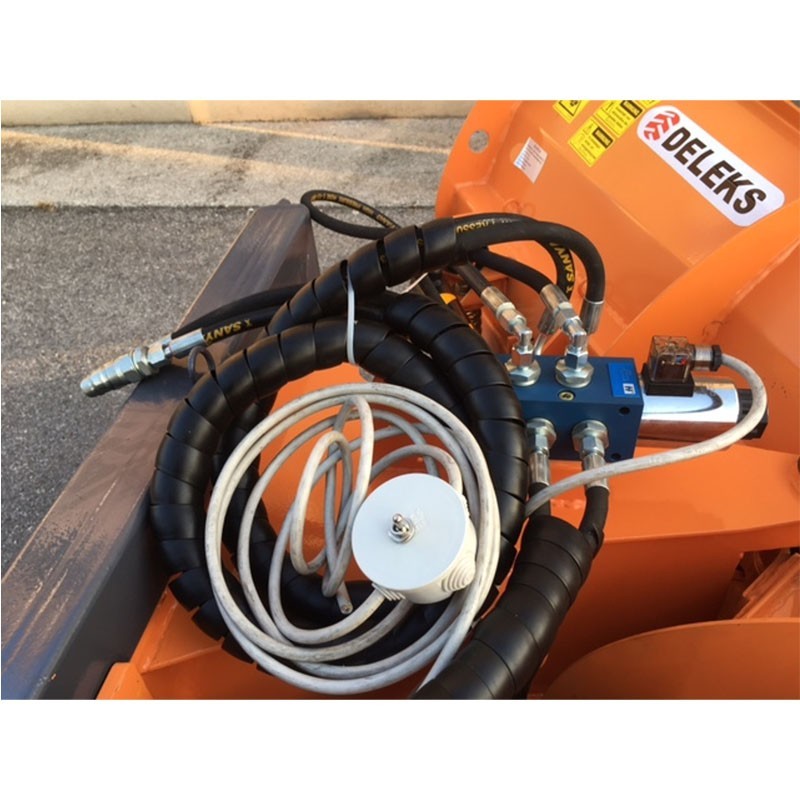

The model of Snow Plow LNV-180-C from Deleks has a hydraulic control with 4 different positions. The right to left orientation is done hydraulically. This is with 2 pistons, a 6-output solenoid, and 2 hydraulic tubes of 2m.

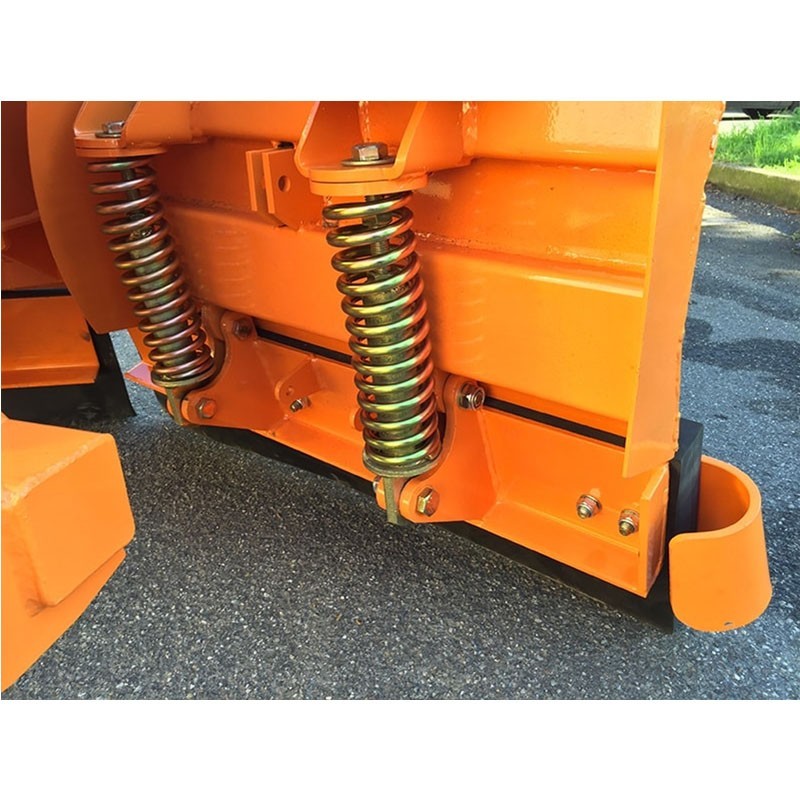

This Plow from Deleks LNV-180-C features 4 shock-absorbing springs that allow the operator to work with maximum safety. Additionally, it is easy to assemble and use with great comfort. The Snow Plow is approved for public roads and has 2 independent blades.
Weight | 315 kg |
Total height | 1020 mm |
Tractor power | 25 - 60 HP |
Total depth | 870 mm |
Distance between lower points | 635 - 970 mm |
Distance between 2 points and the ground | 180 mm |
Oil pressure min./max | 110 - 150 bar |
Optional oil flow | 18 - 22 l/min |
Attachment | 3-point hitch CAT 1-2 (19-22 / 25-28 mm) |
Tilt | 30° |
Float | +/- 6° |
Blade height | 920 mm |
Thickness of side reinforcements | 5 mm |
Shock absorbers | 4 |
Blade | Rubber |
Blade: height | 265 mm |
Blade: thickness | 50 mm |
Sharpening: number | 2 |
Sharpening: space between bolts | 200 mm |
Side lights | √ |
Side skids | x |
Blade width (tilted) | 1770 mm |
Hydraulic tubes | 2 x 2000 mm / connections 1.2" AGRI, WP 400 BAR |
Blade width | 1840 mm |
Sheet thickness | 4 mm + reinforcements |
ø piston/i | 60/30 mm |
Packaging dimension | 1850*1000*800 mm |
