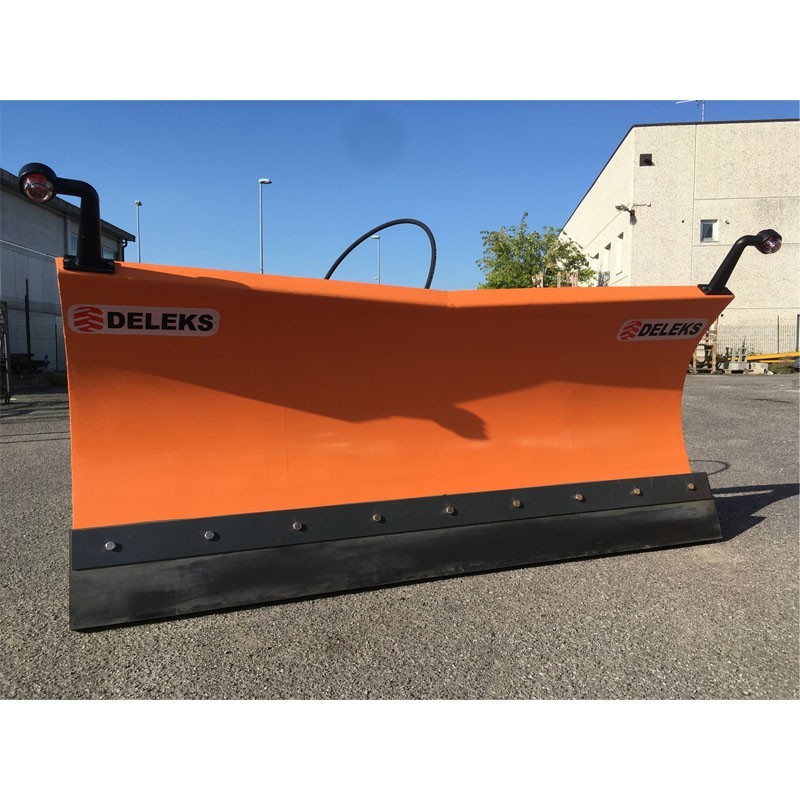

Snow plow for tractor Deleks LN-200-A
The Snow plow for tractor Deleks LN-200-A It is a tractor attachment that is compatible with those tractors that provide a Power between 40 and 80HP. This shovel is for front use or with a reversible tractor.
This model of Snowplow Deleks It is designed to remove snow from roads, parking lots, or businesses. It is compatible with some front tractors (40 to 80HP) and with all reversible tractors.
The shovel is attached to the tractor with a 1-2 category 3-point hitch. This can be replaced by a plate or a mount for a compact mini-loader. It also features side skids that reduce abrasion on the steel sheet. This increases the longevity of the sheet.

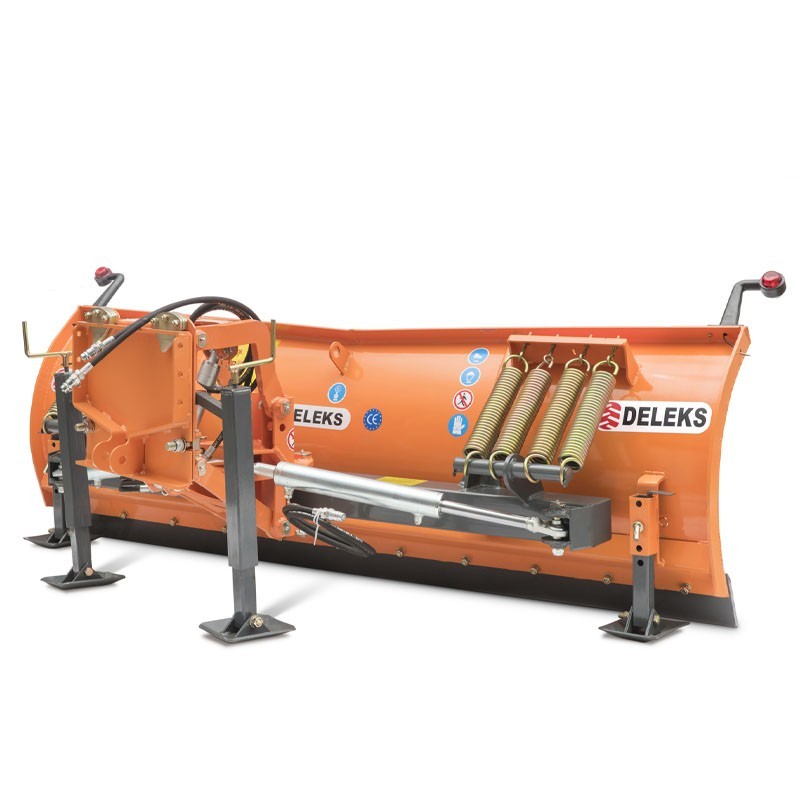

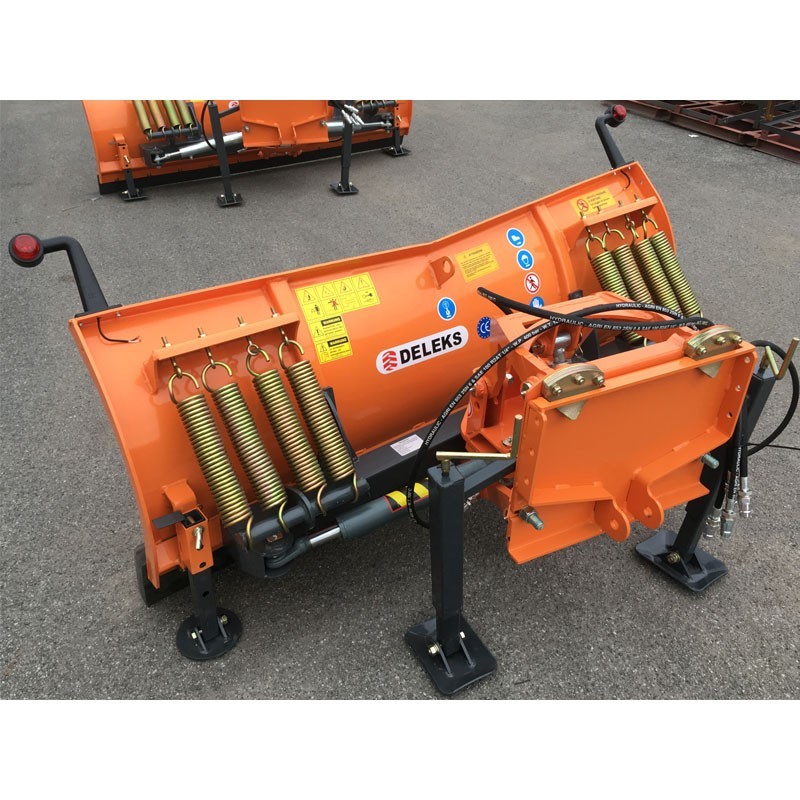

The model of Snowplow LN-200-A Deleks It has 3 good hydraulic pistons: right, left, up, and down. This is for a lift and a right-to-left hydraulic orientation. Made in Italy.

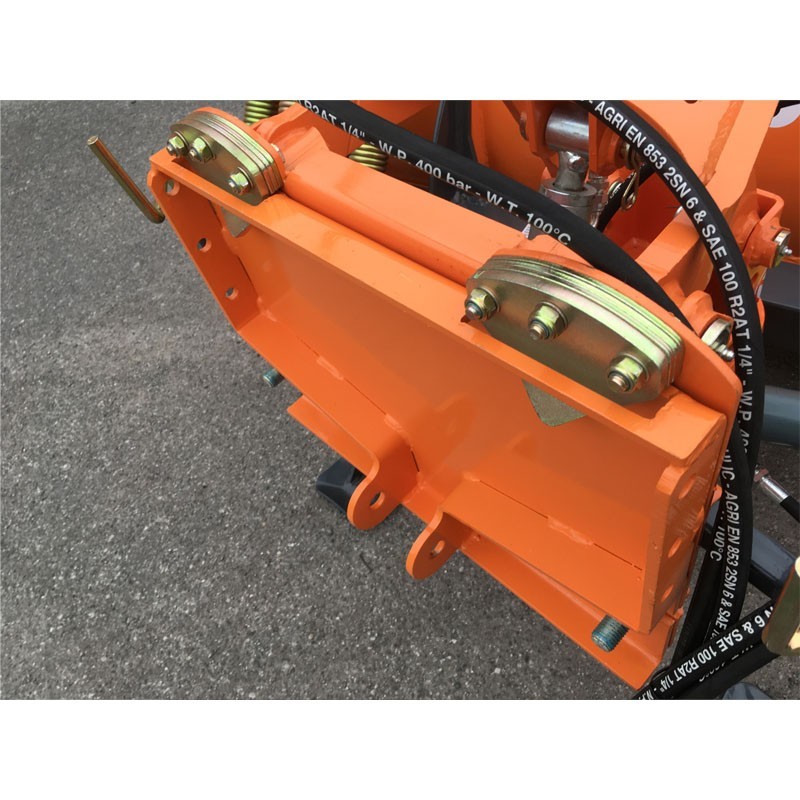

Additionally, the model LN-200-ADeleks It features a universal plate and a foot with a crank. This facilitates the mounting and dismounting of the tractor's blade. The snowplow blade has a weight of only 291 kg.

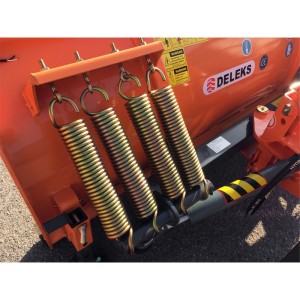

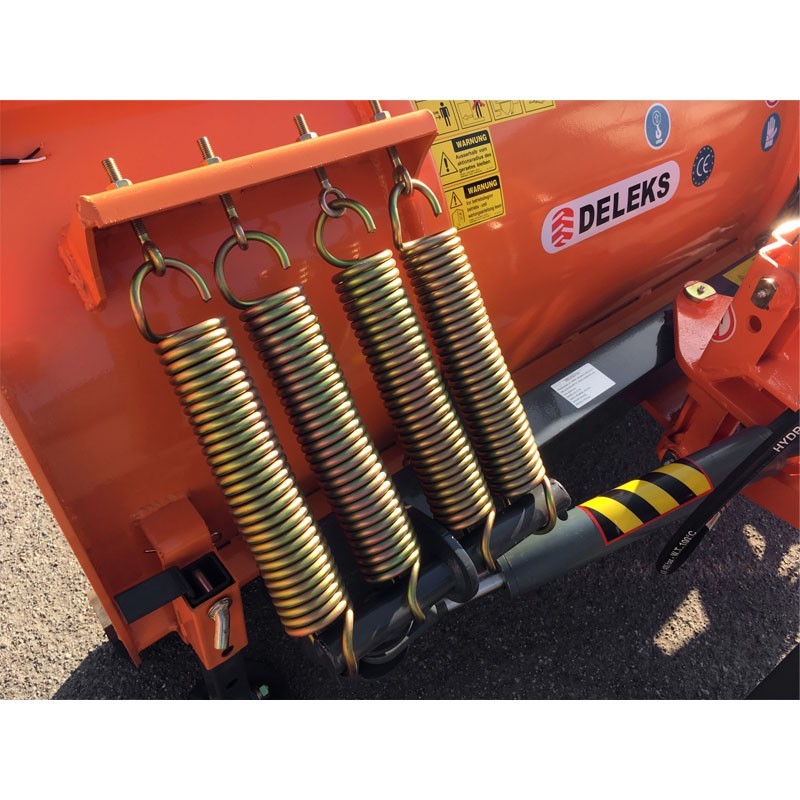

This Shovel of Deleks LN-200-AHas 8 shock-absorbing docks which allows the operator to work with maximum safety. Additionally, it features easy assembly and use with great comfort. The Snowplow It is approved for public roads and has perfect adhesion to the road.
Characteristics
| Weight |
291 kg |
| Total height |
700 mm |
| Tractor power |
40 - 80 HP |
| Total depth |
830 mm |
| Minimum/maximum oil pressure |
110 - 150 bar |
| Optional oil flow |
18 - 22 l/min |
| Fixation |
UNIVERSAL PLATE |
| Plate measurements |
500*360 mm |
| Inclination |
27° |
| Floatation device |
+/- 4° |
| Blade height |
700 mm |
| Thickness of lateral reinforcements |
8 mm |
| Shock absorbers |
8 |
| Space between the ground and the plate |
270 mm |

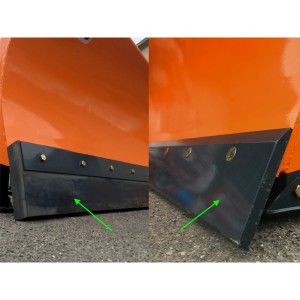

| Lama |
Steel or rubber |
| Llama: height |
150 mm |
| Lama: thickness |
16 mm |
| Sharp: number |
1 |
| Sharp: space between bolts |
200 mm |
| Side lights |
√ |
| Side skates |
√ |
| Width of the slat (inclined) |
1793 mm |
| Hydraulic tubes |
4 x 1500 mm / 1.2" AGRI connections, WP 400 bar |
| Width of the blade |
2013 mm |
| Thickness of the sheet |
5 mm |
| ø piston/i |
50/25 + 60/30mm |
| Packaging dimension |
2013*800*900 mm |
