  • Total width : 1700.0 mm
  • Weight : 135.0 kg
  • Total height : 1000.0 mm
Deleks products take about 15 to 25 days.
En stock
icon Working width PTO
Working width PTO
1700 mm
icon Tractor power
Tractor power
20 - 45 HP
icon 3-point hitch for tractor
3-point hitch for tractor
Yes
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
135 kg
€608.20 excl. VAT
- 2%
€596.03 excl. VAT
€721.20 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


PTO Leveling Blade Deleks DL-170 20 - 45 HP
€721.20
Qty

PTO Leveling Blade Deleks DL-170

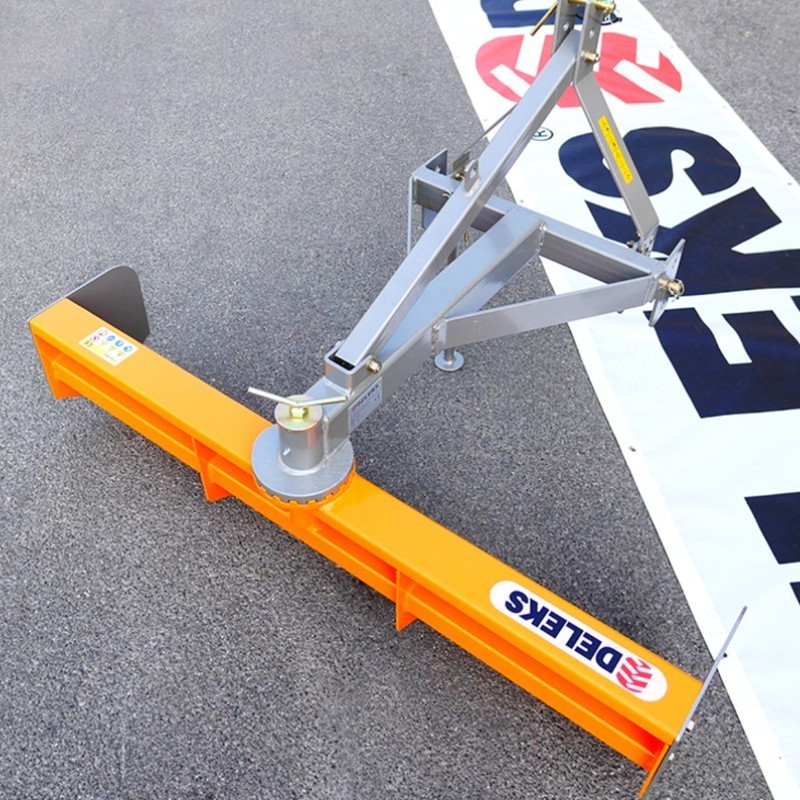

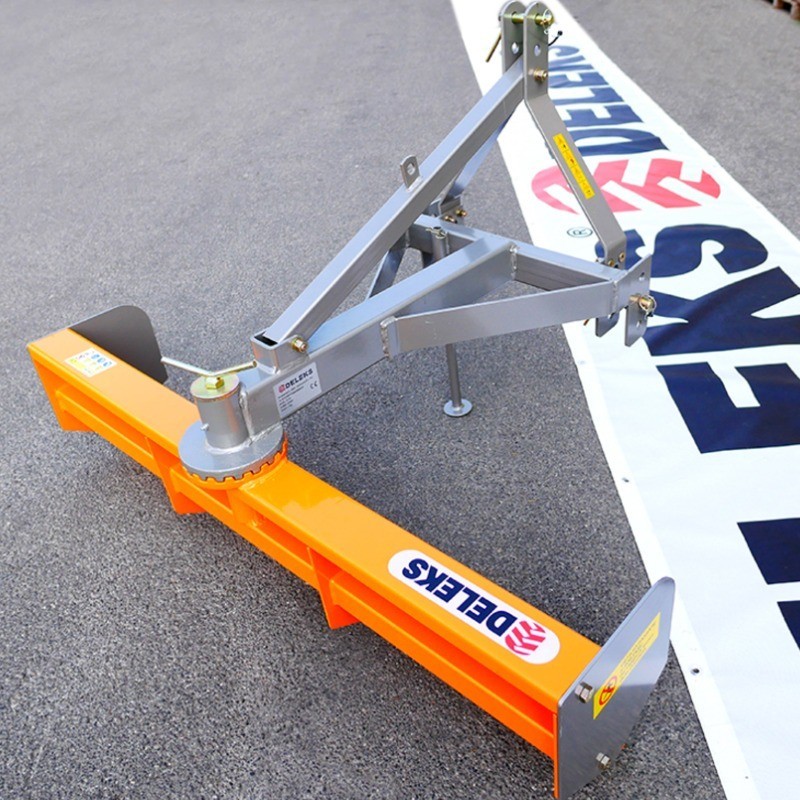

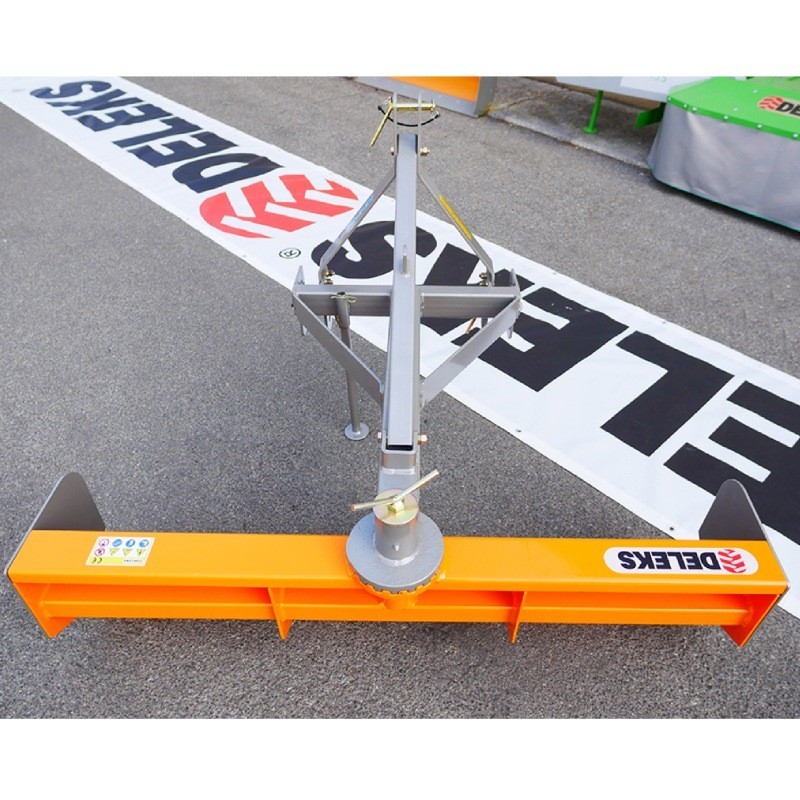

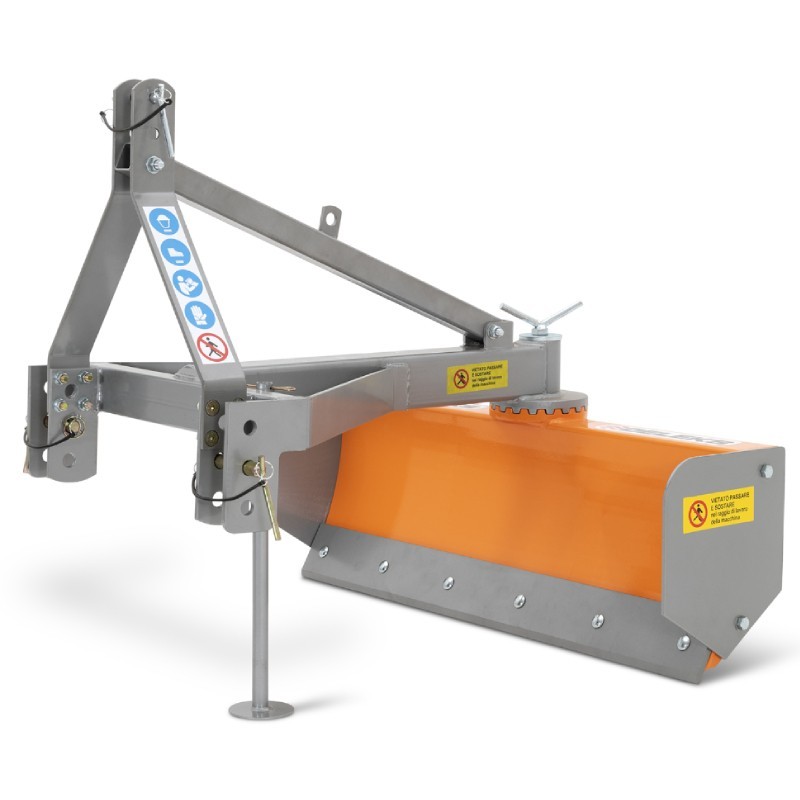

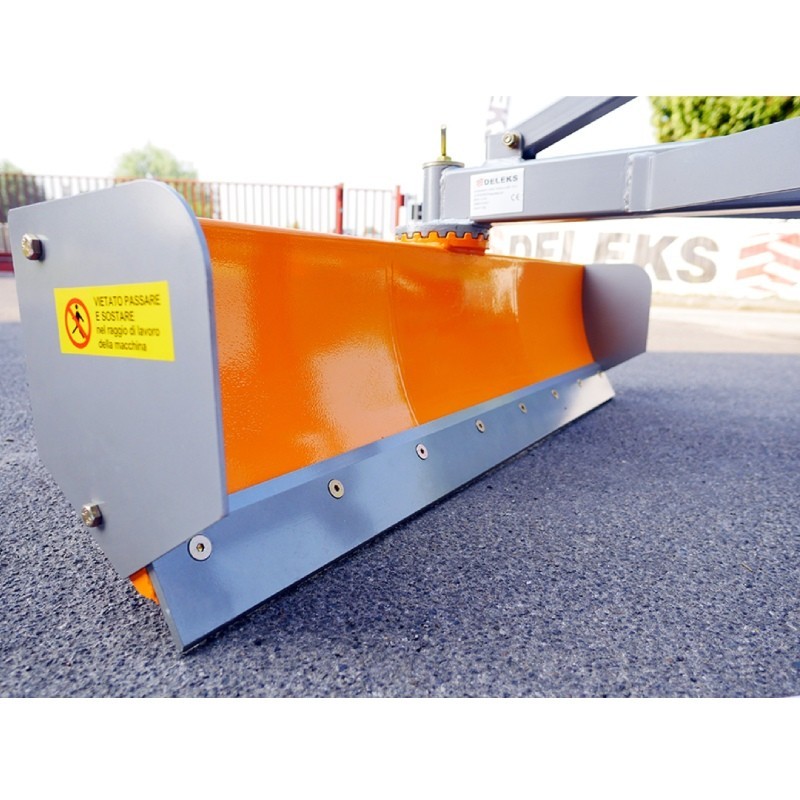

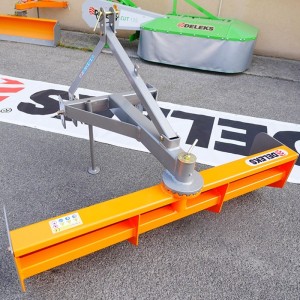

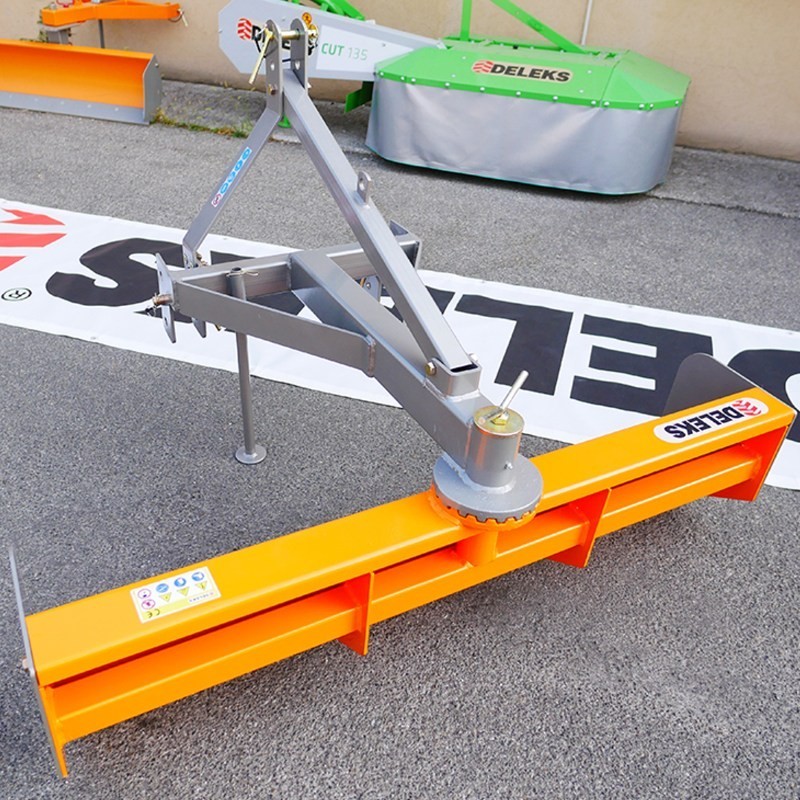

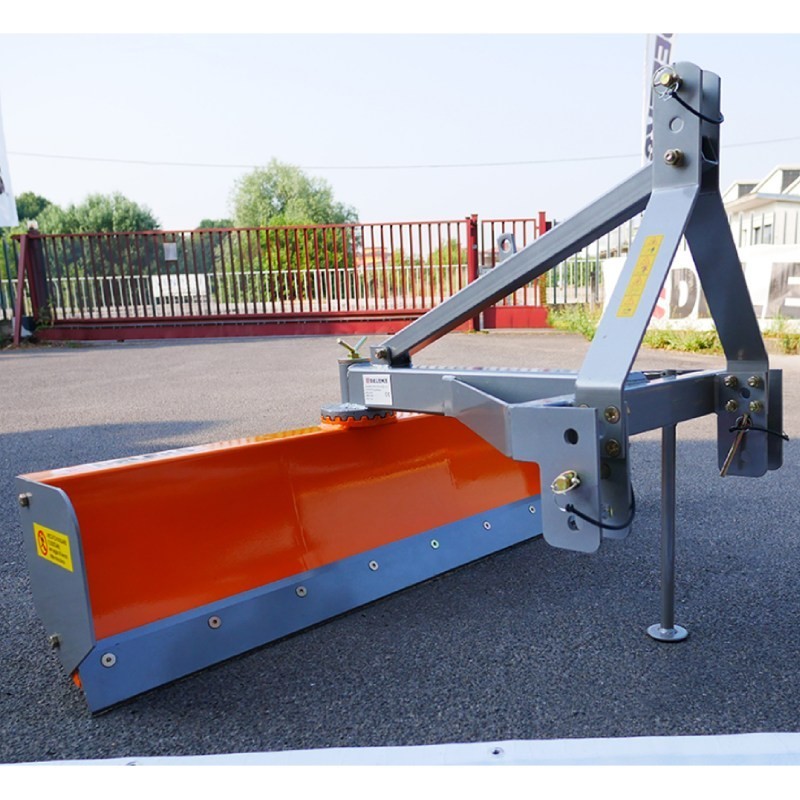

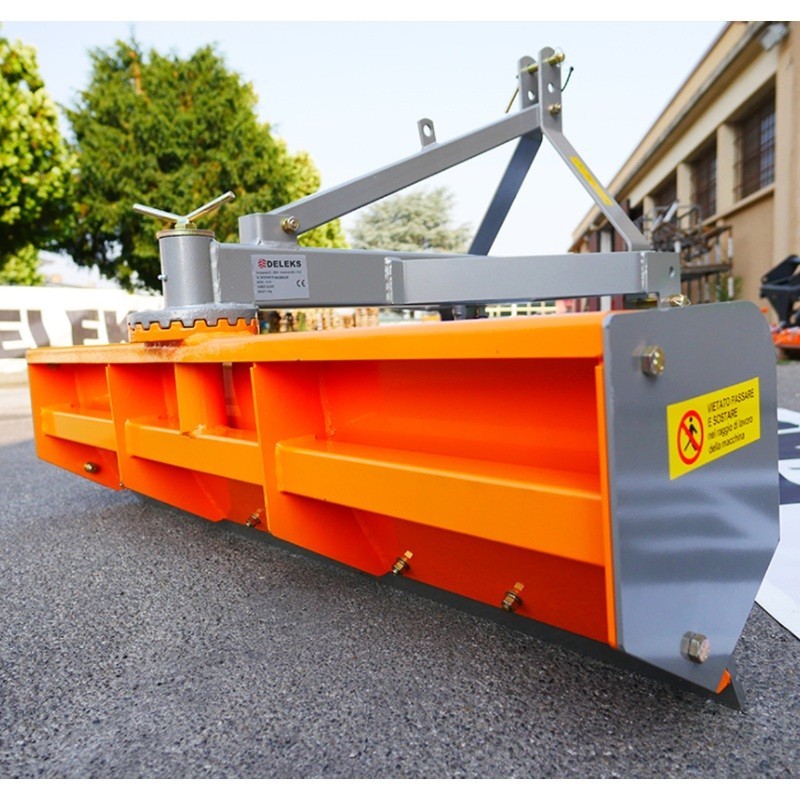

This PTO leveling blade Deleks DL-170 features a 360º flexible blade and can be used both at the front and rear of your tractor.

This blade model is a very good option for effectively managing the surroundings of a farm, being able to move soil, sand among other things.

Finally, this blade is suitable for tractors with a power of 20 to 45 hp from various brands like Kubota, John Deere, Iseki, Ford, Branson among others.

Features

Total width 1700.0 mm
Weight 135.0 kg
Total height 1000.0 mm
Tractor power 20 - 45 hp

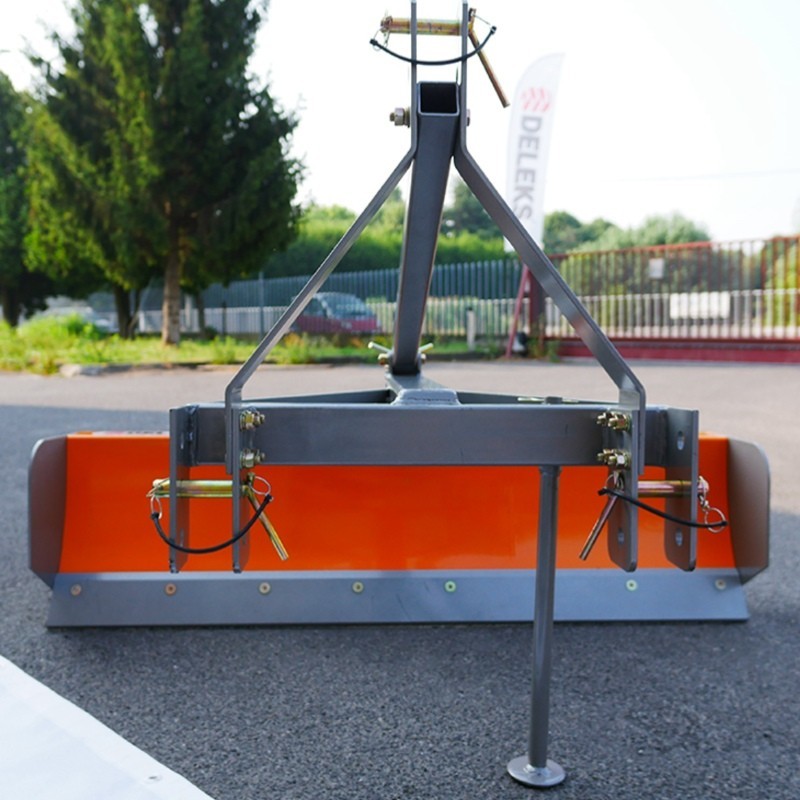

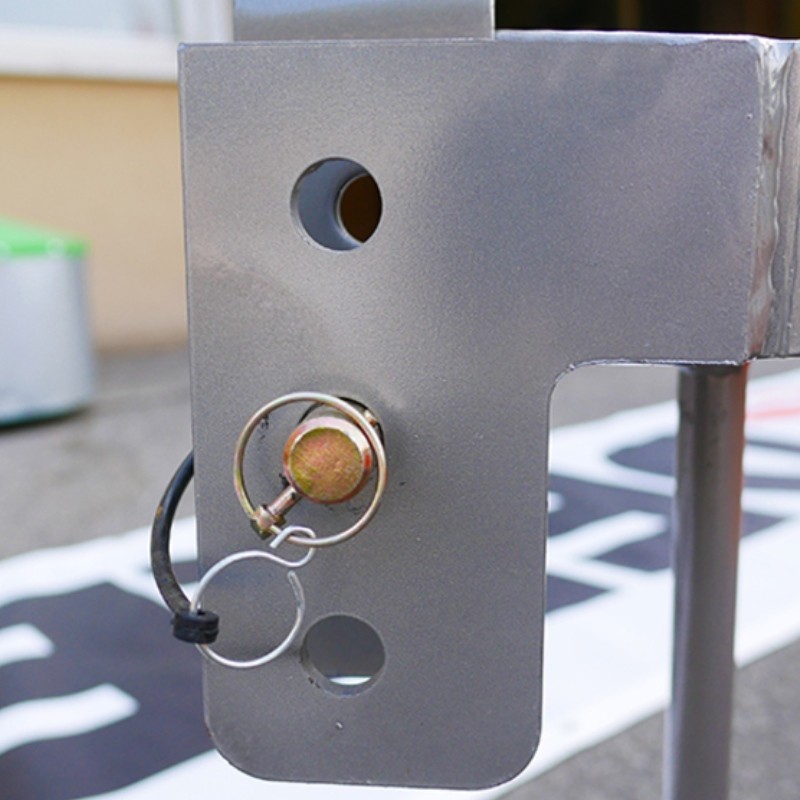

3-point hitch Cat. 1 (ø 19.0-22.0 mm)
Distance between lower points 500.0 - 610.0 mm
Distance between 2 points and the ground 365.0 - 425.0 - 485.0 mm
Blade height 400.0 mm
Blade Steel

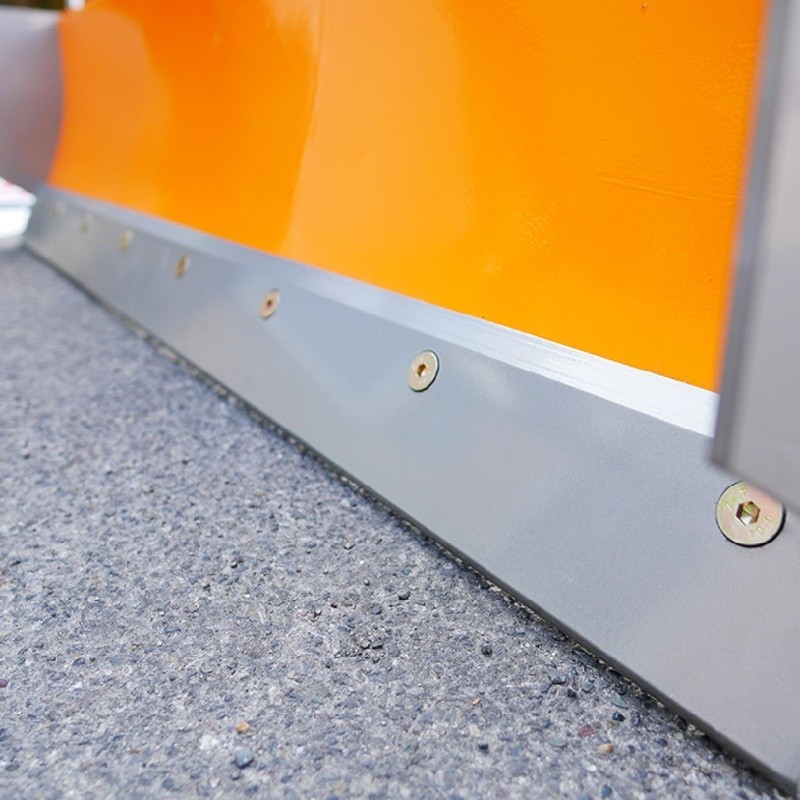

Blade: height 120.0 mm
Blade: thickness 13.0 mm
Sharpening: number 1
Sharpening: space between bolts 200.0 mm

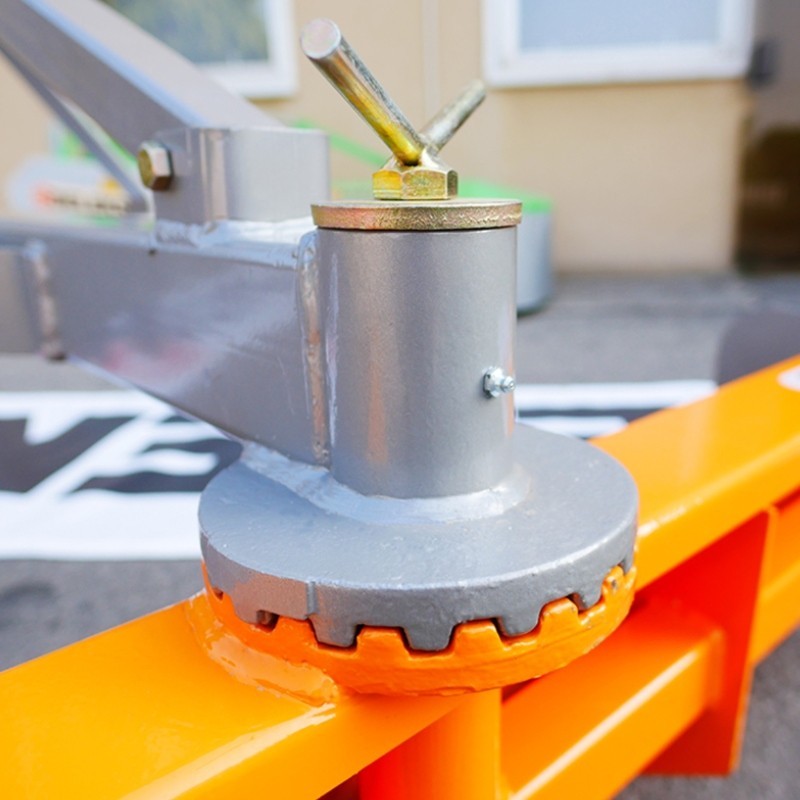

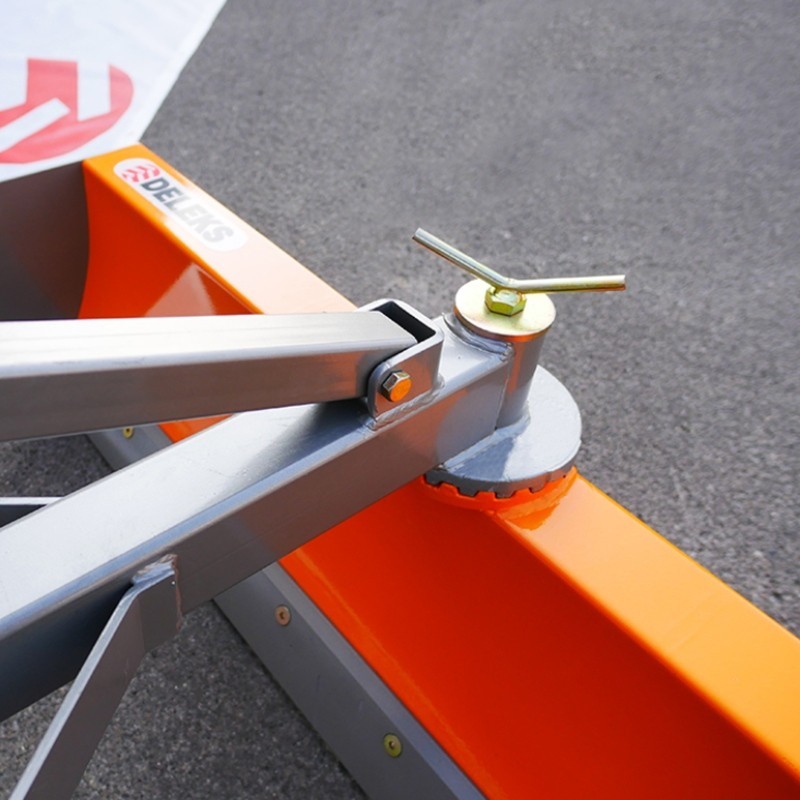

Blade rotation 360°
Sheet thickness (yellow) 4.0 mm

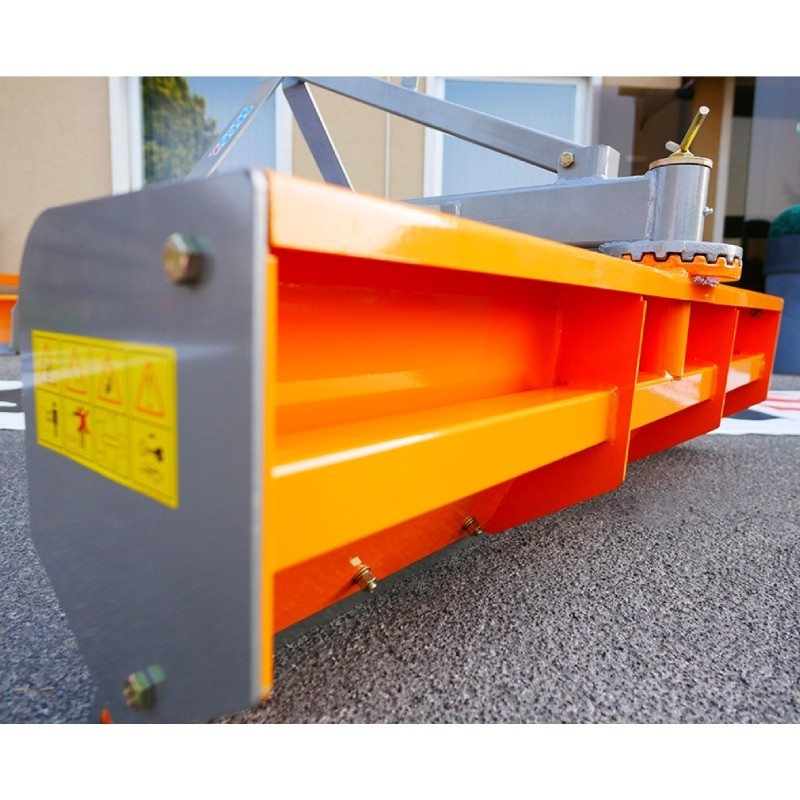

Sides Removable
Arm orientation x
Sides: thickness 6.0 mm
Packaging dimension 1700.0 * 800.0 * 500.0 mm
260841

Data sheet

Working width PTO
1700 mm
Tractor power
20 - 45 HP
3-point hitch for tractor
Yes
Country of manufacture
Italy
Weight
135 kg

Specific References

EAN-13
8053470230264
MPN
DL170
