Leveling harrow Zeppelin ES70 120-200cm
- Working width: 1200-2000 mm
- Power requirement: 18-25 HP / 18-60 HP
€1,161.57 VAT incl.
Deleks products take about 15 to 25 days. |

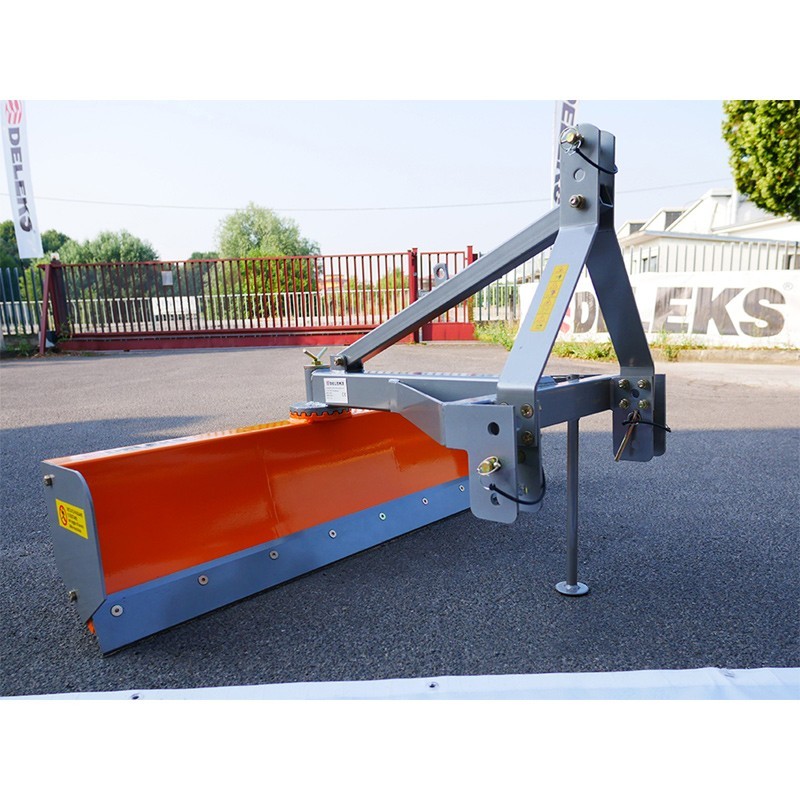

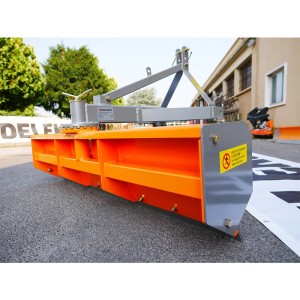

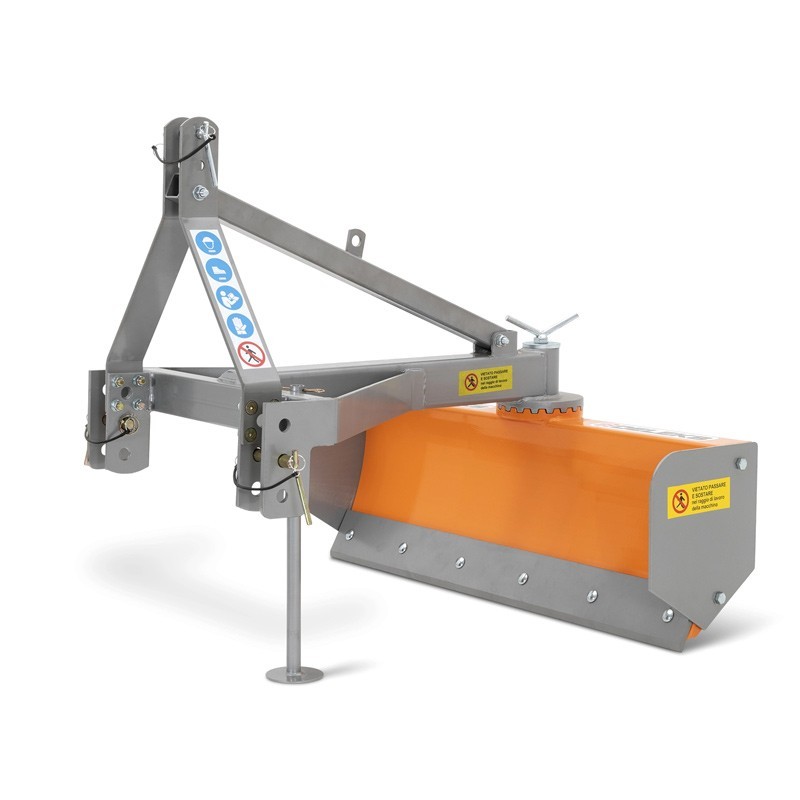

The Deleks DL-110 leveling blade is an attachment for tractors with a recommended power of between 12 and 35HP. This leveling blade features a single blade.

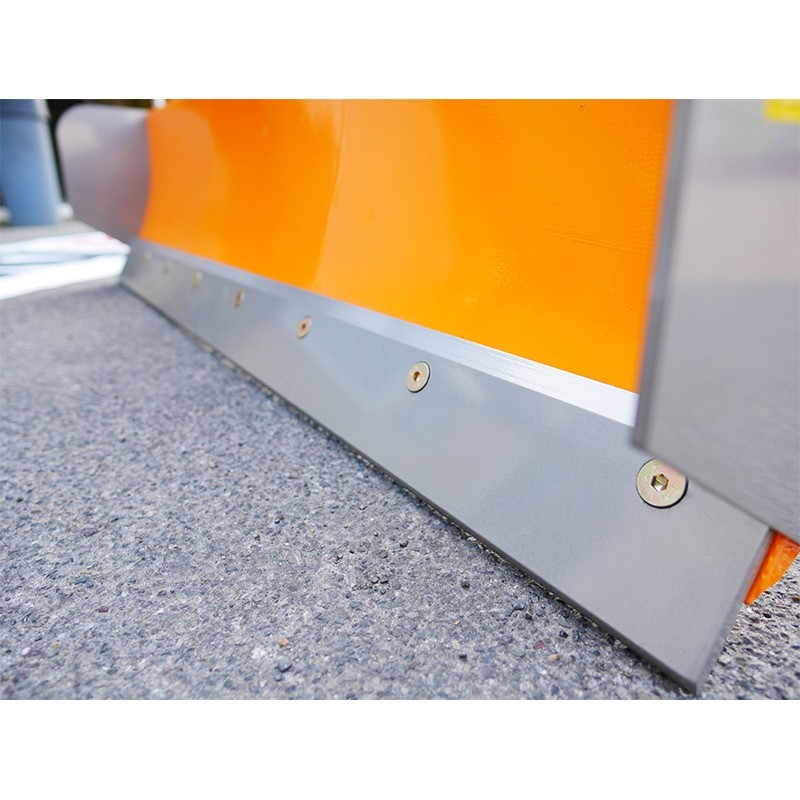

The blade offers a height of 40cm with a thickness of 13mm made of 360º rotatable steel. Additionally, it has detachable sides with a thickness of 6mm. This blade provides great reliability thanks to the 4mm thick sheet, making it both light and resistant.
The leveling blade attaches to the tractor through a 3-point CAT 1 hitch. This blade model has a width of 110cm, a height of 100cm, and a depth of 50cm, with a weight of only 105kg.
Total width | 1100 mm |
Weight | 105 kg |
Total height | 1000 mm |
Tractor power | 12 - 35 HP |
3-point hitch | Cat. 1 (ø 19.0-22.0mm) |
Distance between lower points | 500 - 610 mm |
Distance between 2 points and the ground | 365 - 425 - 485 mm |
Blade height | 400 mm |
Blade | Steel |
Blade: height | 120 mm |
Blade: thickness | 13 mm |
Sharpening: number | 1 |
Sharpening: space between bolts | 200 mm |
Blade rotation | 360° |
Sheet thickness (yellow) | 4 mm |
Sides | Detachable |
Arm orientation | x |
Sides: thickness | 6 mm |
Packaging dimension | 1200*800*500 mm |
Data sheet
