Heavy hydraulic grader for Zeppelin tractor 240 - 300 cm
- Working width: 2400-3000 mm
- Swing angle: 7º on each side
- Weight: 630-665 kg
€5,080.64 VAT incl.
Deleks products take about 15 to 25 days. |

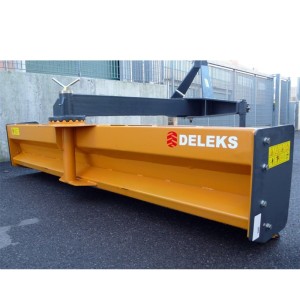

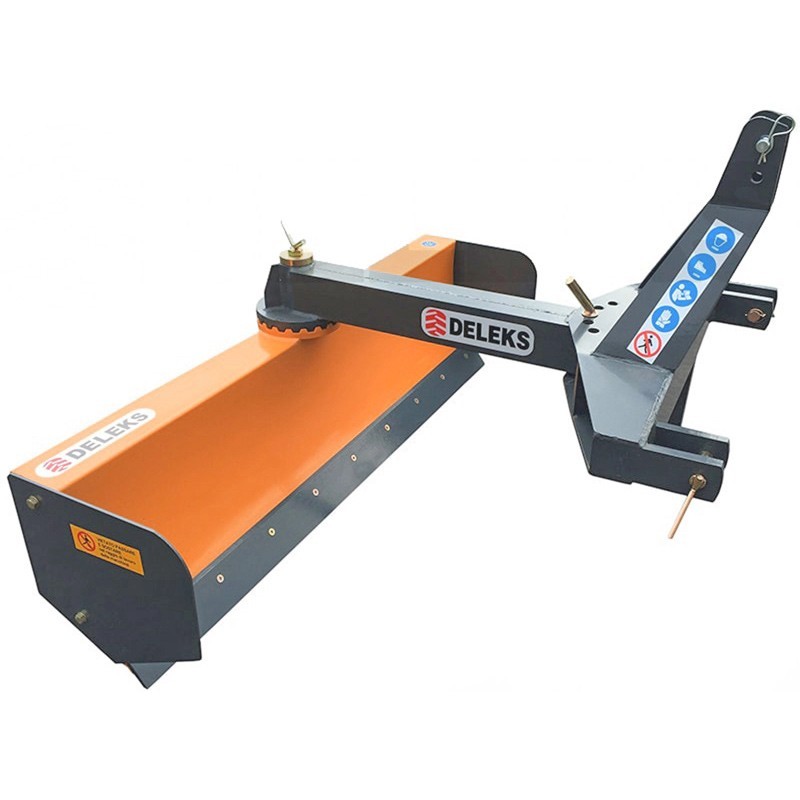

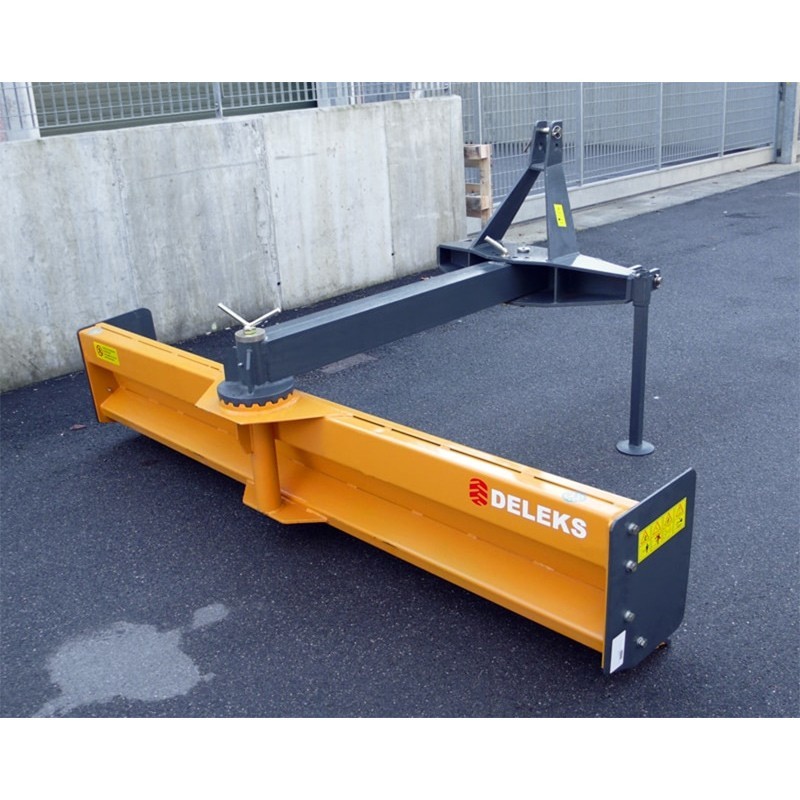

The reinforced leveling blade Deleks DDL-225 is an attachment for tractors with a recommended power of between 70 and 110HP. This leveling blade features a single blade.
The blade offers a width of 225cm and a height of 55cm with a thickness of 15mm made of 360º rotatable steel. Additionally, it has removable sides with a thickness of 6mm. This blade provides great reliability thanks to the 4mm thick sheet, making it both light and resistant.
The leveling blade attaches to the tractor through a 3-point CAT 2 hitch. This blade model has a width of 225cm, a height of 120cm, and a depth of 80cm, with a weight of only 360kg.
Total Width | 2250 mm |
Weight | 360 kg |
Total Height | 1200 mm |
Tractor Power | 70-100 HP |
3-point Hitch | Cat. 2 |
Distance Between Lower Points | 790 - 908 mm |
Total Length | 2000 mm |
Distance Between 2 Points and Ground | 550 mm |
Arm Thickness | 140*114 mm |
Blade Height | 550 mm |
Blade | Steel |
Blade: Height | 150 mm |
Sharpening: Number | 1 |
Blade Rotation | 360° |
Blade: Width | 15 mm |
Blade: Bolt Spacing | 200 mm |
Sides | Removable |
Rotation Shaft ø | 70 mm |
Arm Orientation | +/- 45° |
Sides: Thickness | 6 mm |
Packaging Dimension | 2250*800*800 mm |
