Heavy hydraulic grader for Zeppelin tractor 240 - 300 cm
- Working width: 2400-3000 mm
- Swing angle: 7º on each side
- Weight: 630-665 kg
€5,080.64 VAT incl.
Deleks products take about 15 to 25 days. |

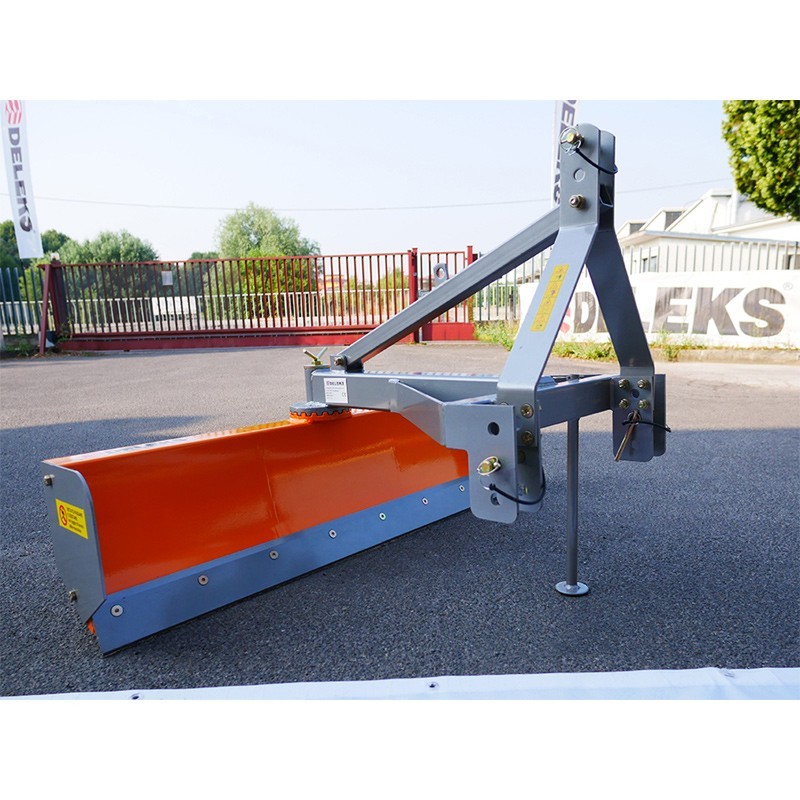

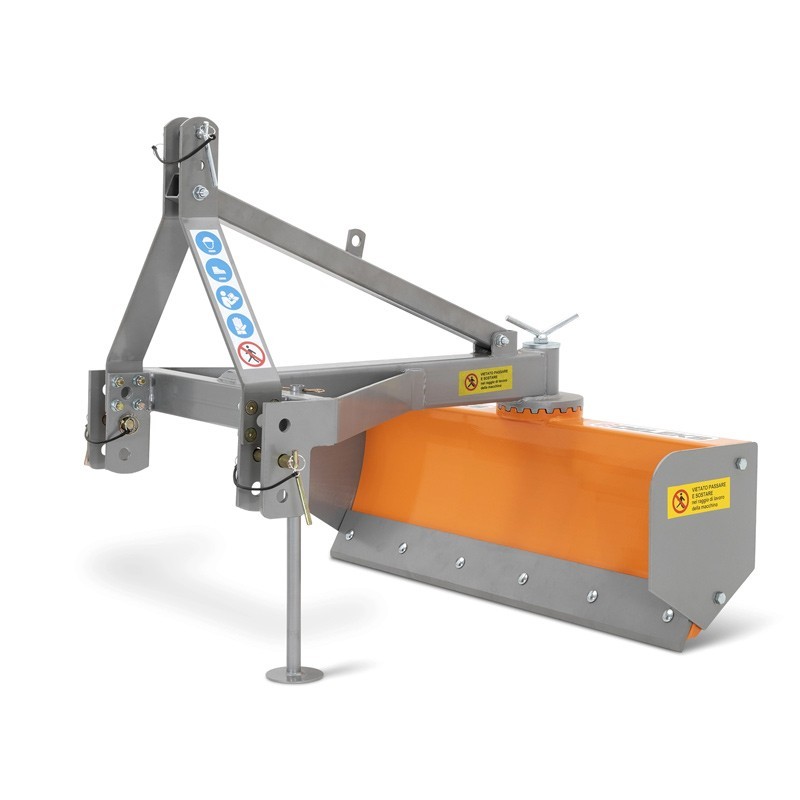

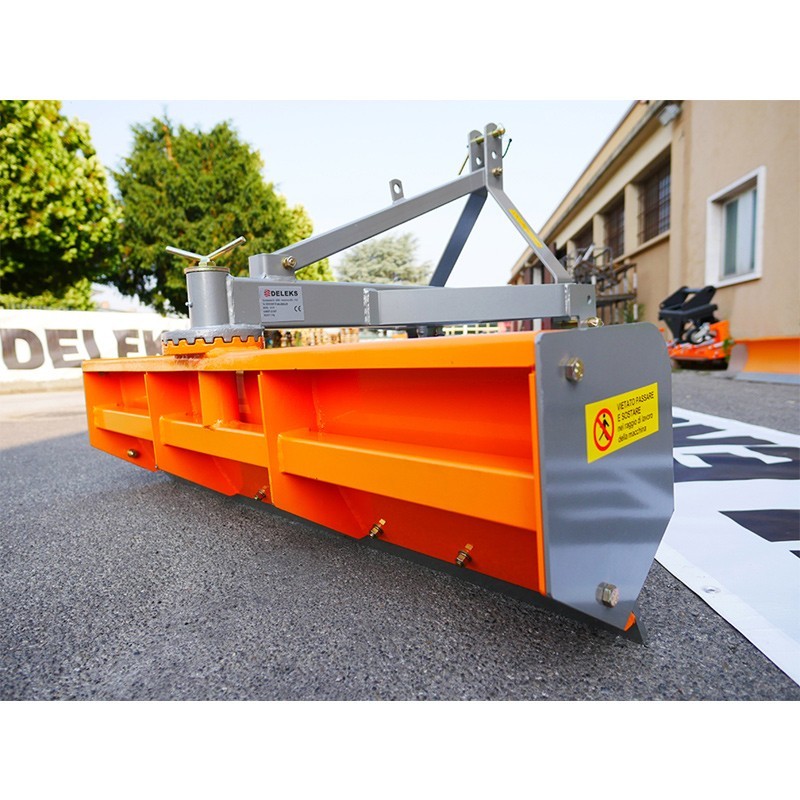

The Deleks DL-200 leveling blade is an attachment for tractors with a recommended power of between 40 and 80HP. This leveling blade features a single blade.

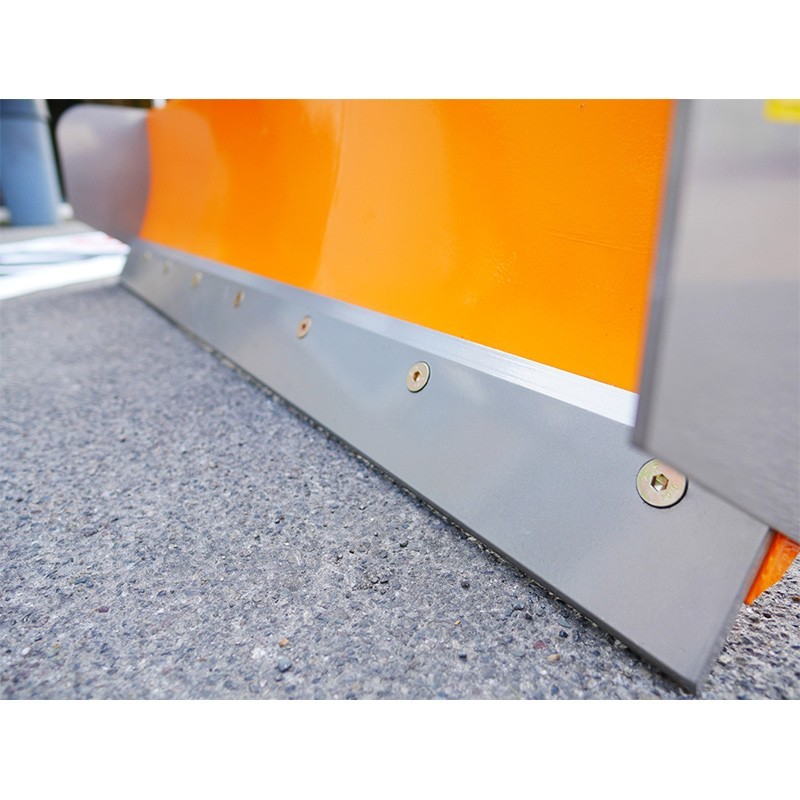

The blade offers a width of 200cm and a height of 48cm with a thickness of 13mm made of 360º rotatable steel. Additionally, it has detachable sides with a thickness of 6mm. This blade provides great reliability thanks to the 4mm thick sheet, making it both light and resistant.
The leveling blade attaches to the tractor through a 3-point CAT 1-2 hitch. This blade model has a width of 200cm, a height of 113cm, and a depth of 80cm, with a weight of only 200kg.
Total Width | 2000.0 mm |
Weight | 200.0 kg |
Total Height | 1130.0 mm |
Tractor Power | 40 - 80 HP |
3-point Hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Distance Between Lower Points | 635.0 - 765.0 mm |
Distance Between 2 Points and the Ground | 485.0-545.0-605.0 mm |
Blade Height | 480.0 mm |
Blade | Steel |
Blade: Height | 120.0 mm |
Blade: Thickness | 13.0 mm |
Sharpening: Number | 1 |
Sharpening: Space Between Bolts | 200.0 mm |
Blade Rotation | 360° |
Sheet Thickness (yellow) | 4.0 mm |
Sides | Detachable |
Arm Orientation | x |
Sides: Thickness | 6.0 mm |
Packaging Dimension | 2000.0*800.0*800.0 mm |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
