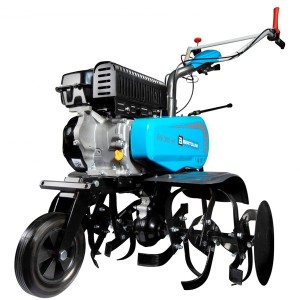

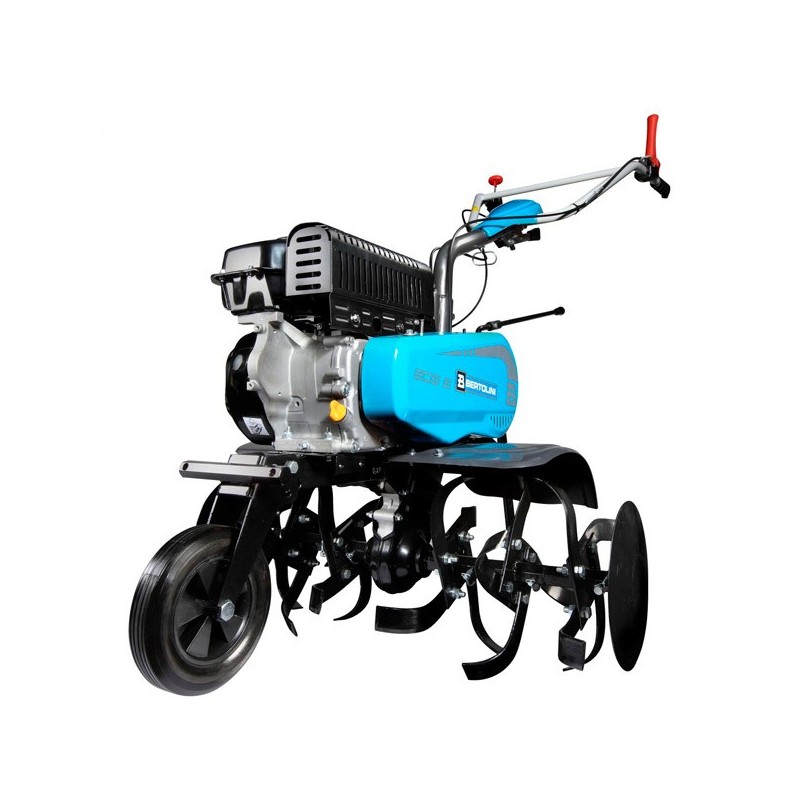

The Motor hoe Bertolini 205S has an Emak K 800 HC gasoline engine with a power of 5.7 HP and a displacement of 182cc. It also includes an adjustable handlebar in all positions and 2 gears, one forward and one reverse. In addition, the pack contains accessories for this motor hoe.
This model of Bertolini offers a transmission with oil bath gears and a first time start. It also features a double-belt clutch with metal pulleys and 4.2mm thick steel blades.
The 205S tiller includes an 85 cm tiller with protective side discs, a reinforced spur, a 180-degree rotating handlebar and a transport wheel.

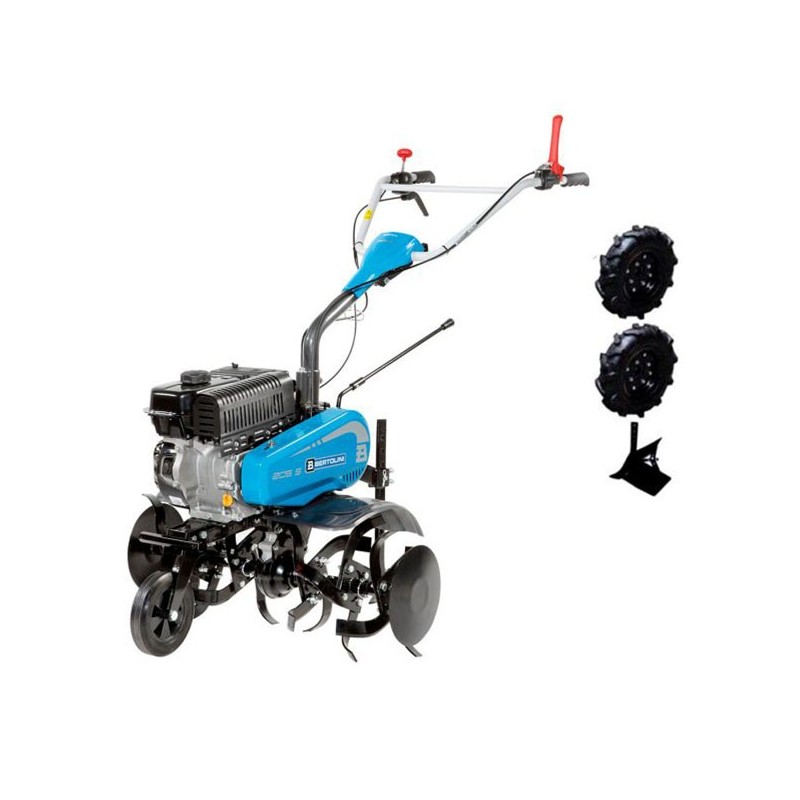

This product from Bertolini is a pack which includes the tiller Bertolini 205S with Emak engine and several accessories such as a tiller, wheels and a bolt carrier.
| Engine | EMAK K 800 HC |
| Power | 5.7 HP |
| Displacement | 182cc |

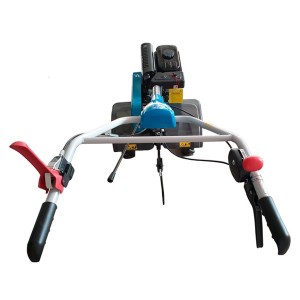

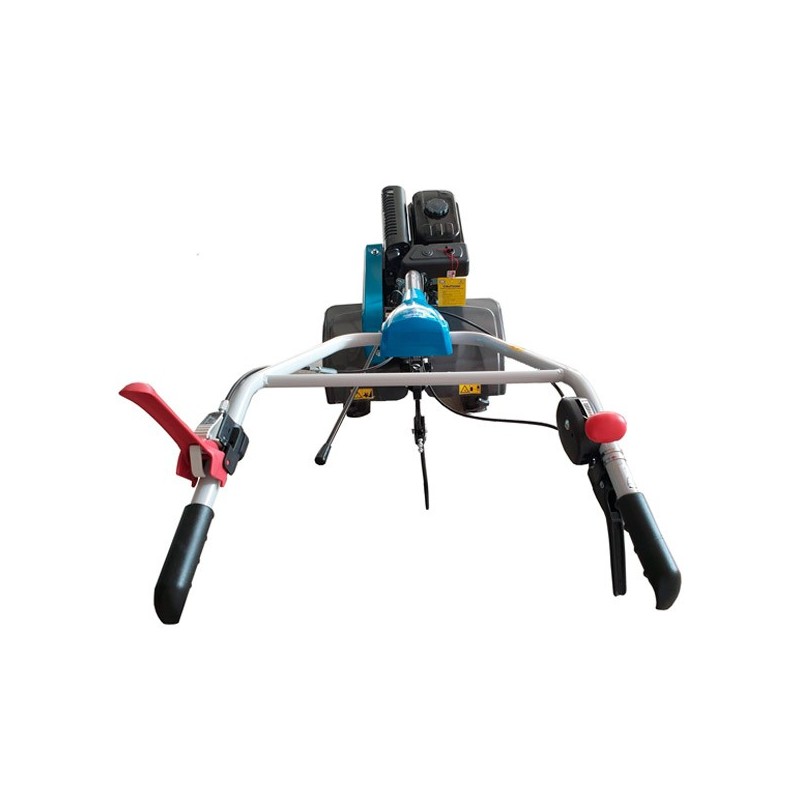

| Handlebar | Adjustable in all positions |
| Clutch | With double belt and metal pulleys |
| Blades | 4,2mm thick steel |
| Gears | 2 forward gears + 1 reverse |
| Transmission | With gears in oil bath |

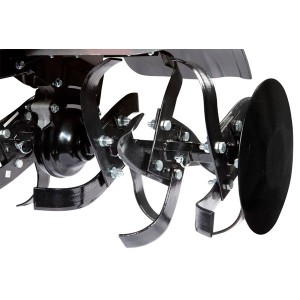

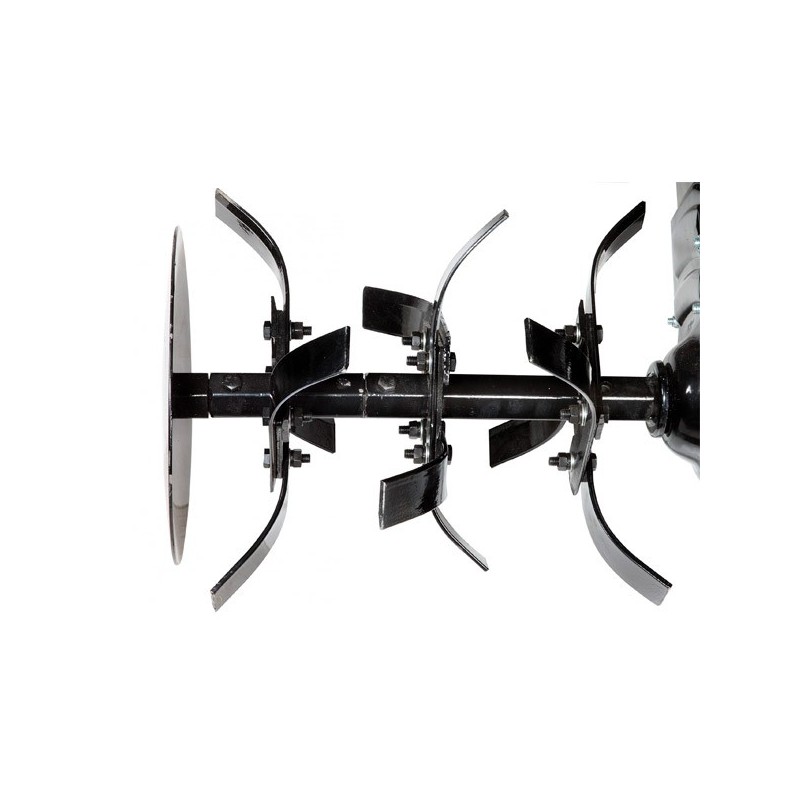

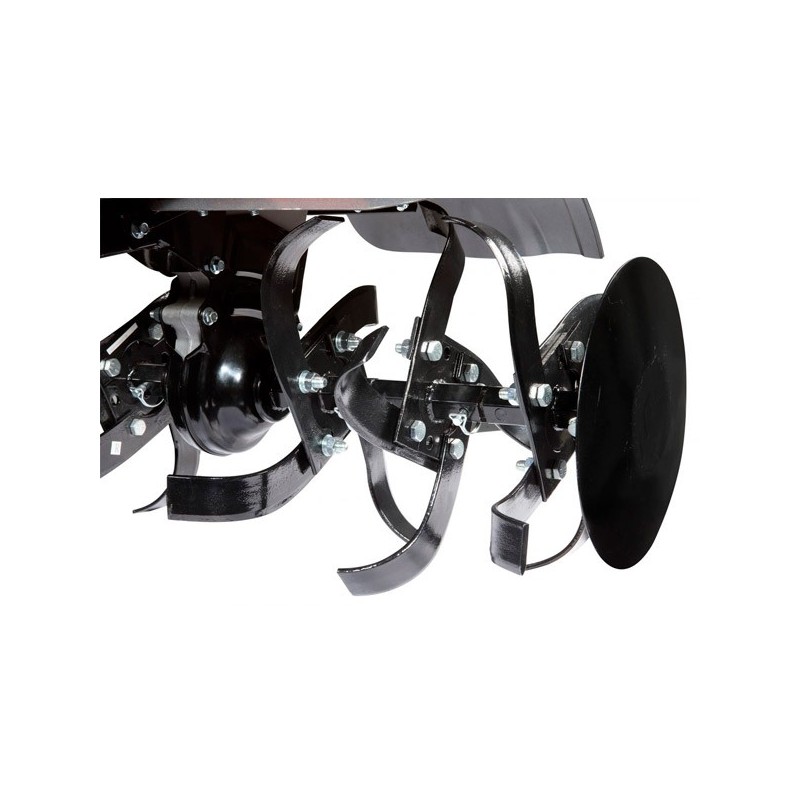

| Cutter | 85 cm with lateral protection discs |
| Weight | 63 Kg |
 |
The valves allow a regular entry of the fuel into the chamber and a quick and complete exit. |
 |
Cylinder in cast iron, drive shaft in chrome-plated steel, rod valves in tempered steel resistant to high temperatures. |
| Aluminum alloy piston with 2 segments and 1 oil collector, double ball bearing support on the elbow shaft. | |
 |
The heat-treated connecting rod has an alternating movement. This allows perfect lubrication of the connecting rod and bearing supports. |
 |
The OHV design has an excellent thermal balance. This helps to reduce cylinder deformation and oil consumption. |
 |
The circular foam filter in the oil bath provides optimum filtering action. It retains even the tiniest dust particles. |
 |
The filter cover with knob offers a quick inspection of the filter without the use of tools. |
 |
The large muffler allows a strong reduction of noise and unburned hydrocarbons. |
 |
Metal housing designed to protect the starting device against accidental impacts. |
Difference between the oil bath clutch of other brands and the dry multi-disc clutch of other brands Bertolini
|
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied unless an examination is pending. |
