Tiller Zeppelin 111 7 Hp
- Engine: Gasoline 208 cc
- Power: 7 Hp
- Working width: 750mm
- Gears: 3 (2 forward + 1 reverse)
€445.00 VAT incl.

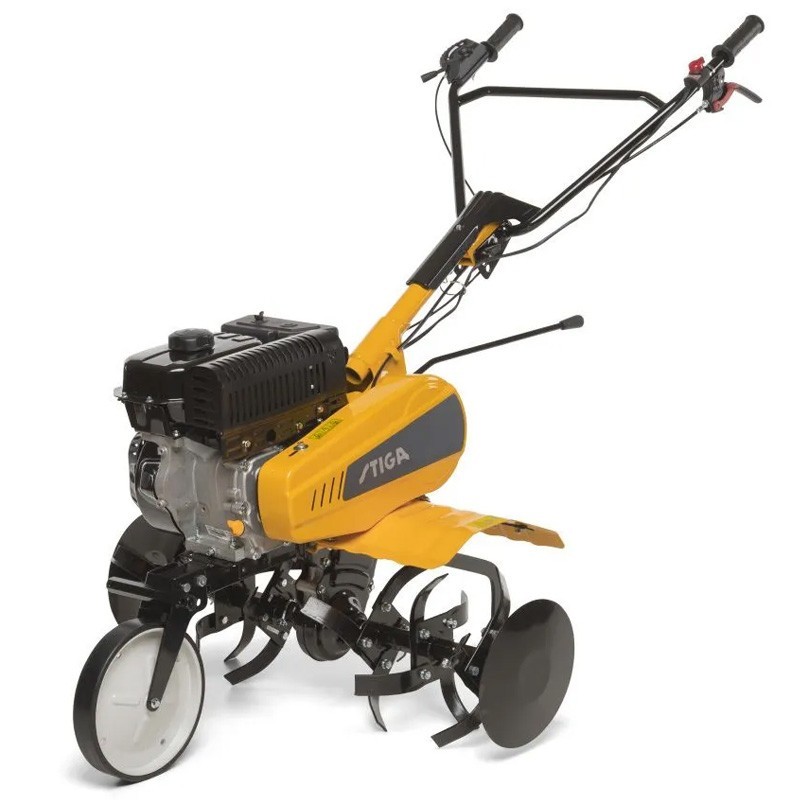

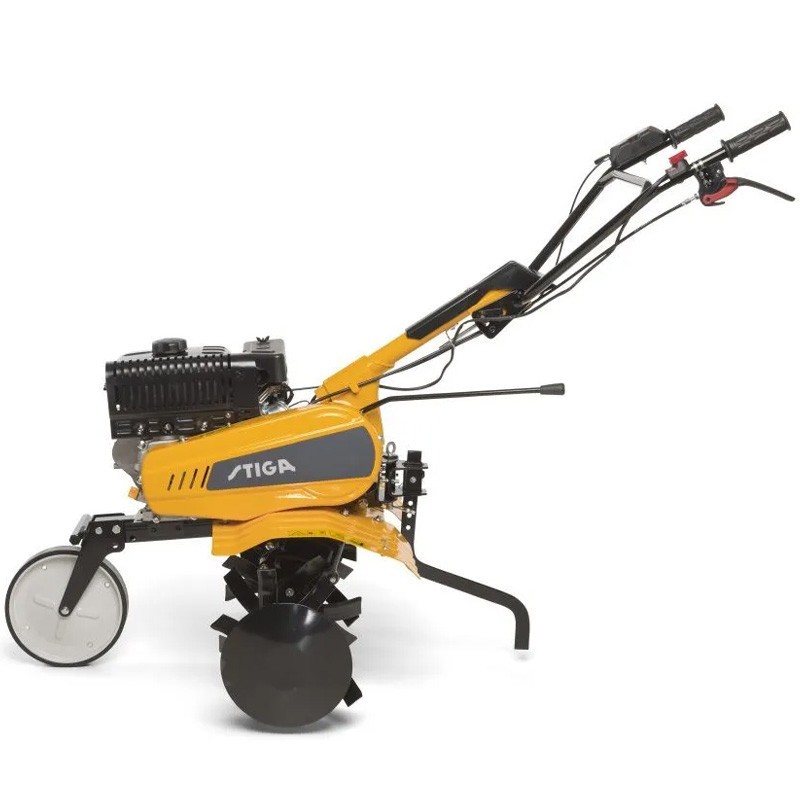

The motorized tiller Stiga 4-stroke TM 60 is a powerful and reliable machine designed for efficient tillage work. With a 182 cc displacement and a rotation speed of 3300 rpm, it offers optimal performance.
Equipped with 6 rotors with a diameter of 245 mm, a work width of 85 cm and a working depth of 15 cm, ensures precise results in various conditions. Its transmission system with 2 gears Forward and 1 reverse gear, along with a disc guard, provides versatility and safety.
Compact and stable, with dimensions of 1680 mm in length, 850 mm in width, and 1050 mm in height, it is ideal for agricultural and gardening work.
Power Supply | Gasoline |
Engine | Stiga 4-stroke TM 60 |
Displacement | 182 cc |
Motor rotation speed | 3300 rpm |
Fuel tank capacity | 3l |
Gear oil box capacity | 0.5l |
Type of air filter | Oil bath |
Work system | |
Working width | 85 cm |
Depth of work | 15 cm |
Number of rotors | 6 |
Rotor diameter | 245 mm |
Disc protector | Yes |
Transmission | |
Transmission | Chain and toothed gear in oil bath + belt |
Number of gears | 2 forward + 1 backward |
Dimension | |
Weight | 62.5 kg |
Length | 1680 mm |
Width | 850 mm |
Height | 1050 mm |
IMPORTANT NOTICE |
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
Data sheet
Specific References
