| Assembly and set-up INCLUDED |

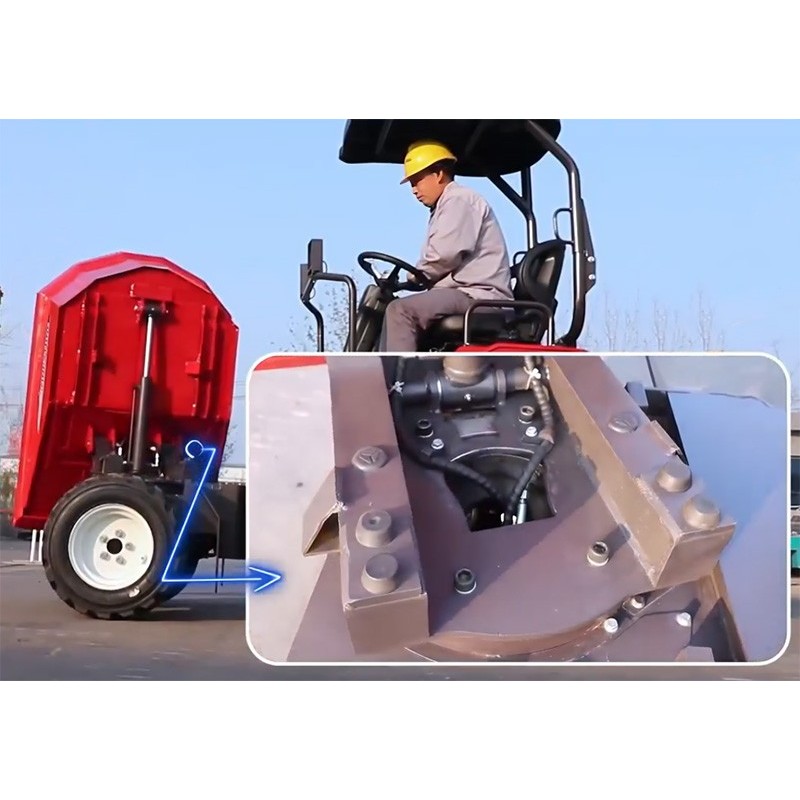

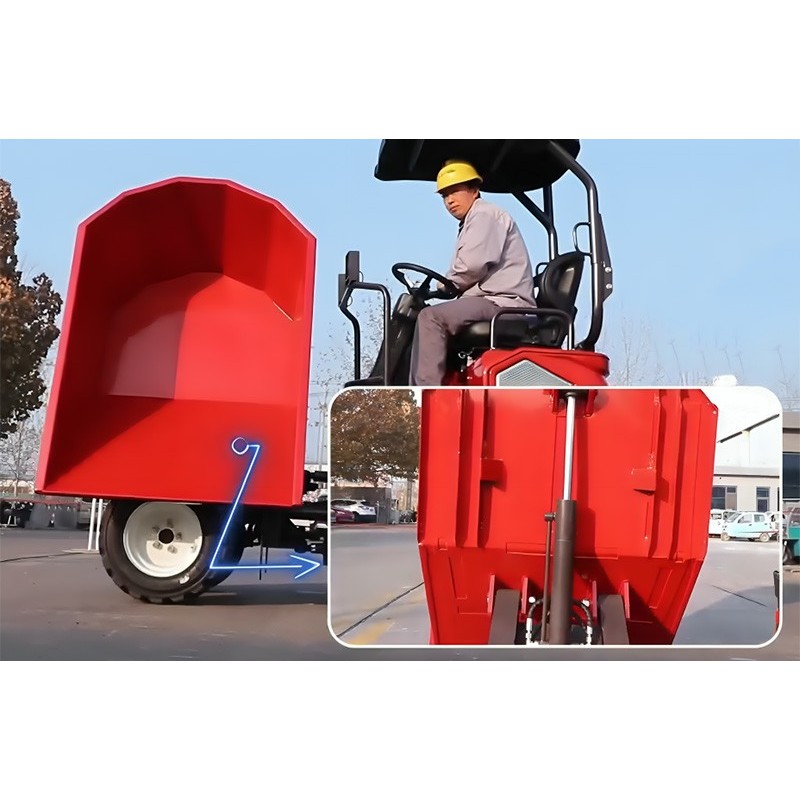

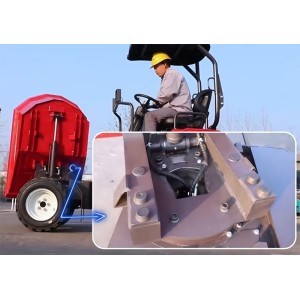

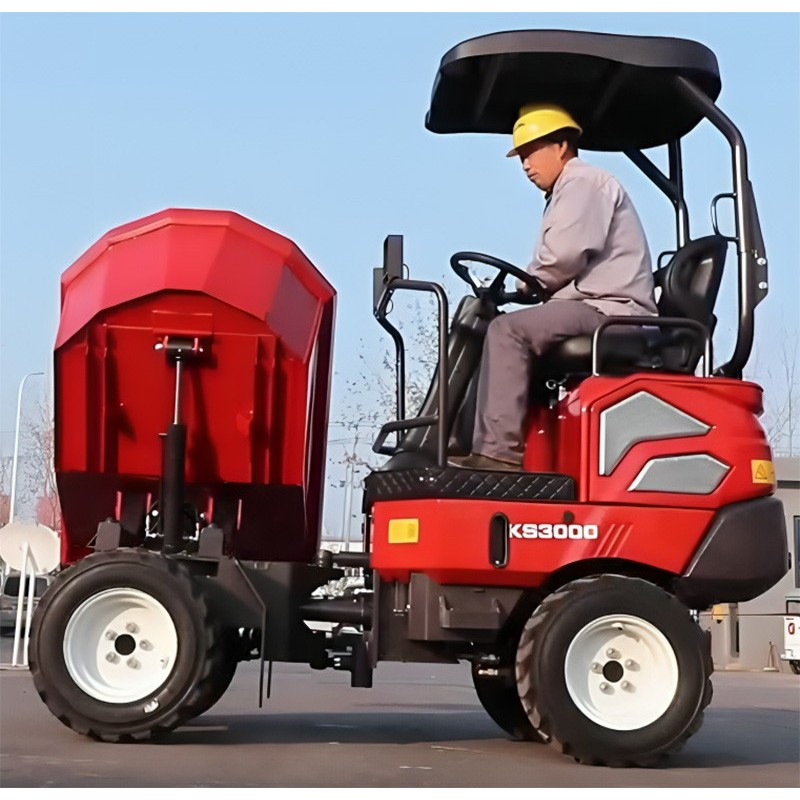

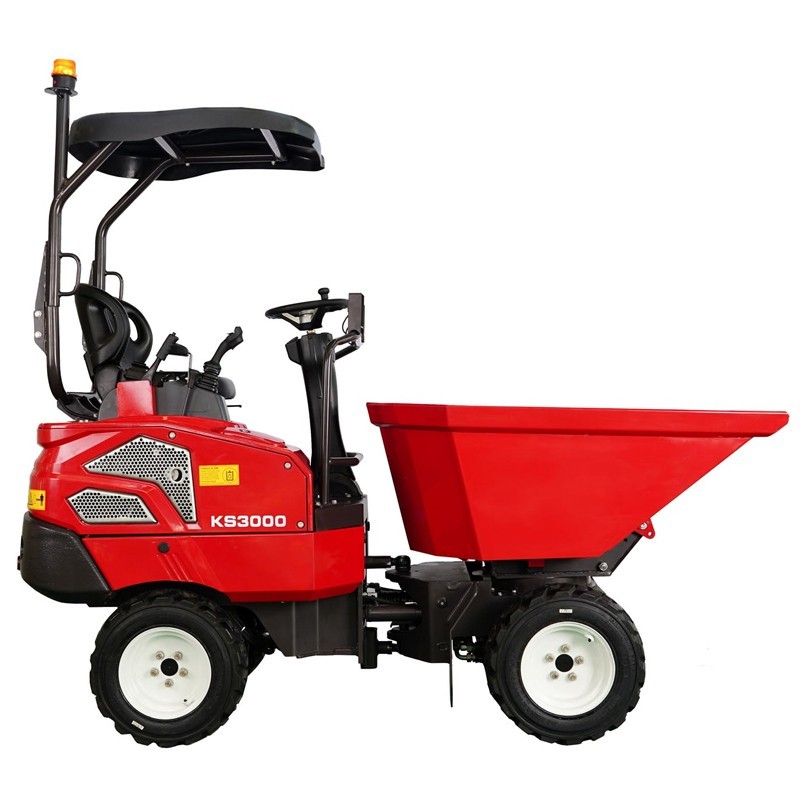

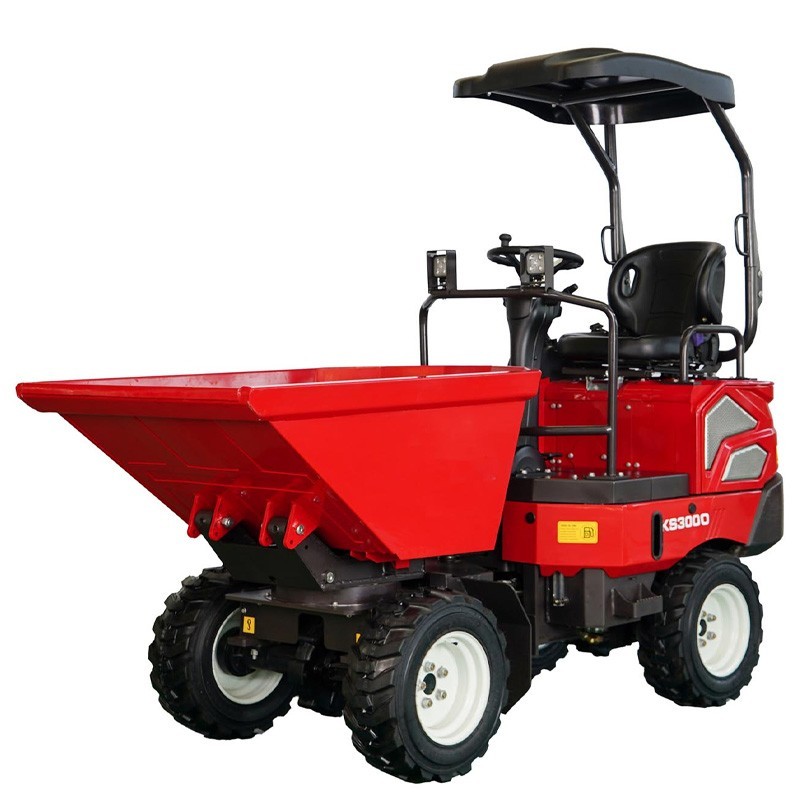

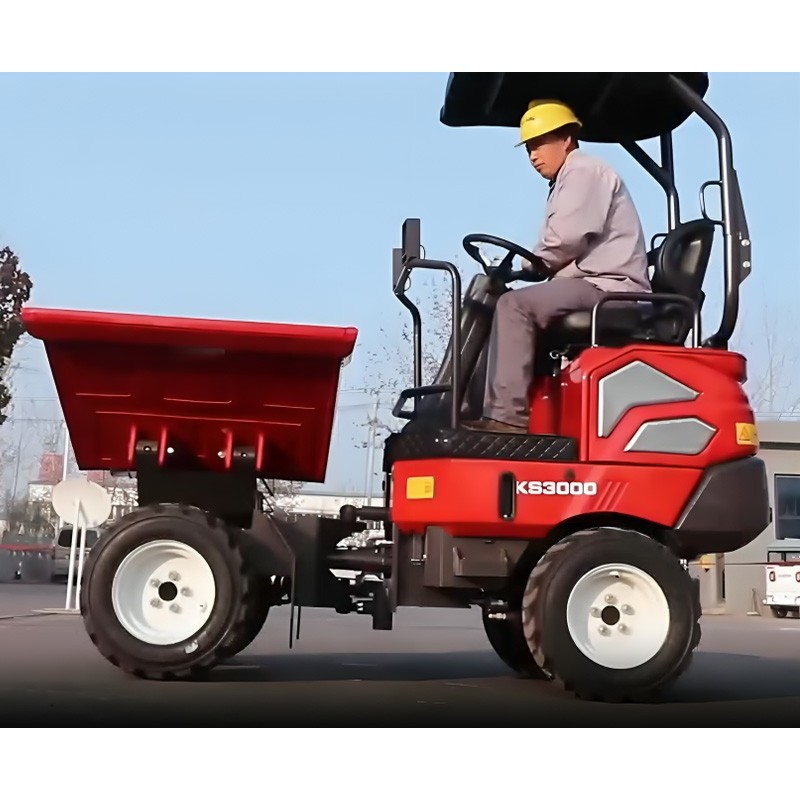

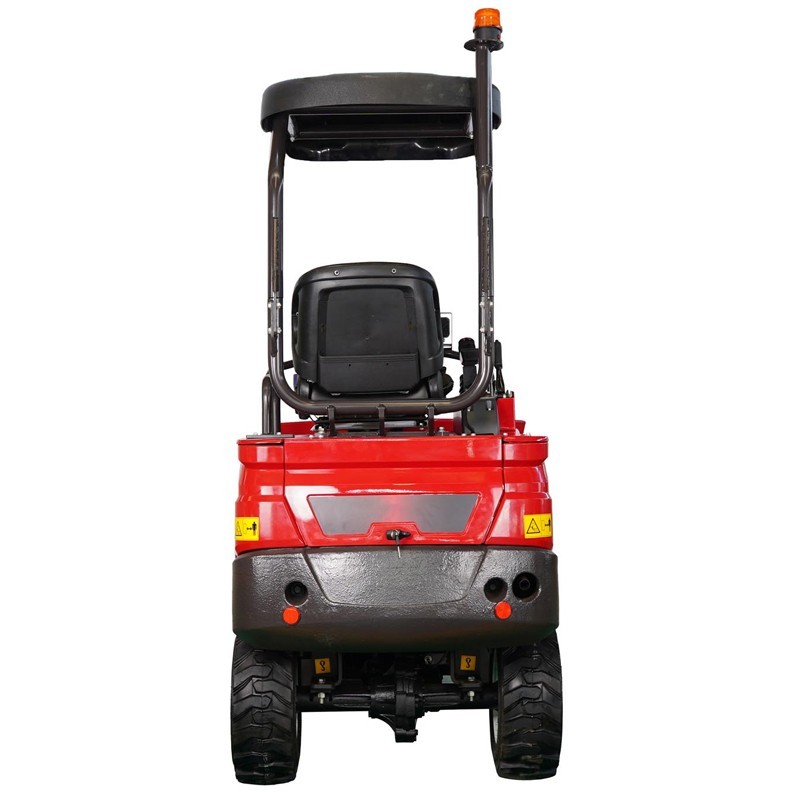

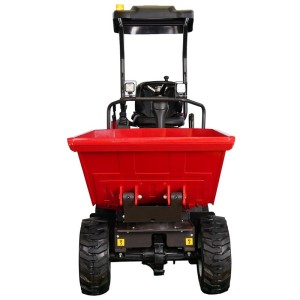

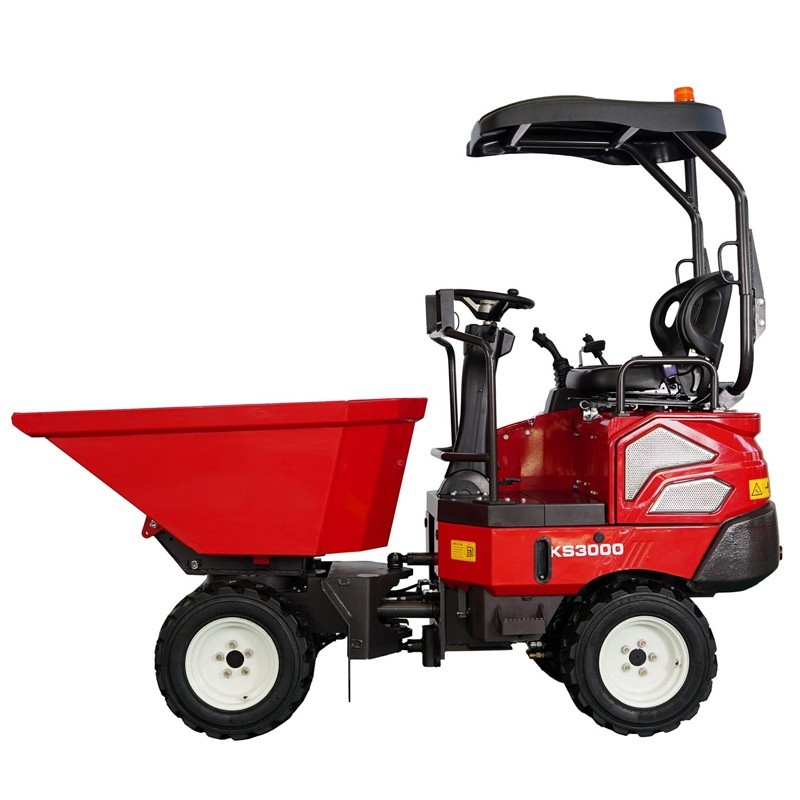

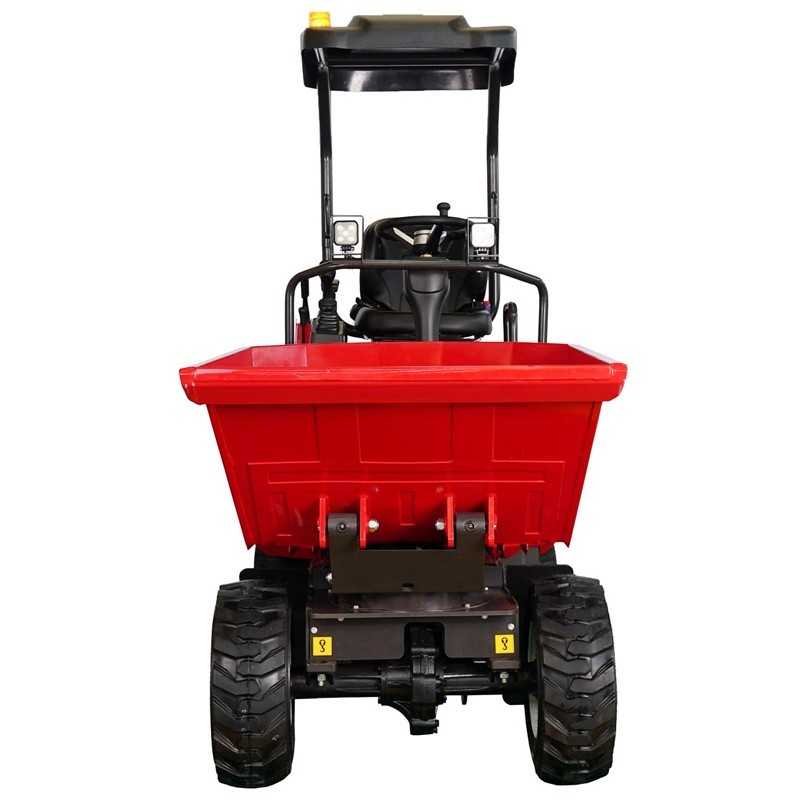

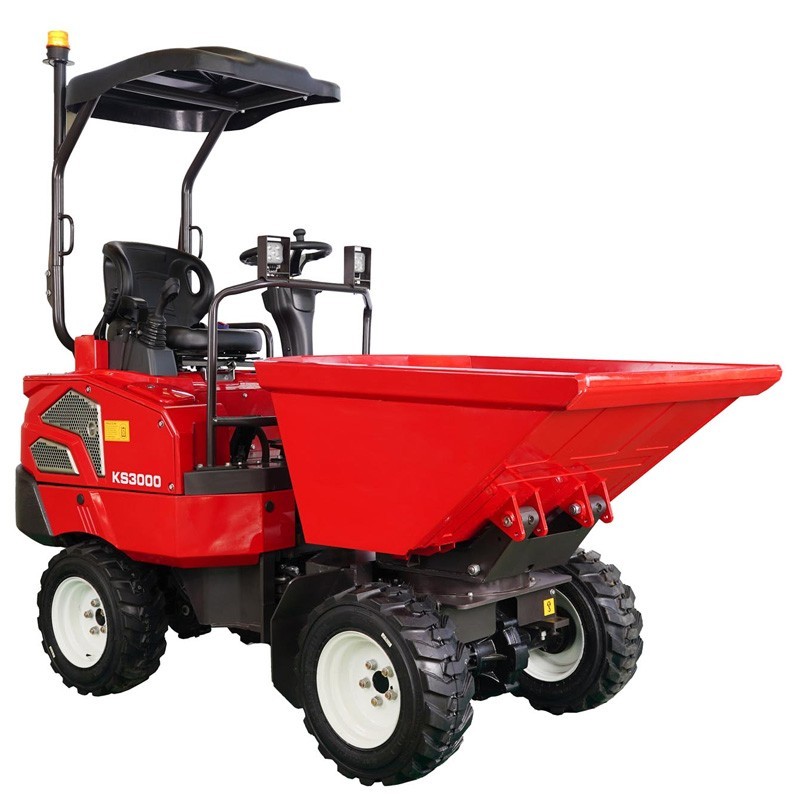

The articulated dumper Zeppelin Rhinoceros KS3000 is a compact, powerful and versatile machine designed to facilitate the transport and unloading of materials on construction sites, landscaping and agricultural works. Its 0.5 m³ hopper with front discharge and rotary self-tipping system allows the contents to be emptied with precision in any direction, even in narrow spaces.
It is equipped with a 19 HP, 3-cylinder Kubota D1105 diesel engine, which complies with EPA Tier 4 and EU Stage V emission standards. It offers efficient and reliable operation, ideal for heavy-duty work in demanding terrain. Its variable piston pump hydraulic system achieves a flow rate of 99 L/min and a pressure of 220 bar, ensuring smooth and controlled movements.
Thanks to its articulated chassis, the KS3000 offers a swing angle of 30° to both left and right, and excellent maneuverability. The hopper can tip up to 90° to the left and 85° to the right, reaching a maximum combined tipping angle of 120° in both directions, allowing it to easily adapt to different unloading conditions.
With a payload of 1,360 kg, maximum speed of 8 km/h and ground clearance of 135 mm, this dumper is an effective solution for jobs where power, precision and mobility are required in a single piece of equipment.
| Engine | |
| Model | Kubota D1105 |
| Fuel | Diesel |
| Power | 14.2 kW / 19 HP |
| Emission standard | EPA Tier 4 / EU Stage V |
| Number of cylinders | 3 |
| Displacement | 1123 cc |
| Cylinder bore | 78 mm |
| Piston stroke | 78.4 mm |
| Rated speed | 2.200 rpm |
| Hydraulic system | |
| Pump type | Variable piston pump |
| Working pressure | 220 bar |
| Maximum flow rate | 99 L/min |
| Battery | |
| Reserve capacity (SAE standard) | 110 minutes |
| Cold start power at -18 °C | 800 amps |
| Electrical system | 12 V |
| Fluid capacities | |
| Hydraulic oil tank | 40 L |
| Diesel tank | 39 L |
| Weight and load | |
| Operating weight | 1.580 kg |
| Maximum load | 1.360 kg |
| Tipping hopper capacity | 0,5 m³ |
| Unloading type | Rotary autoturning |
| Operation | |
| Maximum travel speed | 8 km/h (forward and reverse) |
| Ground clearance | 135 mm |
| Tire model | 23×8.5-12 |
|
 |
|
 |
| IMPORTANT NOTICE |
| The customer is obliged to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement, unless an examination is pending. |
