Mini diesel excavator Hippopotamus 190 1.7 Tonnes
Mini diesel excavator Hippopotamus 190 1.7 Tonnes
Mini diesel excavator Hippopotamus 190 1.7 Tonnes
Mini diesel excavator Hippopotamus 190 1.7 Tonnes
Mini diesel excavator Hippopotamus 190 1.7 Tonnes
Mini diesel excavator Hippopotamus 190 1.7 Tonnes
Mini diesel excavator Hippopotamus 190 1.7 Tonnes
Mini diesel excavator Hippopotamus 190 1.7 Tonnes
Mini diesel excavator Hippopotamus 190 1.7 Tonnes

Mini diesel excavator Hippopotamus 190 1.7 Tonnes


  • Engine : D902 KUBOTA
  • Weight 1840 kg
  • Swing speed 12 RPM
Assembly and set-up INCLUDED
En stock
icon Power Supply
Power Supply
Diesel
icon Engine
Engine
Kubota
icon Power
Power
15.8 HP
icon Multifunction
Multifunction
Yes
icon Standard ladle
Standard ladle
30 cm
icon Operating weight
Operating weight
1,8 T
icon Excavator
Excavator
With Roof
icon Cylinders
Cylinders
3
icon ✔️
✔️
Water-cooled
icon Weight
Weight
1840 Kg
icon Tipo de orugas
Tipo de orugas
Adjustable width
€17,522.94 excl. VAT
- €301.79
€17,273.53 excl. VAT
€20,900.97 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Mini diesel excavator Hippopotamus 190 1.7 Tonnes
€20,900.97
Qty

Powerful mini excavator Hippopotamus 190

The mini excavator Hippopotamus 190 combines versatility and power in a compact design, ideal for demanding jobs in confined spaces. Weighing 1700 kg, its 15.8 hp KUBOTA D902 diesel engine ensures efficient and durable performance.

Designed to adapt to different tasks, it has a telescopic frame that varies from 990 mm in transport to 1240 mm in work, and hydraulically adjustable width chains for greater stability. Its 360º rotation and 12 rpm oscillation speed optimize maneuverability in any environment.

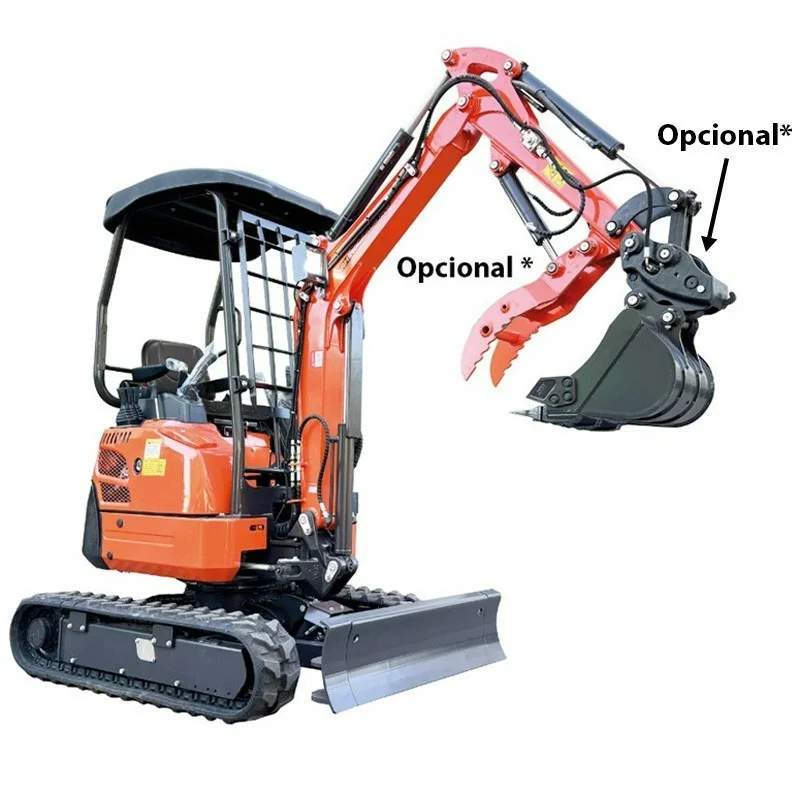

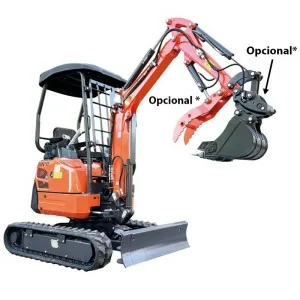

Hydraulic joystick control ensures precise and comfortable operation. In addition, its compatibility with attachments such as hydraulic hammers, buckets and augers expands its functionality, making this mini excavator a must-have tool for construction and agriculture.

Features

Weight 1840 kg
Engine - Model KUBOTA D902
Engine - Type Diesel, 4-stroke, 3 cylinders
Engine - Power 11,8 Kw - 15,8 hp
Engine speed 2300 rpm
Cooling Water
Combustion system TVCR

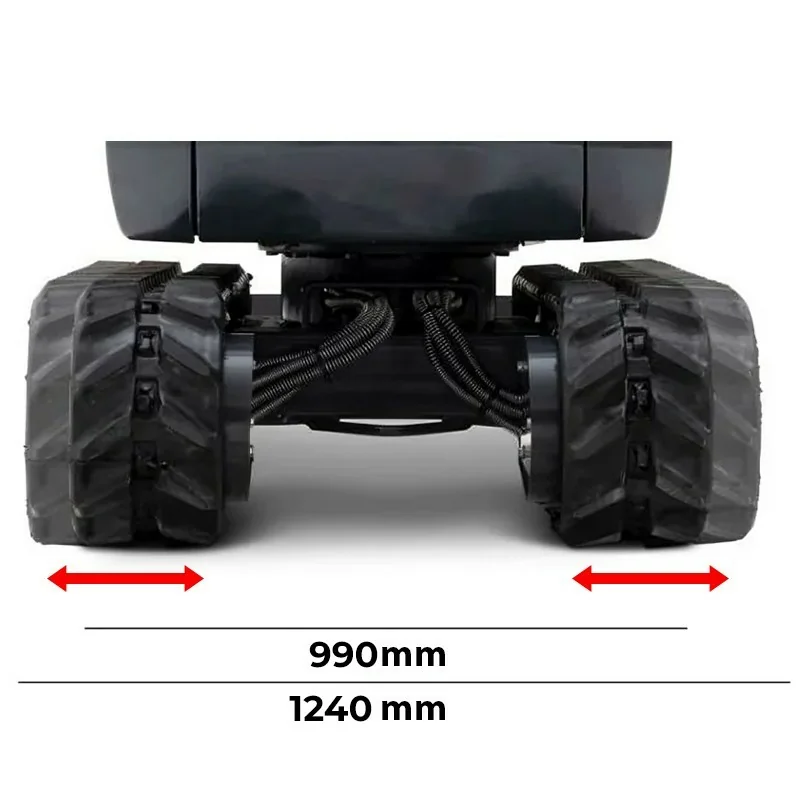

Telescopic lower frame 990 mm in transport, 1240 mm in operation
Swing speed 12 rpm
Rotation 360º

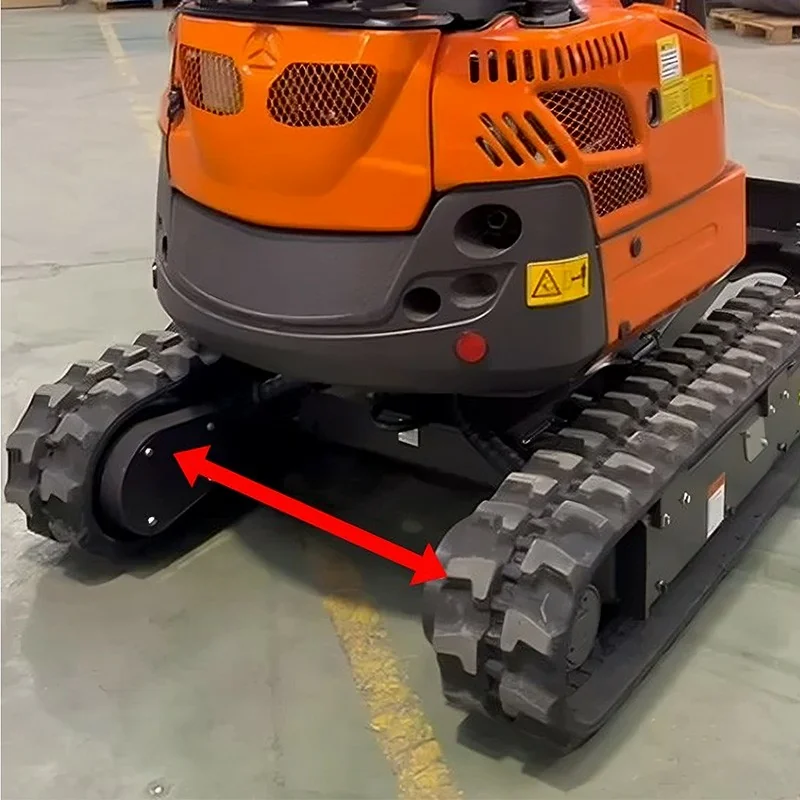

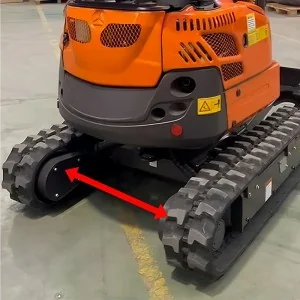

Chains Hydraulically adjustable width
Maneuvering control Hydraulic joystick


Main dimensions

a. Distance between axles 1230 mm
b. Track length 1590 mm
c. Ground clearance of upper chassis 473 mm
d. Counterweight turning radius 740 mm
e. Working width 990 - 1240 mm
f. Track width 230 mm
g. Track height 360 mm
h. Transport length 3400 mm
i. Height from seat to ground 1660 mm
j. Overall height 2350 mm

Operating dimensions

A. Maximum digging radius in the ground 3610 mm
B. Maximum digging radius 3700 mm
C. Maximum digging depth 2150 mm
D. Maximum digging height 3275 mm
E. Maximum discharge height 2310 mm
F. Maximum vertical digging depth 1740 mm
G. Minimum turning radius 1580 mm
H. Maximum lifting height of bulldozer blade 275 mm
I. Maximum bulldozer blade depth 180 mm
J. Arm swing (right) 390 mm
K. Arm swing (left) 510 mm
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
This product requires means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before ordering to evaluate your case.
261639

Data sheet

Power Supply
Diesel
Engine
Kubota
Power
15.8 HP
Multifunction
Yes
Standard ladle
30 cm
Operating weight
1,8 T
Excavator
With Roof
Cylinders
3
✔️
Water-cooled
Weight
1840 Kg
Tipo de orugas
Adjustable width

Specific References

MPN
Hippo-190
New

Agricultural Machinery After-Sales Service

At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.

Warranty and Factory Repair

Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.

Online Mechanics - Fast and Efficient

To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.

In-Shop Repair

If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.

☎️ Always by your side

Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.

✔️ Advantages of buying in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
