Assembly and set-up INCLUDED |

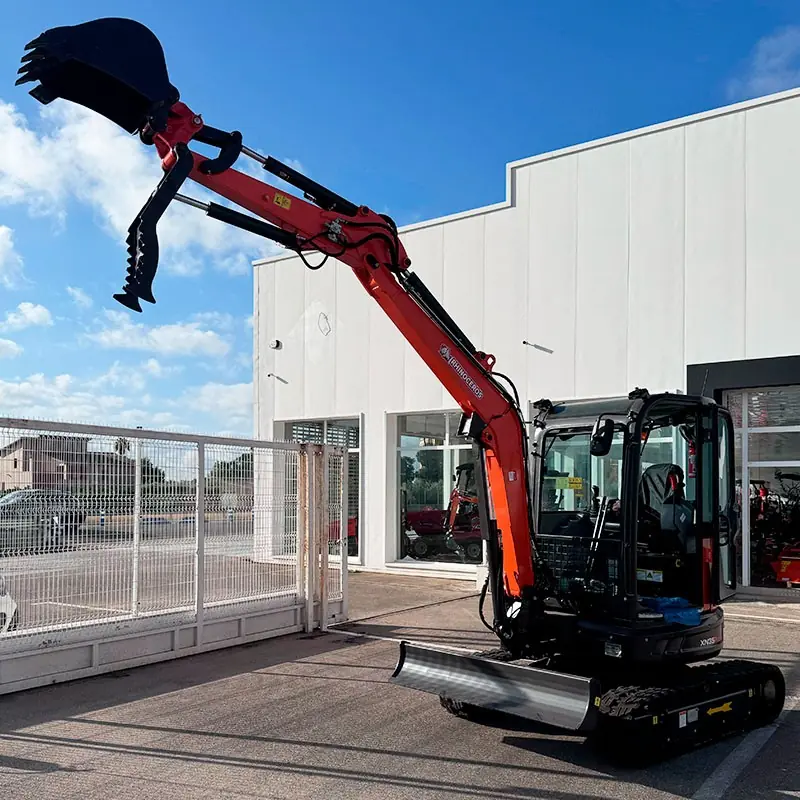

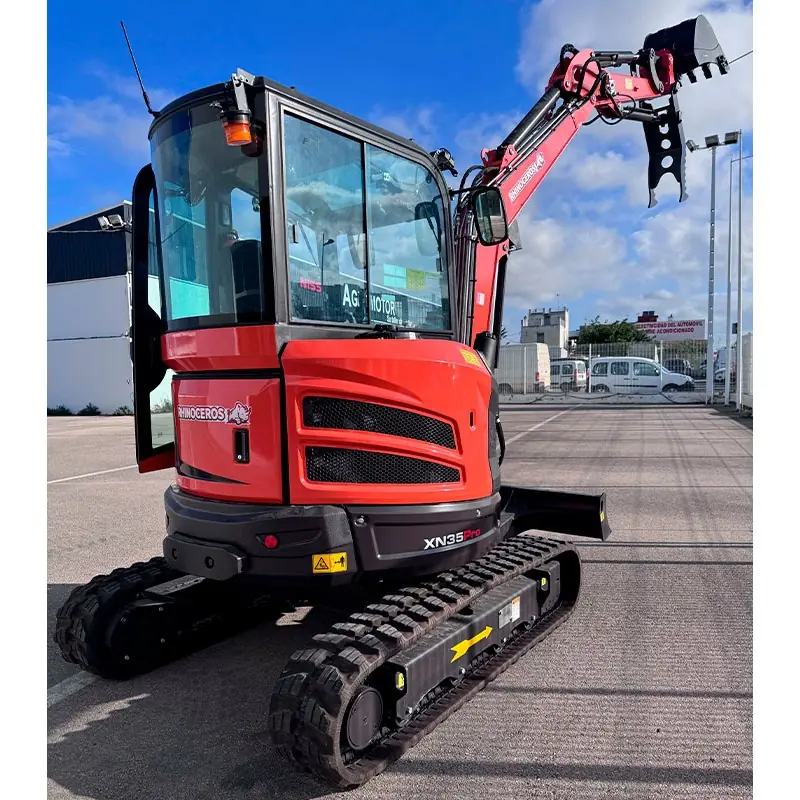

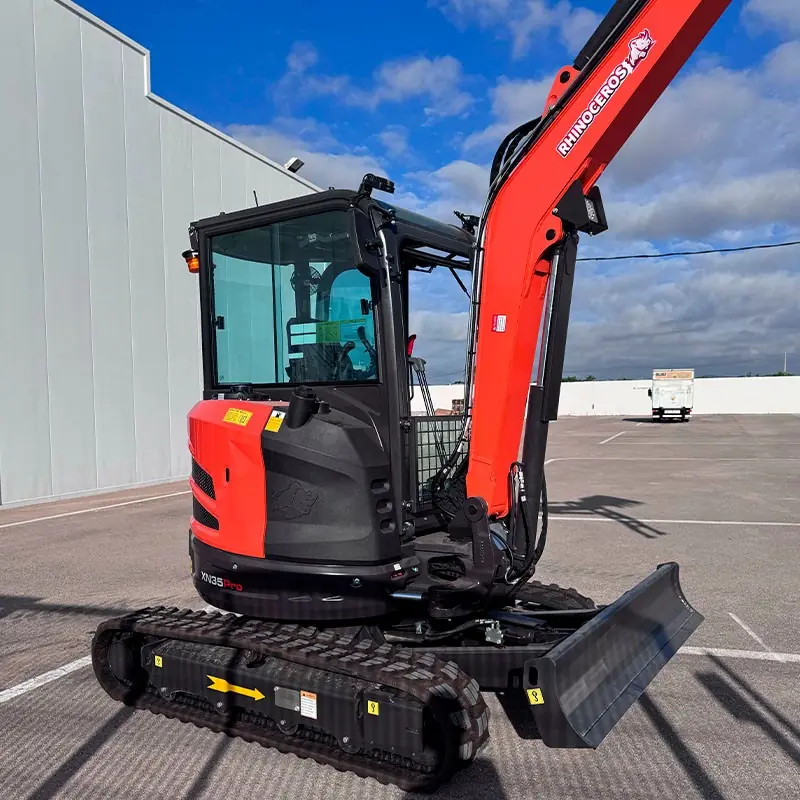

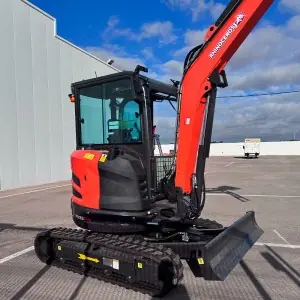

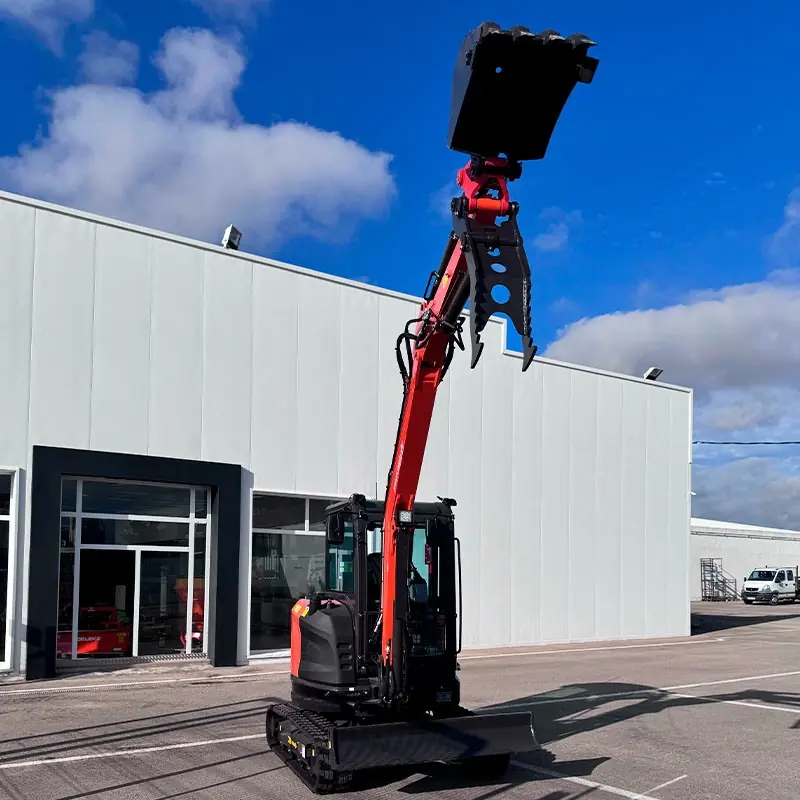

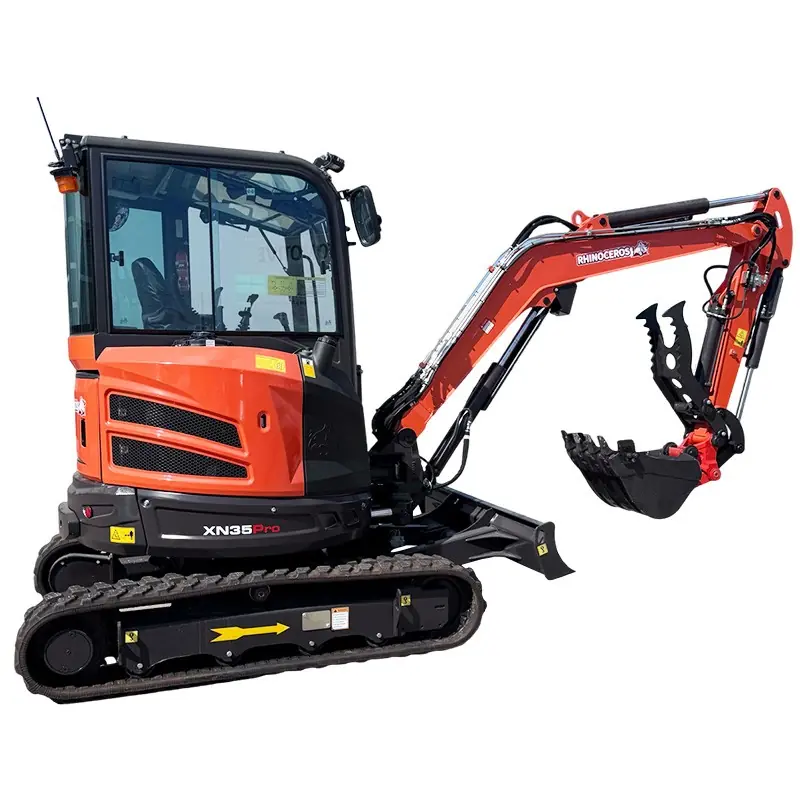

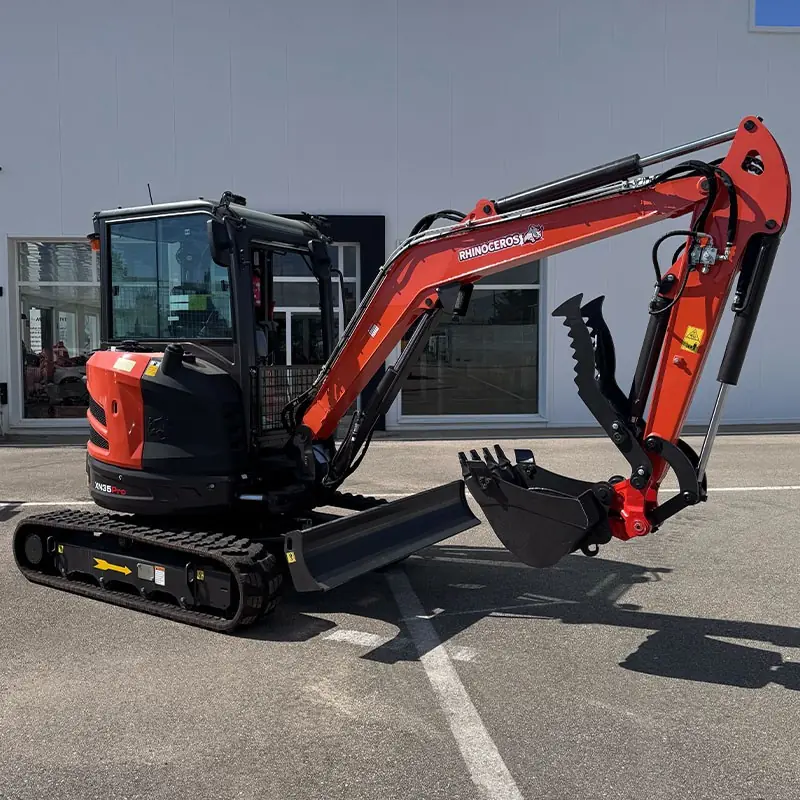

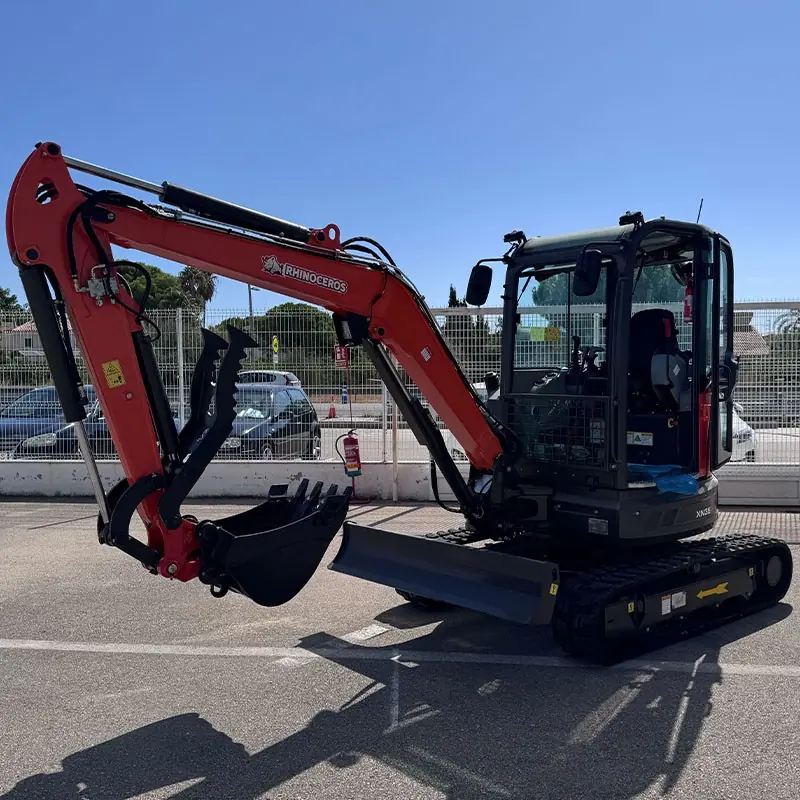

The Zeppelin Rhinoceros 400 mini-excavator with a 40 hp, 3-cylinder Kubota diesel engine offers efficient and reliable performance. Its 4000 kg weight and 360° turning capacity give it great maneuverability on any terrain, ensuring precise and fast work.

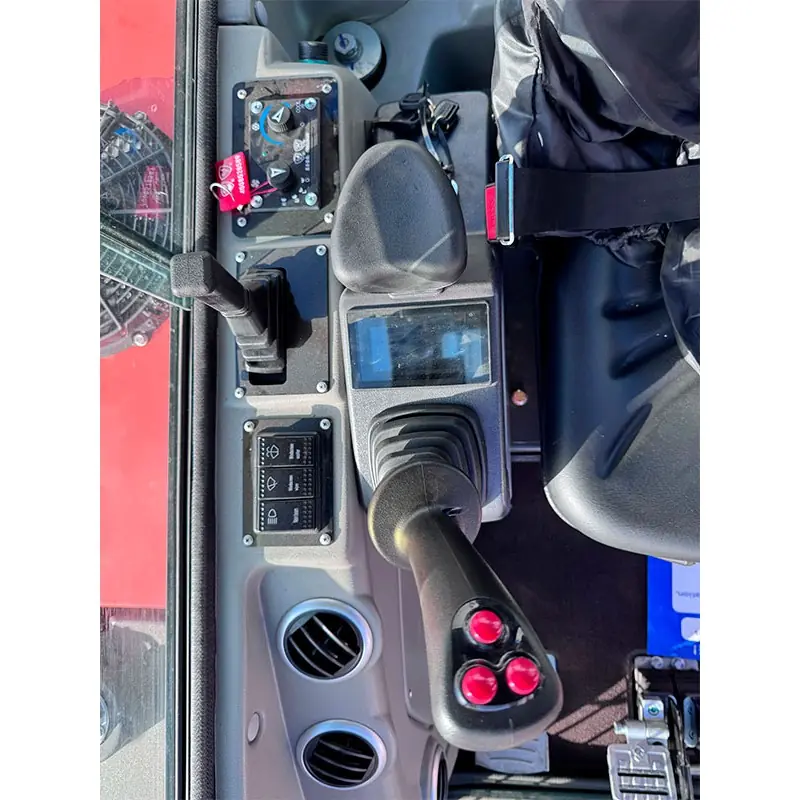

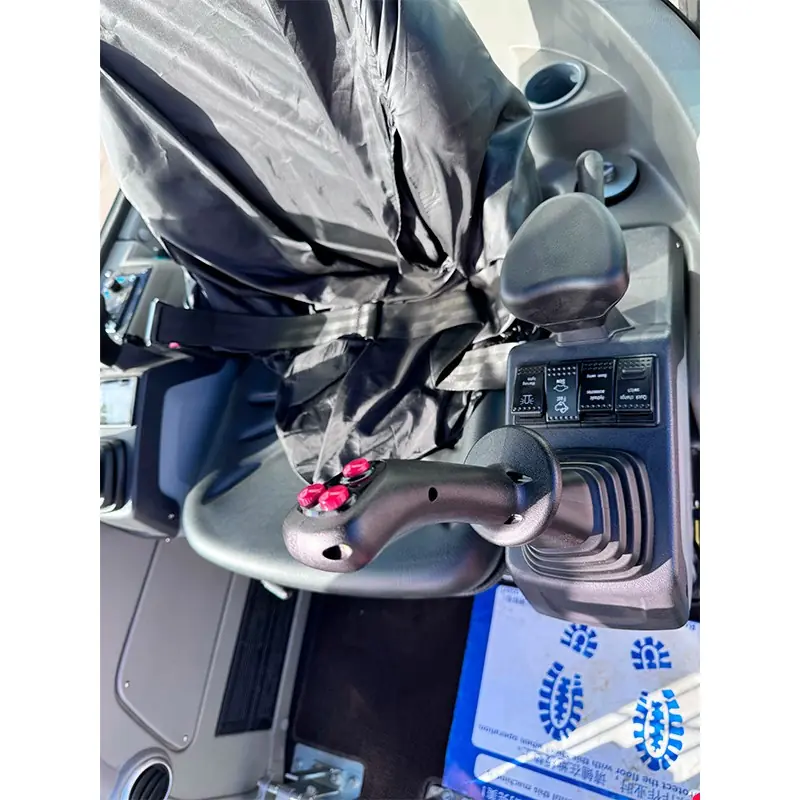

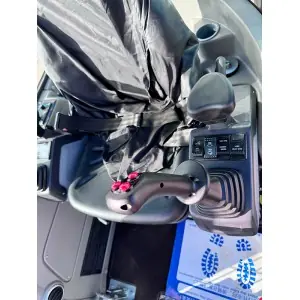

In addition, its hydraulic joystick control system facilitates handling, ensuring greater precision in tasks.

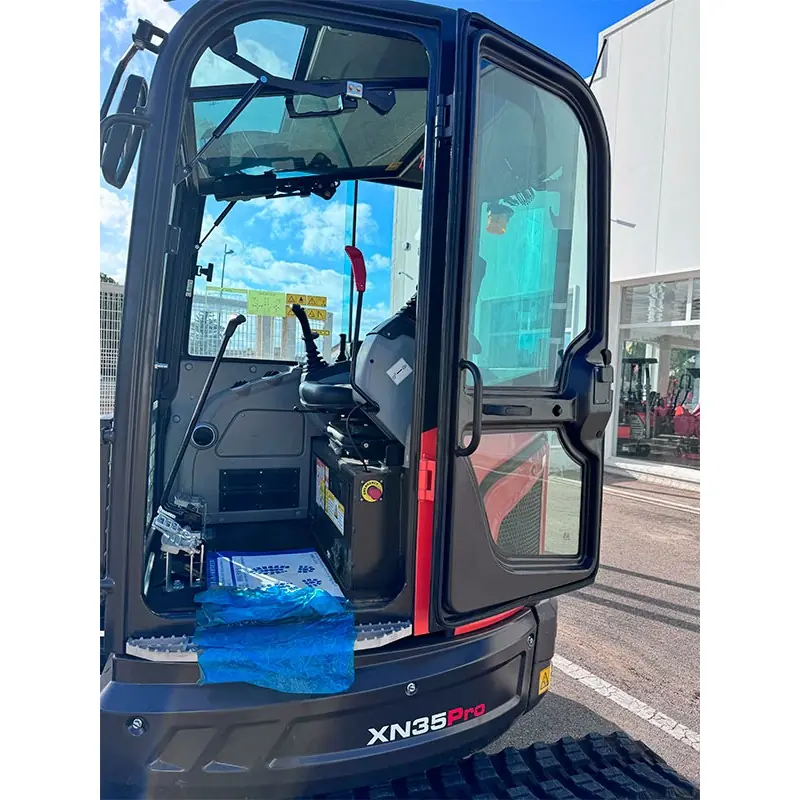

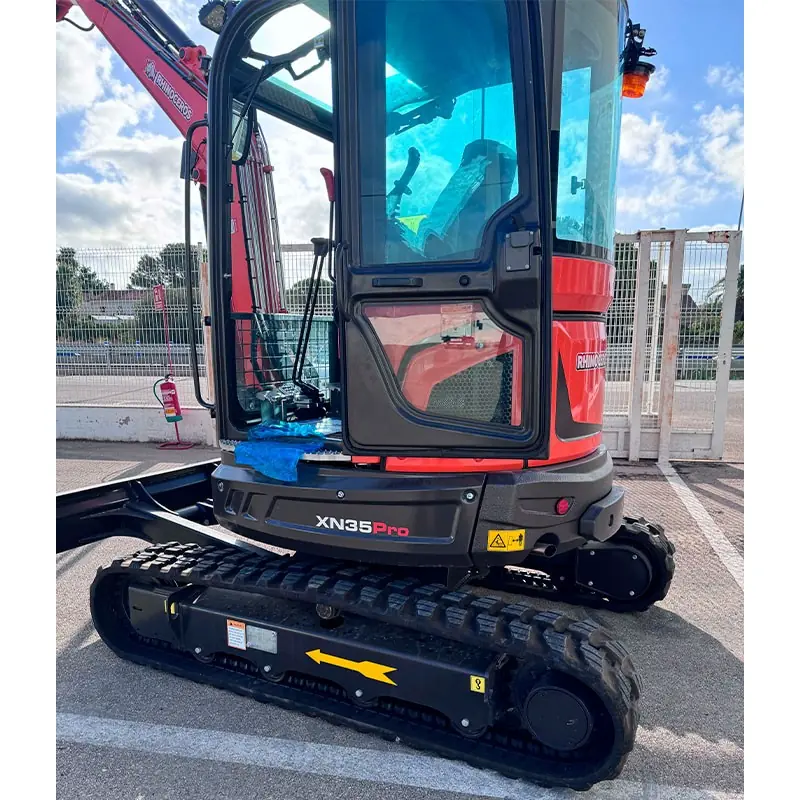

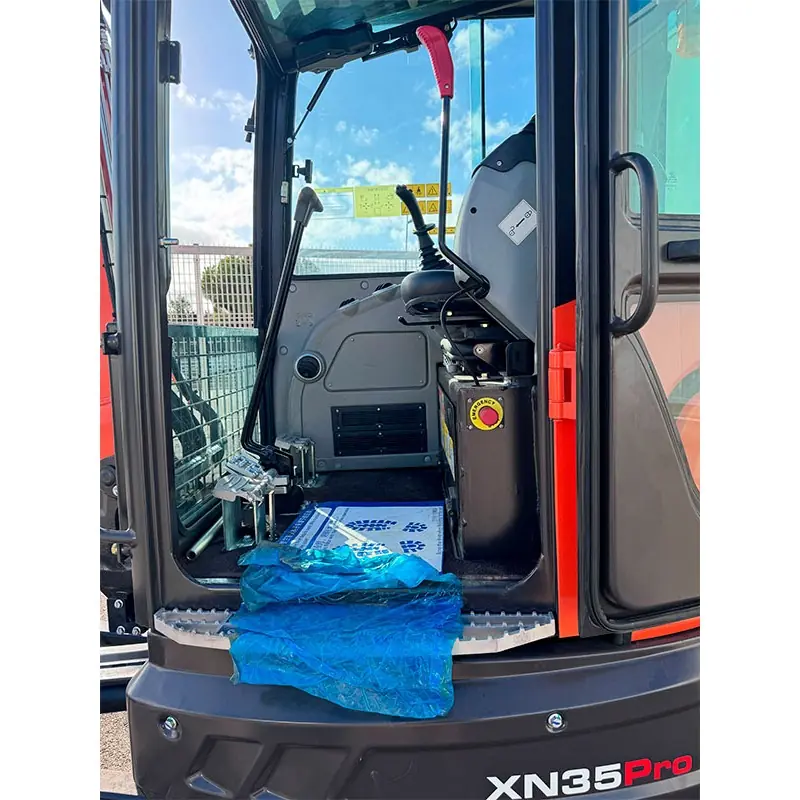

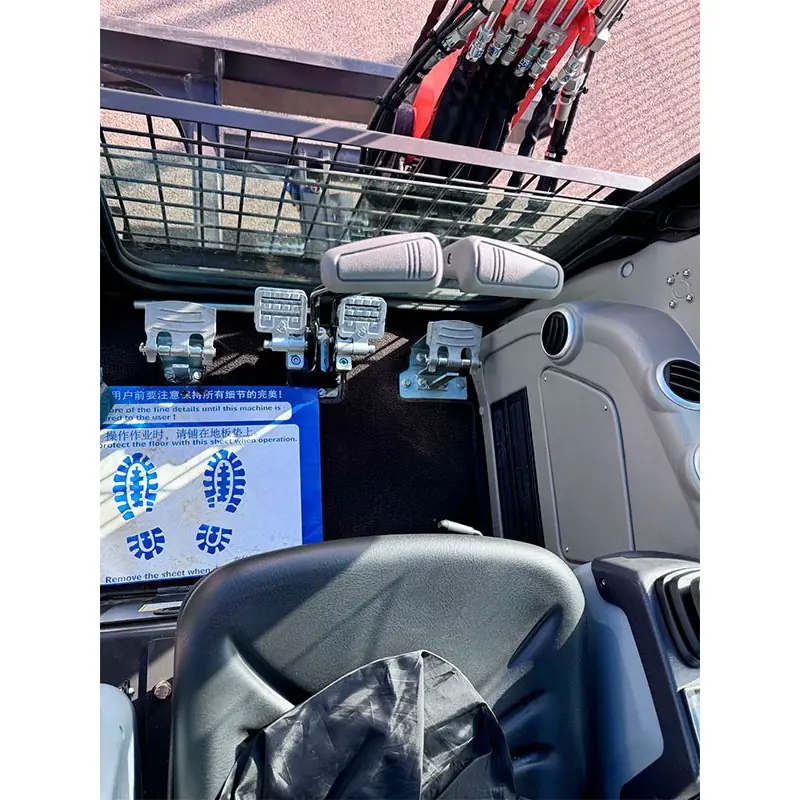

One of its great advantages is the enclosed cab, which not only provides greater comfort and safety for the operator, but also protects him from inclement weather and outside noise. This is especially valuable for prolonged work or in adverse weather conditions.

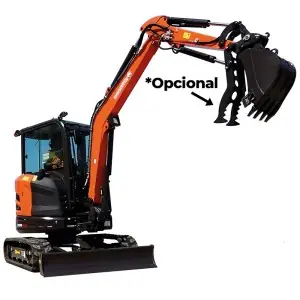

The Zeppelin Rhinoceros 400 also stands out for its versatility, as it has a wide range of optional accessories, such as a hydraulic grapple, weed cutter, leveling bucket and crab grapple, among others.
These tools allow it to be adapted to different types of work, from earthmoving to demolition tasks or maintenance of green areas, making it a multifunctional option for any construction site.
Model | ESEXCAV400HZ |
Operating weight | 4000 kg |
Standard bucket capacity | 0,11 m³ |
Boom swing (left) | 71° |
Boom swing (right) | 52° |
Ground resistance | 31.6 kPa |
Boom material tracked | Steel |
Type of tensioning system tracked | Grease cylinder |
Engine | |
Engine model | Kubota D1703-M |
Displacement | 1647 cc |
Rated power / Speed | 18.5 kW / 2200 rpm (depending on technical variant) |
Maximum torque | 97,4 Nm at 1500 rpm |
Speed and Digging Forces | |
Maximum travel speed | 2.2 km/h (min) / 3.6 km/h (max) |
Turret rotation speed | 9.5 rpm |
Maximum slope capacity | 30° |
Bucket digging force | 27.6 kN |
Arm digging force | 20.4 kN |
Maximum traction force | 31.6 kN |
Hydraulic and Fluid Capacities | |
Pump type | Piston pump |
Operating pressure | 22 MPa |
Hydraulic oil tank capacity | 50 L |
Max. flow rate | 99 L/min |
Engine oil tank capacity | 7 L |
Fuel tank capacity | 60 L |
| ![]() |
| ![]() |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
This product requires means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before ordering to evaluate your case. |
