Multiprocess Welder Wizarcs Infinity 220 200 A
€459.54
Qty

Multiprocess Welder Wizarcs Infinity 220 200 A

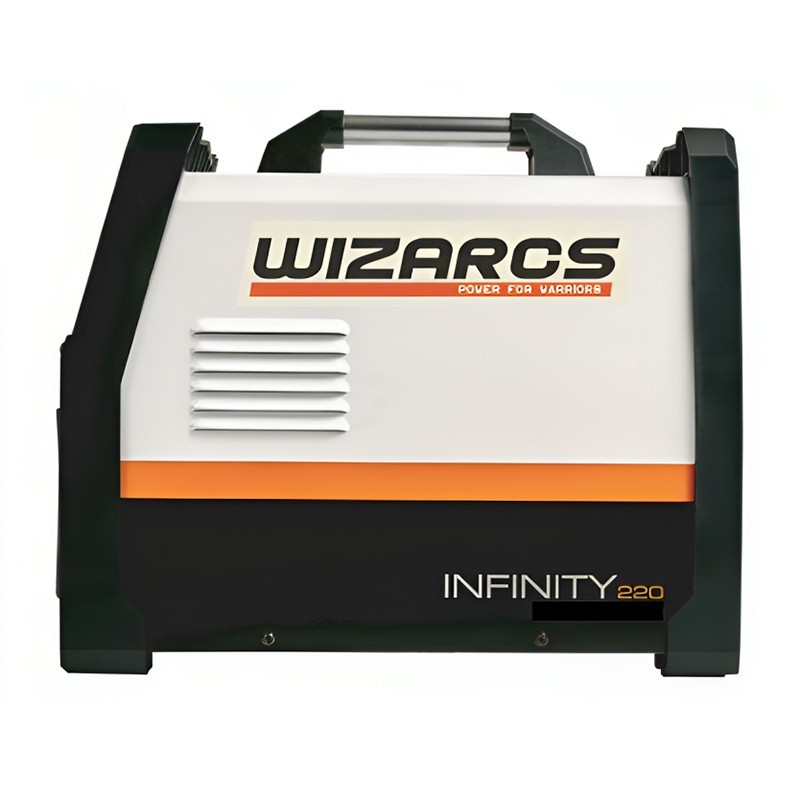

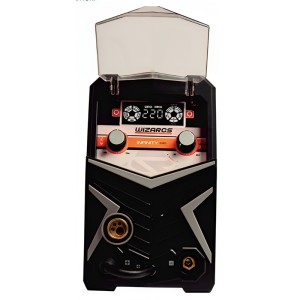

The Multiprocess Welder Wizarcs Infinity 220 with the ability to connect to generators up to 8 KW and the possibility of using extensions up to 10 meters with AWG8 gauge cables for the output and AWG2 for the input provide great flexibility in diverse work environments.

With MMA, TIG, FCAW and MIG MAG welding modes (M2 and up), this equipment adapts to multiple welding needs, offering the option of using wires from 0.035" / 0.9mm to a maximum of 0.045" / 0.045" / 0.035" / 0.035" / 0.035" / 0.035" / 0.035" 1.2mm.

Its TIG LIFT ARC function and the ability to operate with 230V-50/60 Hz voltages in one phase make it a practical and adaptable option for different working conditions. In addition, its 50% duty cycle at 230V at 40°C and 70V no-load voltage ensure consistent and reliable performance in a variety of industrial and commercial applications.

Features

Soldador inverter Wizarcs

Electrodes up to Ø 4mm and protruding for 3.2mm.

Conectores rápidos tipo DINSE 35/50.

13 mm quick connectors.

Puede conectarse a Generadores.

Can be connected to generators with a minimum power rating of 8Kw.

Perilla en Goma

Rubber knob, for a better grip with gloves.

HYPER-ARC

HYPER-ARC, with HOT START, ARC FORCE and ANTI-STICK.

Pantalla LCD de alto contraste.

High contrast LCD display.

Sistema de seguridad V.R.D.

Safety system V.R.D. (Voltage Reduction Device), reduces the risk of electric shock.

Technical data

Connection 230V-50/60 Hz +/- 10%
Amperage range 10-200 A
Voltage range 15-28V
Duty cycle At 40ºC 50%
No-load voltage (OCV - U0) 70V
Modes MMA / TIG / FCAW / MIG MAG (M2 onwards)
Recommended wire Ø 0.035″ / 0.9mm
Ø Maximum wire 0.045″ / 1.2mm
TIG Type TIG LIFT ARC
Connectors 3/8" (9mm) Quick Connectors
iP IP21S
Type of display LED | SINERGIC +
Knob Large size - Soft touch
Generators Connectable to generators (7 KW - 220V)
Extensions (Output) Up to 10m - AWG8
Extensions (Input) Up to 10m - AWG2
Control Hyper Arc
Weight 11 Kg
259389

Data sheet

Current
Single-phase
Typology Welder
Multiprocess
Panel
digital
No-load voltage
70 V
Service 40ºC
50 %
Regulating range
10 - 200 A
Usable electrodes
3.2 - 4 mm
TIG type
TIG lift
Weight
11 Kg

Specific References

EAN-13
7503034302049
