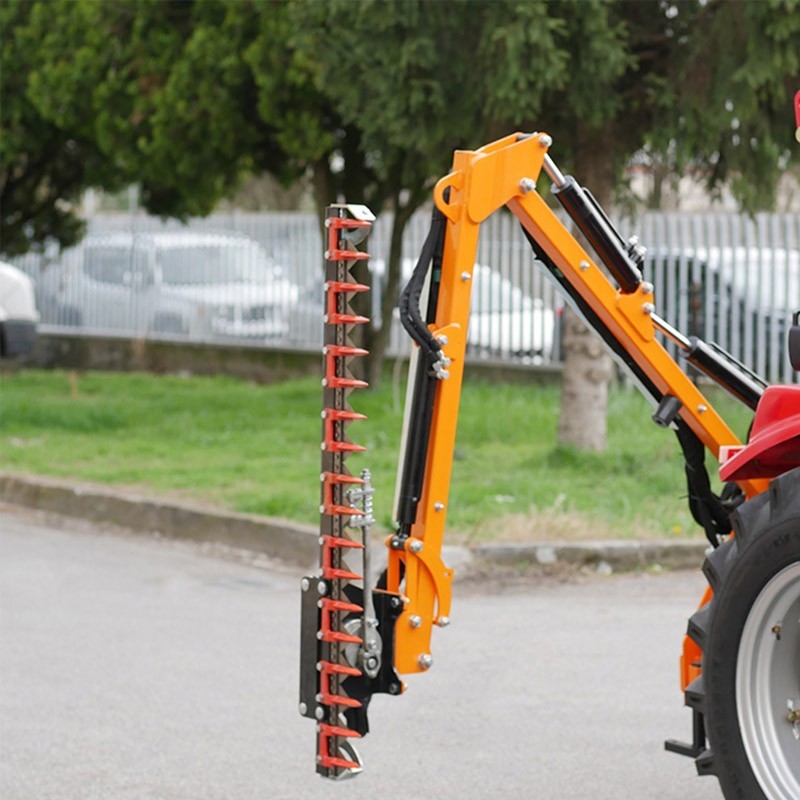

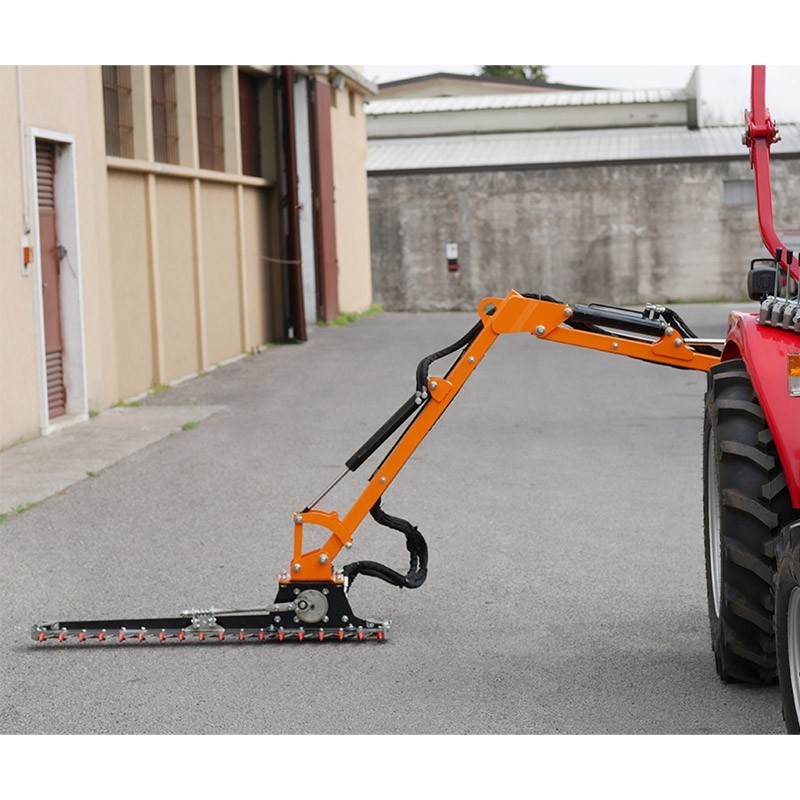

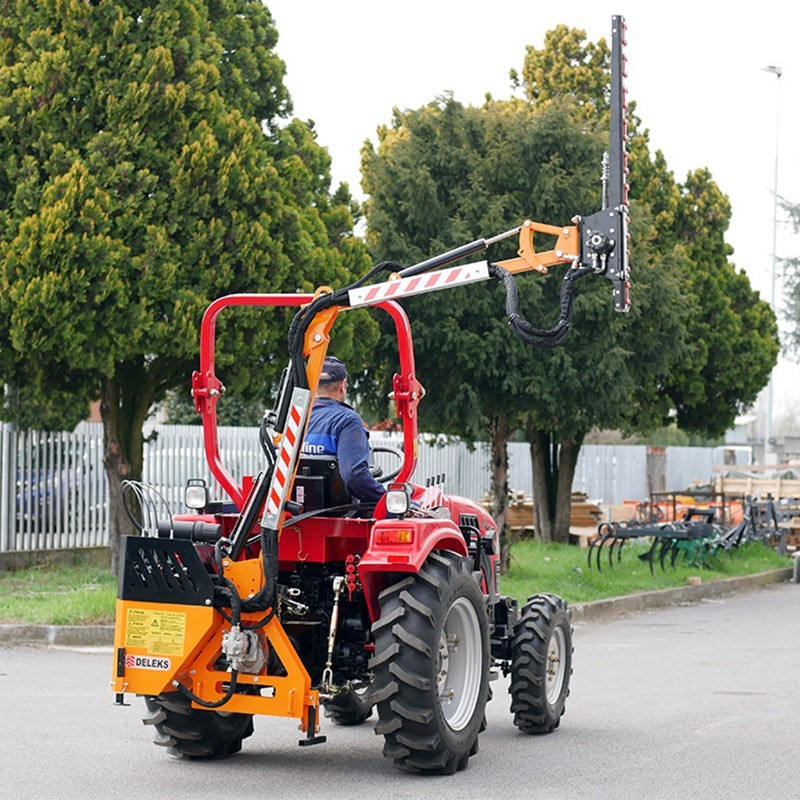

Hydraulic hedge trimmer arm for tractor Deleks AIRONE-160-TR
The AIRONE-160-TR hydraulic hedge trimmer arm is specially designed for tractors with power of 20-60HP. This model of arm is used to cut grass on roadsides with poor accessibility or inside parks.
The model Deleks AIRONE-160-TR is designed for pruning trees and hedges with a maximum diameter of 2 to 3 cm. It can also be used to cut bushes as this model has 21 blades . The blades have a hole dimension of 13 mm.
This hedge trimmer arm from Deleks also features a hydrocontrol hydraulic distributor made in Italy. In addition, it has a Casappa double hydraulic pump. This is made in Italy and allows you to move the arm and cut at the same time.

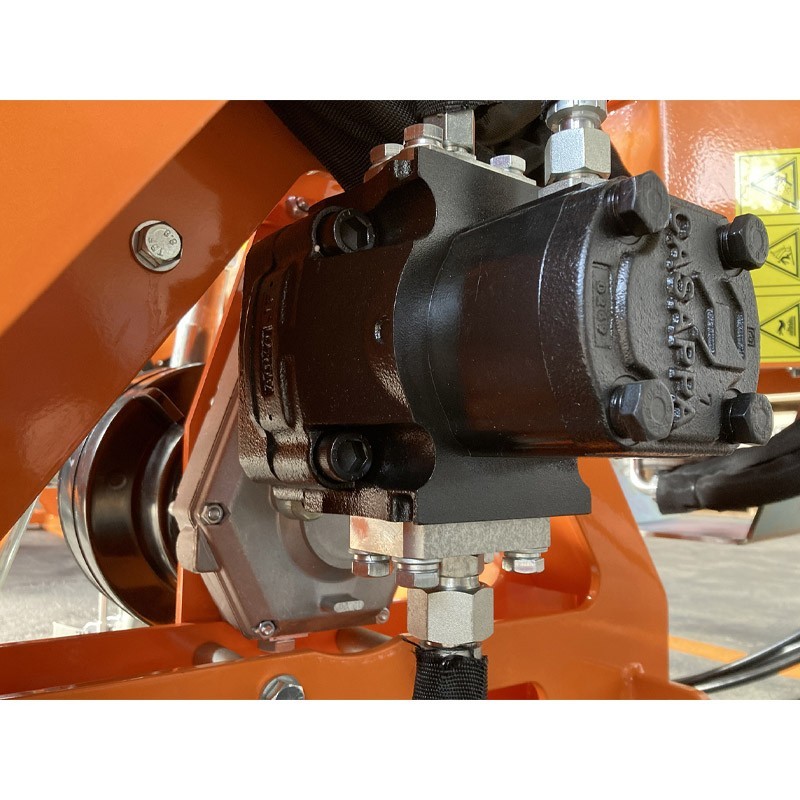

The AIRONE-160-TR hedge trimmer arm comes with a CE cardan shaft and a Casappa hydraulic motor. The tool can be used on low horsepower tractors in gardens and orchards.
The AIRONE-160-TR model Deleks offers a large oil tank. It has a capacity of 55 L given already at the Shell Tellus 46 S2 MX 46 level. It has a light weight of 282 kg which allows the use of the model in orchards.
This model of hedge trimmer arm Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.

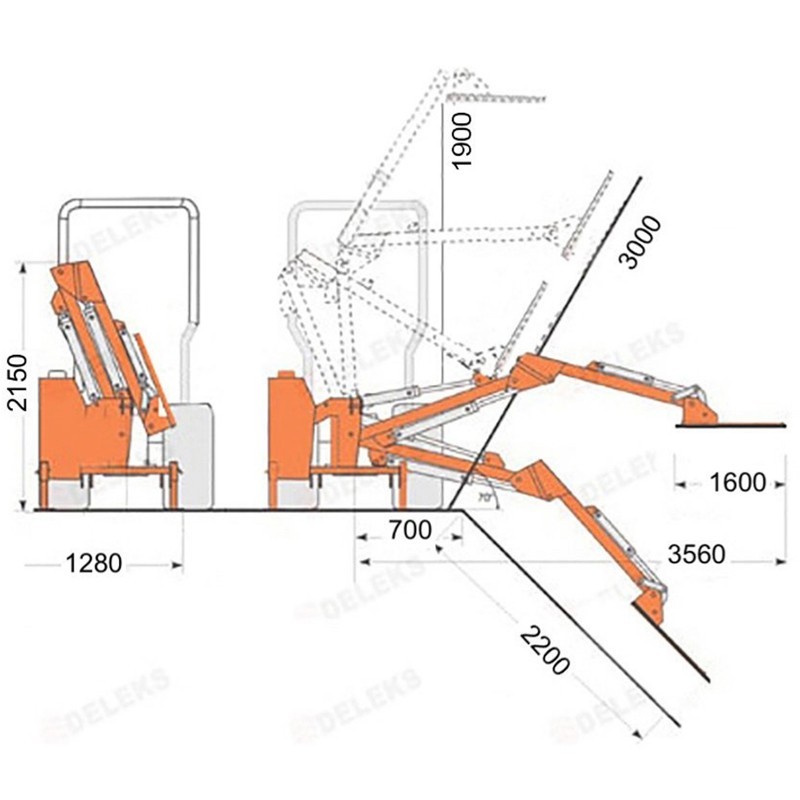

Among these features we can highlight the working width of 1600mm and the overall width of 1200mm. We can also highlight the cutting diameter of 25 mm and the total height of 2010mm.
Features
| Working width |
1600 mm |
| Total width |
1200 mm (closed) |
| Weight |
282 kg |
| Overall height |
2010 mm |
| Tractor power |
20-60 HP |
| 3-point hitch |
Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Distance between lower points |
470 - 570 mm |
| Max. cutting diameter |
25 mm |
| Total length |
1070 mm |
| Space between ground and transmission box |
400 mm |
| Transmission type |
Hydraulic |
| Transmission: PTO |
540 r/min |
| Transmission: rotation direction |
Schedule |
| Transmission: freewheel |
√ |
| Transmission: gearbox oil |
Yes / SAE 120 - ISO 72925 |
| Number of blades |
21 |
| Hydraulic hoses |
WP 400 Bar |
| Cardan shaft |
CE 4x700 mm |
| Displacement |
3460 mm |
| Transmission: gearbox oil |
55 lt |
| Packing dimension |
1280*800*2150 mm |
ADVANTAGES

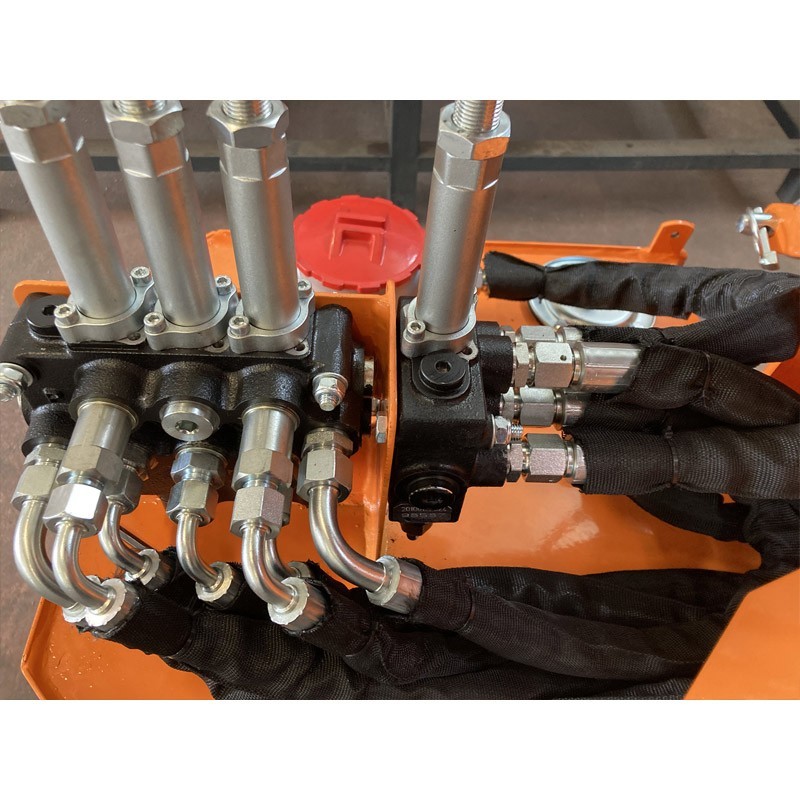

- Hydraulic distributor: Hydrocontrol.
- Double hydraulic pump: Casappa. Allows to move the arm and to cut at the same time.
- Robust but light chassis for an optimal maneuverability also with medium-low power tractors.
- Hydraulic controls are included with the machine.
- 100% hydraulically adjustable arm, to adapt to the inclination of any terrain and to overcome obstacles.
- Light weight for use in orchards Adjustable rear roller.
- Standard cutting teeth, which can be easily purchased on the market or from us.
EQUIPMENT
- Chassis with 3 hydraulic movements.
- Remote control with 4 levers and flexible hoses.
- Independent hydraulic system
- 55 L oil tank

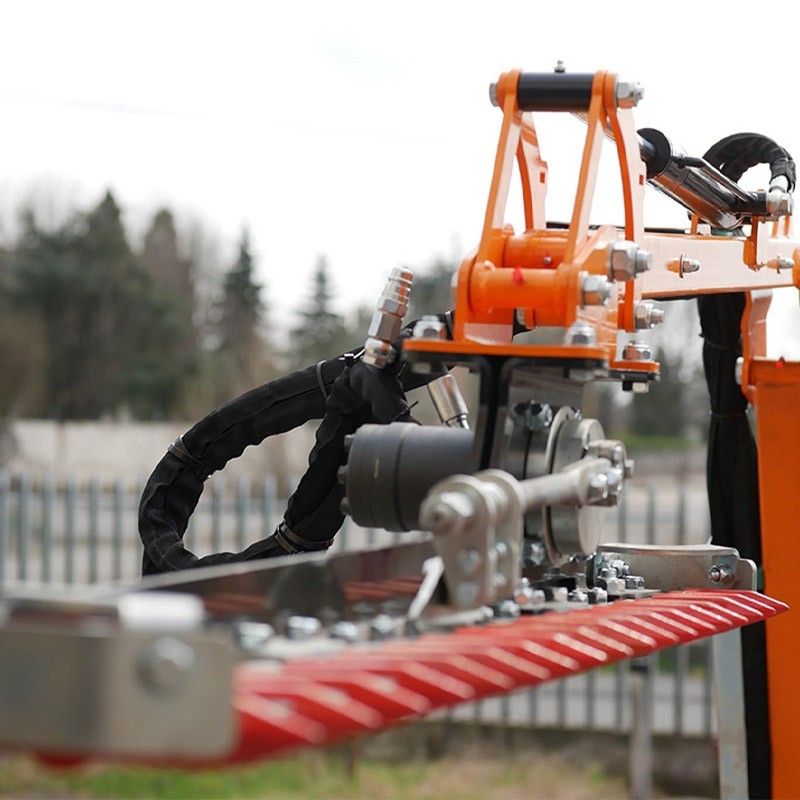

- Cutting bar with 17 teeth of 130cm of effective work.
- Standard Cat. 1-2 3-point hitch.
- CE Cardan included
