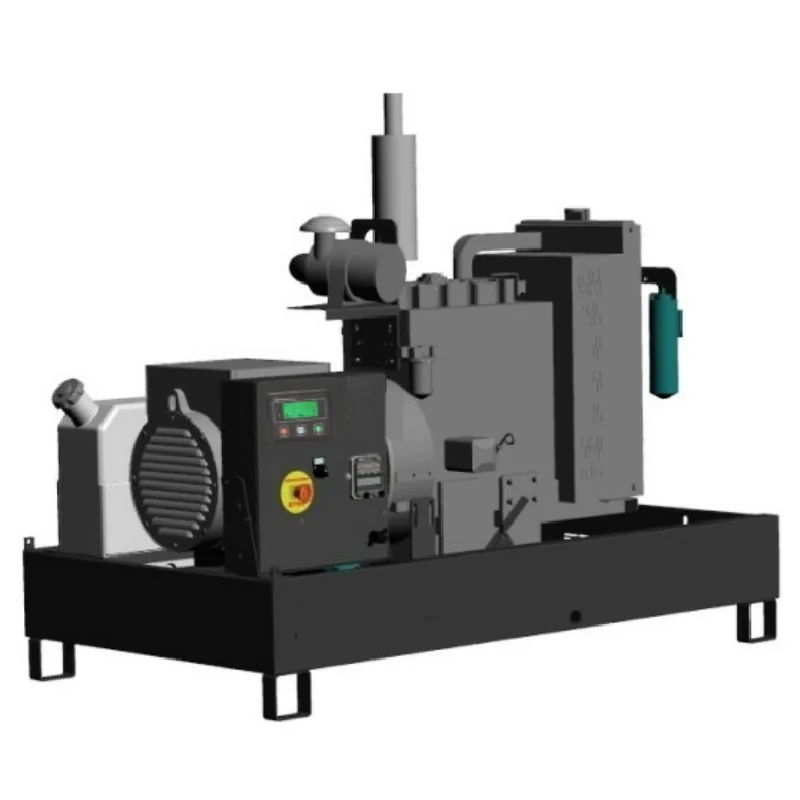

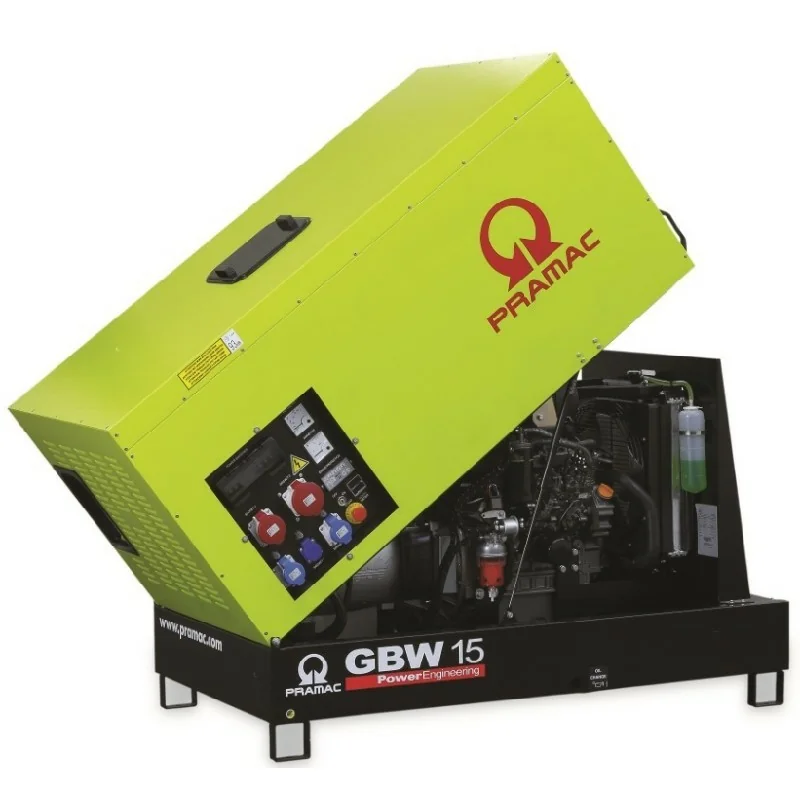

This generator set GBW15P is designed to provide a reliable power supply in three-phase applications. With a rated power of 12.72 kVA / 10.18 kW and a emergency power of 14.10 kVA / 11.28 kW, ensures consistent performance in demanding situations.
Thanks to its perkins engine and its linz alternator, offers efficiency and durability. The system of electric start allows a simple and fast start-up, ideal for industrial or commercial installations.
Its low fuel consumption allows up to 18 hours of autonomy at 75% charge. In addition, the water cooling ensures stable operation even over long periods of time.
Compact and efficient, it features iP 21 protection, the low noise level and a 51-liter tank. Its optimized dimensions make it a versatile choice for back-up or continuous use.
MODEL | GBW15P |
Frequency | 50 Hz |
Voltage | 400 V |
Power factor | 0.8 ϕ |
Phases | 3 |
Emergency Power (kVA/kW) | 14.10 kVA / 11.28 kW |
Rated Power (kVA/kW) | 12.72 kVA / 10.18 kW |
Engine | |
Motor Brand | Perkins |
Model | 403D-15G |
Cooling system | Water |
Number of cylinders | 3 in line |
Displacement | 1496 cc |
Aspiration | Natural |
Speed regulator | Mechanics |
Prime gross power | 12.2 kW |
Maximum power | 13.5 kW |
Oil capacity | 6 L |
Refrigerant capacity | 6 L |
Fuel | Diesel |
Consumption at 75% load | 2.74 L/h |
Consumption at 100% load | 3.60 L/h |
Autonomy at 75% | 18.61 h |
100% autonomy | 14.17 h |
Start-up system | Electric |
Start-up capacity | 2 kW |
System voltage | 12 V |
Alternator specifications | |
Alternator | Linz |
Model | E1S13MD |
Voltage | 400 V |
Frequency | 50 Hz |
Power factor | 0.8 ϕ |
Poles | 4 |
Type | With brushes |
Tension tolerance | ±4% |
Efficiency at 75% load | 85.4% |
Class | H |
Protection | IP 21 |
Sound Level | |
Guaranteed sound level (LWA) Soundproof Version | 95 dBA |
Sound pressure @ 7 m Soundproof Version | 66 dBA |
Weight and Dimensions | |
Dimensions (cm) Open version | 160 x 87 x 95 |
Dry weight Open version | 390 Kg |
Dimensions (cm) Insonora version | 164.5 x 87 x 107.2 |
Dry weight Insonora version | 550 Kg |
Tank capacity | 51 L |
Tank material | Plastic |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
The batteries included with some machines are a free gift, so they are free of charge exempted from warranty. |
