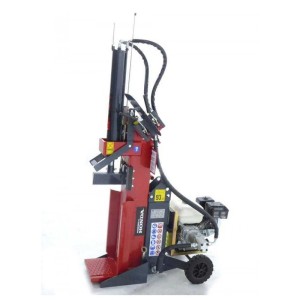

The firewood chipper Ceccato Olindo SPLE 11 POL is equipped with a 4-stroke gasoline engine from the prestigious manufacturer Honda with a power of 6.5 horsepower. The engine has 196 cubic centimeters and works at 3600 revolutions per minute in order to deliver that power.
The SPLE 11 POL wood chipper has the possibility of working in 3 different positions and thanks to its 50 cm piston stroke, we can cut logs up to 54 centimeters long. As for its hydraulic oil tank, the capacity of this firewood splitter is 7 liters.
Finally, it has support bars to contain the logs as well as a 20 cm wheeled trolley for easy transport of the machine.
| Engine | Honda GX 200 |
| Power | 6,5 HP |
| Fuel | Gasoline |
| Engine speed | 3600 rpm |
| Engine type | 4-stroke |
| Displacement | 196 cc |
| Type | multi-position steerable |
| Dual speed | Yes |
| Force | 11 tons |
| Piston stroke | 50 cm |
| Cut to ground | Yes |
| Maximum trunk diameter | 50 cm |
| Maximum trunk length | 50 cm |
| Pump type | single |
| Flow rate per minute | 9.5 l/min |
| Maximum pressure | 180 BAR |
| Oil tank | Yes |
| Hydraulic cylinder outer diameter | 80 mm |
| Piston rod diameter | 40 mm |
| Piston speed | 7.5 cm/s - 3.1 cm/s |
| Rising speed | 6.3 cm/s |
| Quantity of hydraulic oil required | 7 liters |
| Upper lever for hand protection | Yes |
| Support bars to contain the logs | Yes |
| Transport trolley with wheels | Yes |
| Log lifting system | No |
| Product dimensions | 50 x 95 x 170 cm |
| Net weight | 135 Kg |
| Packing dimensions | 50 x 95 x 180 cm |
| Total packing weight | 138 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
