Power-one Hydraulic Oil HLP 46 – 5 Liters
- DIN 51524 part 2 HLP
- DENINSON HFO
- CINCCINATI MILACRON P68
- ANFOR NF E 48-603 HM/HL
- USE STELL 136/127
€35.34 VAT incl.

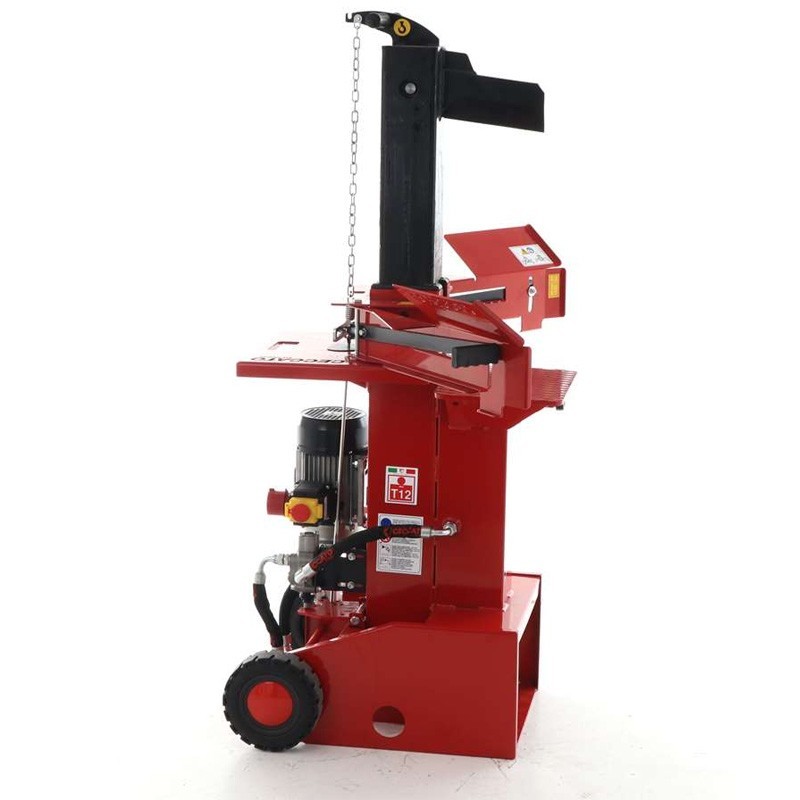

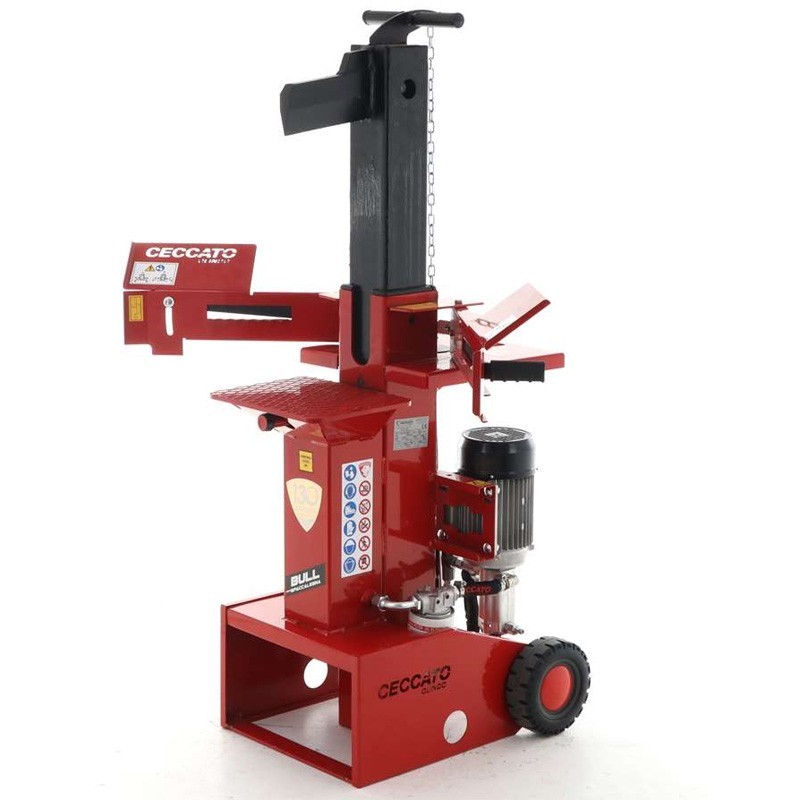

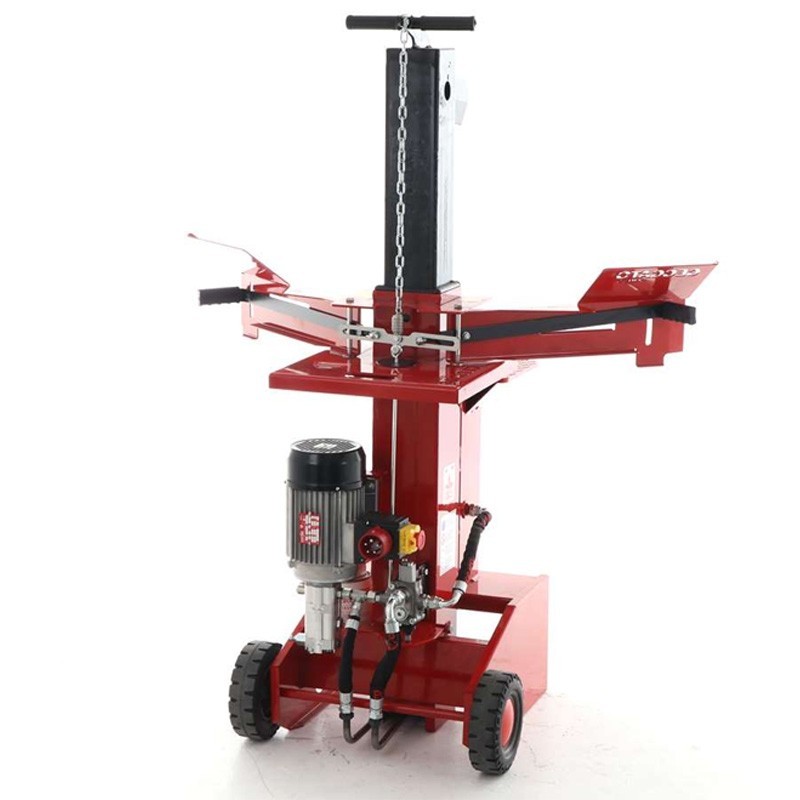

The unbeatable Ceccato Olindo SPLE firewood chipper has an incredible 12 tons of wood pressure force. The maximum log length that this wood chipper can cut is 50 centimeters. As for the motor, the SPLE 12 has a single-phase induction motor that works at about 2840 revolutions per minute delivering a power of 3 horsepower.
We can say that the Ceccato Olindo SPLE 12 has10 liters of hydraulic capacity which, pushed by a double hydraulic pump at 180 bar pressure, can split logs without any difficulty. Finally it should be noted that this firewood splitting machine is equipped with wheels for greater maneuverability and easy transport.
Power supply | Electric |
Pressure force | 12 tons |
Piston stroke | 54 cm |
Cutting to ground | No |
Type | vertical |
Power | 3 HP |
Nominal power | 2200 W |
Revolutions | 2840 rpm |
Motor technology | Induction |
Pump type | double hydraulic |
Maximum pressure | 180 bar |
Hydraulic oil capacity | 10 liters |
Maximum trunk length | 50 cm |
Maximum log diameter | 50 cm |
Log lifting system | No |
Folding piston | Yes |
Transport wheels | Yes |
Upper hand protection lever | Yes |
Dimensions | 104 x 60 x 160 cm |
Net weight | 144 Kg |
Packing dimensions | 84 x 81 x 127 cm |
Weight with packaging | 170 Kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
