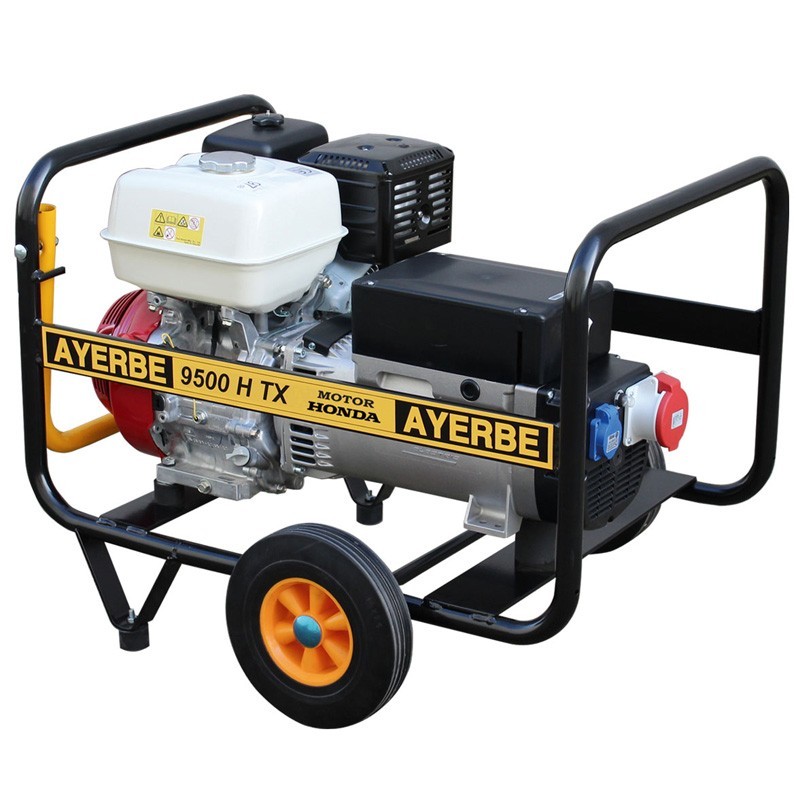

The three-phase generator Ayerbe AY 9500 H TX is a powerful machine equipped with a 13 HP Honda GX 390 engine with a displacement of 390 cc, ensuring reliable and long-lasting performance. With an air cooling system and a fuel consumption of 2.1 L/H at 75%, it offers efficiency in operation.
Its manual starting system and mechanical speed regulator make it easy to operate, ensuring smooth start-up. This generator is backed by a Linz alternator model E1 S10 MHT, with Class H insulation and IP 23 protection, ensuring safe and stable operation.
Its Compound excitation system and voltage tolerance of +/- 5% ensure consistent power output. With a voltage of 400 & 230 V and a frequency of 50 Hz, together with a standard coating without impregnations, this generator offers a reliable power supply suitable for various applications.
| Maximum three-phase power | 9,5 KVA - 7.600 W |
| Three-phase rated power | 8 KVA |
| Maximum power Single-phase | 6,5 KVA |
| Single-phase rated power | 6 KVA |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 400 - 230 V. / 50 Hz |
| Start | Manual |
| Power factor | Cos phi 0,8 |
| Noise level | 97 LwA / 74 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 390 |
| Power | 13 HP |
| Displacement | 390 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 2.1 L/H |
| Oil capacity | 1,1 L |
| Starting system | Manual |
| Alternator | |
| Brand | LINZ |
| Model | E1 S10 MH |
| Type | With brushes |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Compound |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 400 & 230 / 50 Hz |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 6 l |
| Autonomy at 75% | 3 hours |
| Weight | 90 kg |
| Dimensions | 950 x 625 x 746 mm |
| Packing volume | 0,44 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
