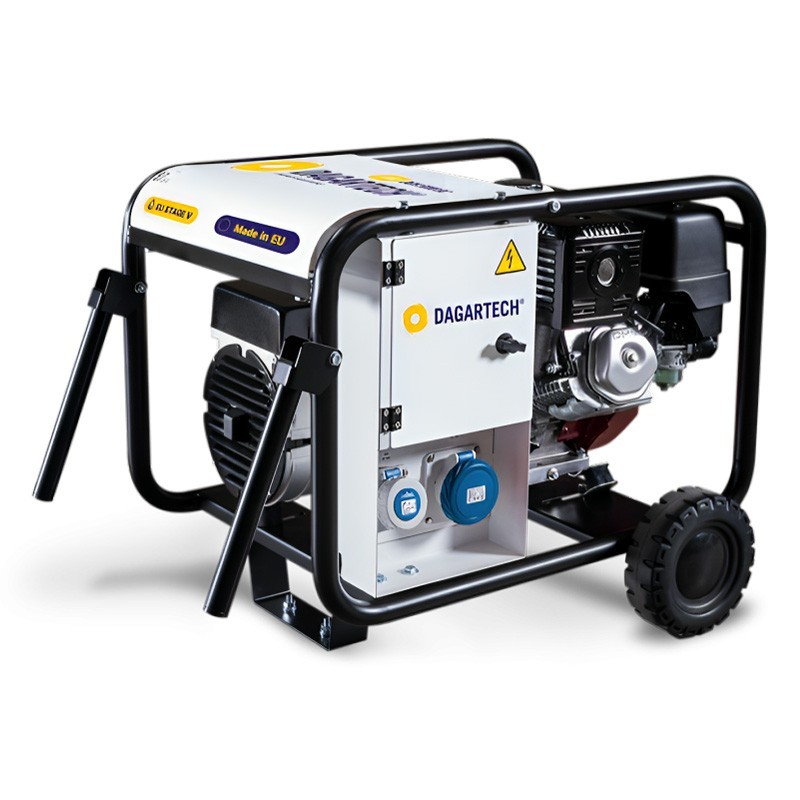

The Single Phase Electric Generator Dagartech DGH 6000 BC operating at a frequency of 50Hz and a voltage of 230V, this generator is capable of providing a nominal power of 5000W, with a working speed of 3000 rpm and a power factor of 1 cos φ.
Its robust steel chassis comes equipped with anti-vibration dampers, ensuring smooth and quiet operation, while a protective top plate adds an additional layer of safety.
In addition, the switchgear is IP55-rated and IP67-based, with a protective door built into the chassis, providing exceptional protection against adverse conditions.
The inclusion of thermal protection, a protective interior window for electrical components, and individual magneto-thermal and differential protection, demonstrate Dagartech 's commitment to user safety.
| Frequency | 50Hz |
| Voltage | 230V |
| Working speed | 3000 rpm |
| Power factor | 1 cos φ |
| Tank | 5,3 L |
| Starting type | Manual |
| Nominal power | 5000 W |
| ENGINE | |
| Model | HONDA GX 270 |
| Continuous power 3000 rpm | 3,7 kW |
| Net power 3600 rpm | 4.1 kW |
| Fuel | Gasoline |
| No. of cylinders | 1 cylinder |
| Displacement | 270 cc |
| Compression ratio | 8,2:1 |
| Maximum torque | 17.7 Nm (2500 r.p.m.) |
| Cooling system | Air-cooled |
| Starting | Manual |
| Fuel tank capacity | 5,3 L |
| Consumption at 75 - 100% load | 1,3 l/h - 1,7 l/h |
| Autonomy 75 - 100% charge | 4,1 h - 3,1 h |
| Total oil capacity | 1,1 L |
| Oil type | 15W40 |
| ALTERNATOR | |
| Model | LINZ SP10M I |
| No. of poles | 2 |
| Insulation class | H |
| Mechanical protection rating | IP23 |
| Voltage regulator | Compound |
| Power PRP 40ºC | 7 kVA |
| No. of phases | 1 |
| Power factor | 1 cos φ |
| Dimensions with casters | 856 x 696 x 652 mm |
| Weight with casters | 84.2 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
