The HYUNDAI diesel electric generator DHY6000LEK with its 4-stroke, air-cooled, direct-injection engine ensures robust and durable operation. An outstanding feature is the low oil level alarm with automatic engine shutdown, which protects both the equipment and the connected devices.
The structure of the DHY6000LEK has been designed with comfort and durability in mind. It features a double support base that reduces vibrations, minimizing wear and tear and extending the generator's service life. In addition, its large tank provides significant autonomy during power supply.

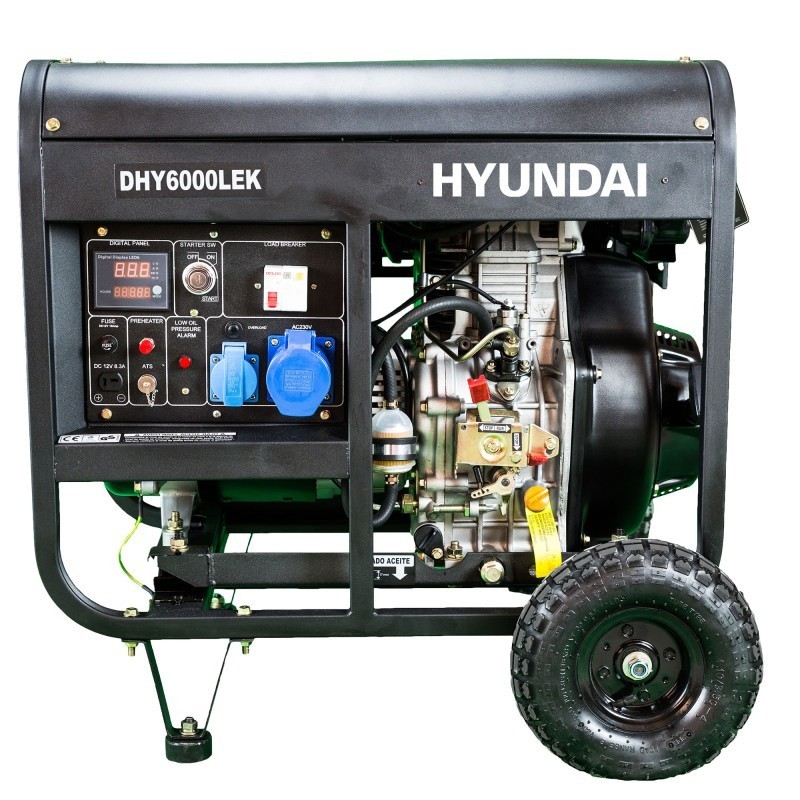

The control panel includes a wide range of useful features, such as overload protection, preheating for trouble-free starting, 30 mA differential for current leakage, and a ground. The ATS (automatic transfer system) connection option and the quick connector facilitate maintenance.
The compact, AVR voltage-regulated alternator ensures stable and efficient operation. With a power rating of 5 kW and a power factor of 1 Cos φ, the HYUNDAI DHY6000LEK is a versatile and reliable solution for power supply in various applications.
| Frequency | 50 Hz |
| Rated Power | 5 kW |
| Maximum Power | 5,5 kW |
| Voltage | 230 V |
| Current | 23,9 A |
| Sockets | 2x16A |
| Digital display | LED6 |
| Tank capacity | 14 L |
| Operation at 50% load | 13 h |
| Noise level at 7 Mts; 50% | 77 dBA |
| Battery | 30 Ah |
| Engine Type | Diesel |
| HYUNDAI engine model | D400E |
| Power | 10 HP |
| Starting mode | Manual / Electric |
| Displacement | 418 cc |
| Oil capacity | 1,65 L |
| Alternator | A5S |
| Rated power | 5 kVA |
| Power factor | 1 Cos φ |
| Voltage regulation type | AVR |
| Net Weight | 114 Kg |
| Gross Weight | 118 Kg |
| Product Dimensions | 720x480x600 mm |
| Packing Dimensions | 740x500x645 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines area free gift, so they are exempt from warranty. |
