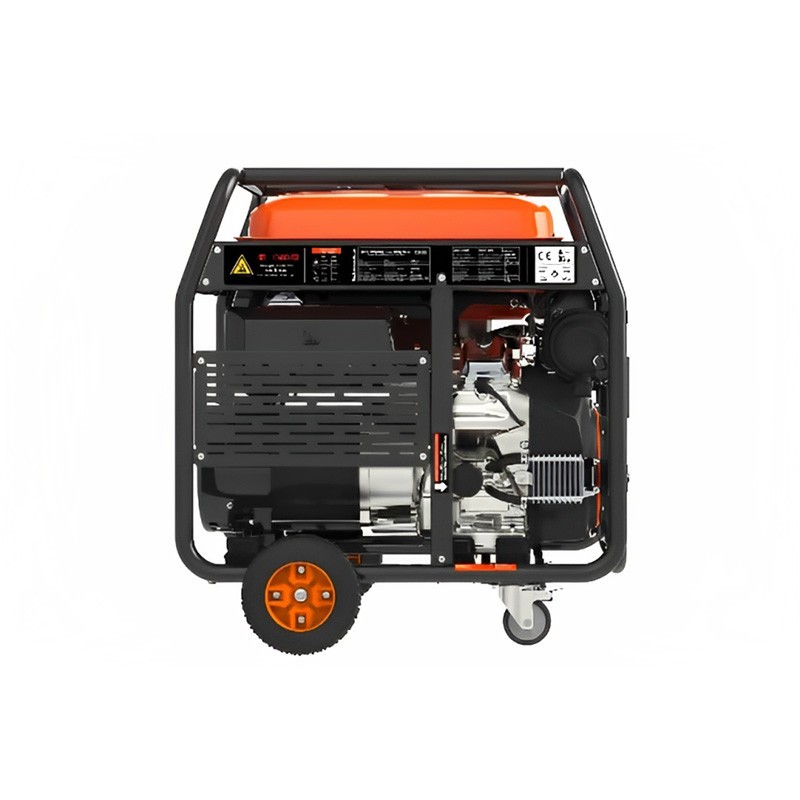

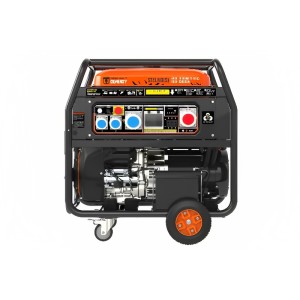

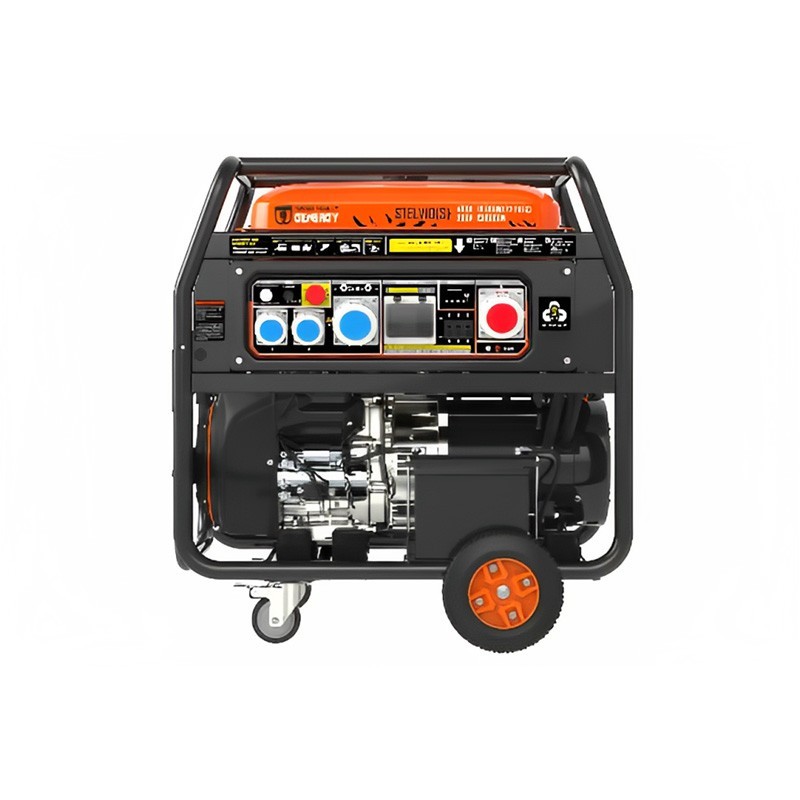

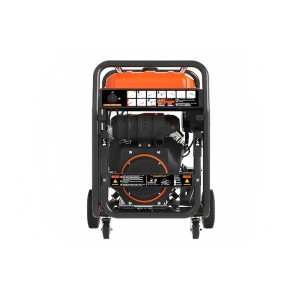

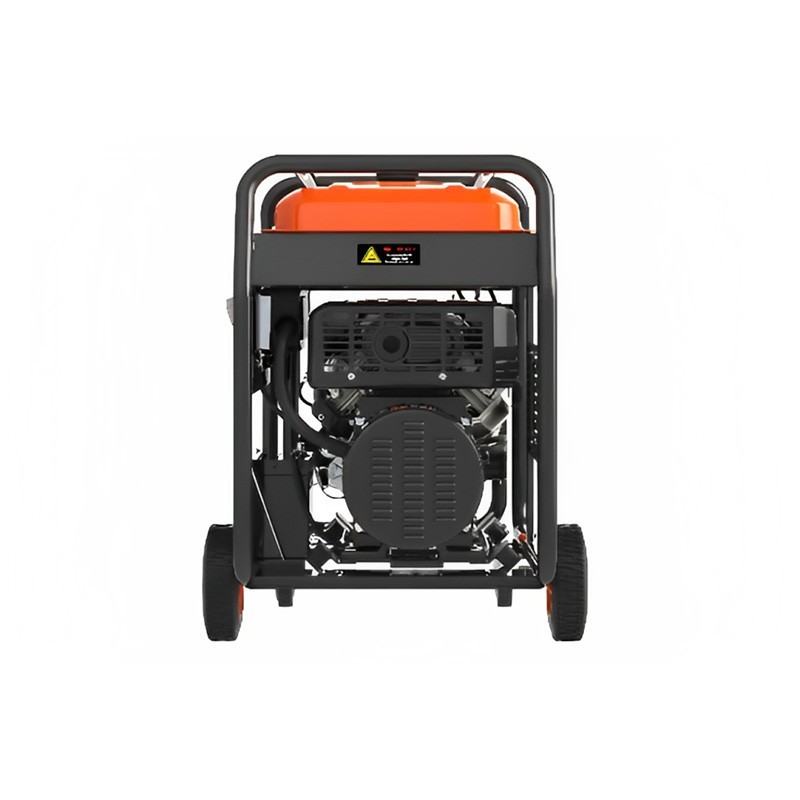

The Gasoline Electric Generator Genergy Stelvio-S 18000W has an efficient and highly reliable engine that guarantees an easy and smooth start in any working condition. It has a battery operated electric starter.
The machine stops automatically in case of lack of oil, thus protecting the engine from serious damage in case of low lubricating oil level. It also has a new voltage regulation system(SVR) that keeps it totally stable in case of possible overloads.
This generator has an alternator winding that is made entirely of high quality copper. In this way, the machine has a longer service life, greater corrosion resistance and better performance in demanding jobs.
| Stabilization system | SVR" electronics |
| Voltage - Frequency | 230/400 V - 50 Hz |
| Maximum Power (230V) | 3X6000 W |
| Nominal Power (230V) | 3X5700 W |
| Maximum Power (400V) | 18000 W (22.5 kVA) |
| Rated Power (400V) | 17000 W (21 kVA) |
| Type by number of phases | Three-phase |
| Power Factor | 1.0 / 0.8 |
| Motor Model | SGB1000 |
| Displacement | 999 cc |
| Engine type | Gasoline, 4-stroke OHV air cooled |
| Average sound pressure level 7mts LpA | 68 dB (A) - 74 dB (A) |
| Guaranteed sound power level LwA | 96 dB (A) |
| Starting type | Electric |
| Fuel tank capacity | 50 L |
| Consumption at 25 - 50 - 75% load | 4.48 L/H - 6.17 L/H - 8.28 L/H |
| Autonomy 25 - 50 - 75% load | 11 H - 8.1 H - 6 H |
| Oil capacity and grade | 2.5 L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G1 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Yes with two 10" and two 360o anti-puncture wheels. |
| Frame-wheel dimensions | 945x665x858mm - 945x792x991mm |
| Weight | 230 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
