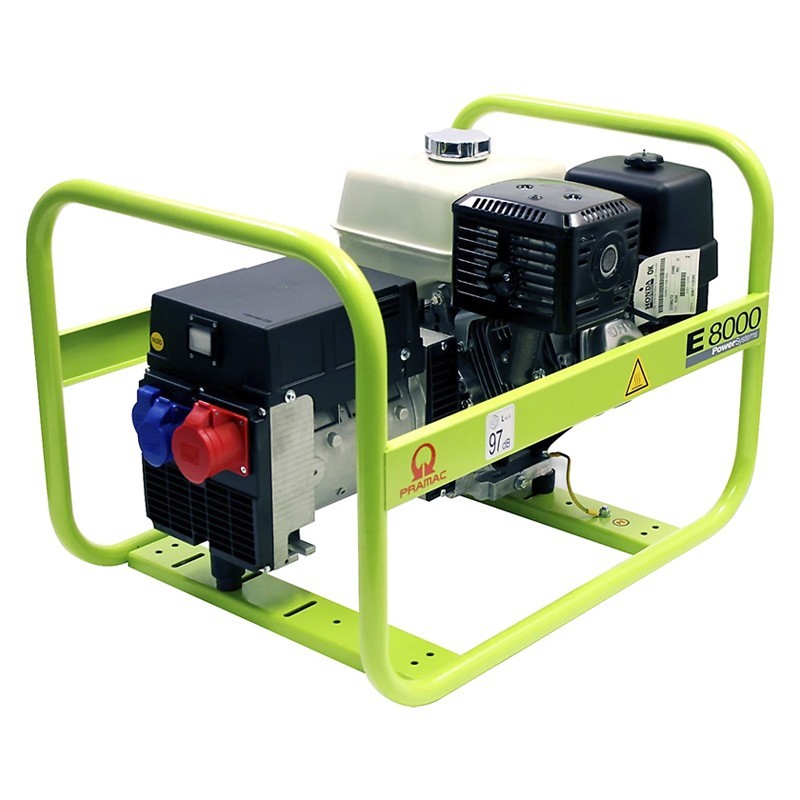

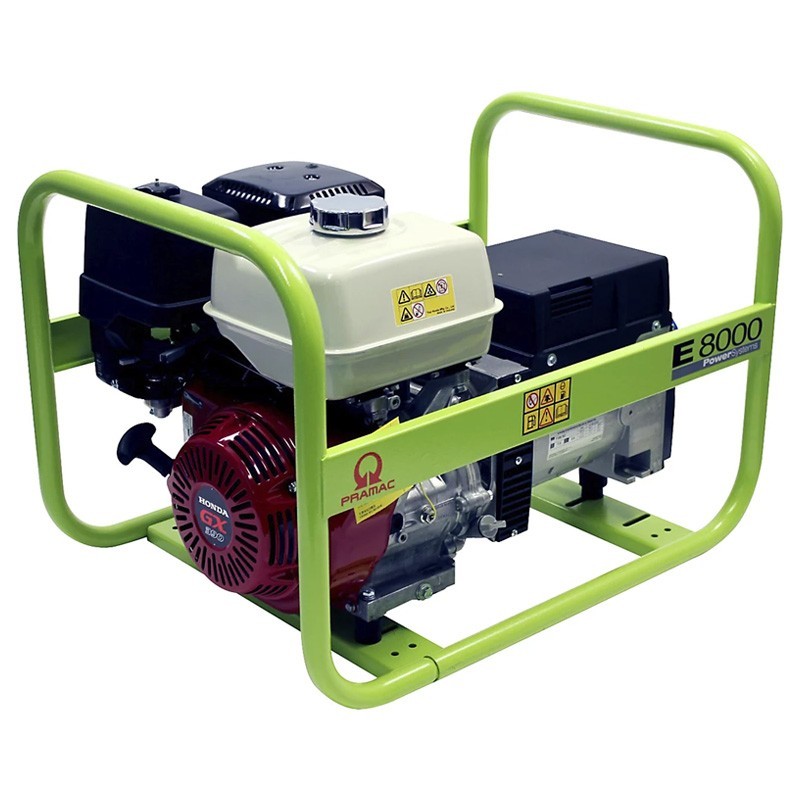

Gasoline Electric Generator Pramac E8000 three phase 6600 W
The Gasoline Electric Generator Pramac E8000 three-phase has key protections, such as thermal protection and an oil level alarm, to ensure safe and efficient operation. These features are essential to prevent damage from overheating and to maintain an optimum oil level at all times.
In terms of versatility, the Pramac E8000 generator offers a range of plug options, including SCHUKO 230V 16A IP54, 2P+T CEE 230V 16A IP44 and 3P+N+T CEE 400V 16A IP44, allowing a variety of devices and equipment to be connected. With a frequency of 50 Hz and a voltage of 400/230V, this generator ensures a stable and reliable power supply.
In addition, with its fuel tank capacity of 6.1 liters, it is capable of providing continuous power for 2.84 hours at 75% load and 2.13 hours at 100% load.
Simple commands, such as the on/off switch, along with manual start and fuel key, make this generator easy to use, making it an efficient solution for various applications requiring portable and reliable power.
Technical Data
| Frequency |
50 Hz |
| Voltage |
400/230 V |
| Power factor |
0.8 cos ϕ |
| Phases |
3 |
| Maximum three-phase power |
6600 W |
| Nominal three-phase power |
5600 W |
| Maximum single-phase power |
4000 kVA |
| Single-phase rated power |
3700 kVA |
| Engine Brand |
Honda |
| Model |
GX390 Recoil |
| Cooling System |
Air |
| Aspiration |
Natural |
| Speed regulator |
Mechanical |
| Nominal operating speed |
3000 rpm |
| Fuel |
Gasoline |
| Starting system |
Manual |
| Oil tank |
1.1 l |
| Displacement |
389 cc |
| Alternator type |
With brushes |
| Class |
H |
| IP protection |
23 |
| Poles |
2 |
| Voltage tolerance |
6 % |
| Voltage regulation system |
Compound |
| Guaranteed sound level (LWA) |
97 dBA |
| Noise pressure level @ 7 mt |
69 dB(A) |
| Fuel tank capacity |
6.1 l |
| Fuel consumption at 75% load |
2.15 l/h |
| Fuel consumption at 100% load |
2.86 l/h |
| Autonomy at 75% load |
2.84 h |
| Autonomy at 100% load |
2.13 h |
| Dimensions |
750 x 578 x 531 |
| Dry weight |
80 Kg |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
|
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
