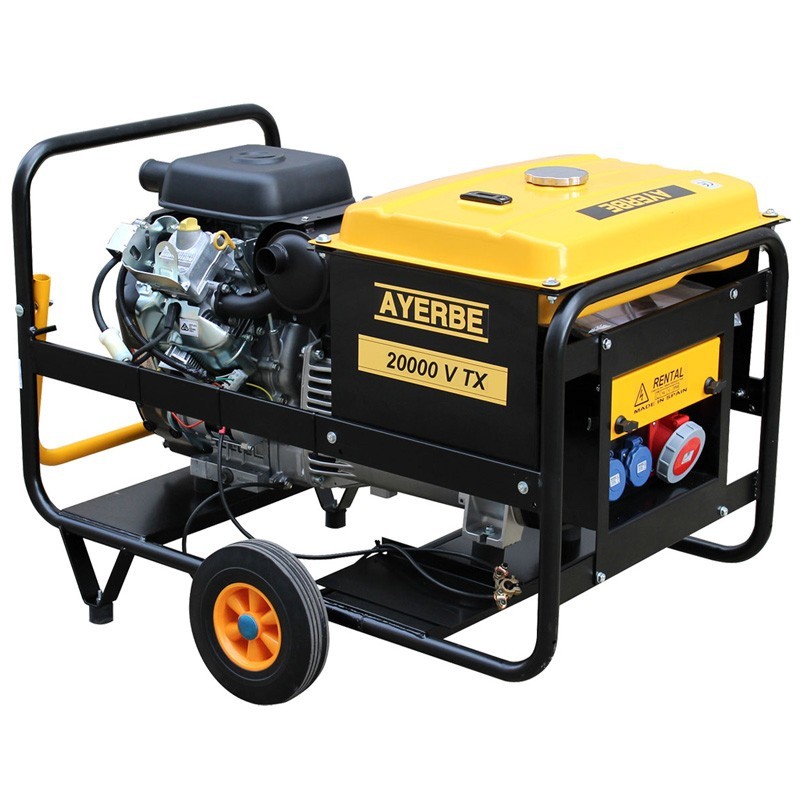

The Gasoline Electric Generator Ayerbe AY 20000 V TX E is a powerful power source with exceptional performance. With a maximum power output of 20 KVA at 400 V and 6.5 KVA at 230 V, this generator is versatile and can be adapted to various applications. Its power factor of Cos phi 0.8 ensures optimum efficiency in electricity generation.
In addition, its 25-liter tank capacity provides an autonomy of 6.5 hours at 75%, making it a reliable source of long-term power. With dimensions of 1050 x 860 x 760 mm and a weight of 180 kg, the generator Ayerbe AY 20000 V TX E is a compact and portable solution to meet electrical needs in various situations. It includes an approved control panel.
| Maximum power 400 V | 20 KVA - 16000 W |
| Rated power 400 V | 18 KVA - 14400 W |
| Maximum power 230 V | 6,5 KVA |
| Rated power 230 V | 6 KVA |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 400 - 230 V. / 50 Hz |
| Start | Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 99 LwA / 76 LpA@7m |
| Motor | |
| Manufacturer | VANGUARD |
| Model | TWIN 23 E |
| Power | 31 HP |
| Displacement | 993 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 3.9 L/H |
| Oil capacity | 2,4 L |
| Starting system | Electric |
| Alternator | |
| Brand | LINZ |
| Model | E1S13M D/2 |
| Type | With brush |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Compound |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 400 & 230 / 50 Hz |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 25 l |
| Autonomy at 75% | 6,5 hours |
| Weight | 180 kg |
| Dimensions | 1.050 x 860 x 760 mm |
| Packing volume | 0,67 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
