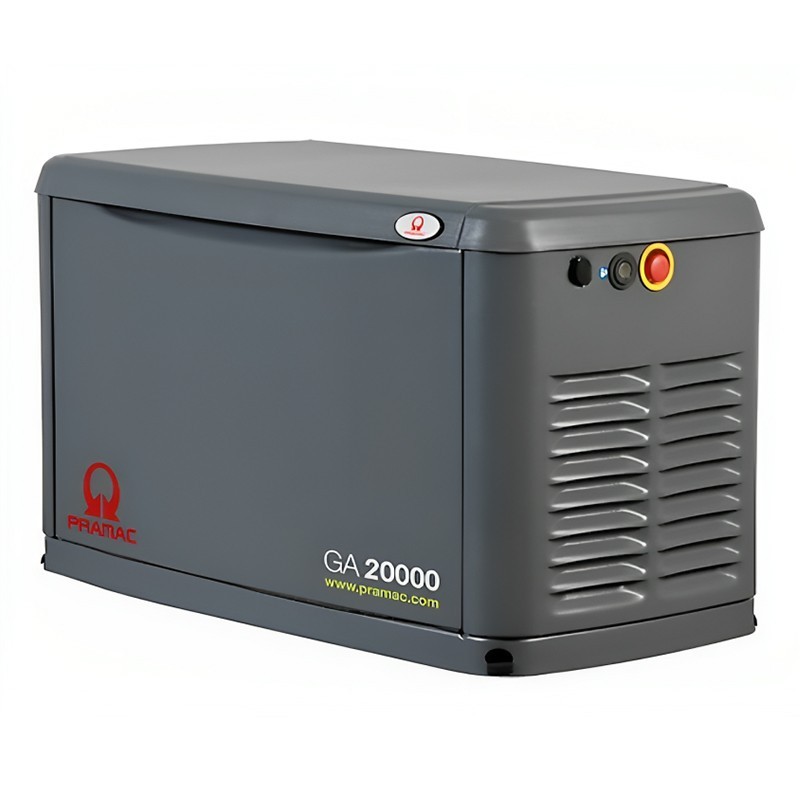

The Gas Electric Generator Pramac GA20000 is equipped with a powerful and efficient engine designed by Generac G-Force. This engine incorporates an innovative design that optimizes "breathing" to improve fuel efficiency. Cast iron cylinder walls and rigorously polished surfaces ensure greater durability and longer service life.
The pressure lubrication system and electronic ignition and ignition advance functions ensure smooth starting and reduced maintenance, with an oil change interval of up to 2 years/200 hours.
As for the generator, it features a rotating field design that makes it more compact and efficient, operating 25% more efficiently than conventional gensets. The tilted stator produces a smooth sine wave compatible with electronic equipment, and the phase-shifted excitation maximizes engine starting capability. Automatic voltage regulation and True Power™ technology ensure stable output and total harmonic distortion of less than 5%.
The unit features Evolution™ settings that offer a weatherproof user interface with illuminated push buttons to select the operating mode. In addition, it includes a suite of features such as voltage sensing, switch closure delay, engine warm-up, engine cooling, weekly scheduler and smart battery charger, which contribute to efficiency and extend the life of the generator.
It also features a Wi-Fi connection that allows remote monitoring via the Mobile Link™ app. The soundproof and weather-resistant aluminum body, along with an innovative mounting system, make this generator compact, easy to assemble and visually appealing.
| Emergency power ESP (LPG) | 20000 VA |
| Emergency power ESP (Natural Gas) | 17000 VA |
| Frequency | 50 Hz |
| Voltage | 400 V |
| Phases | 3 |
| Power factor | 0.8 cos ϕ |
| Motor Make | Generac |
| Model | G-force 1000 series |
| Engine type | OHV air-cooled |
| Number of cylinders and arrangement | 2 in V |
| Displacement | 999 cc |
| Compression ratio | 9.5:1 |
| Starting system | Electric |
| Electrical circuit | 12 V |
| Speed regulator | Electronic |
| Nominal operating speed | 3000 rpm |
| Oil capacity | 1.8 l |
| Fuel | Natural gas or LPG |
| Natural gas: fuel consumption 50% | 4.50 m³/h |
| Natural gas: fuel consumption 100% | 7.02 m³/h |
| Liquid Propane Gas: fuel consumption 50% 83 m³/h | 6.83 l/h |
| Liquid Propane Gas: fuel consumption 100% 86 l/h | 10.86 l/h |
| Voltage regulation system | AVR |
| Poles | 2 |
| Maximum current (LPG) | 28.87 A |
| Maximum current (Natural Gas) | 24.54 A |
| Magnetothermal circuit breaker | 32 A |
| Guaranteed sound level (LWA) | 95 dBA |
| Quiet-Test Mode | 59 dB(A) |
| Dimensions L x W x H | 1232 x 648 x 733 mm |
| Dry weight | 220 Kg |
The Gas Electric Generator Pramac GA10000 features a Digital Evolution™ Controller that ensures precise control of the genset systems. It offers features such as hour meter, voltage loss/return adjustment and programmable starts. It provides protection against overcurrent, fuse failure and more. It also features Wi-Fi MOBILE LINK™ and a MCB, making it a versatile and reliable choice for power generation.
| IMPORTANT NOTICE |
| Mandatory on the part of the customer to check oil and grease levels prior to start-up. If the goods cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
