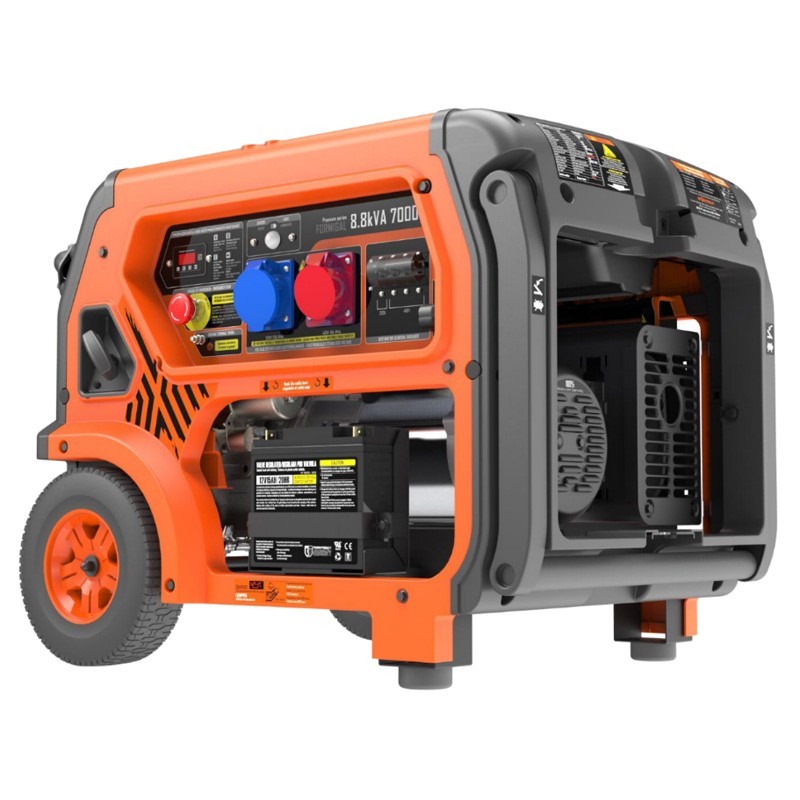

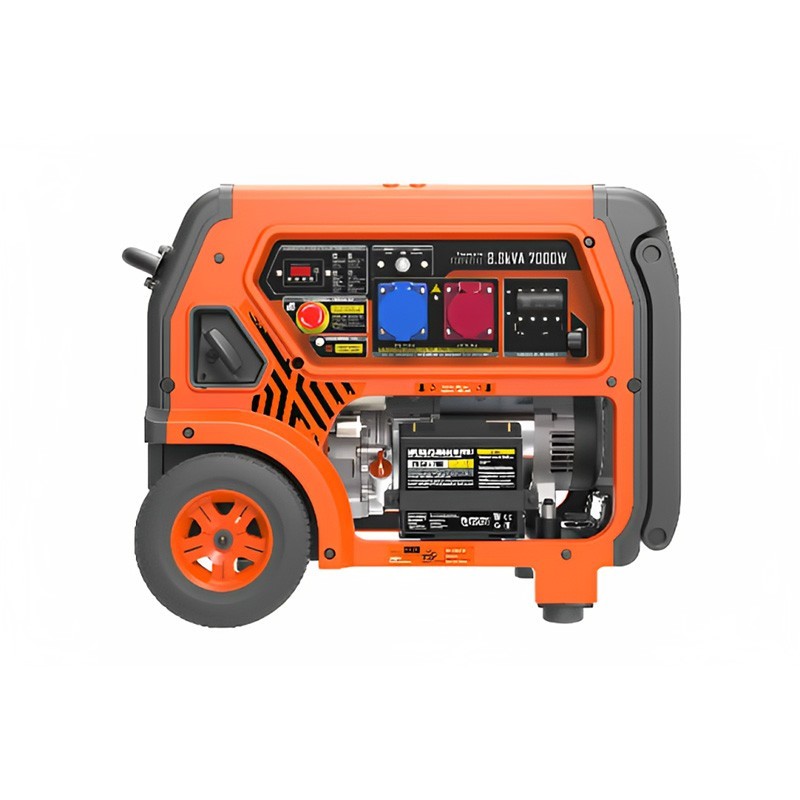

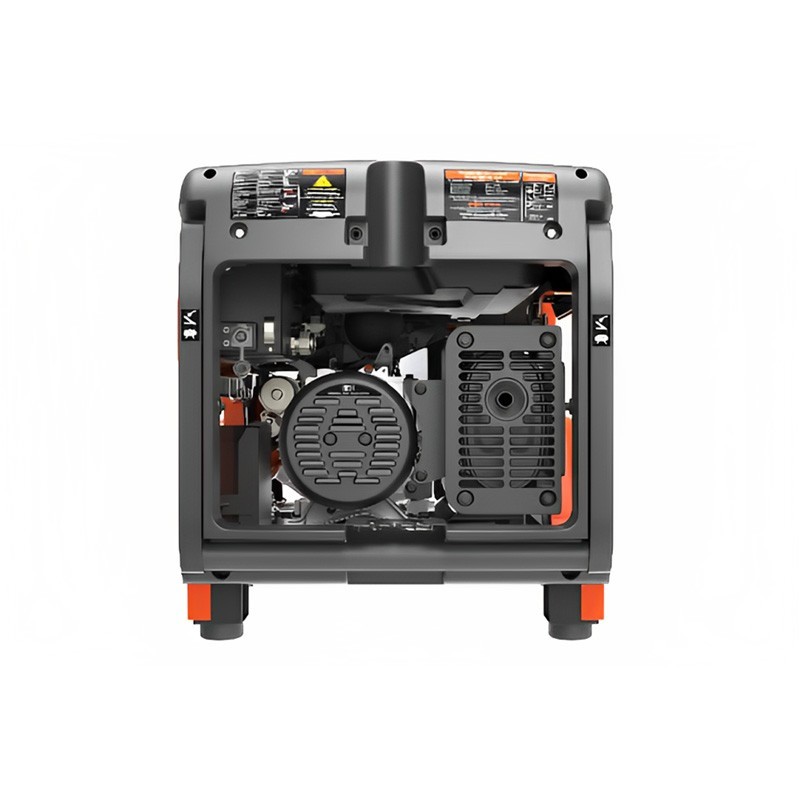

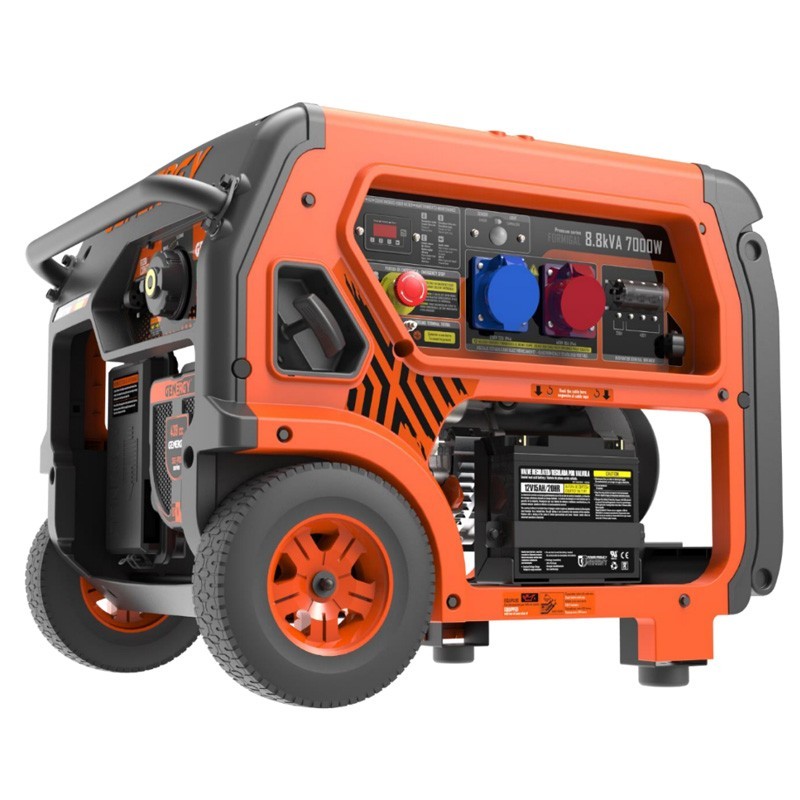

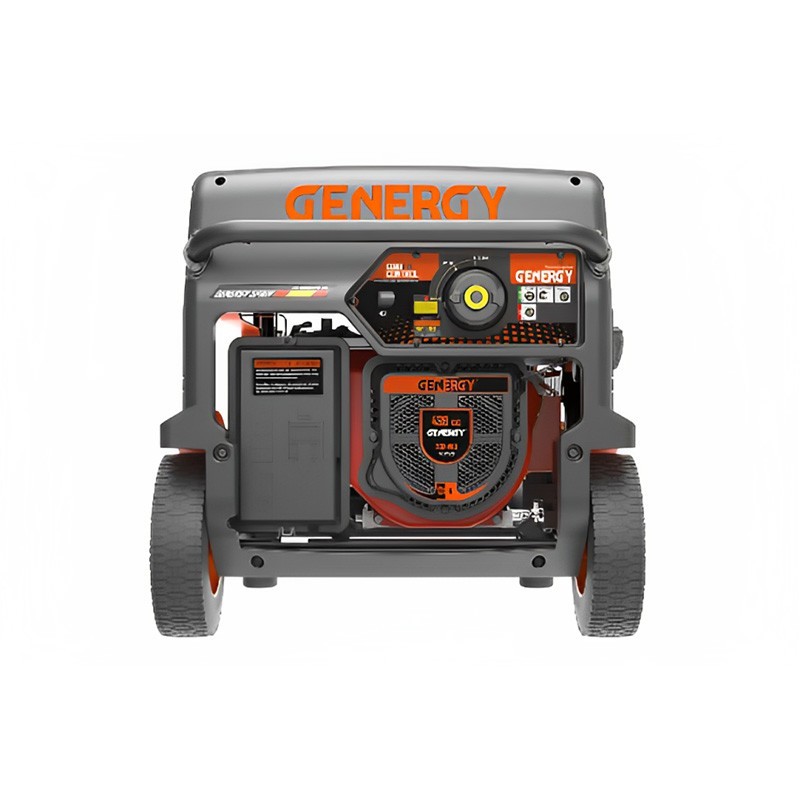

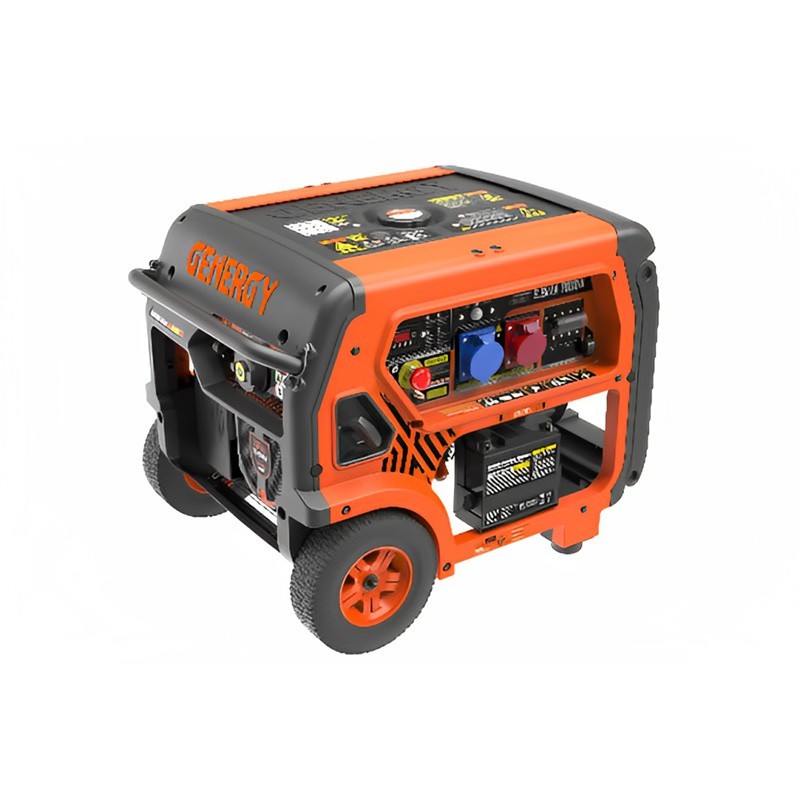

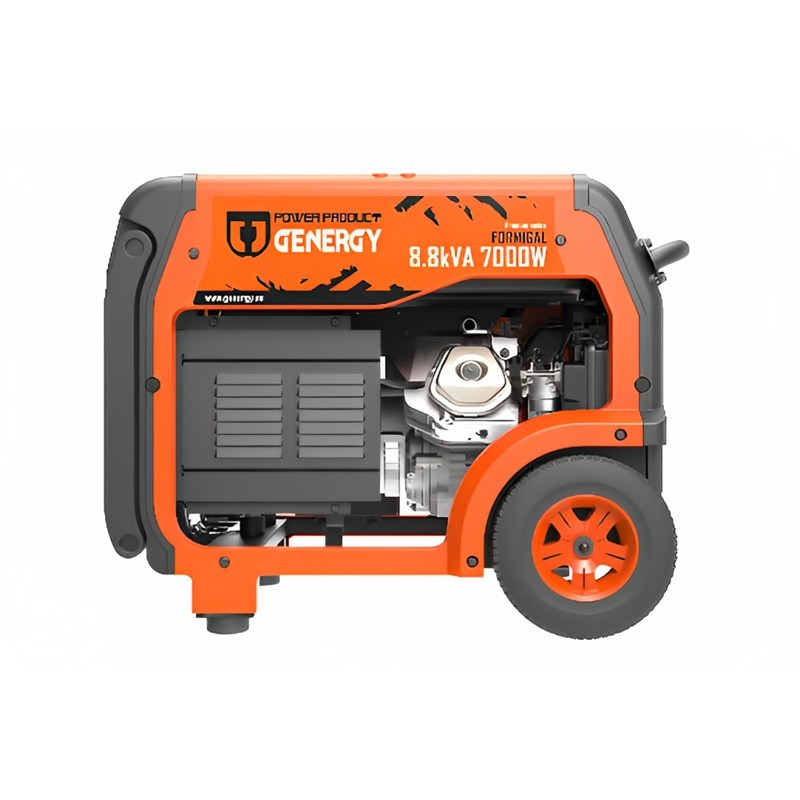

The electric generator Genergy Formigal 7000 W has a SVR stabilization system, which protects both the alternator and the stabilizer from damage from improper use and offers better performance against inductive starting material. It also has an engine Genergy SGE440PRO, which gives it a power up to 7000 W and a rated power of 6500 W.
The fuel tank has a capacity of 28 liters, which gives an autonomy of 8.75 hours at 75% capacity. In spite of the 120 kilos it can weigh once the tank is filled, the generator has a great portability thanks to the resistant wheels it has, which do not require any kind of maintenance or bearings.
This generator is prepared for any type of emergency, not only thanks to the stabilization system previously mentioned, but also has an emergency button for easy shutdown.
| Stabilization system | SVR" electronics |
| Voltage - Frequency | 230/400V - 50Hz |
| Maximum Power (230V) | 6500 W |
| Nominal Power (230V) | 6000 W |
| Maximum Power (400V) | 7000 W (8.8kVA) |
| Rated Power (400V) | 6500 W (8.1kVA) |
| Type by number of phases | Dual voltage |
| Power factor | 0.8 - 1 |
| Motor Model | SGE440PRO |
| Displacement | 439 cc |
| Engine type | Gasoline, 4-stroke OHV air cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 70 dB - 77 dB |
| Guaranteed sound power level LwA | 97 dB |
| Starting type | Manual and Electric |
| Fuel tank capacity | 28 L |
| Consumption at 25-50-75% load | 1.9 L/H - 2.6L/H - 3.2L/H |
| Autonomy 25-50-75% load | 14.7H - 10.7H - 8.75H |
| Oil capacity and grade | 1.1L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G1 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Integrated with 10" wheels |
| Dimensions | 859x664x667 mm |
| Weight | 105 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
