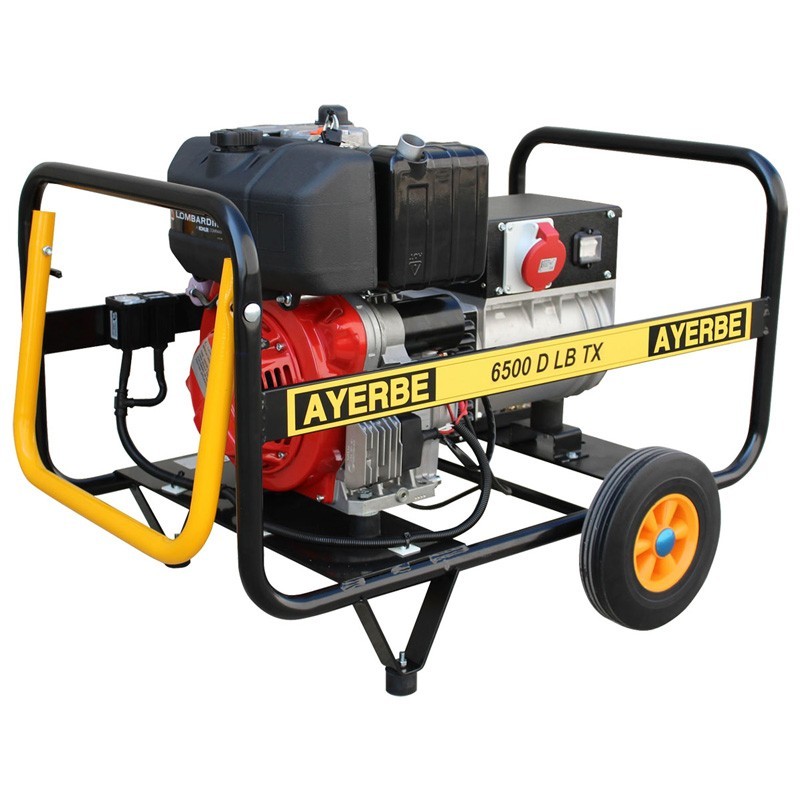

This generator that we have before us of the brand Ayerbe model AY 6500 LB TX E has a 10 hp Lombardini engine powered by diesel. Undoubtedly a real monster for the type of generator we are talking about.
As for its power, thanks to rotate at 3000 revolutions per minute, this generator delivers 5200 W of maximum power in three-phase voltage mode.
On the other hand the degree of protection that has this generator is IP23 and the type of insulation is class H. The motor itself is with brushes so it involves more maintenance than induction.
However, we believe that this does not stop this generator from being one of the best purchase options for the construction and workshop sector.
| Maximum power | 6.5 KVA 400 V / 4 KVA 230 V |
| Rated power | 6 KVA 400 V. / 3 KVA 230 V |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 400 - 230 V. / 50 Hz |
| Start | Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 108 LwA / 80 LpA@7m |
| Motor | |
| Brand | LOMBARDINI |
| Model | 15 LD 440 |
| Power | 10 HP |
| Displacement | 440 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Diesel |
| Fuel consumption at 75% | 1.7 L/H |
| Oil capacity | 0,9 L |
| Starting system | Electric |
| Alternator | |
| Brand | LINZ |
| Model | E1S 10 MG |
| Type | With brushes |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Compound |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 5,5 l |
| Autonomy at 75% | 3,3 hours |
| Weight | 110 kg |
| Dimensions | 950 x 625 x 750 mm |
| Packing volume | 0,44 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
