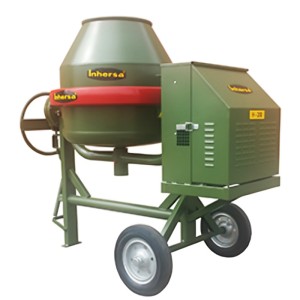

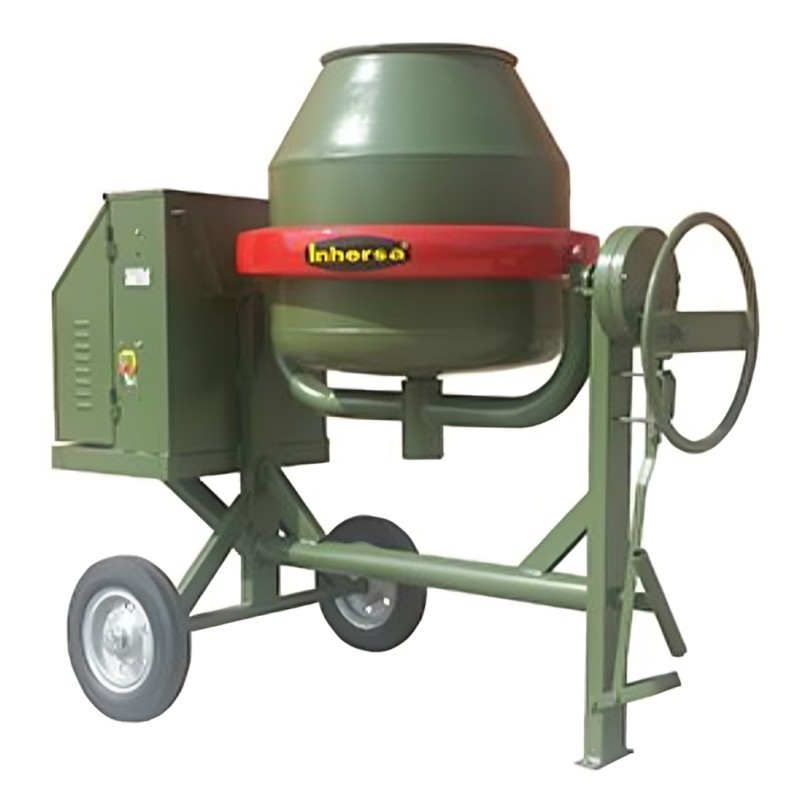

Electric/gasoline/diesel mixer Inhersa H-200 300 L
The Inhersa H-200 concrete mixer stands out for its sturdy mixer tank, made of thick sheet metal that allows the mixing paddles to be welded to the tank instead of simply bolted, ensuring greater durability and strength compared to thin sheet metal tanks.
Safety is a priority in this mixer, as it incorporates a start-stop switch on the outside of the motor cabin, with a minimum voltage coil that prevents automatic start-up after a power failure, thus complying with current CE standards.
Available in five different models, with diesel, gasoline or electric engine options, the versatility of the Inhersa H-200 adapts to a variety of work requirements. The slew ring and pinion-axle tipping mechanism, made of machined steel in a greased steel housing, allows smooth and effortless turning of the flywheel.
The engine cab is compatible with different types of engines, providing flexibility to users. In addition, the bowl and pinion rotating shafts are mounted on maintenance-free grease bearings, and the drive shaft couplings are splined, avoiding typical keyway failures. With a tank capacity of 300 liters and a mixing capacity of 172 liters.
Specifications
| Tank capacity |
300 L |
| Mixing capacity |
172 L |
| Weight |
203 Kg |
| Height |
150 cm |
| Length |
185 cm |
| Width |
97 cm |
Characteristics of the models
| ELECTRIC |
SINGLE-PHASE |
THREE-PHASE |
| Power |
2 Hp |
2 Hp |
| Volts |
230 V |
400 V |
| Frequency |
50 Hz |
50 Hz |
| GASOLINE |
KOHLER |
HONDA |
| Model |
CH270 |
GX-160 UT1LX4 |
| Power |
6 Hp |
5.5 Hp |
| RPM |
1800 rpm |
1800 rpm |
| DIESEL |
LOMBARDINI |
|
| Model |
15LD350 AR |
|
| Power |
5 Hp |
|
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
