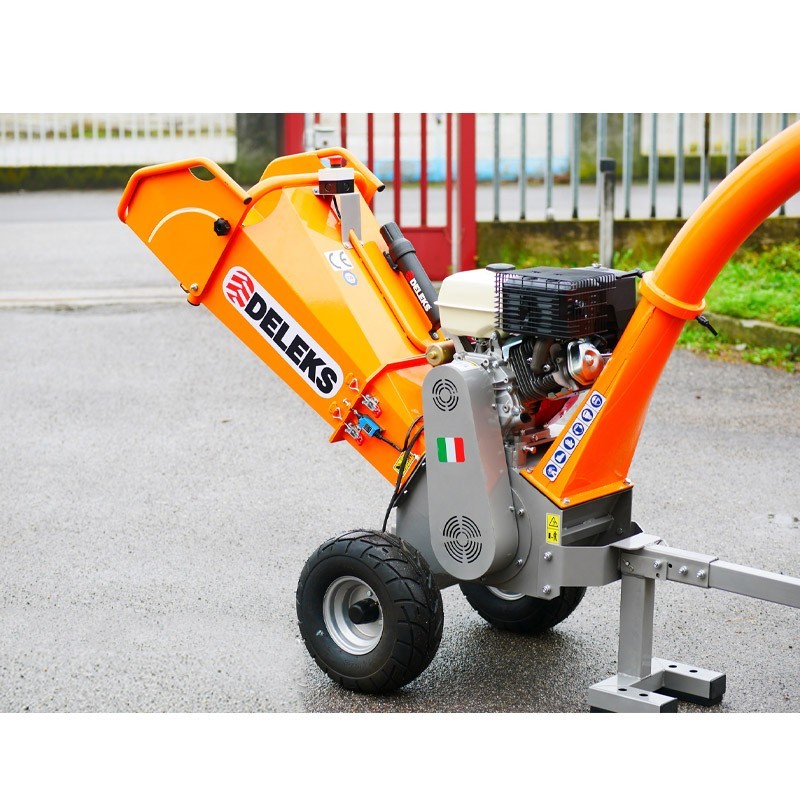

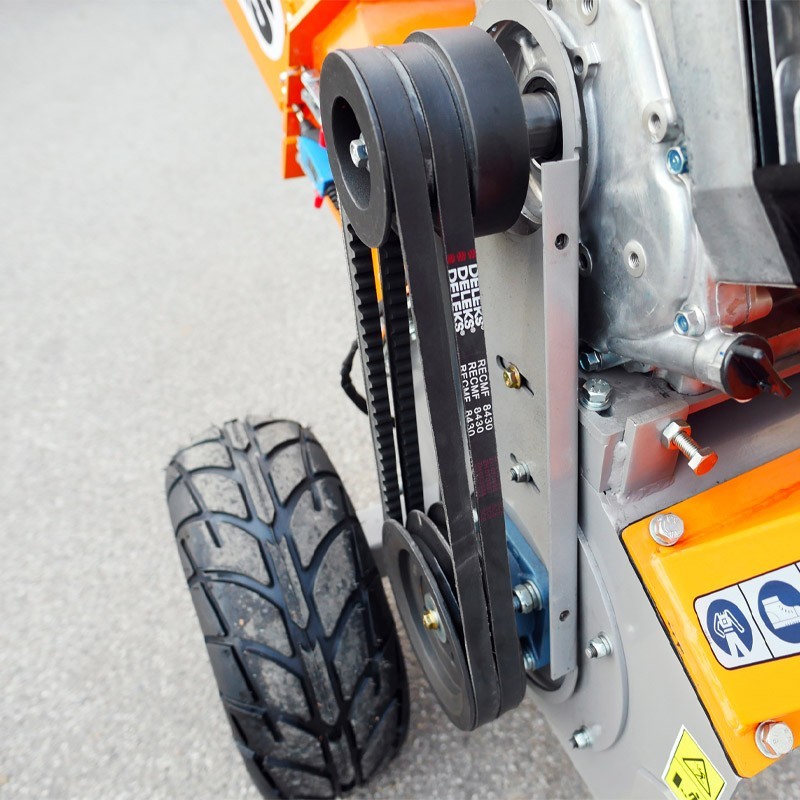

The branch shredder Deleks DK-800 It features a Honda GX-390 4-stroke engine with air cooling. This engine provides us with a power of 13.5 HP. Additionally, this shredder also includes a system of V-belt transmission.
The DK-800 crusher model Deleks It provides us with a good cutting system. This includes a drum with two blades and a counter-blade. It also offers us an ejection height of 1600 mm.
This Shredder Deleks offers us a anti-friction system to prevent direct movement between the motor and the rotor. This facilitates the startup. Additionally, it prevents the crankshaft from breaking in case the rotor locks.
The DK-800 model has a safe one robust and stable structure with a low center of gravity. The model also offers us a ergonomic design and good CE security protections.
This model of DK-800 Branch Shredder It guarantees the operator great ease and comfort for performing good crushing. This is thanks to its notable good features. The model has a lightweight of 200 kg.
Among these features, we can highlight the working width of 760 mm and the total height of 1630 mm. We can also highlight the total length of 2600 mm and its total efficiency of 6-7 m3/h.
The DK-800 Shredder from Deleks It comes with instructions for the use and maintenance of the machine and instructions for the use and maintenance of the Honda engine.
| Total width | 800 mm |
| Weight | 200 kg |
| Total height | 1630 mm |
| Total length | 2240 mm |
| Lamas: Weight | 600 g |
| Transmission | V Correas |
| Efficiency | 6-7 m3/h |
| Cutting system | Drum with 2 blades + 1 counter-blade |
| Measurement of the chips | 5 - 15 mm |
| Number of transmission cores | 2 |
| Measurement of the belts | 17x1041 |

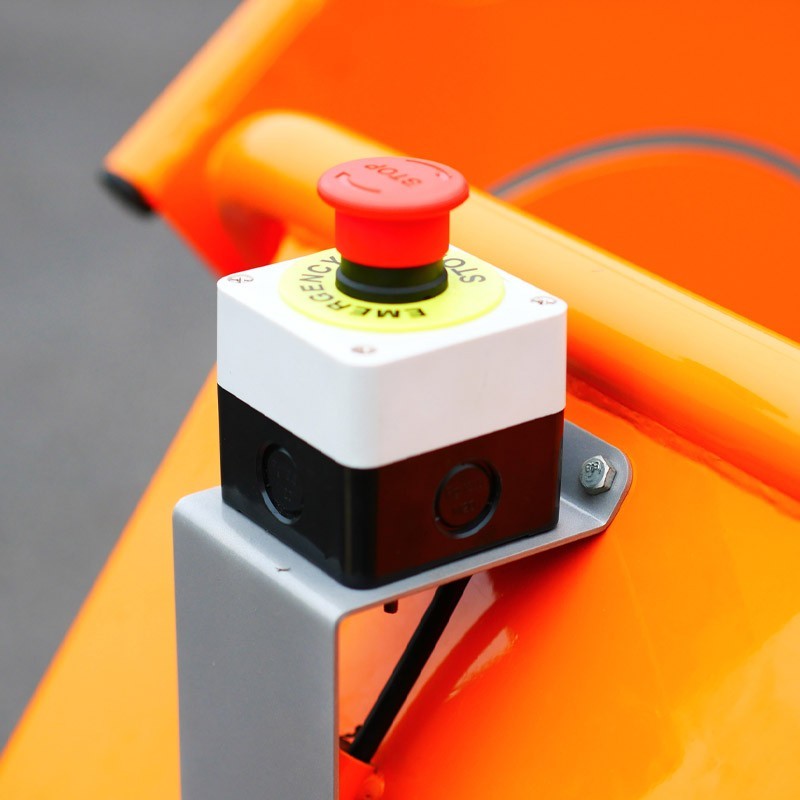

| Security system | Emergency button |
| Lamas: measure | 300*55 mm |
| Exit measures | ø 130 mm / 360° |
| Maximum cutting diameter | 80 - 100 mm |
| Engine | HONDA GX-390 13.5HP |
| Start | Electric and with cable |
| Wheels: measurements | 16" x 410 mm |
| Entrance width | 300*140 mm |
| Timon | √ |
| Ejection height | 1600 mm |
| Gasoline consumption | 1 l/h |
| Packaging dimension | 900*760*1000 mm |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
